Concrete Mixer Trucks

Howo 8x4 14M3 Concrete Mixer Trucks

The chassis uses HF9 front and HC16 rear axles, with 12.00R20 radial tyres and a single-sleeper cab with air conditioning. It is designed for high-volume, repetitive batching in construction sites where consistent mix quality and uptime are critical.

Condition New
Warranty 12Months
Cab Onesleeper,withAir-con
Color White
Transmission HW15710

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10253

White HOWO 8x4 concrete mixer truck parked on a yard, front three-quarter view showing the cab and drum

Key Benefits

What This Unit Does Well

WD615.69 engine is the most common powerplant in HOWO mixers, so filters, injectors and oil are widely available in export markets
HW15710 nine-speed gearbox provides precise gear ratios for slow drum rotation during mixing and higher speeds during transit
14m3 alloy steel drum with HG700 blade and T510 cylinder material resists abrasion from repeated concrete cycles
31000kg gross weight allows full payload capacity on 8x4 drive, reducing the number of trips needed per site
Air brake system with 12.00R20 radial tyres ensures stable handling under full load on uneven terrain
12-month warranty and on-site engineer support reduce downtime risk during initial site operations

Application Scenarios

Where It Is Used

Repetitive concrete batching at large infrastructure projects with multiple delivery points per day
Transport of ready-mix concrete over unpaved access roads to remote construction sites
High-volume delivery runs where drum rotation speed and discharge consistency are critical
Operations in hot climates where air-conditioned cab and cooling system reliability are essential

Fit

Who It Is For

Construction contractors managing multiple site deliveries with tight scheduling
Machinery dealers stocking mixers for resale in African, Middle Eastern and Southeast Asian markets
Fleet operators replacing older mixers with a proven engine and transmission combination
Government or municipal works departments requiring reliable, low-maintenance mixers for public works

Buyer Pain

Problems It Solves

Mixers that lose drum rotation speed under load due to weak or mismatched transmissions
Frequent drum wear or blade failure from low-grade steel or poor material selection
Long lead times for spare parts when the engine or gearbox is not a common model
Inconsistent discharge quality due to low hydraulic system pressure or poor water supply control
Lack of on-site support when a mixer breaks down during a critical delivery window

Engineering

Technical Features

WD615.69 water-cooled six-cylinder diesel engine with turbocharging and intercooling
HW15710 manual transmission with nine forward gears and two reverse gears
HF9 front axle with 9000kg maximum load and HC16 rear axle with 16000kg maximum load
8x4 drive layout with three axles, including directional assistance for tight site manoeuvring
14m3 alloy steel drum with T510 cylinder, HG700 blade and 8mm high-strength head material
Italy Bonfiglioli or Germany ZF reducer for precise drum rotation control
American Sao or Germany Rexroth hydraulic system with pressure regulation for consistent mixing
500L water tank with pressure supply and cooling system for drum wash and temperature control
Left and right side and cab operation with 180° discharge range and height adjustment
Air brake system with 12.00R20 radial tyres on steel rims

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Howo 8x4 14M3 Concrete Mixer Trucks
Condition	New
Warranty	12Months
Cab	Onesleeper,withAir-condition
Color	White
Transmission	HW15710
Dimension(LWH)	10613x2496x3987
Weight	31000kg
Certification	ISO9001,ISO/TS16949,CCC,
Tire	12.00R20Radialtyre
Power(W)	336HP
Engine	WD615.69
Drive Wheel	8x4
Dimensions L x W x H unloaded	10613 x 2496 x 3987 mm
Wheelbase	1800+3000+1400 mm
Curb Weight	31000 kg
Engine Model	WD615.69
Horsepower	336 HP
Emission	Not specified
Fuel Type	Diesel
Front Axle	HF9
Rear Axle	HC16
Tyre	12.00R20 Radial
Gross Vehicle Weight	31000 kg
Mixer Volume	14 m3
Maximum Speed	75 km/h
Certifications Stated by Supplier	ISO9001, ISO/TS16949, CCC

Materials

Materials and Build

Alloy steel drum body with T510 cylinder and 6mm thickness
HG700 blade material for high abrasion resistance
8mm high-strength alloy steel head for drum end durability
Cast steel HF9 front and HC16 rear axle housings
12.00R20 radial tyres on steel rims with reinforced sidewalls

Process

How an Order Is Handled

You send the site location, average distance to delivery points, and typical load volume
You approve the final specification sheet, including cab colour, tyre brand, and delivery date
Unit is prepared, photographed, and video recorded with engine start and drum rotation test
We book RoRo shipment and issue export documents including commercial invoice and bill of lading

Quality Control

Checks Before Loading

Chassis, engine, and gearbox numbers are photographed and matched to the approved specification
Drum rotation, hydraulic pressure, and water supply are tested and recorded on video before loading
Paint, glass, and cab trim are inspected for transport damage at the loading port
Loading and lashing photos are sent before the vessel departs

Customisation

What Can Be Changed

Cab colour other than white
Sleeper layout, single or double bunk
Left hand or right hand drive as required by local registration
Tyre brand and spare wheel count
Additional water tank or cooling system upgrade

Honest Comparison

How It Compares With the Alternatives

6x4 mixer truck	The 8x4 drive allows higher payload and better traction on soft ground, but uses more fuel when running empty
Higher horsepower 360HP Cummins engine	336HP WD615.69 is more common in export markets, so parts are easier to source and maintenance is simpler
Non-radial tyres	12.00R20 radial tyres offer longer life and better fuel efficiency, especially on long hauls between sites

Use Guide

Using It Well

Replace fuel and oil filters on the WD615.69 schedule, not on a generic interval
Monitor hydraulic system pressure monthly; low pressure causes incomplete discharge
Keep the water tank clean and the pressure pump serviced to avoid clogging during mixing
Order the drum blade and reducer oil with the truck to avoid delays during the first service

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Side view of the HOWO mixer truck with 1800+3000+1400 mm wheelbase and 12.00R20 radial tyres

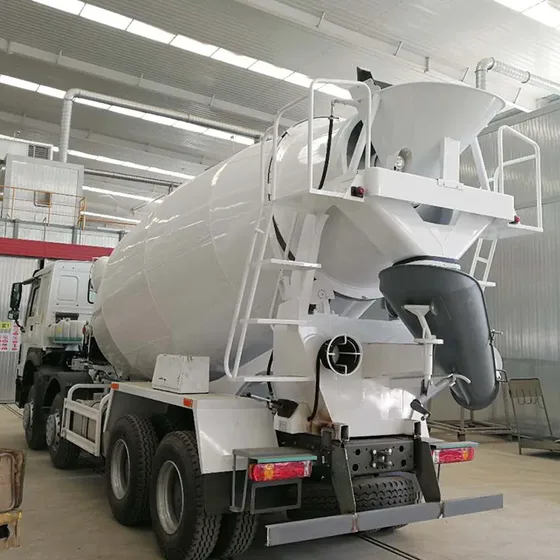

Rear view of the mixer truck with drum discharge mechanism and air brake lines

Cab interior with single sleeper and air conditioning controls

WD615.69 engine and transmission unit in the chassis

Drum assembly with alloy steel cylinder, HG700 blades, and 180° discharge range

Source Specification

Manufacturer Text We Hold for This Listing

Howo 8x4 14M3 Concrete Mixer Trucks Now we have 10 units 6x4 mixer truck ready for shipment, which were produced in 2014, price is very good. Howo 8x4 14M3 Concrete Mixer Trucks Product Description Product specification: Chassis parameters Name: 8-18 m3 mixer Truck model: Concrete mixer truck Engine: Cummins 360 horsepower Size: 1100x2495x3990mm gearbox Fast 9-speed gearbox Volume: 14m3 mixer Truck Front and rear bridges: 7.5Ton/16ton Total mass: 25000(KG) drive: (6x4) brake: Air brake Wheelbase: 1800+3000+1400 Turn to: Directional assistance axes: 3 Speed: 85(km/h) Number of tires: 12+1 Tires: 12.00-20(Steel tire) Tank parameter Tank body Alloy steel Cylinder material: T510; 6mm Alloy steel Blade material: HG700 Head material: High strength 8mm alloy steel Reducer: Italy Bonfiglioli / PMP, Germany ZF (pure import) Hydraulic system American Sao/Eaton, Germany Rexroth water supply system:

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
