China BINZHOU 400 Meters Well Drilling Machine

It operates on 380V or other voltages and is designed for drilling through clay, sandy soil, weathered rock, and bedrock using mud, air foam, DTH, or air-lift reverse methods.

  • Condition New
  • Usage WaterWell
  • Warranty 1YEAR
  • Color red,whiteoryourdemands
  • Dimension(L*W*H) 12160*2490*3440mm
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 11539

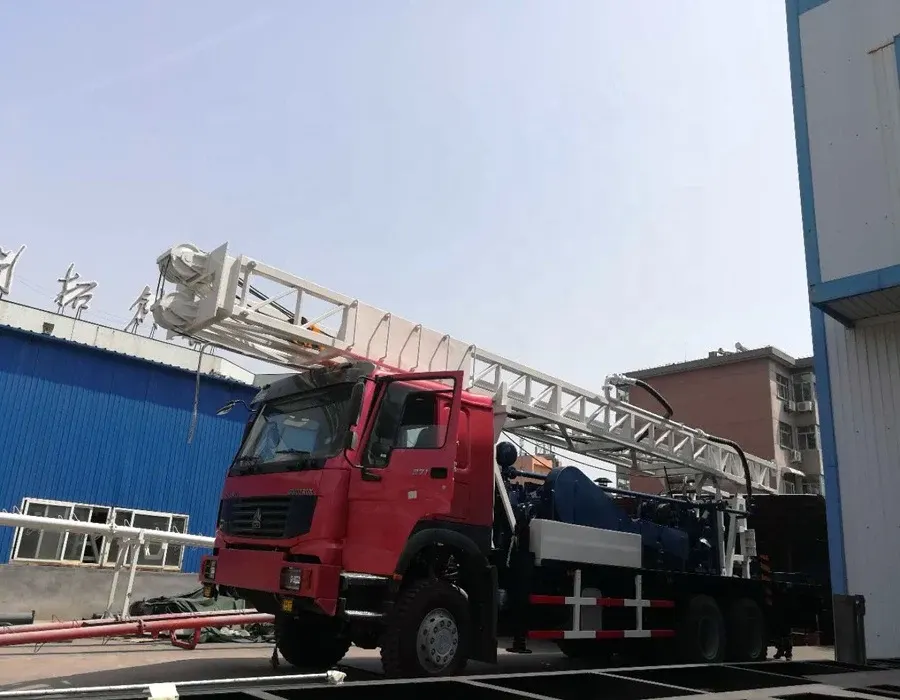

Red and white BINZUAN 400-meter water well drilling rig mounted on SINOTRUK HOWO 6x6 chassis, front three-quarter view
Red and white BINZUAN 400-meter water well drilling rig mounted on SINOTRUK HOWO 6x6 chassis, front three-quarter view
Key Benefits

What This Unit Does Well

  • 6x6 SINOTRUK HOWO chassis provides high mobility on unpaved and uneven terrain
  • CUMMINS 273kW engine delivers consistent power for continuous drilling operations
  • Dual winches allow for both main and tool hoisting with high lifting capacity
  • Mud pump and rotary table support multiple drilling methods for different strata
  • ISO9001 certification ensures documented quality control in assembly and testing
Application Scenarios

Where It Is Used

  • Drilling 400-meter water wells in remote agricultural zones with no access roads
  • Installing boreholes in desert regions where sand and weathered rock layers require DTH or air-lift methods
  • Setting up water supply points for mining or construction camps with limited infrastructure
  • Deploying in flood-prone areas where quick access to groundwater is needed
Fit

Who It Is For

  • Government water projects in rural or arid regions needing reliable drilling equipment
  • Contractors working on large-scale irrigation or mining site development
  • Water service providers establishing community wells in low-infrastructure areas
  • Engineering teams sourcing mobile drilling rigs that can be shipped and set up quickly
Buyer Pain

Problems It Solves

  • Lack of mobile drilling units that can operate on rough terrain without road upgrades
  • Long lead times for spare parts when using imported rigs with proprietary components
  • Inconsistent power supply in remote areas due to reliance on grid electricity
  • Difficulty in setting up drilling rigs that require multiple transport stages and assembly
Engineering

Technical Features

  • SINOTRUK HOWO 6x6 special chassis with 273kW CUMMINS diesel engine
  • Rotary table with variable speed settings from 13 to 117 rpm and reverse capability
  • Main winch with 45kN single rope lifting capacity and 270kN drum capacity
  • Tool winch with 20kN single rope lifting capacity and 40m rope capacity
  • BW850/2A plunger pump with 150mm cylinder diameter and 180mm piston stroke
  • Mud pump system with 600-850L/min flow rate and 3-2MPa rated pressure
  • 380V or other voltage electrical system with MF generator rated 30kW
  • Drilling depth up to 400 meters with 500mm diameter capability
  • Support for mud, air foam, DTH, and air-lift reverse drilling techniques
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

ConditionNew
UsageWaterWell
Warranty1YEAR
Colorred,whiteoryourdemands
Dimension(L*W*H)12160*2490*3440mm
Weight21650kg
CertificationISO9001
TypeRotaryDrillingRig
Voltage380Vorothers
Drilling Depth400 m
Drilling Diameter500 mm
Turntable Speed117;102;60;38;23;13;16 rpm (reverse)
Turntable Torque5.4-50 kN·m (reverse)
Main Winch Capacity45 kN single rope, 270 kN drum
Tool Winch Capacity20 kN single rope, 40 m rope
Bearing Capacity36 t
Pipe Kelly Size108x108x7500 mm
Assistant Pipe Size89x10x5500 mm
Hydraulic Pump Flow50/32 ml/r
Pump Cylinder Diameter150 mm
Piston Stroke180 mm
Pump Flow Rate600-850 L/min
Pump Pressure3-2 MPa
Pounding Frequency58-82 min−1
Truck Chassis ModelSINOTRUK HOWO 6x6
Engine Power273 kW
Materials

Materials and Build

  • Steel chassis frame of SINOTRUK HOWO 6x6 model
  • Cast steel rotary table and turntable housing
  • Welded steel mast with high-strength steel sections
  • Stainless steel hydraulic pump components
  • Galvanized steel pipe Kelly and assistant pipe
  • Rubber-lined winch drums and steel wire rope
Process

How an Order Is Handled

  • You provide the drilling depth, soil layer profile, and site access details
  • We confirm the rig configuration and available stock or build schedule
  • You approve the final spec sheet, including color and voltage option
  • Unit is prepared, tested, and photographed before loading
  • We arrange RoRo or container shipment and provide export documentation
Quality Control

Checks Before Loading

  • Chassis, engine, and pump serial numbers are photographed and matched to the approved spec
  • Hydraulic system pressure and winch operation are tested and recorded on video
  • Mast alignment and turntable rotation are verified before loading
  • Loading and lashing photos are sent before vessel departure
Customisation

What Can Be Changed

  • Custom color other than red or white
  • Voltage configuration to match local supply (380V or others)
  • Additional tool kit or spare parts bundle
  • Optional field installation and commissioning support
  • Engineer dispatch for overseas maintenance or training
Honest Comparison

How It Compares With the Alternatives

4x2 mounted drilling rigThe 6x6 chassis offers better traction and load distribution on soft or uneven ground, but consumes more fuel and has higher maintenance cost
Electric-powered rigDiesel operation avoids dependency on grid or generator supply, but requires fuel logistics and has higher noise output
Use Guide

Using It Well

  • Replace hydraulic pump seals and filters at intervals recommended for BW850/2A pumps
  • Inspect wire rope for wear after every 50 hours of operation, especially on the main winch
  • Keep the CUMMINS engine oil and air filters changed on schedule to prevent dust damage in dry zones
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

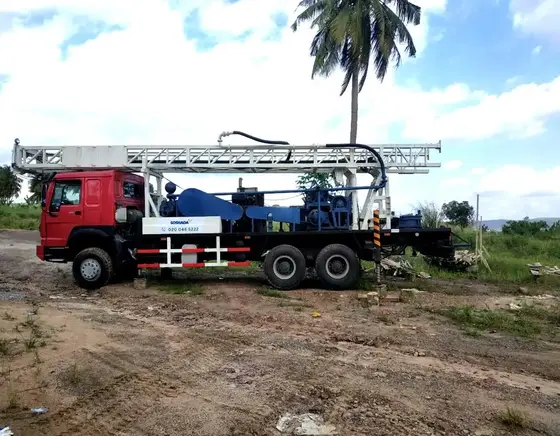

China BINZHOU 400 Meters Well Drilling Machine - photo 2
Source Specification

Manufacturer Text We Hold for This Listing

China BINZHOU 400 meters well drilling machine BZC400CHW is truck mounted 300m water well drilling rig. It can drill in different layer (Clay layer, sandy soil layer, weathered rock, bedrock etc) with suitable drilling tools.With reasonable design, superior performance and complete tools, it can drill with different technology, eg. mud, air foam drilling, DTH drilling, air- lifting reverse drilling to suitable different stratum. Main characteristic BZC300CHW is made using SINOTRUK HOWO 6X6 special chassis. The diesel engine, double winches, mud pump and rotarytable, drill tower are on the chassis. It is easy to move, good mobility. The lifting force of main and secondary hoisting is large and can meet the normal drilling and can deal with general accidents. Technical parameter Drilling depth ( M ) 400 Drilling diameter ( mm ) 500 Speed of turntable ( r/min ) 117;102;60;38;23;13;16 ( reve

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Drilling Rigs Buyers Compare With This

All 3 Drilling Rigs Full product index

Buyer Questions

Questions About This Unit

Is this unit new or used

All units are new. We source directly from the manufacturer and provide full documentation.

What is the lead time

Units in stock can be loaded within 10 days. Custom builds depend on the factory schedule and are confirmed in writing with the proforma invoice.

Can you supply spare parts for this rig later

Yes. We supply standard spares including hydraulic pump parts, winch components, and pipe Kellys. They can be consolidated with the initial order.

Do you ship by container or RoRo

The rig is typically shipped RoRo due to size. Container shipment is possible with disassembly, but we quote both options for cost comparison.

What documents do I get for customs

Commercial invoice, packing list, bill of lading, certificate of origin, and ISO9001 certificate are included. Additional inspection certificates are available.
