Drilling Rigs

For 600 Meters Water Well Drilling Rig

The BZC600BZY is a truck-mounted rotary drilling rig for 600-meter depth water wells. It uses a SINO-TRUK 8x4 chassis with a WD615.92E diesel engine rated 196kW. The rig is designed for directional circulation drilling in clay, sand, and rock using a 3NB-130 mud pump. It is built on a SINOTRUK chassis and is suited for projects requiring mobility and on-site adaptability.

  • Condition New
  • Usage WaterWell
  • Warranty 1YEAR
  • Color red,whiteoryourdemands
  • Dimension(L*W*H) 12160*2490*3440mm
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 11538

Red and white water well drilling rig on a truck chassis, side view
Red and white water well drilling rig on a truck chassis, side view
Key Benefits

What This Unit Does Well

  • SINO-TRUK 8x4 chassis provides a robust and readily available base for field service
  • WD615.92E 196kW diesel engine delivers sufficient power for 600m drilling depth
  • 3NB-130 mud pump allows drilling in various soil types with appropriate bit selection
  • Truck-mounted design improves site-to-site relocation speed and reduces mobilisation costs
  • ISO9001 certification indicates a documented quality management system is in place
  • 1-year warranty provides a baseline level of protection against defects
Application Scenarios

Where It Is Used

  • Drilling water wells for agricultural irrigation in arid regions
  • Prospecting for groundwater resources in new development areas
  • Providing water supply for remote construction sites
  • Geotechnical investigation for civil engineering projects
  • Drilling monitoring wells for environmental remediation
  • Water well drilling in areas with limited access for larger rigs
Fit

Who It Is For

  • Water well drilling contractors seeking a mobile and versatile rig
  • Agricultural businesses needing on-site water source development
  • Construction companies requiring water supply for projects
  • Government agencies responsible for water resource management
  • Geotechnical engineering firms conducting site investigations
  • Mining operations requiring water supply for processing
Buyer Pain

Problems It Solves

  • High mobilisation costs associated with conventional drilling rigs
  • Limited access to drilling sites with difficult terrain
  • The need for a self-contained drilling unit with its own power source
  • Difficulty in drilling through varied geological formations
  • The lack of readily available spare parts for imported drilling equipment
  • The need for a rig that can be operated by a small crew
Engineering

Technical Features

  • Truck-mounted rotary drilling rig design
  • SINO-TRUK 8x4 chassis with 8-wheel drive
  • WD615.92E water-cooled turbocharged diesel engine
  • 3NB-130 mud pump for slurry circulation
  • Drilling depth capacity of 600 meters
  • Drilling diameter capacity of 500mm
  • Mast height of 12043mm
  • Hydraulic windlass with 200kN capacity
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

ConditionNew
UsageWaterWell
Warranty1YEAR
Colorred,whiteoryourdemands
Dimension(L*W*H)12160*2490*3440mm
Weight29000kg
CertificationISO9001
TypeRotaryDrillingRig
Voltage380Vorothers
ModelBZC600BZY
Drilling Depth600 m
Drilling Diameter500 mm
Engine ModelWD615.92E
Engine Power196 kW
Mud Pump Model3NB-130
ChassisSINO-TRUK 8x4
Dimension (L*W*H)12160*2490*3440 mm
Drilling Rig Power TypeDiesel
Place of OriginShandong, China (Mainland)
Brand NameBINZUAN
Materials

Materials and Build

  • High-strength steel chassis and frame
  • Cast iron components in the mud pump and gearbox
  • Chrome-plated steel drill rods and casing
  • Rubber tyres for on-site mobility
  • Steel mast and boom sections
Process

How an Order Is Handled

  • You specify the geological conditions and target water depth
  • We confirm the rig configuration and drilling bit selection
  • You approve the final specification sheet and colour
  • Unit is inspected and prepared for shipment
  • We arrange transport by sea freight or land transport
Quality Control

Checks Before Loading

  • Chassis and engine serial numbers are verified against the purchase order
  • Mud pump performance is tested under load before dispatch
  • Welds and structural components are inspected for defects
  • Hydraulic system pressure and flow rates are checked
  • A pre-shipment inspection report is provided to the buyer
Customisation

What Can Be Changed

  • Choice of red, white or custom paint colour
  • Selection of drilling bits for specific geological formations
  • Optional installation of a water tank or storage container
  • Customised electrical voltage to match local standards
  • Addition of safety features such as emergency shut-off switches
Honest Comparison

How It Compares With the Alternatives

Smaller 300m drilling rigsThe 600m rig accesses deeper aquifers but requires a more powerful engine and larger transport
Crawler-mounted drilling rigsTruck-mounted rigs are more mobile on paved roads but less stable on soft ground
Air-rotary drilling rigsRotary drilling is better for clay and soft formations, while air-rotary is faster in hard rock
Use Guide

Using It Well

  • Follow the engine manufacturer's recommended maintenance schedule
  • Lubricate all moving parts regularly to prevent wear
  • Inspect the mud pump and drill rods for damage after each use
  • Store the rig in a dry and sheltered location
  • Use appropriate personal protective equipment during operation
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

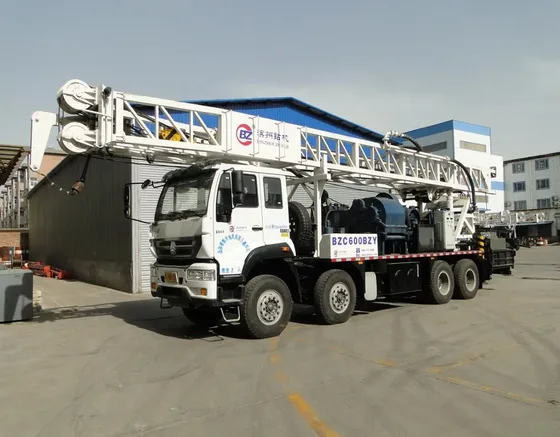

Close-up of the drilling rig's mast and boomDrilling rig with the boom extended and drill string in placeThe rig's engine compartment and control panelThe mud pump and fluid tanks on the drilling rigOverall view of the drilling rig on a construction site
Source Specification

Manufacturer Text We Hold for This Listing

For 600 meters water well drilling rig BZC600BZY truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig. 2. The truck chassis adopts the special rig chassis of brand SINO-TRUK 8X4 and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, rotary table, drilling tower, feed mechanism are set up on the chassis. 3. This rig is a rotary drilling rig with directional circulation. It is equipped with 3NB-130 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit. 4. This rig has very compact structure, the engine of chassis is adopted SINOTUCK diesel engine, the power is WD615.92E Water-cooled four-stroke turbocharged inter-cooled diesel engine 196kw(strong power)/2200rpm Technical parameter OF BZC600BZY Drilling depth ( M ) 600 Drill

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Drilling Rigs Buyers Compare With This

All 3 Drilling Rigs Full product index

Buyer Questions

Questions About This Unit

What is the lead time for delivery

Lead time depends on stock availability. Standard configurations are typically ready for dispatch within 30 days. Customised rigs require additional time.

What is the minimum order quantity

The minimum order quantity is one unit.

What payment terms do you offer

We accept T/T wire transfer and letter of credit.

What documentation is provided with the rig

You will receive a commercial invoice, packing list, bill of lading, certificate of origin, and warranty certificate.

Do you provide on-site installation and training

Yes, we can dispatch engineers to your site for installation, commissioning, and operator training at extra cost.

What is the warranty coverage

The rig is covered by a 1-year warranty against manufacturing defects.
