Concrete Mixer Trucks

High Power Per Liter Concrete Mixer Truck Weight

A 6x4 concrete mixer truck with a 371HP WD615.47 engine, HW19710 ten-speed manual transmission, and a 12m3 alloy steel mixing drum.

  • Condition New
  • Warranty 12Months
  • Cab HOWO76(singerbed),with
  • Color White
  • Transmission HW19710(10forward,2rev
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10241

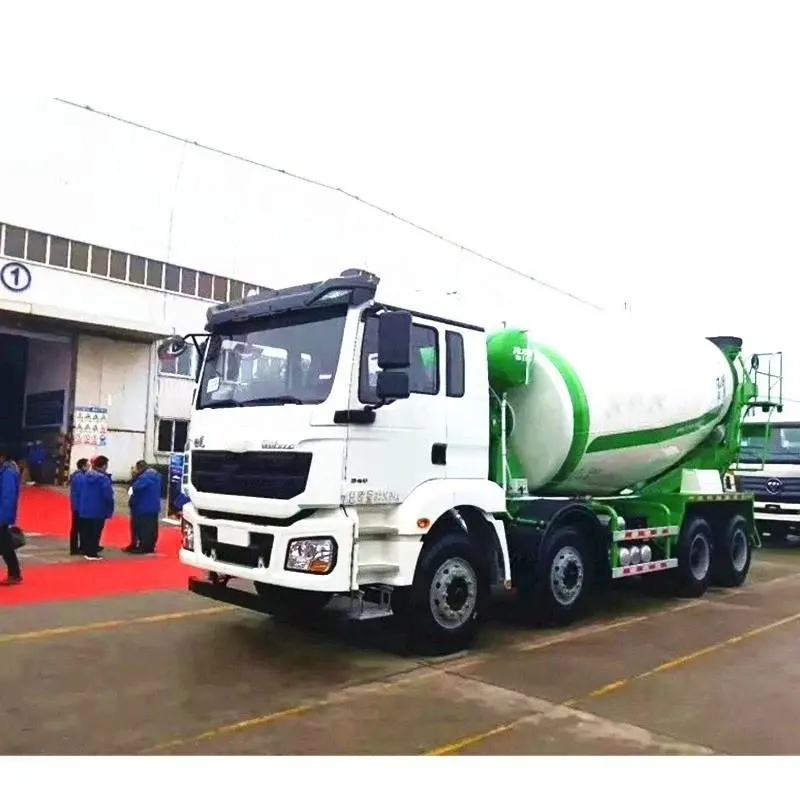

White 6x4 concrete mixer truck parked on a yard, front three-quarter view showing the cab and front grille
White 6x4 concrete mixer truck parked on a yard, front three-quarter view showing the cab and front grille
Key Benefits

What This Unit Does Well

  • 371HP WD615.47 engine is widely used across Chinese heavy trucks, so filters, injectors and oil are readily available in most markets
  • HW19710 ten-speed gearbox provides strong low-end torque and precise gear ratios for hauling wet concrete on steep site gradients
  • 12m3 alloy steel drum with HG700 blade and T510 cylinder material resists wear from abrasive concrete mix
  • 12.00R20 radial tyres offer better load capacity and longer life than bias-ply tyres on rough construction terrain
  • Single sleeper cab with air conditioning supports driver comfort during long shifts on multi-day site projects
Application Scenarios

Where It Is Used

  • Transporting wet concrete from a batching plant to a high-rise construction site with unpaved access roads
  • Operating on quarry or mining site where the truck must carry full drum loads over uneven terrain
  • Running multiple shifts on a large infrastructure project where downtime for repairs must be avoided
  • Working in hot climates where air conditioning is required for driver safety and compliance with local labour rules
Fit

Who It Is For

  • Construction contractors managing large-scale infrastructure projects with tight schedules
  • Fleet operators replacing older mixers with a proven engine and transmission combination
  • Machinery dealers stocking concrete mixers for resale in markets with limited access to original parts
  • Government or engineering teams procuring reliable mixers for public works with long-term maintenance support
Buyer Pain

Problems It Solves

  • Mixers that stall or overheat on steep site inclines due to underpowered engines or poor gear ratios
  • Downtime caused by missing or delayed parts for the engine, transmission or drum system
  • Mixers with outdated or incompatible components that require custom repairs or long lead times
  • Inconsistent drum performance due to thin or low-grade steel that wears out quickly under abrasive loads
Engineering

Technical Features

  • WD615.47 water-cooled six-cylinder diesel engine with turbocharging and intercooling
  • HW19710 manual transmission with ten forward gears and two reverse gears
  • HF9 front axle and HC16 rear axle in 6x4 drive layout with air brake system
  • 12m3 alloy steel mixing drum with T510 cylinder, HG700 blade and 8mm high-strength head plate
  • Italy Bonfiglioli or Germany ZF reducer, American Sao or Germany Rexroth hydraulic system
  • 500L water tank with pressure supply and cooling system, China brand
  • Feeding speed ≥3m3/min, discharge speed ≥2m3/min, residual rate ≤0.5%
  • Left and right side and cab operation with 180° discharge range and height adjustment
  • Single sleeper cab with factory air conditioning and white paint finish
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

ConditionNew
Warranty12Months
CabHOWO76(singerbed),withAir-condition
ColorWhite
TransmissionHW19710(10forward,2reverse)
Dimension(L*W*H)9930x2500x3990
Weight31000kg
CertificationISO9001,ISO/TS16949,CCC,
Tire12.00R20Radialtyre
Power(W)371HP
EngineWD615.47
Drive Wheel6x4
Dimensions L x W x H unloaded9930 x 2500 x 3990 mm
Wheelbase1800+3000+1400 mm
Curb Weight31000 kg
Engine ModelWD615.47
Horsepower371 HP
Fuel TypeDiesel
Front AxleHF9
Rear AxleHC16
Tyre12.00R20 Radial
Gross Vehicle Weight31000 kg
Maximum Speed90 km/h
Mixer Volume12 m3
Drum MaterialAlloy steel T510 (cylinder), HG700 (blade), 8mm high strength (head)
ReducerItaly Bonfiglioli / PMP, Germany ZF
Materials

Materials and Build

  • Alloy steel drum body with T510 cylinder, HG700 blade and 8mm high-strength head plate
  • Cast steel HF9 front and HC16 rear axle housings
  • 12.00R20 radial tyres on steel rims with reinforced sidewalls
  • Steel cab shell with factory paint finish, white by default
Process

How an Order Is Handled

  • You send the site conditions, mix volume, and delivery location to confirm availability
  • We match the chassis code, axle ratio, and drum configuration against current stock
  • You confirm the final specification sheet including colour, cab, and tyre before deposit
  • Unit is prepared, photographed, and video recorded before loading
  • We book RoRo or container shipment and issue the export documents your customs needs
Quality Control

Checks Before Loading

  • Chassis, engine, and gearbox numbers are photographed and matched to the specification sheet you approved
  • Engine start, gear engagement, and hydraulic drum rotation are recorded on video before loading
  • Paint, glass, and cab trim are checked for transport damage at the loading port
  • Loading and lashing photos are sent before the vessel departs
Customisation

What Can Be Changed

  • Cab colour other than the default white
  • Sleeper layout, single or double bunk
  • Left hand or right hand drive as your registration requires
  • Tyre brand and spare wheel count
  • Additional tool box or fifth wheel height change
Honest Comparison

How It Compares With the Alternatives

4x2 concrete mixerThe 6x4 carries more weight on the drive axles and handles loaded gradients better, but uses more fuel when running empty
Use Guide

Using It Well

  • Keep the hydraulic system pressure checked monthly, especially in high-temperature environments
  • Order the drum blade and reducer oil with the truck so the first service does not wait on shipping
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

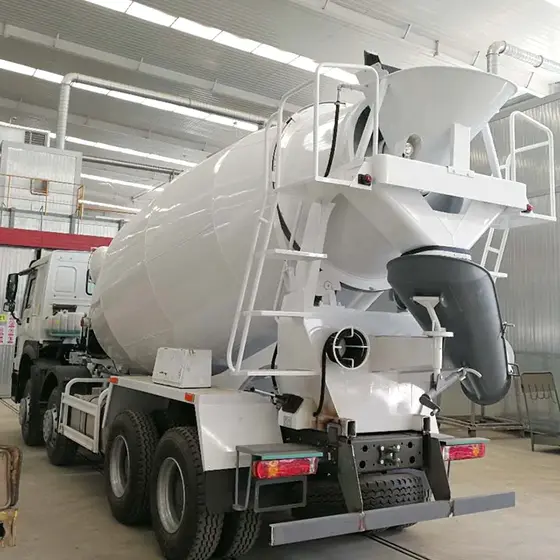

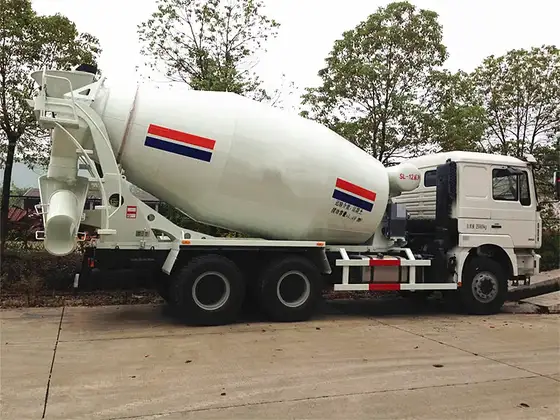

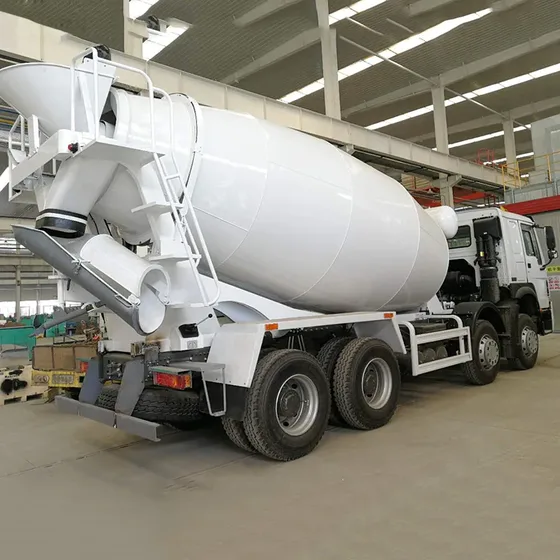

Side view of the concrete mixer truck showing the 1800+3000+1400mm wheelbase and 12.00R20 tyresRear view of the mixer truck with the rotating drum and discharge chute at 180°Cab interior with single sleeper bunk and air conditioning controlsWD615.47 engine and transmission visible under the hoodDrum head and hydraulic system detail showing the reducer and inlet pipe
Source Specification

Manufacturer Text We Hold for This Listing

High power per liter concrete mixer truck weight Now we have 10 units 6x4 concrete mixer truck and dump truck ready for shipment, which were produced in 2014, price is very good. High power per liter concrete mixer truck weight Product Description Product specification: Chassis parameters Name: 14-18 m3 mixer Truck model: Concrete mixer truck Engine: Cummins 360 horsepower Size: 1100x2495x3990mm gearbox Fast 9-speed gearbox Volume: 14m3 mixer Truck Front and rear bridges: 7.5Ton/16ton Total mass: 25000(KG) drive: (6x4) brake: Air brake Wheelbase: 1800+3000+1400 Turn to: Directional assistance axes: 3 Speed: 85(km/h) Number of tires: 12+1 Tires: 12.00-20(Steel tire) Tank parameter Tank body Alloy steel Cylinder material: T510; 6mm Alloy steel Blade material: HG700 Head material: High strength 8mm alloy steel Reducer: Italy Bonfiglioli / PMP, Germany ZF (pure import) Hydraulic system Ameri

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Concrete Mixer Trucks Buyers Compare With This

All 30 Concrete Mixer Trucks Full product index

Buyer Questions

Questions About This Unit

Is this unit new or used

New. It is a factory-new unit with 12-month warranty and full documentation.

What is the lead time

Units in stock can be prepared and loaded within 45 days after receiving the T/T payment. We confirm the exact date in writing with the proforma invoice.

Do you ship by container or RoRo

RoRo is standard for this truck. Container shipment is possible but requires cab lowering and may affect clearance.

What documents do I get for customs

Commercial invoice, packing list, bill of lading, certificate of origin, and any pre-shipment inspection certificate your country requires.

Price This Unit Against Your Port

Send the destination and quantity. A written specification, landed cost and shipping option comes back.

Get a Quotation on WhatsApp Write to Mr. Danny Xi
