Truck trailer machinery and parts exporter since 2008
SEA LION International Trade Request A Quote
Concrete Mixer Trucks

2023 Popular Low Price 2 2.5 3 4 5 Cubic Meters m3 Mini Concrete Mixer Truck for Sale

A 6x4 concrete mixer truck with a 10m3 mixing drum, powered by a WD615.47 371HP diesel engine and paired with the HW19710 ten-speed manual gearbox. It is designed for short-haul construction site transport where low upfront cost and parts availability are prioritised over long-term fuel efficiency or emissions compliance.

  • Condition New
  • Warranty 12Months
  • Cab A7-W,singlesleeper
  • Color white
  • Transmission HW19710(10Forward&2rev
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10244

White 6x4 concrete mixer truck parked on a yard, front three-quarter view with 10m3 drum visible
White 6x4 concrete mixer truck parked on a yard, front three-quarter view with 10m3 drum visible
Key Benefits

What This Unit Does Well

  • WD615.47 engine is the most commonly used powerplant in Chinese heavy trucks, so filters, injectors and oil are widely available in Africa, the Middle East and Southeast Asia
  • HW19710 ten-speed gearbox provides enough gear ratios for both loaded climbs and empty return runs on construction site access roads
  • 10m3 drum capacity matches the standard batch size for most small to medium construction projects in emerging markets
  • 12.00R20 radial tyres offer better durability and lower rolling resistance than bias-ply tyres on mixed terrain
  • Single-sleeper cab with air conditioning supports driver rotation on multi-day site assignments
  • 12-month warranty covers engine, gearbox and chassis components, reducing risk for first-time importers
Application Scenarios

Where It Is Used

  • Short-haul transport of ready-mix concrete between a batching plant and a construction site with unpaved access roads
  • Reinforced concrete delivery to infrastructure projects in rural areas where fuel stations are sparse
  • Urban roadworks where low vehicle height and compact dimensions allow access to tight job sites
  • Contractor fleets needing a low-cost, high-availability mixer to supplement existing equipment during peak season
Fit

Who It Is For

  • Contractors operating in Africa, Southeast Asia and the Middle East who need a low-cost mixer for short-haul site work
  • Fleet owners replacing older mixers and seeking a model with widely available spare parts
  • Government procurement teams sourcing equipment for public infrastructure projects with tight budget constraints
Buyer Pain

Problems It Solves

  • Long lead times for spare parts from European or OEM suppliers when the truck is already in use
  • Inconsistent drum performance due to mismatched reducer or hydraulic systems from low-quality suppliers
  • Uncertainty over exact chassis and axle codes when applying for import permits or customs clearance
Engineering

Technical Features

  • WD615.47 water-cooled four-stroke six-cylinder in-line diesel engine with turbocharging and intercooling
  • HW19710 manual transmission with ten forward gears and two reverse gears
  • HF9 front axle and HC16 rear axle in 6x4 drive layout
  • 10m3 mixing drum made of T510 6mm alloy steel with HG700 blade material and 8mm high-strength head
  • Italy Bonfiglioli or Germany ZF reducer for reliable drum rotation
  • American SAO or Germany Rexroth hydraulic system for consistent drum movement
  • 500L water tank with pressure water supply for drum cleaning
  • Left and right side and cab-mounted discharge controls with 180° up and down height adjustment
  • Air brake system with directional assistance and three-axle configuration
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

ConditionNew
Warranty12Months
CabA7-W,singlesleeper
Colorwhite
TransmissionHW19710(10Forward&2reverse)
Dimension(L*W*H)9360*2496*3965
Weight25000kg
CertificationISO9001,ISO/TS16949,CCC,
Tire12.00R20Radialtyre
Power(W)371HP
EngineWD615.47
Drive Wheel6x4
Dimensions L x W x H unloaded9360 x 2496 x 3965 mm
Wheelbase1800+3000+1400 mm
Curb Weight25000 kg
Engine ModelWD615.47
Horsepower371 HP
Fuel TypeDiesel
Front AxleHF9
Rear AxleHC16
Tyre12.00R20 radial
Gross Vehicle Weight25000 kg
Mixer Drum Capacity10 m3
Maximum Speed75 km/h
Certifications Stated by SupplierISO9001, ISO/TS16949, CCC
Place of OriginShandong,
Materials

Materials and Build

  • Steel cab shell with factory paint finish, white by default
  • Cast steel HF9 front and HC16 rear axle housings
  • 12.00R20 radial tyres on steel rims
  • T510 6mm alloy steel drum body with HG700 blade material and 8mm high-strength head
Process

How an Order Is Handled

  • You send the site location, typical load distance and drum capacity requirement
  • We match a chassis code and axle ratio against what is available in stock or from the plant
  • You confirm the final specification sheet including colour, cab and tyre before deposit
  • Unit is prepared, photographed and video recorded before loading
  • We book RoRo or container shipment and issue the export documents your customs needs
Quality Control

Checks Before Loading

  • Chassis, engine and gearbox numbers are photographed and matched to the specification sheet you approved
  • Engine start, gear engagement and air system are recorded on video before loading
  • Paint, glass and cab trim are checked for transport damage at the loading port
  • Loading and lashing photos are sent before the vessel departs
Customisation

What Can Be Changed

  • Cab colour other than the default white
  • Sleeper layout, single or double bunk
  • Left hand or right hand drive as your registration requires
  • Tyre brand and spare wheel count
  • Additional water tank or tool box
  • Drum material upgrade to higher-grade alloy (if available)
Honest Comparison

How It Compares With the Alternatives

4x2 mixer truckThe 6x4 carries more on the drive axles for loaded gradients but costs more fuel when running empty on good roads
Use Guide

Using It Well

  • Keep the air dryer cartridge stocked, humid coastal routes shorten its life
  • Order the clutch plate and injector set with the truck so the first service does not wait on shipping
  • Check hydraulic fluid level and drum seal condition before each shift to prevent leaks
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

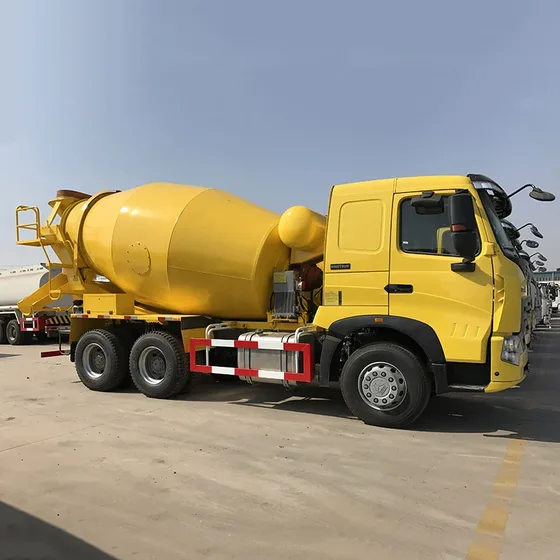

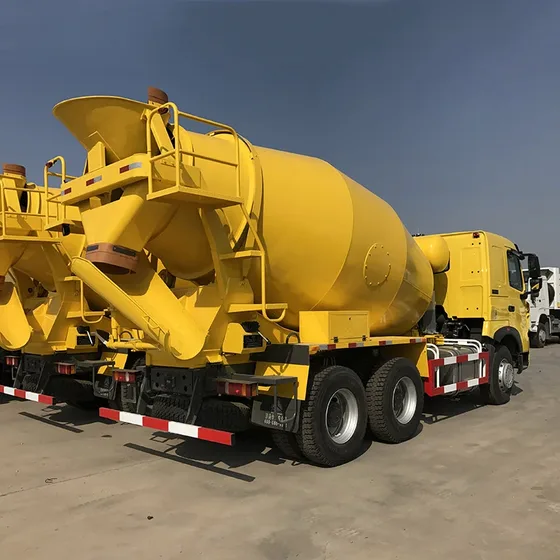

Side view of the mixer truck showing the 1800+3000+1400mm wheelbase and 12.00R20 radial tyresRear view of the mixer truck with drum discharge mechanism and mud flapsCab interior with single sleeper bunk and air conditioning controlsWD615.47 six-cylinder diesel engine in the chassisDrum discharge system with 180° rotation and height adjustmentFront grille and headlamp detail of the A7-W cab
Source Specification

Manufacturer Text We Hold for This Listing

2023 popular low price 2 2.5 3 4 5 cubic meters m3 mini concrete mixer truck for sale Now we have 10 units 6x4 mixer truck ready for shipment, which were produced in 2014, price is very good. 2018 popular low price 2 2.5 3 4 5 cubic meters m3 mini concrete mixer truck for sale Product Description Chassis parameters Name: 14-18 m3 mixer Truck model: Concrete mixer truck Engine: Cummins 360 horsepower Size: 1100x2495x3990mm gearbox Fast 9-speed gearbox Volume: 14m3 mixer Truck Front and rear bridges: 7.5Ton/16ton Total mass: 25000(KG) drive: (6x4) brake: Air brake Wheelbase: 1800+3000+1400 Turn to: Directional assistance axes: 3 Speed: 85(km/h) Number of tires: 12+1 Tires: 12.00-20(Steel tire) Tank parameter Tank body Alloy steel Cylinder material: T510; 6mm Alloy steel Blade material: HG700 Head material: High strength 8mm alloy steel Reducer: Italy Bonfiglioli / PMP, Germany ZF (pure imp

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Concrete Mixer Trucks Buyers Compare With This

All 30 Concrete Mixer Trucks Full product index

Buyer Questions

Questions About This Unit

Is this unit new or used

New. The unit is built to current specification and comes with a 12-month warranty.

What is the lead time

Units already in stock can be prepared and loaded within 45 days after receiving the T/T payment. We confirm a date in writing with the proforma invoice.

Do you ship by container or RoRo

Tractor heads normally go RoRo. Container shipment is possible with the cab lowered on some routes. We quote both so you can compare landed cost.

What documents do I get for customs

Commercial invoice, packing list, bill of lading and certificate of origin as standard, plus any pre-shipment inspection certificate your country requires.
