ETL LED Panel Light

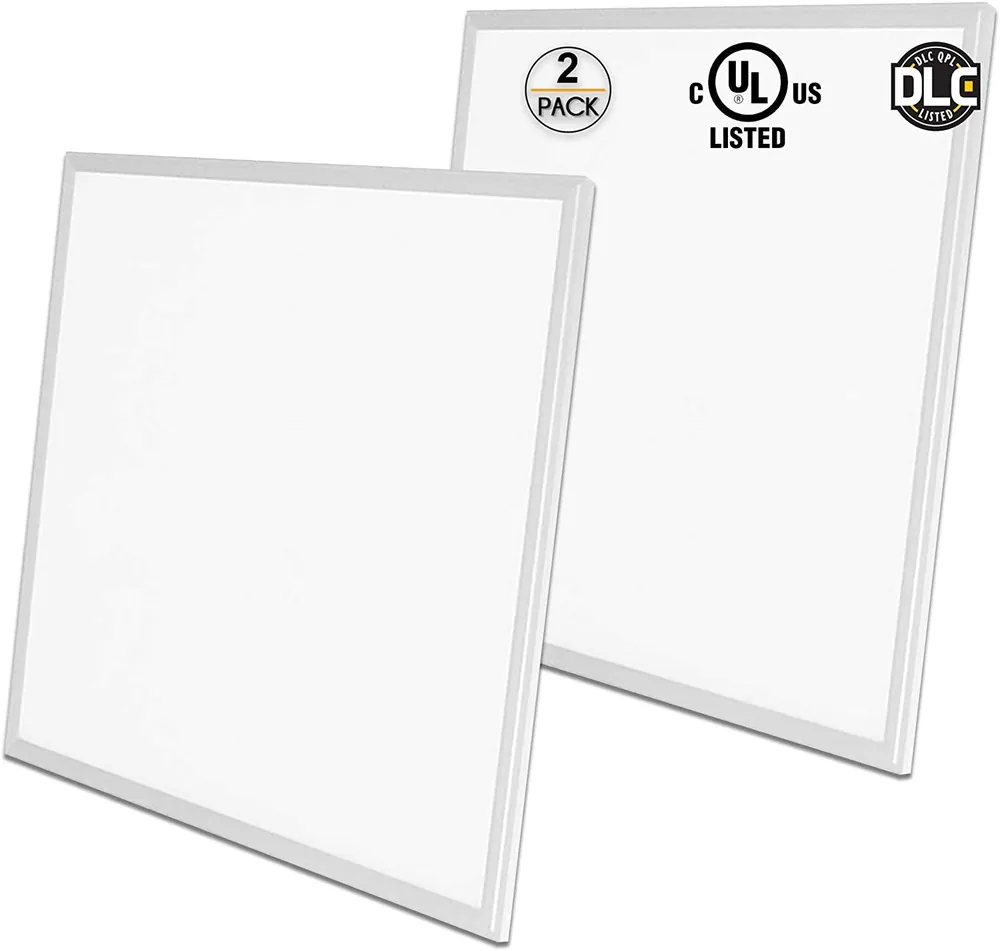

ETL DLC 2*2 Ft Backlit LED panel light

ETL DLC 2*2 Ft Backlit LED panel light is part of our ETL LED Panel Light range, produced on our own lines in Jiangmen, Guangdong. It runs on 100-277V, rated IP30, supplied with ETL / DLC documentation.

Model: BL-BTB-50A 2*2
Input Voltage: 100-277V
Output: >120LM/W
Protection: IP30
Warranty: 5-6 years
Certificates: ETL / DLC

Request A Quote Request A Sample

Talk to an engineer on WhatsApp 0086-13902885704 · Manufactured in Jiangmen, Guangdong since 1998

ETL DLC

Product Overview

Below are our ETL Control number 5012309 LED panel Light, BL-BTB-50A 2X2

Key Benefits

Why Buyers Specify The ETL DLC 2*2 Ft Backlit LED panel light

Made of High Quality Materials

a rigid frame will not allow the panel to bend over time, the lens is made of Special PMMA (transparent glass substitute) and will not yellow over time. Even in five years the fixture will look exactly the same as the day it was installed. This Edge lit panel measures only 1/2” thick making it one of the slimmest panels in the marketplace today. ETL LISTED AND DLC CERTIFIED. DLC certification makes the product eligible for energy saving rebates

Wide Application

LED troffer panel lights can be used in just about any indoor space. Use them in schools, offices, retail spaces, hospitals, and many other places. They are aesthetically pleasing while still providing ample amounts of lighting. These LED troffers come in 1X4 2X2 and 2X4 sizes perfect for any space

EASY TO INSTALL; RECESSED AND SURFACE MOUNTED OPTIONS ARE AVAILABLE: Standard application is T-Grid, all accessories are included. Two alternative mounting options are available: surface and sheetrock flush mount. PLEASE NOTE: accessories for all mounting options excluding T-Grid recessed mounting should be bought separately

Dimmable Led Panel Lights

These LED panels are dimmable. They have the standard 0–10V dimming capabilities. High quality driver provides smooth 5-100% dimming (opposed to step dimming suggested for lower quality drivers that allows only a few dimming options (e.g. 25%-50%-75%-100%). Please note: dimming is optional, if this feature is not required the dimming wires can simply be capped off and the light will function on/off

WARRANTY AND TECHNICAL SPECIFICATIONS: 81,000 hour LED lifetime, 5-year manufacturer’s warranty, 3000K / 4000K / 5000K color temperature , 4677 lm luminous output (the amount of light produced), 40W (efficiency), 100-277V operational voltage range. Additional technical specs can be found in the table below

Specifications

Full published specification for ETL DLC 2*2 Ft Backlit LED panel light. Ask us on WhatsApp if you need a value confirmed against a specific production batch.

Electrical

Rated Power	40W
Replacement Power	120W
Input Voltage	100-277V
Frequency	50/60Hz
Normal current	300-350mA
LED Driver case	Auminum Junction box for North American market
Starting time	<0.5s
Power factor	>0.9
Dimming Type	0-10V Dimming

Light Output

Color temperature	3000K, 4000K, 5000K / 3CCT
Lumen	>120LM/W
Beam angle	120°

Construction

Lamp Dimension	60360330m (2*2' Feet)
Hole cutting	595*595mm
Material	Aluminum

Environment

Lifespan	>50,000 h
IP Rate	IP30

Commercial

Model number	BL-BTB-50A 2*2
Warranty	5-6 years
Certificates	ETL / DLC

Other Details

Energy consumption	40 Kwh/1000h
Color rendering index	>80 Ra
Color Consistency	< 5 SDCM
Suitable for accent lighting	Yes
Swich cycles	20000
Energy efficiency class	A+
LED-Type	2835SMD
Lamp housing Color	White
temperature range	-15℃ ~ +50℃

Product Detail Images

Photographs of the actual product as supplied from our Jiangmen factory.

ETL DLC 2*2 Ft Backlit LED panel light detail 1

ETL DLC 2*2 Ft Backlit LED panel light detail 2

ETL DLC 2*2 Ft Backlit LED panel light detail 3

ETL DLC 2*2 Ft Backlit LED panel light detail 4

ETL DLC 2*2 Ft Backlit LED panel light detail 5

ETL DLC 2*2 Ft Backlit LED panel light detail 6

ETL DLC 2*2 Ft Backlit LED panel light detail 7

ETL DLC 2*2 Ft Backlit LED panel light detail 8

Use Guide

Installation details that come straight from this model's own specification.

Waterproof Construction

IP30

Ceiling Cut-out

595*595mm

Compare With Other Models In This Range

Every value below is taken from the published datasheet of each model, so you can line up the differences before you ask for a quotation.

	ETL DLC 2*2 Ft Backlit LED panel light This product	ETL DLC 2*4 Ft Backlit LED panel light	ETL DLC 1*4 Ft Backlit LED panel light	ETL 6 inch Square LED panel light
Input Voltage	100-277V	100-277V	100-277V	90-130V AC
Power	40W	60W	40W	15W
Lumen	>120LM/W	>120LM/W	>120LM/W	80-90lm/W
Protection	IP30	IP30	IP30	IP30
Size	60360330m (2*2' Feet)	603121330m (1*4' Feet)	303121330m (1*4' Feet)	6 inch or 17017012mm

Manufacturing And Quality

How This Product Is Built And Checked

01
Material Inspection

Incoming material is carefully inspected and selected before it reaches the line.
02
Assembly

Our QC team follows every unit along the assembly line on our 6 production lines in Jiangmen.
03
Aging Test

Aging test of more than 24.5 hours is run before shipping.
04
Final Inspection

Load test, high-voltage test, grounding conduction test and install test on the finished light.

Quality Control Process Factory Tour Certification Library

Customization Options

Beauty STC Lighting has concentrated on commercial LED light manufacturing for over 15 years and offers professional R&D, patented design and manufacturing experience for customised products.

OEM and ODM production with your brand, packaging and carton artwork.
Patented design and manufacturing experience from our own R&D team.
Certification documents issued against your model number where the construction allows.

See The OEM & ODM Service

Certifications For This Range

This model is supplied with ETL / DLC documentation.

ETL TUV CE UKCA PSE RoHS Certificates

View All Certificates

FAQ

ETL DLC 2*2 Ft Backlit LED panel light FAQ

Can a third-party inspection be arranged before delivery?

Yes.BEAUTY STC is quite confident with our products and has passed many international certifications .You can arrange an inspector in you side or we can assist you to do that.

Why your product comes with a high cost performance?

Firstly, our product operated under ETL and CE standards and we test the products one by one to make sure each single unit workswell enough.

Do you accept customize design?

Yes, we are offering OEM and ODM service as well .If you have any good idea, we can help you realize it.

Are the products safe enough?

Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including USA ETL, UL and European TUV, SGS, CE and RoHS.

Do you sell to individual customers directly?

No, we are manufacturer and only for wholesale. We have distributors in many countries, the end users can buy from them.

How can I get the sample from you?

If you are interested on our products, please contact us directly, we can send the free sample for checking the quality, but the custom should pay for the express fee.

How can I make the order?

You can email us or chat to our sales online. We have published our sales team and the contact info on the contact page. You can let us know what would you like to order and we will make PI for your confirmation. After you make the payment, we will process your order.

Are you a truly factory

Yes we are a factory has almost 16 years experience on producing. Welcome to visit us any time you want.
