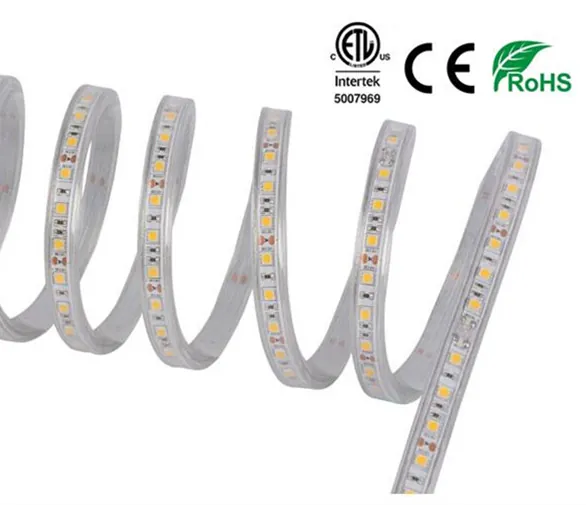

ETL CE 5050SMD 60P LED Strip light

110/230V LED Strip Light

ETL CE 5050SMD 60P LED Strip light

ETL CE 5050SMD 60P LED Strip light is part of our 110/230V LED Strip Light range, produced on our own lines in Jiangmen, Guangdong. It runs on AC200-240V / 100-130V AC, rated IP67, supplied with ETL / CE / RoHs documentation.

Model
BL-ASLD-001 （ETL Model NO.） | BL-5050SMD-60P （CE Model NO.）
Input Voltage
AC200-240V / 100-130V AC
LED Type
Epistar
Output
80-90LM/W
Protection
IP67
Warranty
1 to 3 years
Request A Quote Request A Sample

Talk to an engineer on WhatsApp 0086-13902885704 · Manufactured in Jiangmen, Guangdong since 1998

ETL CE RoHs

Product Overview

Below are our ETL Control number 5007969 LED strip Lights, BL-ASLD

2. Plug into your home power 100-130V / 200-240V AC directly

3. 110V Maximum connect with 50 meters / 165Ft strip light, 220V Maximum connect with 100 meters

6. Available in Cool white, Warm white, Yellow, Blue, Red, Green and RGB

Key Benefits

Why Buyers Specify The ETL CE 5050SMD 60P LED Strip light

No need Adaptor, directly 110V / 230V AC

230V Can support 100M long, 110V Can support 50M / 165Ft long.

IP67 for indoor or outdoor use

Easy Installation and Use

Worry-Free Warranty

Specifications

Full published specification for ETL CE 5050SMD 60P LED Strip light. Ask us on WhatsApp if you need a value confirmed against a specific production batch.

Electrical
Input VoltageAC200-240V / 100-130V AC
working frequency50HZ-60HZ
LED power0.24W each
Power factory>0.93
Power per meter7-9W Per meter
Inside cable
  • 1. ETL approval 2pcs Pure copper wire 33pcs 0.18 m㎡ cable each
  • 2. 2 years warranty 2pcs Pure copper wire 18pcs 0.18 m㎡ cable each
  • 3. 1 years warranty 2pcs Alloy wire 18pcs 0.18 m㎡ cable each
Maximum Connection Length
  • 220Vcan maximum support 100 meters with one power cord
  • 110Vcan maximum support 50 meters with one power cord
Light Output
LED BrandEpistar
LED Type5050SMD
LED QTY60pcs LED per meter
LM / LED18-20LM each LED
LM/W80-90LM/W
Lumen per meter700-800LM/meter
Color AvailableRed, yellow, Blue, Green, white, warm white
Lens angle120°
Construction
PCB Widthwhite color 8MM PCB
PVC material
  • 1. ETL Approval PVC
  • 2. Anti-UV PVC 4 to 5 grade
  • 3. Normal PVC
PVC colorclear PVC
Size7*14mm / 0.28*0.55in
Cutting220V is 1 meter per cut / 110V is 0.5 meter per cut
Environment
Lifespan>30,000 hours
Operating temperature-15℃ to +40℃
IP RateIP67
Commercial
Model number
  • BL-ASLD-001 （ETL Model NO.）
  • BL-5050SMD-60P （CE Model NO.）
Packing50 or 100 meters per roll
Warranty1 to 3 years
CertificatesETL / CE / RoHs

Product Detail Images

Photographs of the actual product as supplied from our Jiangmen factory.

ETL CE 5050SMD 60P LED Strip light detail 1
ETL CE 5050SMD 60P LED Strip light detail 2
ETL CE 5050SMD 60P LED Strip light detail 3
ETL CE 5050SMD 60P LED Strip light detail 4
ETL CE 5050SMD 60P LED Strip light detail 5
ETL CE 5050SMD 60P LED Strip light detail 6
ETL CE 5050SMD 60P LED Strip light detail 7
ETL CE 5050SMD 60P LED Strip light detail 8

Use Guide

Installation details that come straight from this model's own specification.

Cutting

220V is 1 meter per cut / 110V is 0.5 meter per cut

Maximum Run Length

  • 220Vcan maximum support 100 meters with one power cord
  • 110Vcan maximum support 50 meters with one power cord

Waterproof Construction

IP67

Operating Temperature

-15℃ to +40℃

Packing

50 or 100 meters per roll

Compare With Other Models In This Range

Every value below is taken from the published datasheet of each model, so you can line up the differences before you ask for a quotation.

ETL CE 5050SMD 60P LED Strip light This product5M packaging LED Work Light Strip10M packaging LED Work Light Strip20-25M packaging Portable LED Work Light Strip
Input VoltageAC200-240V / 100-130V ACAC200-240V / 100-130V ACAC200-240V / 100-130V ACAC200-240V / 100-130V AC
LED Type5050SMD2835SMD2835SMD2835SMD
LED Density60pcs LED per meter180pcs LED per meter180pcs LED per meter180pcs LED per meter
Power0.24W each0.2W each0.2W each0.2W each
Lumen700-800LM/meter1320-1680LM/meter1320-1680LM/meter1320-1680LM/meter
ProtectionIP67IP67IP67IP67
Size7*14mm / 0.28*0.55in7.5*15.5mm / 0.29*0.62in7.5*15.5mm / 0.29*0.62in7.5*15.5mm / 0.29*0.62in

Manufacturing And Quality

How This Product Is Built And Checked

  1. 01

    Material Inspection

    Incoming material is carefully inspected and selected before it reaches the line.

  2. 02

    Assembly

    Our QC team follows every unit along the assembly line on our 6 production lines in Jiangmen.

  3. 03

    Aging Test

    Aging test of more than 24.5 hours is run before shipping.

  4. 04

    Final Inspection

    Load test, high-voltage test, grounding conduction test and install test on the finished light.

Quality Control Process Factory Tour Certification Library

Customization Options

Beauty STC Lighting has concentrated on commercial LED light manufacturing for over 15 years and offers professional R&D, patented design and manufacturing experience for customised products.

  • OEM and ODM production with your brand, packaging and carton artwork.
  • Patented design and manufacturing experience from our own R&D team.
  • Colour options: Red, yellow, Blue, Green, white, warm white.
  • Packing and length: 50 or 100 meters per roll. Other lengths can be produced to order.
  • Certification documents issued against your model number where the construction allows.
See The OEM & ODM Service

Certifications For This Range

This model is supplied with ETL / CE / RoHs documentation.

ETLTUVCEUKCAPSERoHS Certificates
View All Certificates

FAQ

ETL CE 5050SMD 60P LED Strip light FAQ

Can a third-party inspection be arranged before delivery?
Yes.BEAUTY STC is quite confident with our products and has passed many international certifications .You can arrange an inspector in you side or we can assist you to do that.
Why your product comes with a high cost performance?
Firstly, our product operated under ETL and CE standards and we test the products one by one to make sure each single unit workswell enough.
Do you accept customize design?
Yes, we are offering OEM and ODM service as well .If you have any good idea, we can help you realize it.
Are the products safe enough?
Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including USA ETL, UL and European TUV, SGS, CE and RoHS.
Do you sell to individual customers directly?
No, we are manufacturer and only for wholesale. We have distributors in many countries, the end users can buy from them.
How can I get the sample from you?
If you are interested on our products, please contact us directly, we can send the free sample for checking the quality, but the custom should pay for the express fee.
How can I make the order?
You can email us or chat to our sales online. We have published our sales team and the contact info on the contact page. You can let us know what would you like to order and we will make PI for your confirmation. After you make the payment, we will process your order.
Are you a truly factory
Yes we are a factory has almost 16 years experience on producing. Welcome to visit us any time you want.
