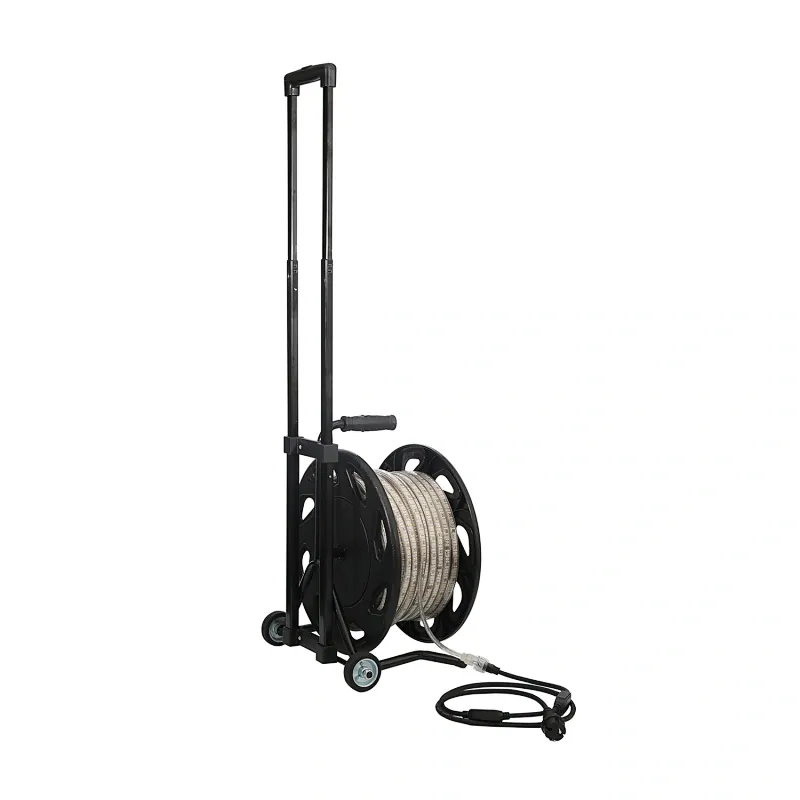

50M packaging Portable LED Work Light Strip

110/230V LED Strip Light

50M packaging Portable LED Work Light Strip

50M packaging Portable LED Work Light Strip is part of our 110/230V LED Strip Light range, produced on our own lines in Jiangmen, Guangdong. It runs on AC200-240V / 100-130V AC, rated IP67, supplied with ETL/TUV/CE/RoHs/PSE documentation.

Model
BL-CSLE-010 （ETL Model NO.） | BL-2835SMD-180P-50M （CE Model NO.）
Input Voltage
AC200-240V / 100-130V AC
LED Type
Epistar
Output
1320-1680LM/meter
Protection
IP67
Warranty
3 years
Request A Quote Request A Sample

Talk to an engineer on WhatsApp 0086-13902885704 · Manufactured in Jiangmen, Guangdong since 1998

ETLTUVCERoHsPSE

Product Overview

Below are our ETL/TUV/CE/PSE/SAA Standard LED strip Lights

Construction LED strip light / LED Shaft Lights / Mining LED strip Light / LED work light strip Application:

2. Plug into your home power 100-130V / 200-240V AC directly

3. 110V Maximum connect with 50 meters / 165Ft strip light, 220V Maximum connect with 100 meters

6. Available in Cool white, Warm white, Yellow, Blue, Red, Green and RGB

Key Benefits

Why Buyers Specify The 50M packaging Portable LED Work Light Strip

100-240V input directly, No need Adaptor.

Super High brightness and Energy-saving

Fast installation kit with snap connector.

Easy installed and convenient for buliders.

Length can be DIY, connected in series up to 100 meters.

IIP67 rate for indoor or outdoor use.

Specifications

Full published specification for 50M packaging Portable LED Work Light Strip. Ask us on WhatsApp if you need a value confirmed against a specific production batch.

Electrical
Input VoltageAC200-240V / 100-130V AC
working frequency50HZ-60HZ
LED power0.2W each
Power factory>0.93
Power per Roll600W per Roll
Inside cable
  • 1. ETL approval 2pcs Pure copper wire 33pcs 0.18 m㎡ cable each
  • 2. 2 years warranty 2pcs Pure copper wire 18pcs 0.18 m㎡ cable each
  • 3. 1 years warranty 2pcs Alloy wire 18pcs 0.18 m㎡ cable each
Maximum Connection Length
  • 220Vcan maximum support 100 meters with one power cord
  • 110Vcan maximum support 50 meters with one power cord
Protection ClassClass II
Light Output
LED BrandEpistar
LED Type2835SMD
LED QTY180pcs LED per meter
LM / LED26-28LM each LED
Lumen per Meter1320-1680LM/meter
Lumen per Roll75000LM/Roll
Color AvailableRed, yellow, Blue, Green, white, warm white
Lens angle120°
Construction
PCB Widthwhite color 10MM PCB
PVC material
  • 1. ETL Approval PVC
  • 2. Anti-UV PVC 4 to 5 grade
  • 3. Normal PVC
PVC colorclear PVC
Size7.5*15.5mm / 0.29*0.62in
Cutting220V is 1 meter per cut / 110V is 0.5 meter per cut
Environment
Lifespan>30,000 hours
Operating temperature-15℃ to +40℃
IP RateIP67
IK RatingIK10
Commercial
Model number
  • BL-CSLE-010 （ETL Model NO.）
  • BL-2835SMD-180P-50M （CE Model NO.）
Length per Roll50 Meters
Packing5 to 100 meters per roll
Warranty3 years
CertificatesETL/TUV/CE/RoHs/PSE

Product Detail Images

Photographs of the actual product as supplied from our Jiangmen factory.

50M packaging Portable LED Work Light Strip detail 1
50M packaging Portable LED Work Light Strip detail 2
50M packaging Portable LED Work Light Strip detail 3
50M packaging Portable LED Work Light Strip detail 4
50M packaging Portable LED Work Light Strip detail 5
50M packaging Portable LED Work Light Strip detail 6
50M packaging Portable LED Work Light Strip detail 7
50M packaging Portable LED Work Light Strip detail 8

Use Guide

Installation details that come straight from this model's own specification.

Cutting

220V is 1 meter per cut / 110V is 0.5 meter per cut

Maximum Run Length

  • 220Vcan maximum support 100 meters with one power cord
  • 110Vcan maximum support 50 meters with one power cord

Waterproof Construction

IP67

Operating Temperature

-15℃ to +40℃

Packing

50 Meters

Compare With Other Models In This Range

Every value below is taken from the published datasheet of each model, so you can line up the differences before you ask for a quotation.

50M packaging Portable LED Work Light Strip This product5M packaging LED Work Light Strip10M packaging LED Work Light Strip20-25M packaging Portable LED Work Light Strip
Input VoltageAC200-240V / 100-130V ACAC200-240V / 100-130V ACAC200-240V / 100-130V ACAC200-240V / 100-130V AC
LED Type2835SMD2835SMD2835SMD2835SMD
LED Density180pcs LED per meter180pcs LED per meter180pcs LED per meter180pcs LED per meter
Power0.2W each0.2W each0.2W each0.2W each
Lumen1320-1680LM/meter1320-1680LM/meter1320-1680LM/meter1320-1680LM/meter
ProtectionIP67IP67IP67IP67
Size7.5*15.5mm / 0.29*0.62in7.5*15.5mm / 0.29*0.62in7.5*15.5mm / 0.29*0.62in7.5*15.5mm / 0.29*0.62in

Manufacturing And Quality

How This Product Is Built And Checked

  1. 01

    Material Inspection

    Incoming material is carefully inspected and selected before it reaches the line.

  2. 02

    Assembly

    Our QC team follows every unit along the assembly line on our 6 production lines in Jiangmen.

  3. 03

    Aging Test

    Aging test of more than 24.5 hours is run before shipping.

  4. 04

    Final Inspection

    Load test, high-voltage test, grounding conduction test and install test on the finished light.

Quality Control Process Factory Tour Certification Library

Customization Options

Beauty STC Lighting has concentrated on commercial LED light manufacturing for over 15 years and offers professional R&D, patented design and manufacturing experience for customised products.

  • OEM and ODM production with your brand, packaging and carton artwork.
  • Patented design and manufacturing experience from our own R&D team.
  • Colour options: Red, yellow, Blue, Green, white, warm white.
  • Packing and length: 50 Meters. Other lengths can be produced to order.
  • Certification documents issued against your model number where the construction allows.
See The OEM & ODM Service

Certifications For This Range

This model is supplied with ETL/TUV/CE/RoHs/PSE documentation.

ETLTUVCEUKCAPSERoHS Certificates
View All Certificates

FAQ

50M packaging Portable LED Work Light Strip FAQ

Can a third-party inspection be arranged before delivery?
Yes.BEAUTY STC is quite confident with our products and has passed many international certifications .You can arrange an inspector in you side or we can assist you to do that.
Why your product comes with a high cost performance?
Firstly, our product operated under ETL and CE standards and we test the products one by one to make sure each single unit workswell enough.
Do you accept customize design?
Yes, we are offering OEM and ODM service as well .If you have any good idea, we can help you realize it.
Are the products safe enough?
Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including USA ETL, UL and European TUV, SGS, CE and RoHS.
Do you sell to individual customers directly?
No, we are manufacturer and only for wholesale. We have distributors in many countries, the end users can buy from them.
How can I get the sample from you?
If you are interested on our products, please contact us directly, we can send the free sample for checking the quality, but the custom should pay for the express fee.
How can I make the order?
You can email us or chat to our sales online. We have published our sales team and the contact info on the contact page. You can let us know what would you like to order and we will make PI for your confirmation. After you make the payment, we will process your order.
Are you a truly factory
Yes we are a factory has almost 16 years experience on producing. Welcome to visit us any time you want.
