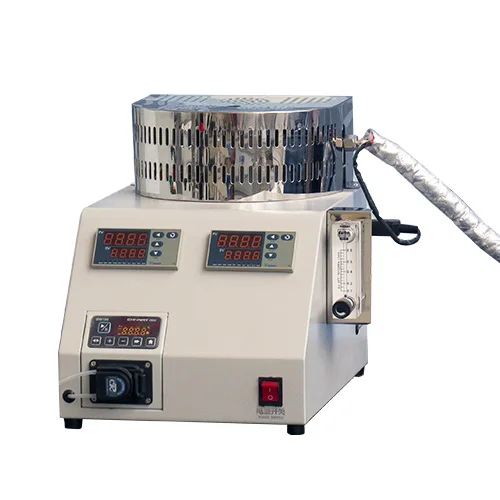

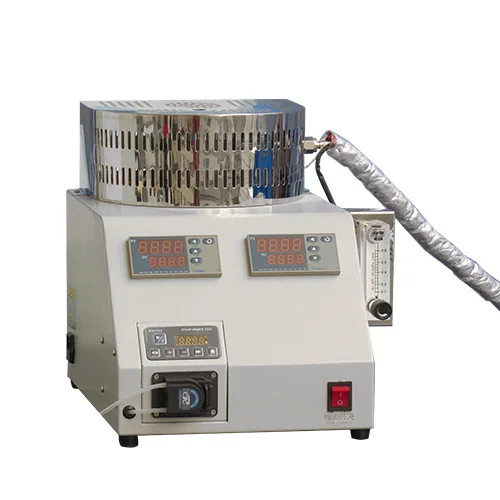

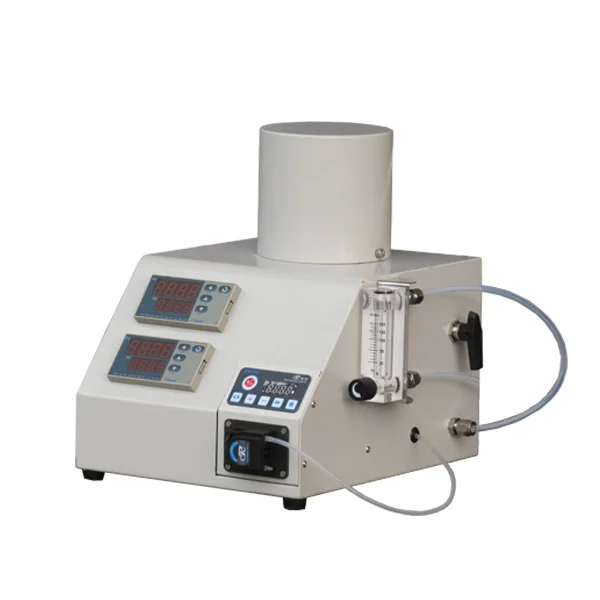

Laboratory Water Vapor Generator for Tube Furnace
The water vapor generator provides precise and quantitatively controlled steam conditions for laboratories, with accurate control of steam flow rate and temperature. The steam generation is stable and continuous, and the equipment is simple and safe to operate. Our water vapor generator features an innovative and...
Introduction
The water vapor generator provides precise and quantitatively controlled steam conditions for laboratories, with accurate control of steam flow rate and temperature. The steam generation is stable and continuous, and the equipment is simple and safe to operate. Our water vapor generator features an innovative and specialized vaporization structure, overcoming the shortcomings of traditional water vapor generators, such as unstable flow rates, difficult control of temperature and output, incomplete vaporization, and large fluctuations.
It provides precise, continuous, and stable water vapor for applications such as steel corrosion testing, fuel cell testing, catalytic hydrothermal aging, fixed-bed and fluidized-bed reactions, and biodegradation and synthesis.
The product is composed of a high-precision laboratory peristaltic pump, a steam generator, and an anti-condensation system.
Features and Benefits
1. Utilizes a special vaporization structure to ensure stable generation of water vapor.
2. Adjustable vaporization temperature.
3. Controllable liquid flow rate.
4. Steam delivery preheating system to prevent vapor condensation and backflow.
5. Automatic liquid feeding with stepless speed regulation and steam metering generation.
6. Easy installation, compatible with tubular furnaces from various manufacturers.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | WTS101 |
|---|---|
| Power Supply | AC220V 400W |
| Temperature Regulation | The steam generation temperature is 100°C to 250°C, and the pipeline insulation temperature is 120°C. (Note:At 1 atmosphere pressure, water expands approximately 1244.44 times after vaporizing at 100°C, water expands approximately 2249.33 times after vaporizing at 180°C.) |
| High-Precision Peristaltic Pump | 1. Speed Range: 0.1-100 rpm, reversible 2. Display: 4-digit LED displaying current speed or flow rate; 3. Enhanced PP material, corrosion-resistant; 4. Flow Rate: 0.04-13 ml/min; 5. Full-speed button for rapid emptying and filling; 6. Power-off memory function, saving operation parameters. |
| Control System | 1. Fuzzy PID temperature control, high-brightness digital display; 2. Programmable multi-segment “Time-Temperature” curve settings; 3. Features over-temperature alarm, thermocouple disconnection alert, and leakage protection. |
| Temperature Accuracy | +/- 1℃ |
| Net Weight | 15KG |
| Service Support | 1-year warranty, lifetime support (warranty excludes consumable parts) |
Laboratory Water Vapor Generator for Tube Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Fluidized Bed Calcination Furnace for Powder and Fine Particle Materials
1200°C Dual-Zone Vertical Fluidized Bed CVD (FBCVD) Furnace with Automatic Feeding and Discharging System
Vertical High Temperature Tube Furnace – 1500°C / 1700°C for Laboratory and R&D
Vacuum Atmosphere Hybrid Box/Tube Furnace for Precision Heat Treatment
1200°C Hydrogen Rotary Tube Furnace for Metallurgical Research
Advanced Continuous Pyrolyzers for Biomass and Organic Solid Waste Thermal Processing & Sintering
1700°C Vertical Atmosphere Controlled Quenching Furnace for High-Performance Heat Treatment
Customizable Tube Furnace with Gas Control System – Precision Atmosphere Processing
Ordering Laboratory Water Vapor Generator for Tube Furnace
What is Laboratory Water Vapor Generator for Tube Furnace typically used for?
The water vapor generator provides precise and quantitatively controlled steam conditions for laboratories, with accurate control of steam flow rate and temperature. The steam generation is stable and continuous, and the equipment is simple and safe to operate
Can Laboratory Water Vapor Generator for Tube Furnace be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Laboratory Water Vapor Generator for Tube Furnace?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for Laboratory Water Vapor Generator for Tube Furnace?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is Laboratory Water Vapor Generator for Tube Furnace packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
