Constant temperature Stainless Steel Water (Oil) Bath
Introduction The thermostatic stainless steel water (oil) bath is widely used in drying, concentration, distillation, impregnation of chemical reagents, impregnation drugs and biological agents, and can also be used for constant temperature heating of water bath and other temperature tests. For heat sensitive...
Introduction
The thermostatic stainless steel water (oil) bath is widely used in drying, concentration, distillation, impregnation of chemical reagents, impregnation drugs and biological agents, and can also be used for constant temperature heating of water bath and other temperature tests. For heat sensitive materials, it can be heated under precise constant temperature conditions to achieve the ideal use effect. It can also be used in other places where constant temperature water (oil) bath is required. It adopts stainless steel liner, stainless steel heating ring built-in type, and electronic temperature measurement, Digital temperature control, easy to use, safe and reliable.
Main Application Fields
It is an ideal tool for chemical industry, petrochemical industry, biochemical technology, medical experiment, scientific research, biopharmaceutical, colleges and universities and other fields.
Main Characteristic
1. Stainless steel heating pipe, rapidly heating.
2. The shell be formed at one time and firmly welded.
3. Stainless steel liner, corrosion resistant.
4. Intelligent digital display temperature control meter, water (oil) temperature display is intuitive, PID temperature control is accurate and easy to operate.

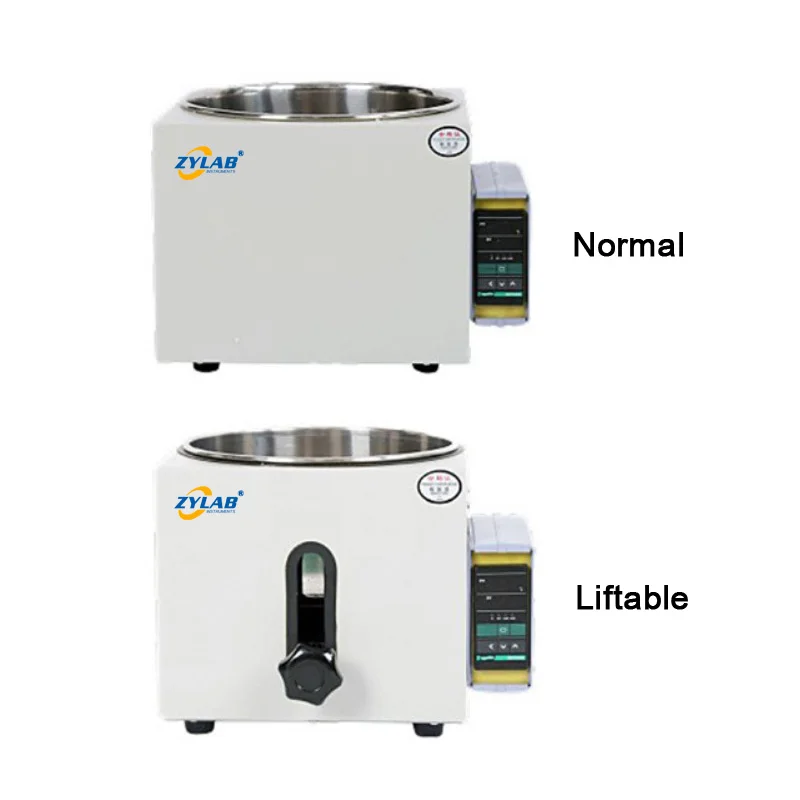

5. The bath can be raised and lowered (fast, easy to operate, easy to use) or not, to meet various needs.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Regular | |||||
|---|---|---|---|---|---|
| Capacity | Bath Size | Temp Range | Temp accuracy | Power(Kw) | Power Supply |
| 2L | 250*140mm | RT-250.C | +/-0.5.C | 1.2 | 220V 50/60HZ |
| 3L | 255*170mm | RT-250.C | +/-0.5.C | 1.5 | 220V 50/60HZ |
| 5L | 280*170mm | RT-250.C | +/-0.5.C | 2 | 220V 50/60HZ |
| 10L | 350*220mm | RT-250.C | +/-0.5.C | 3.5 | 220V 50/60HZ |
| 20L | 450*250mm | RT-250.C | +/-0.5.C | 4.5 | 220V 50/60HZ |
| 50L | 550*320mm | RT-250.C | +/-0.5.C | 6 | 380V 50/60HZ |
| Can be Raised and Lowered | |||||
| Capacity | Bath Size | Temp Range | Temp accuracy | Power(Kw) | Power Supply |
| 2L | 250*140mm | RT-250.C | +/-0.5.C | 1.2 | 220V 50/60HZ |
| 3L | 255*170mm | RT-250.C | +/-0.5.C | 1.5 | 220V 50/60HZ |
| 5L | 280*170mm | RT-250.C | +/-0.5.C | 2 | 220V 50/60HZ |
| 10L | 350*220mm | RT-250.C | +/-0.5.C | 3.5 | 220V 50/60HZ |
| 20L | 450*250mm | RT-250.C | +/-0.5.C | 4.5 | 220V 50/60HZ |
| 50L | 550*320mm | RT-250.C | +/-0.5.C | 6 | 380V 50/60HZ |
Constant Temperature Stainless Steel Water (Oil) Bath In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Ordering Constant Temperature Stainless Steel Water (Oil) Bath
What is Constant temperature Stainless Steel Water (Oil) Bath typically used for?
Introduction The thermostatic stainless steel water (oil) bath is widely used in drying, concentration, distillation, impregnation of chemical reagents, impregnation drugs and biological agents, and can also be used for constant temperature heating of water ba
Can Constant temperature Stainless Steel Water (Oil) Bath be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Constant temperature Stainless Steel Water (Oil) Bath?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for Constant temperature Stainless Steel Water (Oil) Bath?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is Constant temperature Stainless Steel Water (Oil) Bath packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For Constant Temperature Stainless Steel Water (Oil) Bath
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
