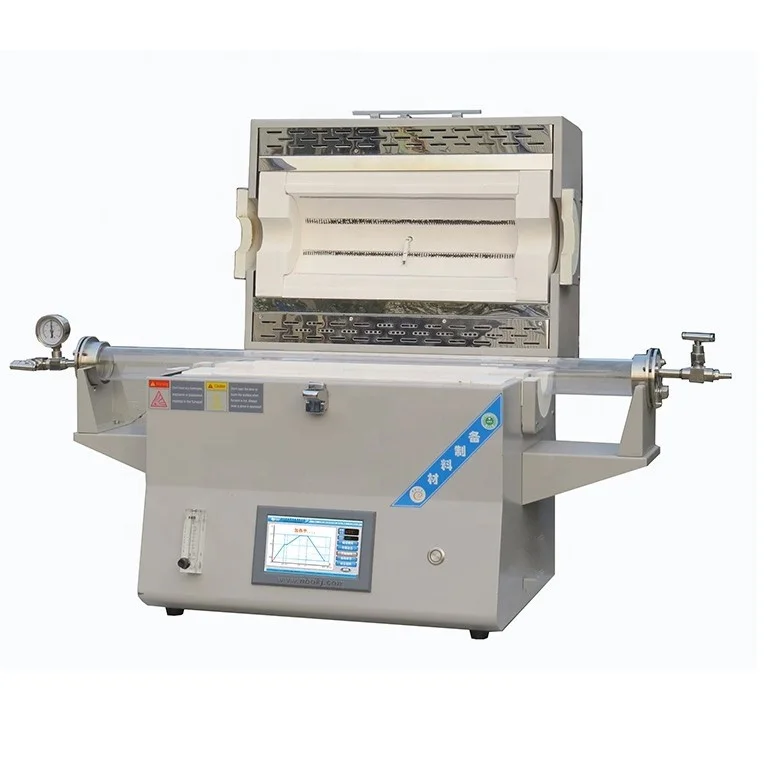

1200.C Vacuum Tube Furnace
Highlight High purity quartz tube; 7” colored graphic touch panel; Can store and preset temperature curves; Come with gas flowmeter; Unique flange has a multi-function test
Introduction
Our factory devote to developing better laboratory heat treatment equipment, especially tube furnace. Starting from the details, after repeated design, to create this exquisite and convenient tube furnace.
Precise and advanced touch screen auto temperature controller, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniform and can work under inert atmosphere and vacuum.
This Vacuum Tube Furnace is widely used in the labs of university and research institutions, also used in factory for production.
Main Features

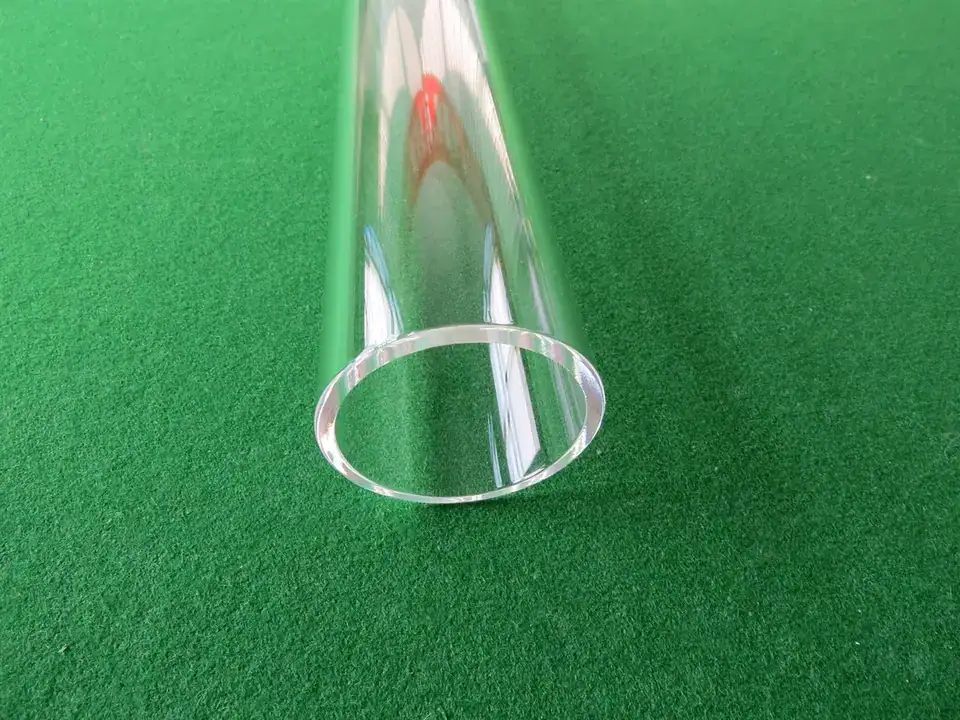

1. High purity quartz tube as furnace tube, max. temperature 1200.C, continue working temperature Rt –1100.C.
2. 7”Color Touch screen LCD man-machine English interface, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
3. 30 segments programmable and auto control.
4. Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different experimental processes.
5. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
6. By using special lining import from Japan and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
8. Ring heating, open structure, convenient observation for operator, able to meet rapid sintering of small sample
9. Come with gas flowmeter, atmosphere sintering more convenient.

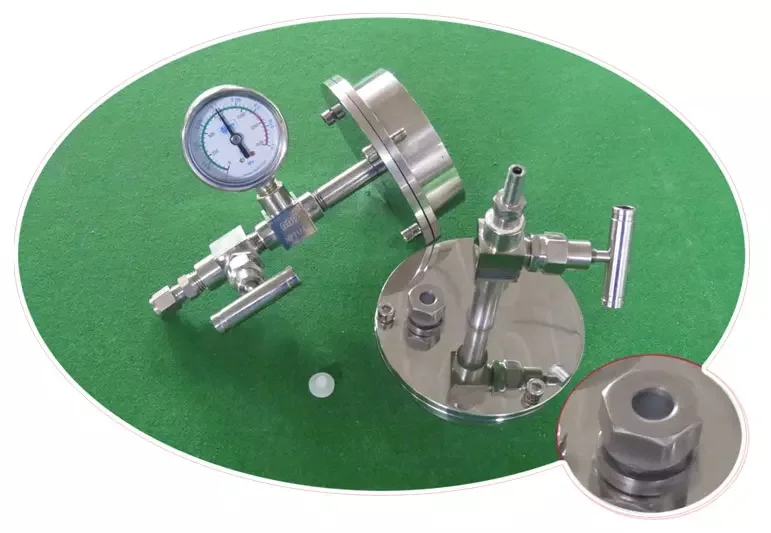

10. Unique flange has a multi-function test holes, insert the corresponding electrode to test tube temperature or atmosphere environment.
11. Can add modules to contol and download data remotely(optional).
12. Low power consumable, exquisite structure and light weight, it is the ideal tube furnace for material research labs, also used in factory for small production.
Which Kinds of Industry Can Use This Vacuum Tube Furnace?
College & Universities, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, Lithium battery etc.
Applications of Vacuum Tube Furnace
Satisfy the vacuum sintering of the vast majority of materials, the sintering of the protective atmosphere and all kinds of CVD experiments.
Used in university laboratories, research institutes, and industrial & mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
For heat working or treatment of small workpieces in cement and building materials industries.
Used in the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis,etc.
How Does a Tube Furnace Work?
Understanding Tube Furnace Temperatures: Medium vs. High-Temperature Applications
Applications of Tube Furnace in the Development of Advanced Ceramic Powder Materials
Rotary Tube Furnace vs. Horizontal Tube Furnace vs. Vertical Tube Furnace: Which One Suits Your Needs?
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | O1200-IT |
|---|---|
| Chamber Model | Open |
| Chamber Material | High quality import alumina fiber refraction insulation |
| Heating Element | High quality resistance wire |
| Max.temperature | 1200℃(<1hour) |
| Working Temperature | ≤1100℃ |
| Heating Rate | ≤20℃/min(advice:10℃/min) |
| Heating Zone | Single |
| Length of Heating Zone | 440mm |
| Constant Zone | 260mm |
| Tube Material | High Purity Quartz |
| Tube Sizes | Φ50×1000(mm Φ60×1000(mm) Φ80×1000(mm) Φ100×1000(mm) |
| Sealing Mode | Vacuum Flange |
| Gas Tightness | 4.03×10-3Pa |
| Control Mode | Smart PID Control |
| Operating Interface | English Graphical Interface |
| Temperature Accuracy | +/- 1.C |
| Presetting Curve | 15 Presetting Curve, 30 Segments Programmable |
| Protection Setting | Over Temperature Alarm, Over Current Protection, Broken Thermocouple Protection |
| Thermocouple | K Type |
| Working Voltage | AC208-240V 50/60HZ |
| Standard Accessories | Quartz Tube, Vacuum Flange,Vacuum Gauge, Gas Flow Meter,Tube Block, O-ring, Protective Gloves, Crucible Hook, Manual Book |
1200.C Vacuum Tube Furnace In Detail
