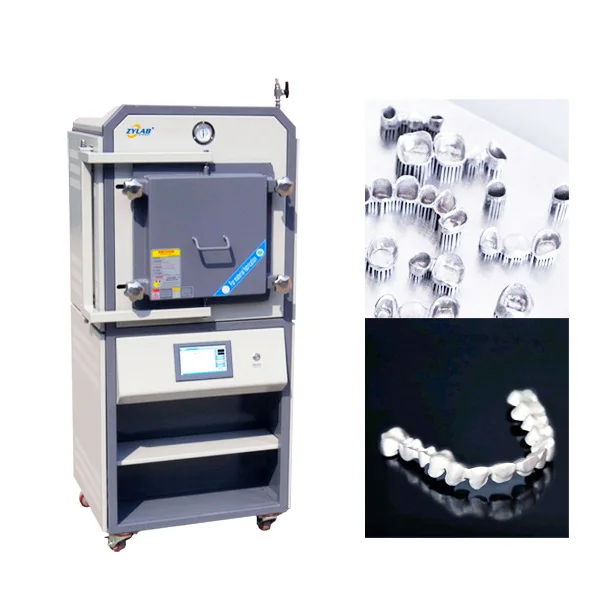

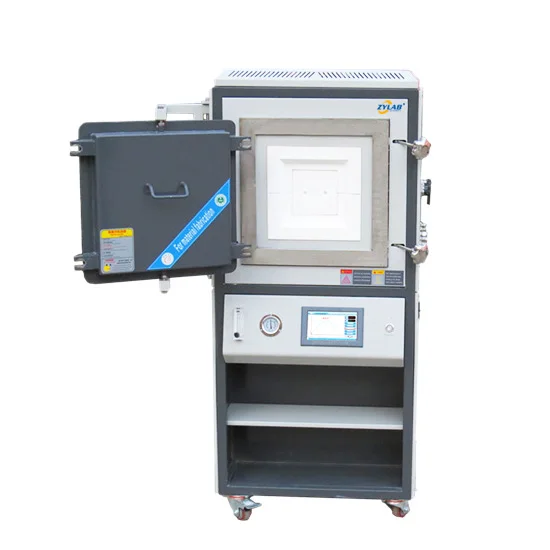

High Quality 3D Printing Vacuum Sintering Furnace

Introduction

The specialized vacuum sintering furnace for 3D printers is widely used for the heat treatment of metal materials such as titanium alloys, pure titanium, cobalt-chromium alloys, cobalt-chromium-tungsten alloys, cobalt-chromium-molybdenum alloys, aluminum alloys, stainless steel, and more under low vacuum and protective atmospheres. It is also suitable for annealing, and brazing processes required for materials such as high-speed steel, alloy molds, and soft magnetic alloys in a vacuum atmosphere.

Features and Benefits of Vacuum Sintering Furnace

• Heating Elements: Utilizes or27A17M02 or silicon carbide and molybdenum disilicide heating elements. The imported high-temperature reflective coating material ensures uniform temperature distribution while maintaining a clean heating space.
• Touchscreen Control: Equipped with a 7-inch touchscreen control for real-time curve collection, offering a broader expansion space. The furnace can be controlled using an Android operating system for equipment control and data storage.
• Centralized Control: The required gas intake and vacuum levels during operation can be centrally controlled via the touchscreen control system, providing convenience and efficiency.
• Energy Efficiency: The furnace chamber is made from high-purity alumina fiber formed through vacuum adsorption, making it 60% more energy.
• Customizable Chamber Size: The chamber size can be customized according to the user’s specific requirements.

Applications of Vacuum Sintering Furnace

• 3D Printing Post-Processing: Ideal for sintering, densification, and strengthening of 3D printed metal and ceramic parts.

• Powder Metallurgy: Heat treatment of powder metallurgy components under vacuum, reductive, or protective atmospheres to achieve high density and uniform microstructure.

• Ceramics & Hard Alloys: Sintering and consolidation of technical ceramics, tungsten carbide, and other hard alloys.

• Vacuum Heat Treatment: Suitable for annealing and brazing of high-speed steel, alloy molds, soft magnetic alloys, and other advanced materials requiring controlled vacuum atmospheres.

• Specialized Industrial & R&D Processes: Applied in industries such as aerospace, electronics, medical devices, and precision engineering where high-purity, defect-free components are essential.

Optional Configurations

• Copper Electrodes
  One end of the copper electrode is located inside the vacuum chamber and connected to the heating element, while the other end is linked to the aluminum busbar transformer circuit board. This design ensures a reliable electrical connection while maintaining vacuum tightness without leakage.

• Pre-Heater for Mild Corrosive Gases
  Constructed entirely from 316L stainless steel, this optional pre-heater is suitable for various gases, including mildly corrosive types. It enables efficient preheating to meet special process requirements, with a maximum operating temperature of 600°C.

• Protective Atmosphere Box
  The protective atmosphere box is an auxiliary device placed inside the furnace to establish and maintain a controlled atmosphere. It prevents oxidation, contamination, or unwanted reactions between heated materials and air components. Custom dimensions are available to fit specific applications.



Optional Configurations

• Advanced Ceramics Development
  Our Vacuum Sintering Furnace was utilized by clients in the development of new ceramic materials. By precisely controlling the furnace temperature and atmosphere, they successfully produced ceramic samples with enhanced strength and electrical conductivity. This advancement opens up new possibilities for the application of ceramics in electronic devices.

• Metal Material Heat Treatment Research
  In studies of metal heat treatment, the furnace’s high-vacuum environment and precise temperature control enabled optimization of the metal’s microstructure, resulting in improved strength and toughness.

The Role of Vacuum Atmosphere Furnace in Advanced Material Research
