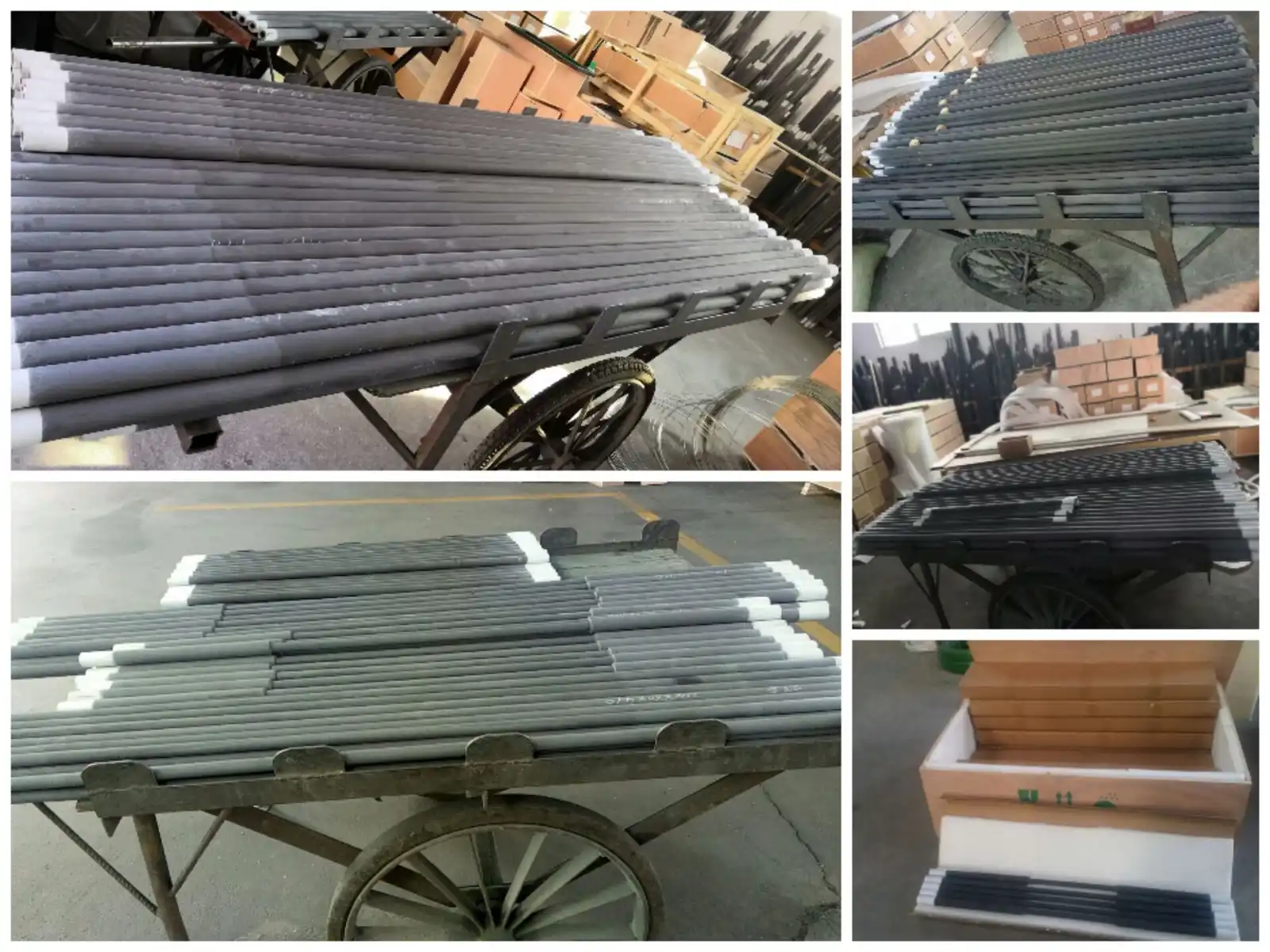

DB (Dumbbell) Type SiC Heating Element
General Description: SiC Heating Element is one type of ceramic heating elements, which use six-party high purity green SiC powder as the main raw material. Silicon is recrystallized under 2200 ℃ high temperature to form finished materials. The using temperatures up to 1450 °C under oxidation atmosphere, and constant...
General Description
SiC Heating Element is one type of ceramic heating elements, which use six-party high purity green SiC powder as the main raw material. Silicon is recrystallized under 2200 ℃ high temperature to form finished materials. The using temperatures up to 1450 °C under oxidation atmosphere, and constant working life up to 2000 hours. It is widely used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, powder metallurgy, glass, metallurgy and machinery etc.
Advantages of ZYLAB SiC Heating Element
1. Selecting high purity green SiC powder, to ensure best foundation for top quality.
2. SiC tube is extruded by 500T press machine, to ensure high density uniform through whole length.
3. Excellent resistance rate between heat zone and cold zone, to avoid over-temperature of cold zone to damage furnace body.
4. Special technology to spread a protect film on the surface of hot zone, which enhance the Antioxidant property evidently and lengthen the service life.
Note: When Ordering, Please Indicate the Following Data
Out diameter(OD)
Length of Hot zone (HZ)
Length of Cold zone (CZ)
Resistance (Ω)(at 1050C +/-50C)
Can be customized all kinds of sizes according to customer’s requirement.
DB (Dumbbell) Type SiC Heating Element In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Quick Clamp Vacuum Sealing Assembly for Tube Furnace
Laboratory Ceramic Crucible
Fused Silica Quartz Ceramic Crucible
Protective Gas Box for Biochar Pyrolysis in Box Furnaces
Desktop Single-Channel MFC Gas Delivery System with Touchscreen Control
Weakly Corrosive Gas Preheater
Handheld K-Type Armored Thermocouple and Digital Thermometer
Recirculating Chillers – Cooling Solutions for Lab High-Temp Furnaces
Ordering DB (Dumbbell) Type SiC Heating Element
What is DB (Dumbbell) Type SiC Heating Element typically used for?
General Description: SiC Heating Element is one type of ceramic heating elements, which use six-party high purity green SiC powder as the main raw material. Silicon is recrystallized under 2200 ℃ high temperature to form finished materials. The using temperatu
Can DB (Dumbbell) Type SiC Heating Element be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with DB (Dumbbell) Type SiC Heating Element?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for DB (Dumbbell) Type SiC Heating Element?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is DB (Dumbbell) Type SiC Heating Element packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For DB (Dumbbell) Type SiC Heating Element
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
