Saturated Steam Vertical Oxidation Quenching Furnace
This specialized Saturated Steam Vertical Oxidation Quenching Furnace is designed for universities, research institutes, and industrial enterprises to conduct oxidation experiments on metal materials under a certain saturated steam pressure. It uses PLC control and touch screen operation, allowing for easy initiation...
Introduction
This specialized Saturated Steam Vertical Oxidation Quenching Furnace is designed for universities, research institutes, and industrial enterprises to conduct oxidation experiments on metal materials under a certain saturated steam pressure. It uses PLC control and touch screen operation, allowing for easy initiation of preset experimental programs with a simple touch. It is particularly suitable for repetitive experiments or standard operating procedures, significantly improving work efficiency.
Features and Benefits
1. Electric Lifting Device: Adjustable speed allows for rapid heating and cooling, quenching, and cold-hot fatigue experiments under atmospheric protection.
2. Platinum Suspension Wire: Enables sample suspension for sintering at temperatures up to 1500°C.
3. High-Efficiency Steam Generator: Facilitates oxidation experiments in a saturated steam environment.
4. Electric Claw: Allows for easy automatic sample release, with a maximum gripping force of 40N.
5. Stable and Reliable Control: Easy to operate.
6. Advanced PID Fuzzy Control: High temperature control precision, maintaining within ±1°C.
7. High-Purity Alumina Lightweight Fiber Material: Used in the furnace lining for better insulation and energy saving.
8. Data Storage Function: Can store important sintering parameters for up to 30 days (assuming 8 hours of operation per day).
9. Recipe Function: Can store over 100 preset recipes.
10. Multiple Safety Features: Ensures safe operation for users.
11. Network Capability: Connects to a host computer via RJ45 interface using TCP/IP protocol (host computer software required).
Applications
This specialized Saturated Steam Vertical Oxidation Quenching Furnace is designed for universities, research institutes, and industrial enterprises to conduct oxidation experiments on metal materials under a certain saturated steam pressure.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | LT1700-60TIFN High-Temperature Oxidation Vertical Quenching Furnace |
|---|---|
| Max. temp | 1700℃ |
| Working temp | 800-1600℃ (continuing) |
| Rated power | 12KW |
| Steam Generator Power | 800W + 150W heating tape |
| Thermocouple | B type |
| Heating element | High-purity silicon molybdenum rods(MoSi2) |
| Heating Zone Dimensions | 120*120*500mm |

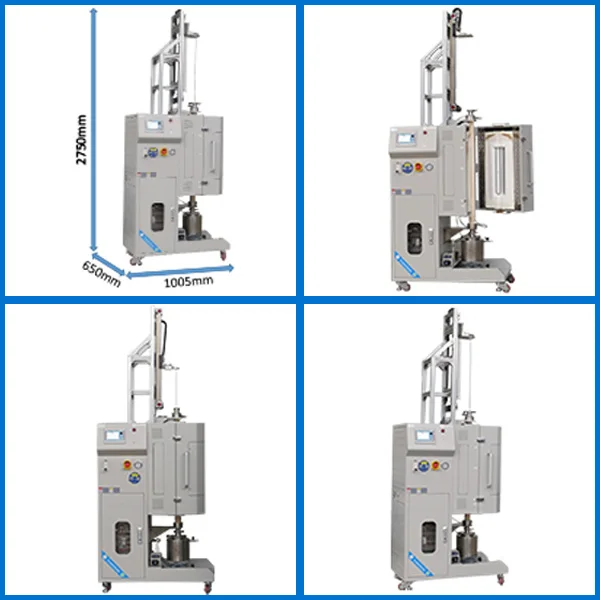

| Furnace Body Dimensions | L 1005*H 2750* D 650mm |
| Furnace Tube Dimensions | Corundum Φ60*1200mm |
| Max Evaporation Rate | 10ml/min |
| Inlet Method | One-way float flow meter 0.1-0.8L/min |
| Quenching Tank Dimensions | Φ129*220mm |
| Recommended Heating Rate | ≤10℃/min |
| Control System | 1.Sintering Process Curve Setting: Dynamically displays the set curve. The equipment can store multiple sintering process curves, each of which can be freely set. 2. Scheduled Sintering: Enables unattended sintering process curve sintering. 3. Real-Time Display and Data Recording: Displays and records real-time sintering power, voltage, and other information, which can be exported for paperless recording. 4. Remote Control: Allows remote operation and real-time observation of equipment status. 5. Temperature Correction: Nonlinear correction of the difference between main control temperature and sample temperature throughout the sintering process. |
| Electric Lift Device | Adjustable speed allows for rapid temperature increase and decrease, quenching, and cold-hot fatigue experiments under atmospheric protection. |
| Platinum Suspension Wire | Allows for sample suspension and sintering at temperatures up to 1500°C. |
| Steam Generator and Quenching Tank | 1.Equipped with a high-efficiency steam generator for oxidation experiments in a saturated steam environment. 2.Quenching tank – quickly transfer samples to the quenching tank after heating to the appropriate temperature. |
| Heating Elements | High-purity silicon molybdenum(MoSi2) rods. |
| Temperature Accuracy | ±1℃ |
| Sealing System | Stainless steel vacuum sealing flange |
| Vacuum Level | 10Pa (mechanical pump) |
| Gas Supply System | Uses a float flow meter to control gas flow rate, integrated with the equipment, and tested for leaks before delivery. |
| Pressure Measurement and Monitoring | Uses a mechanical pressure gauge with an airtight case to protect internal components from environmental influences and debris, offering strong resistance to corrosion and high temperatures. |
| Weight | 260 kg |
| Service Support | One-year limited warranty with lifetime support (the warranty does not cover consumable parts such as process tube and O-rings, which should be ordered as replacement parts under related products). |
