99% Alumina Curved Muffle Furnace Crucible for High-Temperature Applications
Muffle Furnace Crucible is a high-performance laboratory tool designed for high-temperature applications. Made from 99% high-purity alumina, it offers exceptional thermal resistance, chemical stability, and corrosion resistance, making it ideal for use in extreme environments. The curved design enhances uniform heat...
Product Details
Muffle Furnace Crucible is a high-performance laboratory tool designed for high-temperature applications.
Made from 99% high-purity alumina, it offers exceptional thermal resistance, chemical stability, and corrosion resistance, making it ideal for use in extreme environments.
The curved design enhances uniform heat distribution and accommodates specific experimental or material processing needs.
Engineered for muffle furnaces and crucible furnaces, this crucible is widely used in ceramic sintering, powder calcination, chemical analysis, and metal melting processes.
Alumina Purity: >99%
Maximum temperature resistance: 1750°C
Continuous operating temperature: ≤1600°C
The lid can be purchased separately.
We offer customized services according to your requirements!
How to Use Alumina Crucibles？
1. Before the first use, preheat the crucible in an oven at around 105°C for 120 minutes to remove moisture.
2. Do not directly heat the crucible with gasoline blowtorch, acetylene torch, or alcohol burner to avoid uneven heating and cracking of the product.
3. The heating or cooling rate should not be too fast. The temperature change below 1200°C should be <5°C/minute, and above 1200°C should be ≤4°C/minute.
4. The distance between the product and the heating element (such as carbon tube, silicon molybdenum rod, or heating wire, etc.) should be >2cm.
5. The bottom of large crucibles should preferably not directly contact the bottom of the furnace. It is recommended to use alumina foot pads or other heat-resistant materials to lift the crucible, forming air convection to prolong the service life of the product.
Muffle Furnace Crucible Related Products
Alumina Conical Crucible with Lid
Square Alumina Crucibles for Muffle Furnace
Square Crucible with Lid for Muffle Furnace
Alumina Kiln Furniture for Muffle Furnace
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.

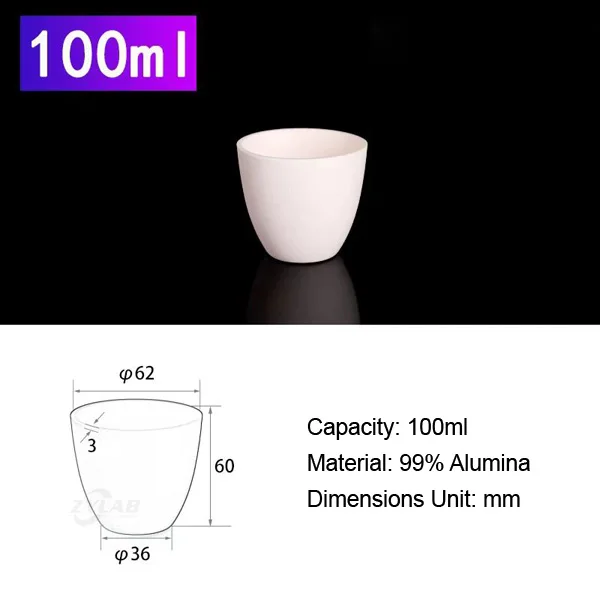

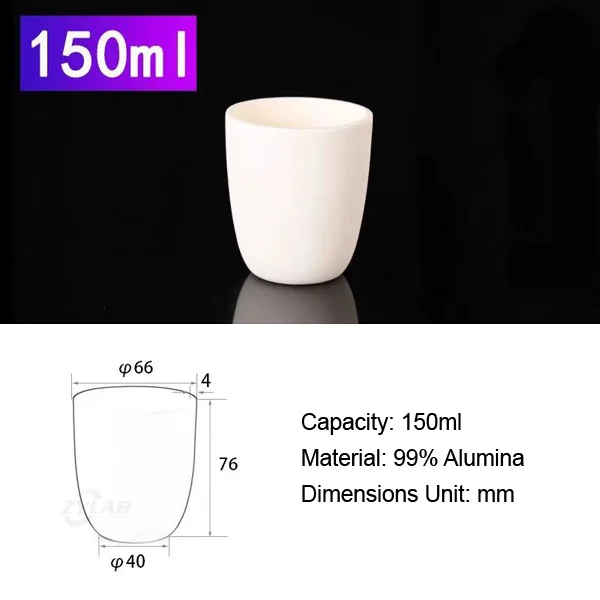

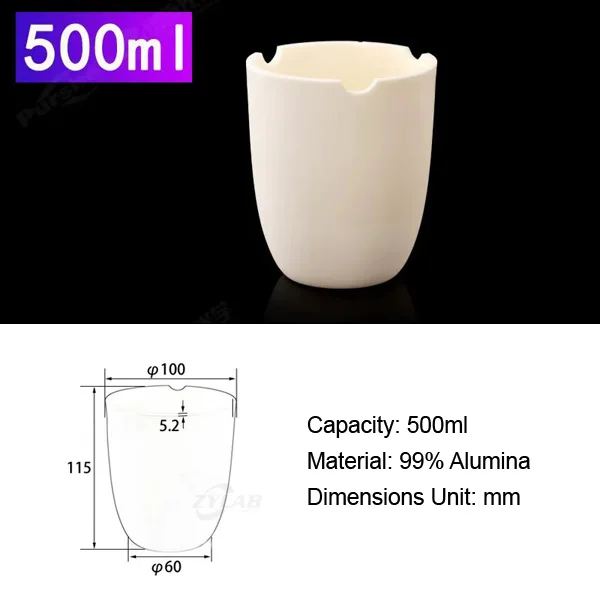

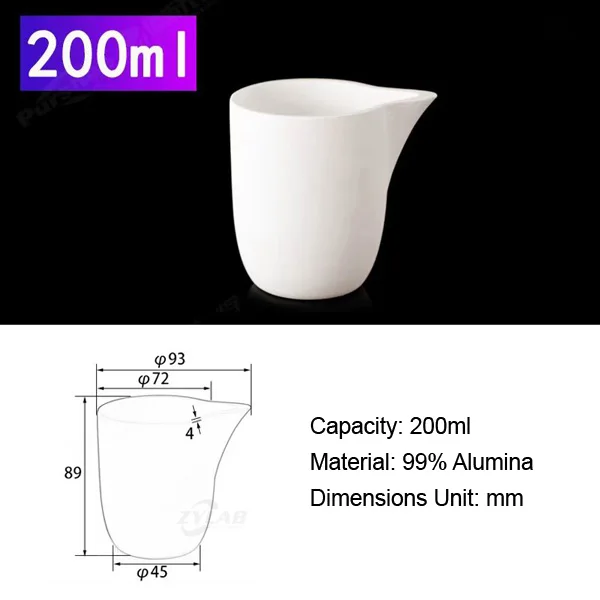

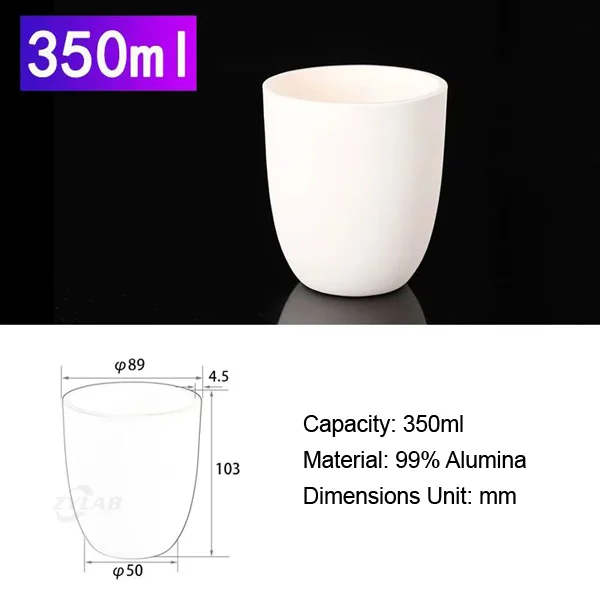

| 99% Alumina Curved Muffle Furnace Crucible | ||||||
|---|---|---|---|---|---|---|
| 3ml | 4ml | 5ml | 10ml | 15ml | 20ml | 25ml |
| 30ml | 40ml | 50ml | 100ml | 150ml | 200ml | 300ml |
| 200ml | 300ml | 350ml | 460ml | 500ml | 750ml | 1000ml |
| 1300ml | 1500ml | 2300ml | 3500ml | |||
| The crucibles come in both standard and heightened models, with wall thicknesses ranging from 1.5 mm to 10 mm. |
