Mosi2 Heater
A MoSi2 Heater, or molybdenum disilicide heating element, is a high-temperature resistance heating device primarily made from the ceramic material molybdenum disilicide (MoSi2). These elements are well-suited for applications that require extremely high temperatures and are commonly used in various industrial and...
Introduction
A MoSi2 Heater, or molybdenum disilicide heating element, is a high-temperature resistance heating device primarily made from the ceramic material molybdenum disilicide (MoSi2). These elements are well-suited for applications that require extremely high temperatures and are commonly used in various industrial and laboratory settings.
High-Temperature Resistance
Capable of operating at temperatures up to 1800°C (3272°F) in oxidizing atmospheres.
Oxidation Resistance
When heated in an oxidizing atmosphere, MoSi₂ forms a protective layer of silicon dioxide (SiO₂) on its surface, which prevents further oxidation of the element.
Electrical Conductivity
MoSi₂ is a good electrical conductor, which is crucial for its function as a heating element.
Durability
These elements have a long service life due to their high resistance to oxidation and chemical attack.
Thermal Shock Resistance
Able to withstand rapid temperature changes without cracking.
I Shape
Straight rod elements.

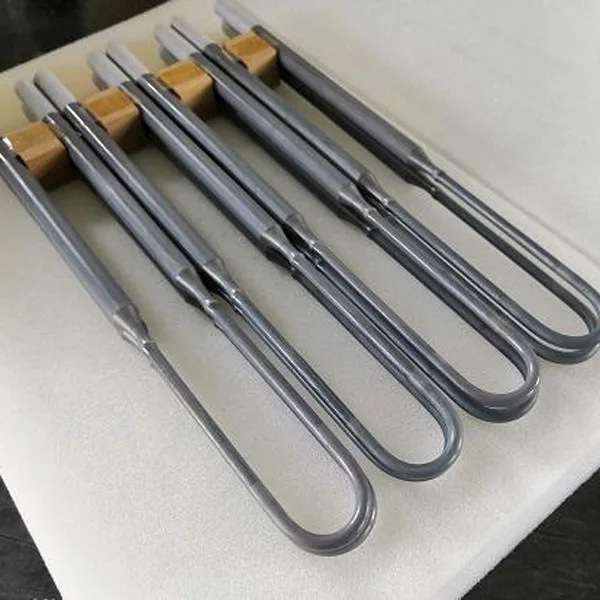

U Shape
Commonly used, suitable for various industrial and laboratory furnaces.
M Shape
Designed for specific heating configurations.

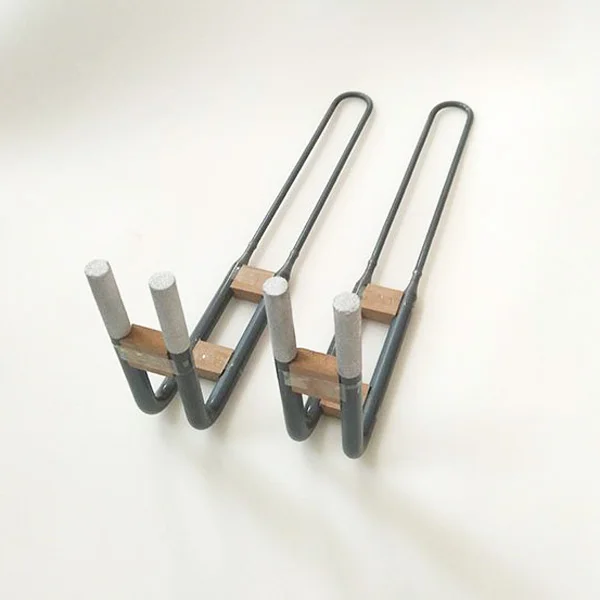

L Shape
Used in specialized applications.
M1700 Type
Available in diameters such as 3/6, 4/9, 6/12, 9/18, 12/24 mm.
M1800 Type
Available in the same diameters as M1700 but can withstand higher temperatures.
Industrial Furnaces
Used in heat treatment processes, sintering, melting, and annealing.
Glass and Ceramic Manufacturing
Employed in the production of glass and ceramics, which require high and consistent temperatures.
Laboratory Equipment
Utilized in high-temperature laboratory furnaces for research and testing.
Semiconductor Industry
Used in processes that demand precise temperature control, such as diffusion and oxidation.
Environment
Best suited for use in air or inert gas environments. Active gases like hydrogen, chlorine, and sulfur dioxide can damage the element.
Temperature Range
Avoid prolonged use in the 400-700°C range to prevent oxidation and damage.
Handling
MoSi₂ elements are brittle at room temperature and should be handled carefully. Avoid rapid heating and cooling to prevent breakage.
Installation
Typically installed vertically to avoid mechanical stress. Connection wires should allow for thermal expansion.
Installation of silicon molybdenum heating elements
When Ordering, Please Indicate the Following Data
D1=diameter of hot zone
D2= diameter of cold zone
Le=length of hot zone
Lu=length of cold zone
A=distance between two cold zones
Optional Accessories: connecting clamps & braids.
Mosi2 Heater In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Quick Clamp Vacuum Sealing Assembly for Tube Furnace
Laboratory Ceramic Crucible
Fused Silica Quartz Ceramic Crucible
Protective Gas Box for Biochar Pyrolysis in Box Furnaces
Desktop Single-Channel MFC Gas Delivery System with Touchscreen Control
Weakly Corrosive Gas Preheater
Handheld K-Type Armored Thermocouple and Digital Thermometer
Recirculating Chillers – Cooling Solutions for Lab High-Temp Furnaces
Ordering Mosi2 Heater
What is Mosi2 Heater typically used for?
A MoSi2 Heater, or molybdenum disilicide heating element, is a high-temperature resistance heating device primarily made from the ceramic material molybdenum disilicide (MoSi2). These elements are well-suited for applications that require extremely high temper
Can Mosi2 Heater be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
How quickly can Mosi2 Heater be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Mosi2 Heater within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
How is Mosi2 Heater packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Can you supply items that are not on this page?
Yes. We have access to the complete lines of most of our suppliers and build custom equipment in our own factory, so tell us what the experiment needs and we will source or make it.
Quote For Mosi2 Heater
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
