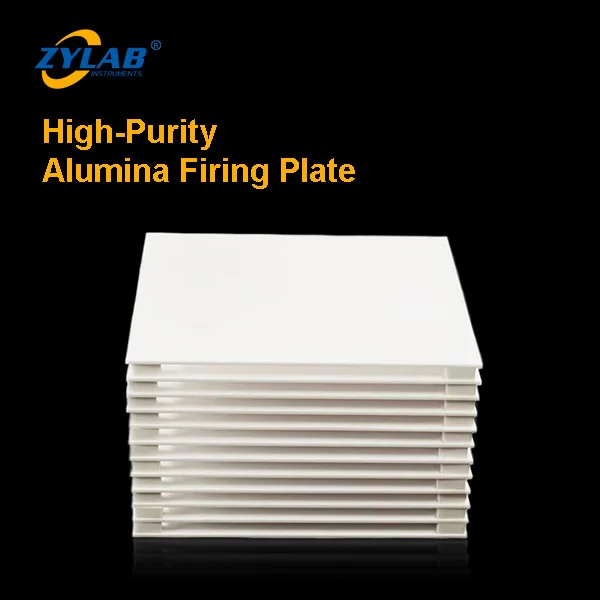

High-Purity Alumina Firing Plate for Sample Support
ZYLAB’s high-purity alumina firing plate is engineered for stable and clean sample support in high-temperature muffle, Chamber, and laboratory furnaces. Made of ≥99% pure alumina ceramic, it offers excellent thermal resistance, mechanical strength, and chemical inertness — ideal for repeated firing, sintering, and...
Introduction

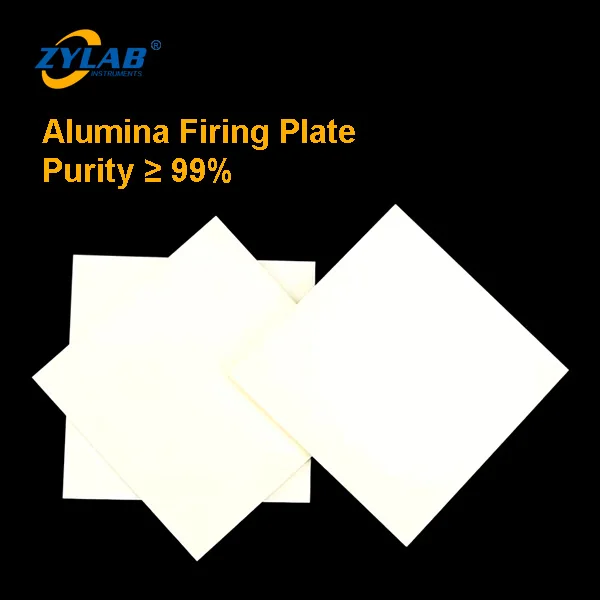

ZYLAB’s high-purity alumina firing plate is engineered for stable and clean sample support in high-temperature muffle, Chamber, and laboratory furnaces. Made of ≥99% pure alumina ceramic, it offers excellent thermal resistance, mechanical strength, and chemical inertness — ideal for repeated firing, sintering, and thermal testing up to 1700°C.
Please share your Laboratory furnace specifications (inner chamber dimensions (L×W×H) and temperature requirements) , and we will provide a tailor-made solution for you.
Contact us for free consultation or a quote!
Key Features
≥99% Purity Alumina: Offers exceptional thermal stability and chemical resistance.
High Flatness Surface: Ensures even sample support and uniform heat distribution.
Temperature Resistance up to 1700°C: Suitable for demanding thermal processes.
Smooth, Non-Porous Finish: Minimizes contamination risk and sample sticking.
Custom Dimensions Available: Plates can be tailored to fit various furnace chambers and sample sizes.
Reusable and Durable: Withstands repeated thermal cycles.
Applications of High-Purity Alumina Firing Plate
Sintering of ceramic and metal samples
Thermal support for 3D-printed parts
Powder metallurgy
Ash content testing
Catalyst or chemical sample heating
Firing base in laboratory muffle or Chamber furnaces
Why Choose ZYLAB ?
Strict quality control ensures consistent flatness and purity
Proven performance in high-purity and high-temperature applications
Fast delivery and global shipping
Customization support from design to final shipment
A Furnace Furniture Solution Composed of Alumina Plates and Stands
Custom Alumina Furnace Furniture | Drilling, Engraving and Grooving
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| 20×20×1.5 | 20×20×3 | 30×30×2 | 40×30×3 |
|---|---|---|---|
| 40×40×3 | 45×23×3 | 50×25×3 | 50×30×3 |
| 50×40×3 | 50×50×3 | 50.8×50.8×0.5 | 50.8×50.8×1 |
| 60×30×3 | 60×40×3 | 60×50×3 | 60×60×3 |
| 60×60×10 | 65×65×3 | 70×70×3 | 75×75×4 |
| 80×40×3 | 80×40×4 | 80×80×4 | 84×75×8 |
| 85×85×4 | 90×60×3 | 90×90×4 | 100×30×3 |
| 100×40×3 | 100×40×6 | 100×40×9 | 100×50×3 |
| 100×50×9 | 100×60×3 | 100×65×3 | 100×84×1.5 |
| 100×84×3 | 100×84×4 | 100×84×6 | 100×100×3.5 |
| 100×100×5 | 100×100×7 | 100×100×8 | 101.6×101.6×0.5 |
| 101.6×101.6×1 | 105×105×4 | 110×110×4 | 115×55×3 |
| 115×65×4 | 115×115×4 | 120×60×5 | 120×80×5 |
| 120×120×4 | 120×120×6 | 120×120×10 | 130×130×6 |
| 135×120×7 | 140×140×6 | 150×130×7 | 150×150×6 |
| 150×150×7 | 155×40×4 | 160×120×5 | 160×140×5 |
| 160×160×6 | 180×180×6 | 190×190×4 | 200×100×6 |
| 200×150×5 | 200×200×8 | 220×220×8 | 230×115×30 |
| 230×230×8 | 250×155×9 | 250×250×8 | 300×150×8 |
| 300×200×8 | 300×300×6 | 310×185×8 | 320×90×10 |
| 320×100×10 | 160×140×9 | 320×320×6 | 330×330×15 |
High-Purity Alumina Firing Plate for Sample Support In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Quick Clamp Vacuum Sealing Assembly for Tube Furnace
Laboratory Ceramic Crucible
Fused Silica Quartz Ceramic Crucible
Protective Gas Box for Biochar Pyrolysis in Box Furnaces
Desktop Single-Channel MFC Gas Delivery System with Touchscreen Control
Weakly Corrosive Gas Preheater
Handheld K-Type Armored Thermocouple and Digital Thermometer
Recirculating Chillers – Cooling Solutions for Lab High-Temp Furnaces
Ordering High-Purity Alumina Firing Plate for Sample Support
What is High-Purity Alumina Firing Plate for Sample Support typically used for?
ZYLAB’s high-purity alumina firing plate is engineered for stable and clean sample support in high-temperature muffle, Chamber, and laboratory furnaces. Made of ≥99% pure alumina ceramic, it offers excellent thermal resistance, mechanical strength, and chemica
How quickly can High-Purity Alumina Firing Plate for Sample Support be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship High-Purity Alumina Firing Plate for Sample Support within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Is there a minimum order quantity for High-Purity Alumina Firing Plate for Sample Support?
No. ZYLAB has no minimum order requirement, so a single unit of High-Purity Alumina Firing Plate for Sample Support is a normal order. Occasionally a component supplier imposes a minimum quantity of their own, and we tell you as soon as we are notified.
Can we get technical help before ordering High-Purity Alumina Firing Plate for Sample Support?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
What if High-Purity Alumina Firing Plate for Sample Support is damaged in transit?
Contact your ZYLAB sales engineer immediately with photographs. We arrange a substitute delivery promptly and handle the claim with the carrier.
Quote For High-Purity Alumina Firing Plate for Sample Support
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
