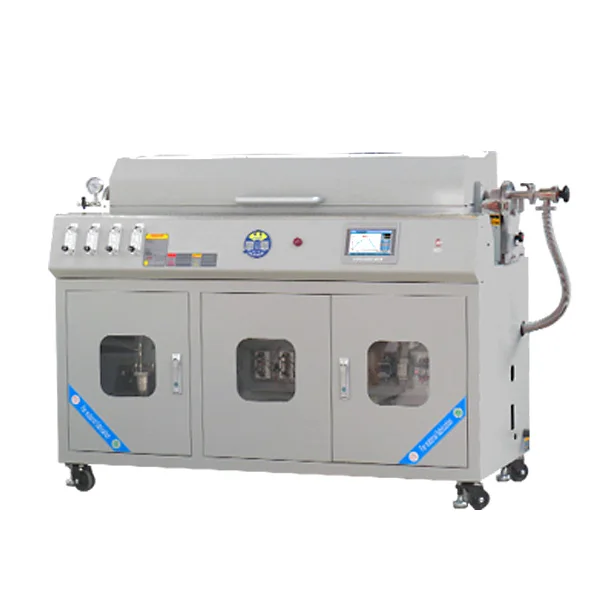

Five-Temperature Zone CVD Furnace
Applications: Chemical Vapor Deposition (CVD) Synthesize coatings or nanomaterials Depositing thin film materials Synthesize insulating materials as well as most metal and metal alloy
Applications
Chemical Vapor Deposition (CVD)
Synthesize coatings or nanomaterials
Depositing thin film materials
Synthesize insulating materials as well as most metal and metal alloy materials.
Fields
Semiconductor industry
Materials laboratories
Universities
Research institutes
Environmental science and other fields
Introduction
Chemical Vapor Deposition (CVD) refers to a method where chemical gases or vapors react on the surface of a substrate to synthesize coatings or nanomaterials. It is the most widely used technology in the semiconductor industry for depositing thin film materials, including a broad range of insulating materials as well as most metal and metal alloy materials. In response to this, we have developed a comprehensive CVD coating system suitable for materials laboratories in major universities, research institutes, environmental science, and other fields.
Five-Temperature Zone CVD Furnace Consists of the Following Components
- Sintering System;
- Electrical Control System;
- Top Cover Opening System;
- Vacuum System.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | T1200-100T5G4F | |||
|---|---|---|---|---|
| Power supply | 380V 50HZ | |||
| Rated power | 10KW | |||
| Thermocouple | K type | |||
| Max temperature | 1150.C | |||
| Recommend Heating rate | 10.C/min | |||
| Furnace heating chamber | Dia 150* 1135mm | |||
| Tube size | Dia 100* 1600mm | |||
| Temperature accuracy | +/- 1 ℃ | |||
| Heating element | Molybdenum-Doped Fe-Cr-Al Alloy High-Temperature Heating Wire | |||
| Sealing System | ||||
| Vacuum level：≤10Pa (Mechanical Pump) | ||||
| Pressure Measurement and Monitoring | Utilizing a mechanical pressure gauge with shock-absorbing oil to introduce damping effects during pressure fluctuations, reducing the back-and-forth oscillation of the pointer. | |||
| Control System | Sintering Process Curve Settings: Dynamically display and set curves; the equipment allows for the storage of multiple sintering process curves, and each curve can be freely configured. Scheduled Sintering: Enable unattended sintering by pre-scheduling sintering process curves. Real-time Display of Sintering Parameters: Real-time display of sintering power, voltage, and other information; recording of sintering data with the option to export for paperless records. Remote Control Capability: Capable of remote operation and real-time monitoring of equipment status. Temperature Calibration: Non-linear correction of the entire sintering process based on the temperature difference between the main control temperature and the sample temperature. | |||
| Protection | Built in protection for over-heated and broken thermal couple, and leakage. | |||
| Dimension | 1900(L) * 900(W) * 1250(H)mm | |||
| Weight | 350KG | |||
| Warranty | One-year warranty, lifetime support (excluding consumable parts such as furnace tubes, O-rings ) |

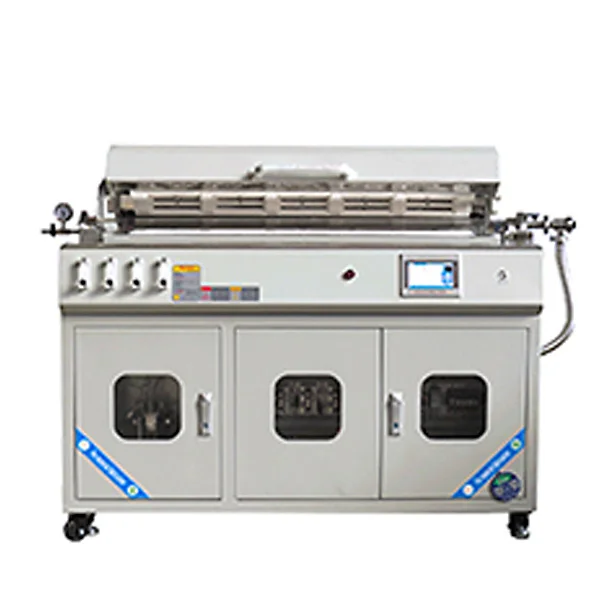

Five-Temperature Zone CVD Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
