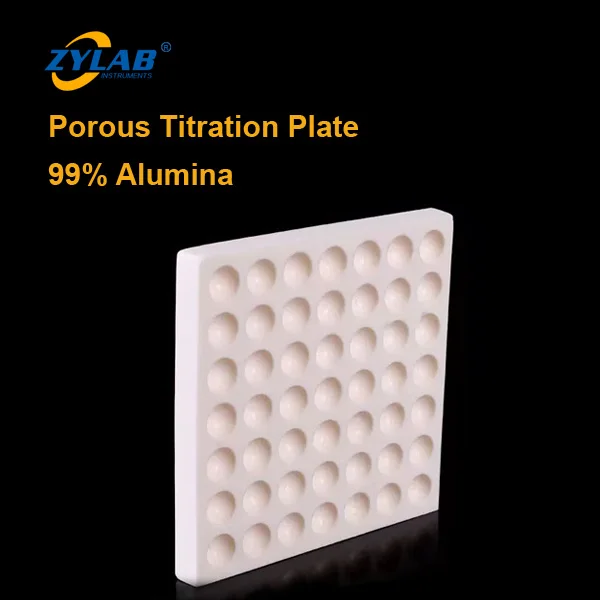

Customizable Alumina Titration Plate for Lab Applications
Customizable alumina titration plate is a specialized laboratory tool made from high-purity alumina (aluminum oxide), designed for use in titration processes. Titration is a common laboratory technique used to determine the concentration of a substance in a solution. Alumina is chosen for its excellent chemical...
Description
Customizable alumina titration plate is a specialized laboratory tool made from high-purity alumina (aluminum oxide), designed for use in titration processes.
Titration is a common laboratory technique used to determine the concentration of a substance in a solution.
Alumina is chosen for its excellent chemical stability, high resistance to wear, and its ability to withstand high temperatures, making it ideal for rigorous laboratory environments.

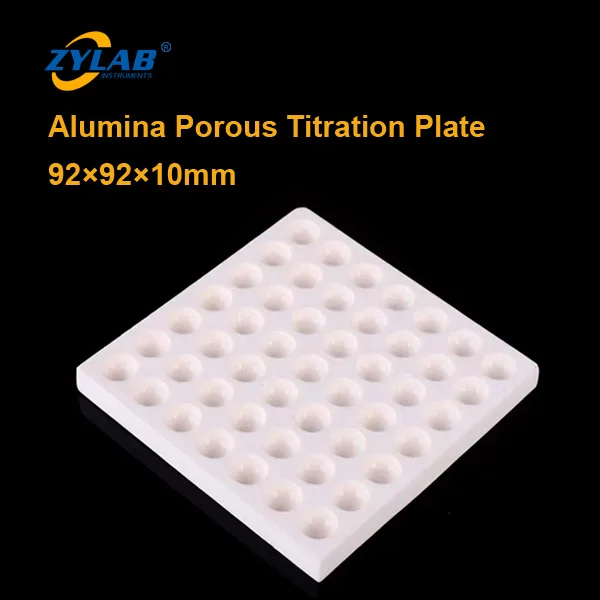

Dimensions: 92×92×10 mm
Number of holes: 49
Hole diameter: 10 mm
Alumina Purity: >99%
Continuous operating temperature: ≤1600°C
We offer customized services according to your requirements!
If you need more detailed information, please contact us immediately. We offer free quotes on all products!
How to Use Alumina Crucibles？
1. Before the first use, preheat the crucible in an oven at around 105°C for 120 minutes to remove moisture.
2. Do not directly heat the crucible with gasoline blowtorch, acetylene torch, or alcohol burner to avoid uneven heating and cracking of the product.
3. The heating or cooling rate should not be too fast. The temperature change below 1200°C should be <5°C/minute, and above 1200°C should be ≤4°C/minute.
4. The distance between the product and the heating element (such as carbon tube, silicon molybdenum rod, or heating wire, etc.) should be >2cm.
5. The bottom of large crucibles should preferably not directly contact the bottom of the furnace. It is recommended to use alumina foot pads or other heat-resistant materials to lift the crucible, forming air convection to prolong the service life of the product.
