High-purity 99% Alumina Standoff for Furnace Furniture
Applications: The alumina standoffs are used as supports for shelves, trays, or other components within laboratory/industrial furnaces. They provide stability and separation between different layers of materials being processed in the
Introduction
The alumina standoff is a component made of alumina ceramic material with a purity of 99%. It is designed as a support or standoff used in furnaces or high-temperature applications.
Features
1. The material of the product is 99% alumina (Al2O3 > 99%).
2. Adopting slip casting/pressure molding technology.
3. Firing temperature is 1800°C, long-term use temperature ≤1600°C.
4. High temperature resistance and chemical corrosion resistance.
Applications

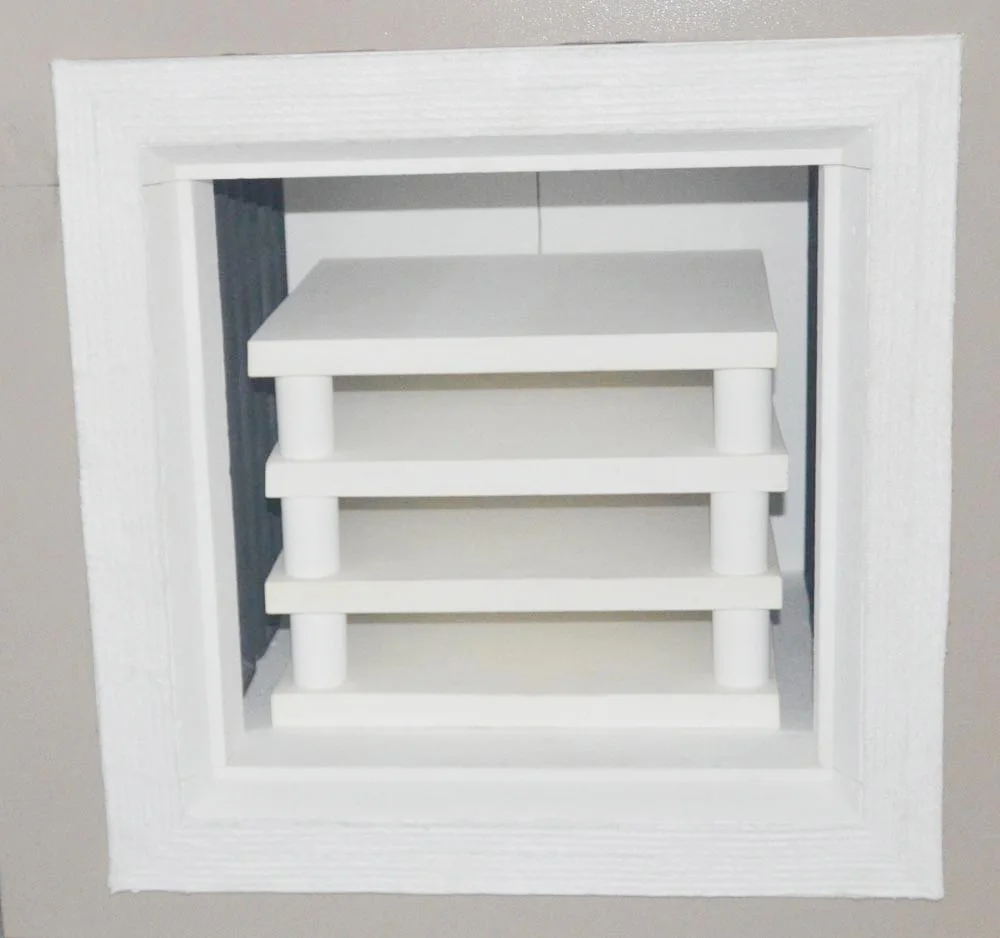

The alumina standoffs are used as supports for shelves, trays, or other components within laboratory/industrial furnaces. They provide stability and separation between different layers of materials being processed in the furnace.
Related Furnaces
- Muffle Furnaces
- Sintering Furnaces
- Burnout Furnaces
Other Related Furnace Furniture
- Alumina Ceramic Crucible For Lab Muffle Furnace
High purity Alumina Furnace Furniture Set
Precautions for Using Ceramic Furnace Furniture
1. Ceramic furnace furniture is typically fragile, so handle with care to avoid collision or dropping, thus preventing damage.
2. Pay attention to controlling the temperature changes inside the furnace, avoiding sudden fluctuations to prevent the furnace furniture from fracturing or stress accumulation.
3. Regularly clean the surface of the furnace furniture to ensure it remains in good working condition, thus extending its service life.
4. Users often utilize ceramic furnace furniture for processing materials requiring high purity, so they should avoid contact with other impurities or chemicals to prevent material contamination.
5. When not in use, store the furnace furniture properly to prevent exposure to moisture, heat, or other environmental factors.
6. Select suitable ceramic furnace furniture according to the specific processing techniques and requirements to ensure it meets the demands of the process.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Square Type | ||
|---|---|---|
| 4*4*4mm | 4*4*6mm | 4*4*7mm |
| 5*5*3mm | 5*5*4mm | 5*5*5mm |
| 5*5*7.5mm | 15*10*8mm | 15*10*10mm |
| 19*9*6mm | 20*15*12mm | 20*20*20mm |
| Cylinder Type | ||
| Ф8*6mm | Ф18*15mm | Ф30*20mm |
| Ф35*13mm | Ф35*20mm |
