Multi-Layer Alumina Setter Plate for Sample Sintering
ZYLAB’s multi-layer alumina setter plate system is sp ecifically designed for efficient and contamination-free sample sintering in high-temperature laboratory and industrial furnaces. Made from ≥99% high-purity alumina, this stackable plate and pillar system allows users to process multiple samples simultaneously,...
Introduction

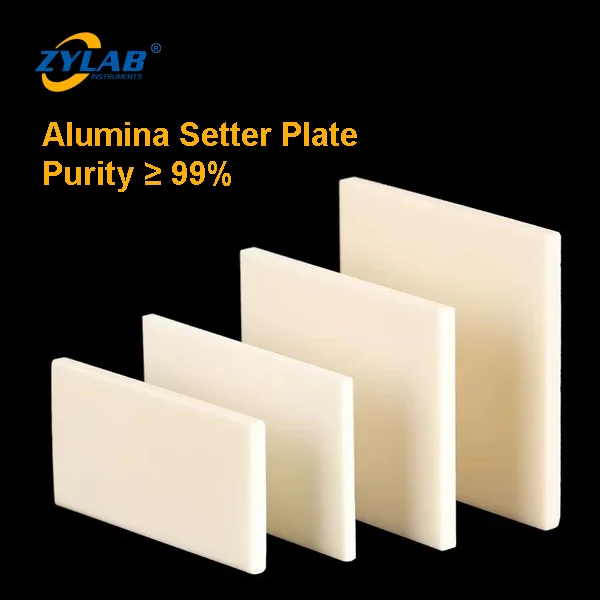

ZYLAB’s multi-layer alumina setter plate system is sp ecifically designed for efficient and contamination-free sample sintering in high-temperature laboratory and industrial furnaces. Made from ≥99% high-purity alumina, this stackable plate and pillar system allows users to process multiple samples simultaneously, maximizing furnace chamber space and improving productivity during thermal treatments up to 1700°C.
Please share your Laboratory furnace specifications (inner chamber dimensions (L×W×H) and temperature requirements) , and we will provide a tailor-made solution for you.
Contact us for free consultation or a quote!
Key Features
High Purity (≥99% Al₂O₃): Ensures chemical stability and ultra-clean sintering environments.

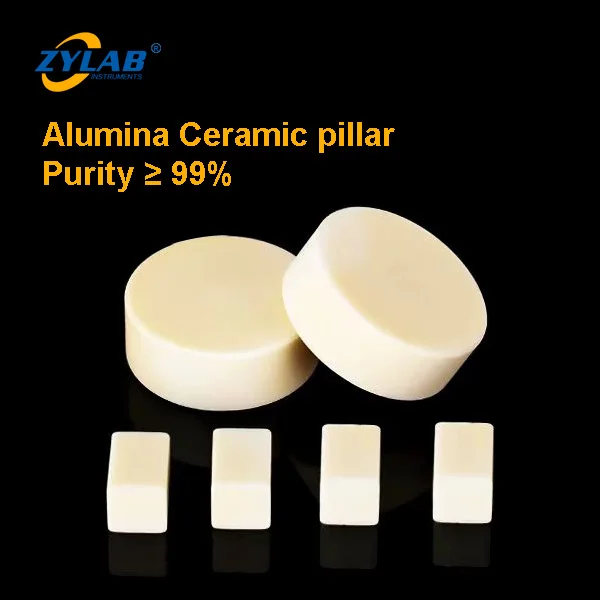

Multi-Layer Design: Stackable plates and support columns allow 2–10 sample levels within the same firing cycle.
Customizable Size & Structure: Available in various dimensions and can be tailored to your furnace chamber size.
High Flatness & Mechanical Strength: Maintains structural integrity and dimensional accuracy even at high temperatures.
Contamination Prevention: Ideal for sintering sensitive materials like ceramics, metals, and 3D-printed components.
Durable & Reusable: Designed for long service life across multiple firings.
Applications of Multi-Layer Alumina Setter Plate System
Laboratory sample sintering
Thermal post-processing for additive manufacturing
Powder metallurgy
Ceramic substrate firing
High-purity material testing
Ash content analysis in muffle furnaces
Why Choose ZYLAB ?
Precision-made kiln furniture for laboratory and industrial furnaces
Proven performance in high-purity and high-temperature applications
Fast delivery and global shipping
Customization support from design to final shipment
A Furnace Furniture Solution Composed of Alumina Plates and Stands
Custom Alumina Furnace Furniture | Drilling, Engraving and Grooving
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| 20×20×1.5 | 20×20×3 | 30×30×2 | 40×30×3 |
|---|---|---|---|
| 40×40×3 | 45×23×3 | 50×25×3 | 50×30×3 |
| 50×40×3 | 50×50×3 | 50.8×50.8×0.5 | 50.8×50.8×1 |
| 60×30×3 | 60×40×3 | 60×50×3 | 60×60×3 |
| 60×60×10 | 65×65×3 | 70×70×3 | 75×75×4 |
| 80×40×3 | 80×40×4 | 80×80×4 | 84×75×8 |
| 85×85×4 | 90×60×3 | 90×90×4 | 100×30×3 |
| 100×40×3 | 100×40×6 | 100×40×9 | 100×50×3 |
| 100×50×9 | 100×60×3 | 100×65×3 | 100×84×1.5 |
| 100×84×3 | 100×84×4 | 100×84×6 | 100×100×3.5 |
| 100×100×5 | 100×100×7 | 100×100×8 | 101.6×101.6×0.5 |
| 101.6×101.6×1 | 105×105×4 | 110×110×4 | 115×55×3 |
| 115×65×4 | 115×115×4 | 120×60×5 | 120×80×5 |
| 120×120×4 | 120×120×6 | 120×120×10 | 130×130×6 |
| 135×120×7 | 140×140×6 | 150×130×7 | 150×150×6 |
| 150×150×7 | 155×40×4 | 160×120×5 | 160×140×5 |
| 160×160×6 | 180×180×6 | 190×190×4 | 200×100×6 |
| 200×150×5 | 200×200×8 | 220×220×8 | 230×115×30 |
| 230×230×8 | 250×155×9 | 250×250×8 | 300×150×8 |
| 300×200×8 | 300×300×6 | 310×185×8 | 320×90×10 |
| 320×100×10 | 160×140×9 | 320×320×6 | 330×330×15 |
