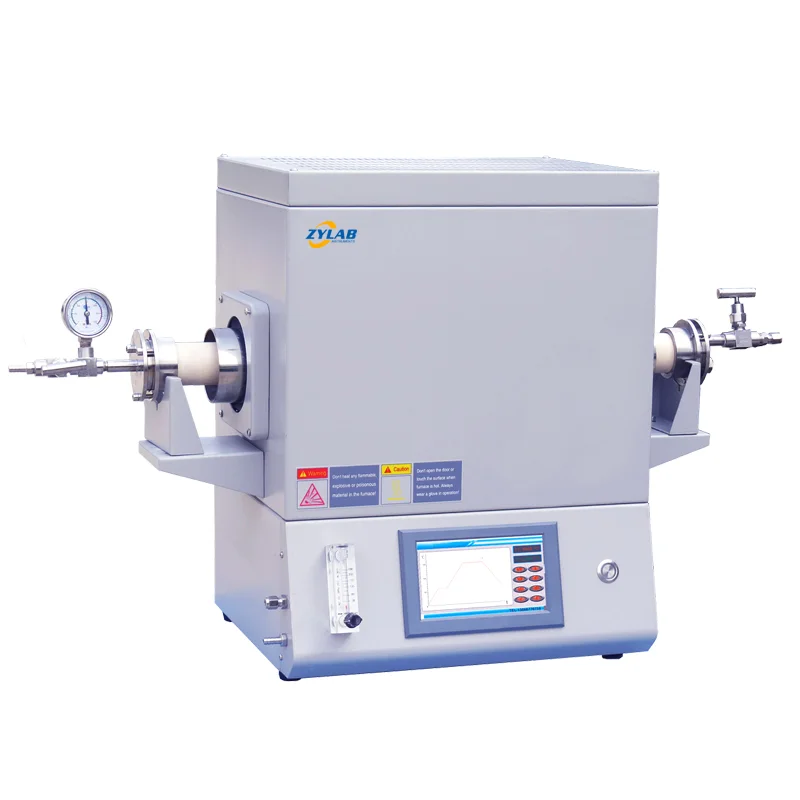

1500.C Small Tube Furnace for Lab Research
Highlight 7” colored graphic touch panel; Can store and preset temperature curves; Vacuum formed ceramic fiber chamber; Double layers steel casing with fan cooling; Come with gas flowmeter; Unique flange has a multi-function test
Introduction
This high temperature 1500.C small tube furnace is widely used in CVD experiment whose reacion temperature is around 1400 degree celsius. It can also used in vacuum sintering, sintering under vacuum atmosphere protection, nano material preperation, battery material preperation and other research field.
Main Features
1. Max. Temperature 1500.C, suggest working temperature RT-1450.C.

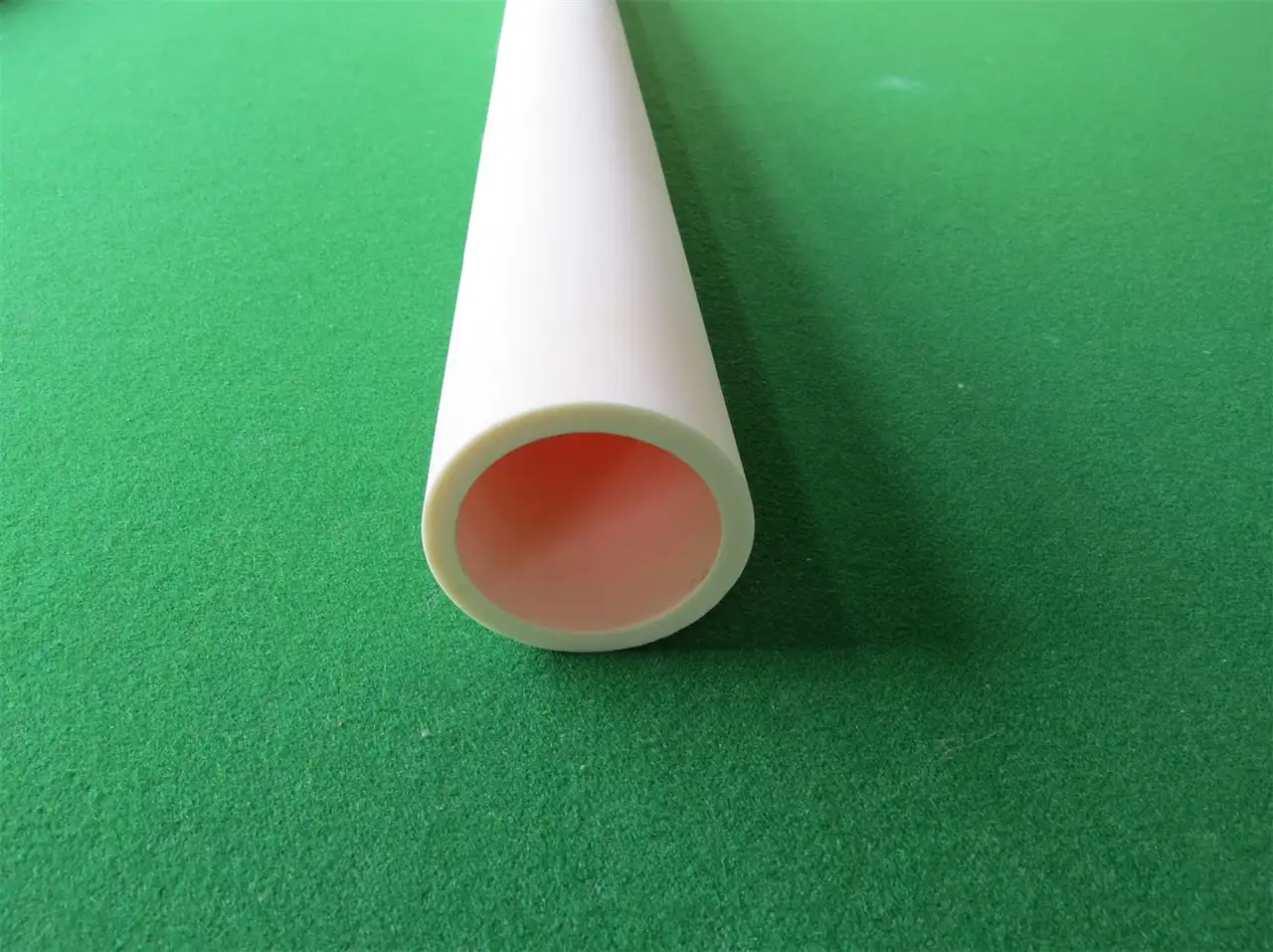

2.High purity alumina(ceramic) tube as furnace tube, with excellent corrosion resistance and high temperature resistance, longer service life.
3. 30 segments programmable and auto control.

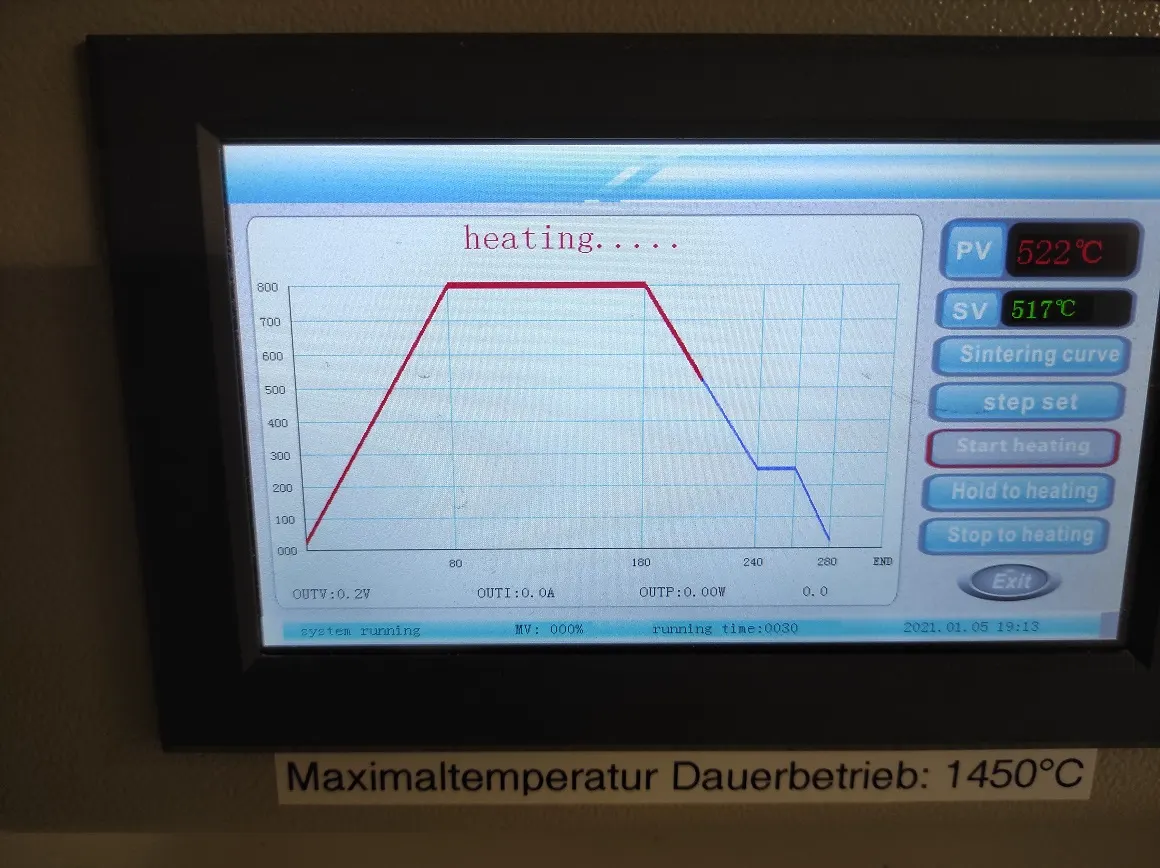

4. Intelligent 7”Color Touch screen LCD man-machine English interface temperature controller, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
5. Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different experimental processes.
6. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
7.By using special lining import from Japan and high quality sic heating elements, to ensure excellent heating and long using life.
8. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
9. Come with gas flowmeter, atmosphere sintering more convenient.

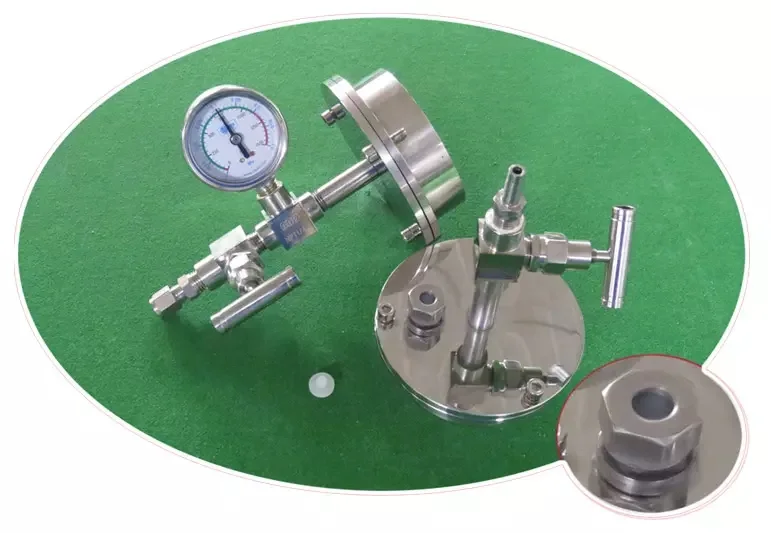

10. Unique flange has a multi-function test holes, insert the corresponding electrode to test tube temperature or atmosphere environment.
11. Low power consumable, exquisite structure and light weight, it is the ideal tube furnace for labs and production in factory.
Which Kinds of Industry Can Use This 1500.C Small Tube Furnace?
College & Universities, New Material Research, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications
The 1500°C Small Tube Furnace is a versatile tool widely used in various fields, including:
- Material Science:
- Sintering and processing advanced materials.
- Studying phase transitions and structural properties of new materials.
- Energy Research:
- Conducting experiments in battery materials, fuel cells, and other energy storage technologies.
- Investigating materials for solar cells and hydrogen production.
- Chemical Analysis:
- Performing high-temperature chemical reactions.
- Analyzing the thermal stability and decomposition of compounds.
- Semiconductor Manufacturing:
- Used for doping processes and thermal oxidation in semiconductor fabrication.
- Nanotechnology:
- Synthesizing and characterizing nanomaterials at elevated temperatures.
- Environmental Studies:
- Testing material performance under extreme conditions, simulating environmental stressors.
This furnace is essential for researchers and engineers aiming to innovate in material development and energy solutions.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | T1500-IT |
|---|---|
| Product name | 1500.C Intelligent single-temperature zone tube furnace |
| Display mode | 7 inch color touch screen,smart fuzzy PID control |
| Chamber material | Imported high quality alumina fiber refraction insulation |
| Heating element | High quality SiC rod |
| Max. temperature | 1500.C (< 1hour) |
| Working temperature | ≤1450.C(continue) |
| Heating rate | 0-20.C/min (advice:10.C/min) |
| Length of heating zone | 180mm(optional: 310mm or 480mm) |
| Heating zone quantity | One (optional: two) |
| Tube size(mm) | Φ50*700 (inner diameterΦ42) Other optional size: Φ50*1000,Φ60*1000,Φ80*1000 Φ50*1200,Φ60*1200,Φ80*1200 |
| Temperature control | 30 segments programmable and PID auto control |
| Accuracy | ±1℃ |
| Operating Interface | English Graphical Interface |
| Sealing Mode | Vacuum Flange |
| Vacuum | ≤10pa |
| Flow control | 0 – 60ml/min |
| Presetting curve | 15pcs sintering curve |
| Protection setting | Over temperature alarm, Over-current protection, broken thermocouple prompt |
| Thermocouple | S type |
| Certification | CE,ISO |
| Power | 220V 50/60Hz, 1.5KW |
| Dimensions | 850×420×680 (mm) |
| Net weight | 30kgs |
| Standard Accessories | Alumina Tube, Vacuum Flange,Vacuum Gauge, Gas Flow Meter,Tube Block, O-ring, Protective Gloves, Crucible Hook, Manual Book |
| Warranty | 18 months(not including consumable parts, such as alumina tube, heating elements, thermocouple, etc), lifetime support. |
