Enamelled Wire
Enamelled Winding Wire

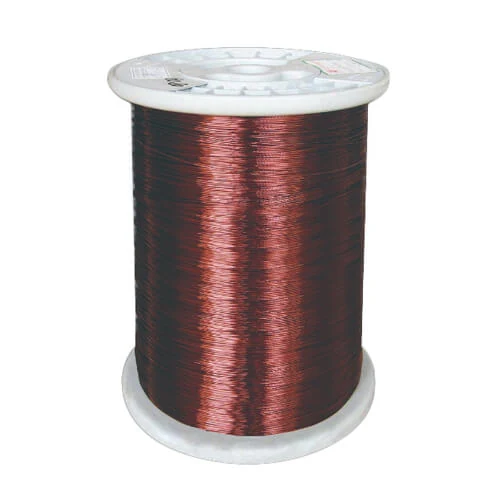

Enamelled wire, also known as magnet wire or winding wire, made by coating a thin layer of insulation such as enamel or polyurethane over a conductive core of copper or aluminium. The insulation prevents short circuits between adjacent turns.
- Copper
- Aluminium
Product Overview
Enamelled wire, also known as magnet wire or winding wire, made by coating a thin layer of insulation such as enamel or polyurethane over a conductive core of copper or aluminium. The insulation prevents short circuits between adjacent turns. Production covers conductor thickness from 0.8 to 5.6 mm and conductor width from 2.00 to 16.00 mm, at a width to thickness ratio of 1.4:1, and the wire can be supplied solid or stranded. The product category includes 130 class polyester enamelled wires.
Key Benefits
- Insulation coating gives high electrical resistance and thermal stability
- Copper or aluminium conductor depending on conductivity and cost requirements
- Solid or stranded construction for the flexibility the winding needs

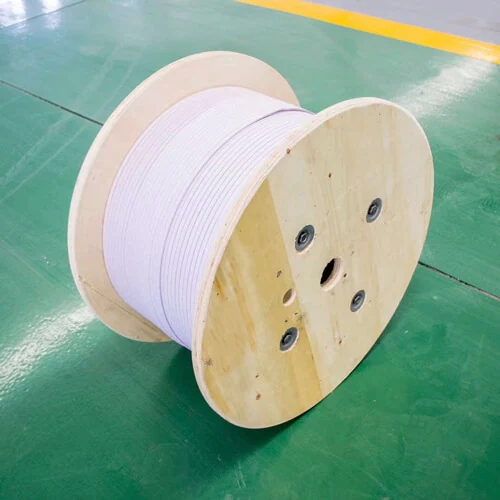

- Rectangular conductor sizes from 0.8 x 2.00 mm up to 5.6 x 16.00 mm
- Specifications beyond the standard range quoted on request
Problems It Solves
- Short circuits between turns where insulation is inadequate
- Insulation breaking down at the winding's operating temperature
- Conductor sizes not available from local stockists
- Flexibility requirements that a solid conductor cannot meet
Where It Is Used
Applications And Buyers
Application Scenarios
- Transformer windings
- Electric motor windings
- Coils and inductors
- Rewinding work in repair shops
Who It Is For
- Transformer manufacturers
- Motor manufacturers
- Coil winding shops
- Electrical repair and rewind workshops
Technical Features And Specifications
Technical Features
- Copper or aluminium conductor

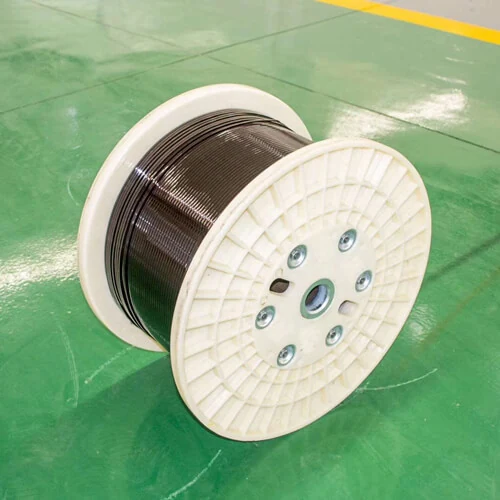

- Enamel or polyurethane insulation coating
- Conductor thickness 0.8 to 5.6 mm
- Conductor width 2.00 to 16.00 mm
- Conductor width to thickness ratio 1.4:1
- Solid or stranded construction
- 130 class polyester enamelled wires in the product range
| Conductor Thickness (a) | 0.8 to 5.6 mm |
|---|---|
| Conductor Width (b) | 2.00 to 16.00 mm |
| Width Ratio | 1.4:1 |
| Conductor Material | Copper or aluminium |
| Insulation | Enamel or polyurethane |
| Construction | Solid or stranded |
| Product Category | 130 polyester enamelled wires |
How It Is Made And Checked
Materials Process And Quality Control
Materials
- Copper
- Aluminium
Manufacturing Process
- Wire drawing
- Enamel coating
- Curing

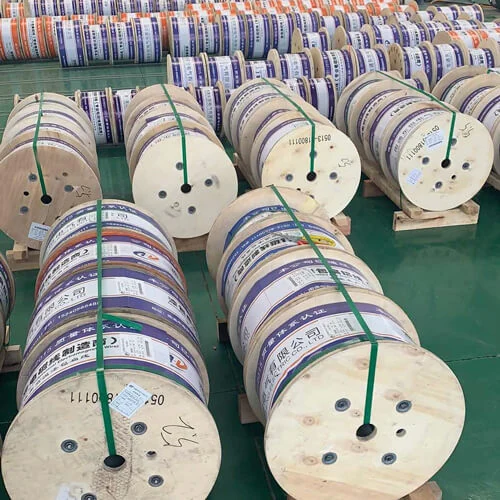

- Spooling
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Conductor thickness and width within the production scope
- Copper or aluminium conductor
- Insulation type and thermal class
- Solid or stranded construction
- Specifications beyond the standard range on request
Compared With The Alternatives
| Foil windings | Foil gives a high fill factor for large section windings; enamelled wire is the practical choice for smaller coils and for windings with many turns. |
|---|---|
| Copper versus aluminium conductor | Copper conducts better in the same cross section; aluminium is lighter and cheaper, so the winding has to be larger for the same performance. |
Use Guide
- Match the insulation thermal class to the winding's operating temperature
- Confirm the conductor dimensions against your winding machine's capability
- Choose stranded construction where the winding has tight bends
- Ask about specifications outside the standard range rather than compromising the design
Questions
Questions Buyers Ask About This Product
What conductor sizes are available?
Thickness from 0.8 to 5.6 mm and width from 2.00 to 16.00 mm, at a width ratio of 1.4:1.
What conductor materials do you supply?
Copper or aluminium, chosen for conductivity and cost.
What insulation is used?
Enamel or polyurethane coating, which gives high electrical resistance and thermal stability.
Can you supply outside the listed size range?
Contact us with the specification. Sizes beyond the standard production scope are quoted case by case.
Is stranded wire available?
Yes, the wire can be supplied solid or stranded depending on the flexibility required.
Related Products
Others In Enamelled Wire
Get A Price For Enamelled Winding Wire
Send the duty figures, the material if it is fixed, and the quantity. We will confirm the specification and quote against it.
