Dental Chairs
Dental Chair

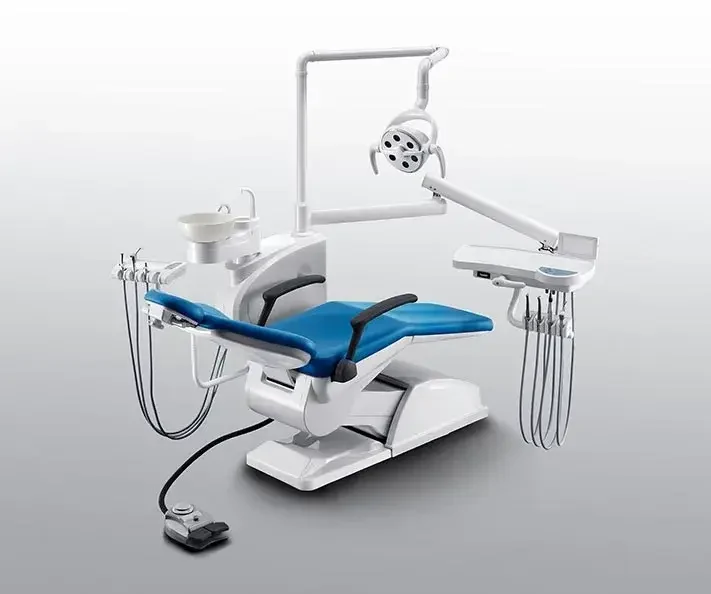

A complete dental treatment unit with a 24V noiseless DC chair motor, three or nine memory positions and a luxury multifunction foot controller. It is supplied with two high speed handpiece tubes, one low speed tube, two three way syringes with hot and cold water, a 90 degree rotatable ceramic or glass spittoon and a built in or built out water purification system.
- Microfibre or PU leather upholstery
- Ceramic or glass spittoon
Product Overview
A complete dental treatment unit with a 24V noiseless DC chair motor, three or nine memory positions and a luxury multifunction foot controller. It is supplied with two high speed handpiece tubes, one low speed tube, two three way syringes with hot and cold water, a 90 degree rotatable ceramic or glass spittoon and a built in or built out water purification system. Upholstery is microfibre or PU leather with armrests.
Key Benefits
- Memory positions recall chair settings between patients without readjustment
- Noiseless 24V DC chair motor keeps the treatment room quiet
- Water purification built in or built out to suit clinic plumbing
- Rotatable spittoon in ceramic or glass for easier access and cleaning
- Container loading figures published so freight cost per unit is predictable
Problems It Solves
- Chairs that must be readjusted for every patient and procedure
- Noisy chair motors in a small treatment room
- Water quality concerns in the delivery system
- Freight cost uncertainty when importing bulky equipment
Where It Is Used
Applications And Buyers
Application Scenarios
- New clinic fit outs where several identical units are installed
- Replacing ageing units in an existing surgery
- Dealers stocking complete treatment units for local resale
- Clinics requiring their own branding on the unit
Who It Is For
- Dental clinics and surgeries
- Dental equipment dealers and distributors
- Clinic chains standardising on one unit
- Buyers importing full container loads
Technical Features And Specifications
Technical Features
- AC 220V/50Hz or 110V/60Hz supply
- Water pressure 0.2 to 0.4 MPa and air pressure 0.55 to 0.8 MPa
- Air output volume greater than 55 L per minute
- Two high speed handpiece tubes, one low speed tube, two three way syringes
- Three or nine memory positions
- 24V DC noiseless chair motor
| Power / Voltage | AC 220V/50Hz or 110V/60Hz |
|---|---|
| Water Pressure | 0.2 to 0.4 MPa (2.0 to 4.0 bar) |
| Air Pressure | 0.55 to 0.8 MPa (5.5 to 8.0 bar) |
| Air Output Volume | More than 55 L/min |
| High Speed Handpiece Tube | 2 pcs |
| Low Speed Handpiece Tube | 1 pc |
| Three Way Syringe | 2 pcs, cold and hot |
| Spittoon | 90 degree rotatable, ceramic or glass |
| Memory Programs | 3 or 9 positions |
| Foot Controller | Luxury multifunction |
| Water Purification | Built in or built out |
| Upholstery | Microfibre or PU leather with armrests |
| Chair Motor | 24V DC noiseless |
| Dimensions | 142 cm x 110 cm x 120 cm |
| Container Loading | 16 pcs per 20 ft, 32 pcs per 40 HQ |
| Minimum Order | 1 piece; 3 sets for customised logo |
How It Is Made And Checked
Materials Process And Quality Control
Materials
- Microfibre or PU leather upholstery
- Ceramic or glass spittoon
Manufacturing Process
- Assembly
- Function testing
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Customised logo from a minimum of 3 sets
- Three or nine memory positions
- Ceramic or glass spittoon
- Microfibre or PU leather upholstery
- Built in or built out water purification
- 220V or 110V supply
Compared With The Alternatives
| Basic chair without memory positions | Memory recall saves time on every patient, which is the difference that shows up over a full day of appointments rather than on the specification sheet. |
|---|---|
| Units with built out purification only | A built in system keeps the unit self contained; a built out system is easier to service and to connect to existing clinic treatment. |
Use Guide
- Confirm your mains voltage before ordering, since 220V and 110V versions differ
- Check clinic air and water supply against the stated pressure ranges
- Programme memory positions for the procedures done most often
- Plan the container mix using the published loading quantities
Questions
Questions Buyers Ask About This Product
What is the minimum order quantity?
One piece. A customised logo requires a minimum of three sets.
How many units fit in a container?
16 pieces in a 20 foot container and 32 pieces in a 40 foot high cube.
Which voltage is supplied?
AC 220V/50Hz or 110V/60Hz. Confirm your local supply at the time of order.
Is a water purification system included?
Yes, built in or built out depending on the version you choose.
What payment and shipping terms apply?
The manufacturer supports sea freight and accepts TT, bank transfer and Western Union. We confirm terms on the proforma invoice.
Can the unit carry our clinic branding?
Yes, a customised logo is available from three sets upward.
Related Products
Others In Dental Chairs
Get A Price For Dental Chair
Send the duty figures, the material if it is fixed, and the quantity. We will confirm the specification and quote against it.
