Aluminium Foil & Strip For Transformers

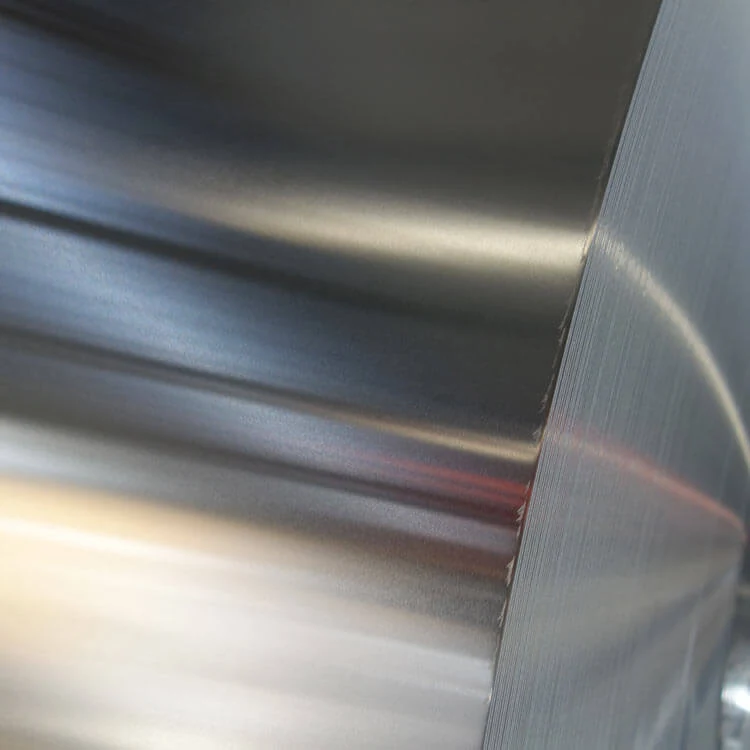

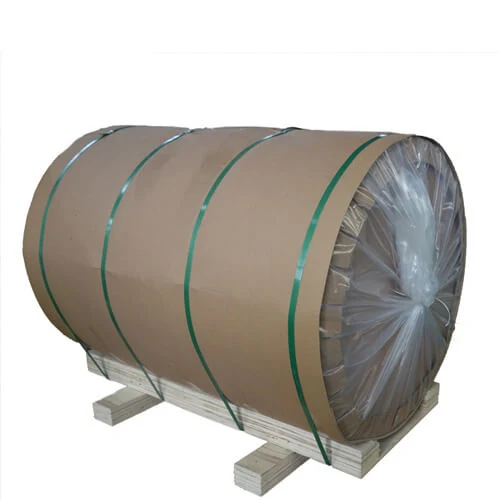

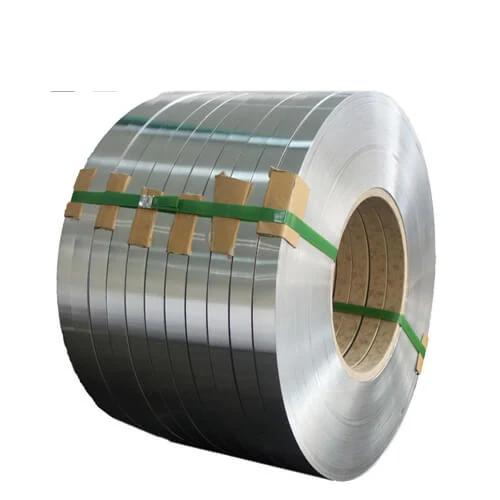

Aluminium foil and strip for transformer windings in alloys 1050, 1060 and 1070, with thickness from 0.2 to 3.00 mm and width from 20 to 1500 mm. Inner diameter is 150, 200, 300, 400 or 500 mm, or customised.
- Aluminium 1050
- Aluminium 1060
- Aluminium 1070
Product Overview
Aluminium foil and strip for transformer windings in alloys 1050, 1060 and 1070, with thickness from 0.2 to 3.00 mm and width from 20 to 1500 mm. Inner diameter is 150, 200, 300, 400 or 500 mm, or customised. Aluminium content is at least 99.6%, conductivity at least 63% IACS and tensile strength above 74 MPa. Thickness is specified according to the transformer's design requirement rather than supplied in fixed sizes.
Key Benefits
- Conductivity of at least 63% IACS from aluminium of 99.6% minimum content
- Thickness from 0.2 to 3.00 mm to match the transformer design
- Width up to 1500 mm covers most winding machine capacities
- Five standard inner diameters plus customised coils
- Alloys 1050, 1060 and 1070 available
Problems It Solves
- Foil that does not meet the conductivity a design assumes
- Coil inner diameters that do not fit the winding machine
- Width limits that force a design compromise
- Inconsistent material between deliveries
Where It Is Used
Applications And Buyers
Application Scenarios
- Foil windings in distribution transformers
- Coil winding where aluminium replaces copper on cost grounds
- Strip windings in dry type transformers
- Replacement material for transformer repair and rewinding
Who It Is For
- Transformer manufacturers
- Coil winding shops
- Transformer repair and rewind workshops
- Electrical equipment producers
Technical Features And Specifications
Technical Features
- Alloys 1050, 1060, 1070
- Thickness 0.2 to 3.00 mm
- Width 20 to 1500 mm
- Inner diameter 150, 200, 300, 400, 500 mm or customised
- Aluminium content not less than 99.6%
- Conductivity not less than 63% IACS
- Tensile strength above 74 MPa
| Alloy | 1050 / 1060 / 1070 |
|---|---|
| Thickness | 0.2 to 3.00 mm |
| Width | 20 to 1500 mm |
| Inner Diameter | 150 / 200 / 300 / 400 / 500 mm or customised |
| Aluminium Content | Not less than 99.6% |
| Conductivity | Not less than 63% IACS |
| Tensile Strength | Above 74 MPa |
How It Is Made And Checked
Materials Process And Quality Control
Materials
- Aluminium 1050
- Aluminium 1060
- Aluminium 1070
Manufacturing Process
- Rolling
- Slitting
- Annealing
- Coiling
Quality Control
- Specification agreed in writing before production starts
- First article or sample approved against the agreed specification
- Goods inspected and photographed at the factory before loading
- Inspection report sent to you before the container sails
Customisation Options
What Can Be Varied
- Thickness anywhere from 0.2 to 3.00 mm
- Width to 1500 mm
- Coil inner diameter including customised sizes
- Alloy selection from 1050, 1060 or 1070
- Edge condition and surface finish
Compared With The Alternatives
| Copper foil for transformers | Copper has far higher conductivity at 99% IACS against 63% for aluminium, but aluminium is lighter and cheaper, so the choice is usually a cost and weight decision at design stage. |
|---|---|
| Round winding wire | Foil windings give a better fill factor and better short circuit strength in many designs; round wire is simpler to handle in small coils. |
Use Guide
- Specify thickness from the transformer design rather than from stock availability
- Confirm the coil inner diameter your winding machine requires
- Check surface condition on arrival, since it affects insulation adhesion
- State conductivity and tensile requirements on the purchase order
Questions
Questions Buyers Ask About This Product
Which alloys are available?
1050, 1060 and 1070.
What thickness range can you supply?
0.2 to 3.00 mm, specified according to the transformer design.
What conductivity does the foil have?
Not less than 63% IACS, from aluminium of at least 99.6% content.
What coil inner diameters are offered?
150, 200, 300, 400 and 500 mm, or customised to your winding machine.
How wide can the strip be?
Up to 1500 mm.
Related Products
Others In Aluminium Foil & Strip
Get A Price For Aluminium Foil & Strip For Transformers
Send the duty figures, the material if it is fixed, and the quantity. We will confirm the specification and quote against it.
