Long Distance Signal Extension

Move HDMI, DVI, VGA and KVM signals well past the reach of a standard cable using CAT5e/6 extender pairs, active cables and wireless kits.

Talk to an engineer Email a drawing

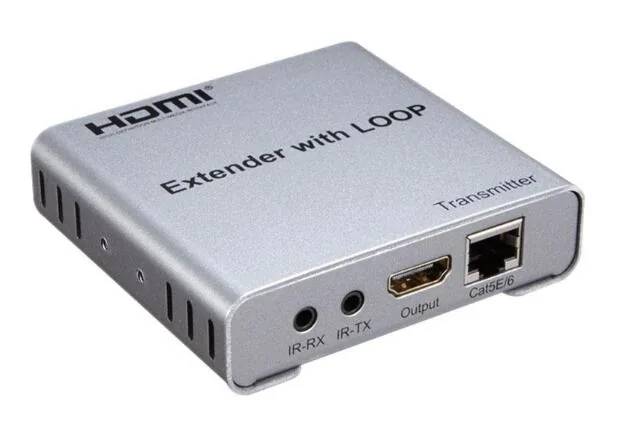

Long Distance Signal Extension product from ZIESY

What Goes Wrong Without It

  • The screen is mounted further from the rack than a passive cable can drive
  • There is no power outlet or space for an extender box behind the display
  • A KVM position has to sit away from the machine it controls
  • USB cameras, scanners and printers are outside the 5 m the standard allows

What We Need From You

  • Source device and its output connector
  • Display or destination and its input connector
  • Cable route length, measured the way it will actually be pulled
  • Resolution and refresh rate you have to hold
  • Number of screens or destinations
  • Quantity and delivery destination

How We Work Through It

Measure the real route

Not the straight line: the route through the wall, the ceiling and the riser, plus service loops at both ends.

Choose the transport

Single active cable for one pull, CAT5e/6 extender pair where a structured cable already exists, wireless where nothing can be pulled at all.

Check the resolution budget

The rated distance changes with resolution. A model rated 120 m at 1080p may be rated 60 m at 4K60.

Confirm before pulling

Send us the model, distance and resolution. We confirm in writing what the model will hold before you cut anything.

Products For This Solution

14 models from our catalogue, grouped by range.

HDMI Device 3 in this solution

4K HDMI Extender 100m with local loop outHDMI Device4K HDMI Extender 100m with local loop out4K 120M HDMI Extender Cascade connectionHDMI Device4K 120M HDMI Extender Cascade connectionWireless Wall-Mountable 1080P HDMI Extender Video Kit 165 FeetHDMI DeviceWireless Wall-Mountable 1080P HDMI Extender Video Kit 165 Feet

DVI Device 1 in this solution

60M DVI ExtenderDVI Device60M DVI Extender

VGA Device 2 in this solution

KVM Extender Extend VGA Video and PS2 Signal Over single Cat5e/6 Cable up to 200mVGA DeviceKVM Extender Extend VGA Video and PS2 Signal Over single Cat5e/6 Cable up to 200m100m KVM Extender Over CAT5E/6 Cable transmitter and receiver VGA Video and PS2 SignalVGA Device100m KVM Extender Over CAT5E/6 Cable transmitter and receiver VGA Video and PS2 Signal

Long Cable Signal Enhancement 8 in this solution

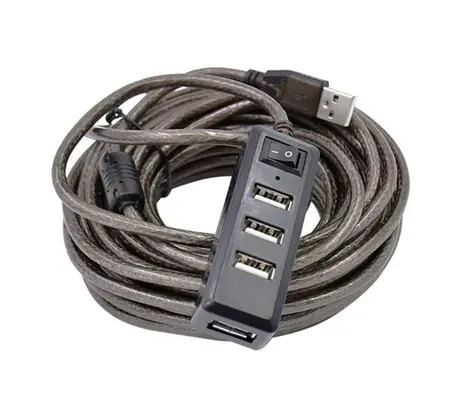

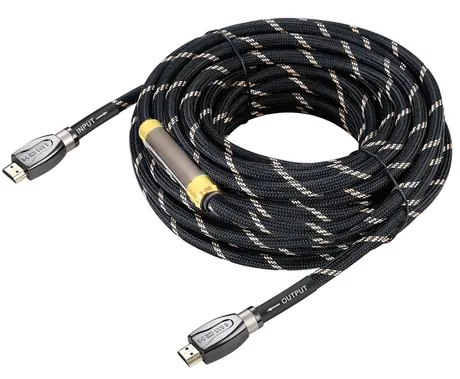

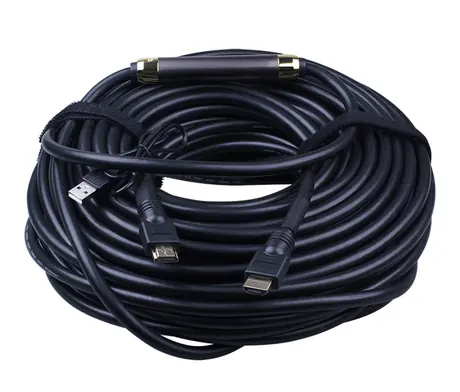

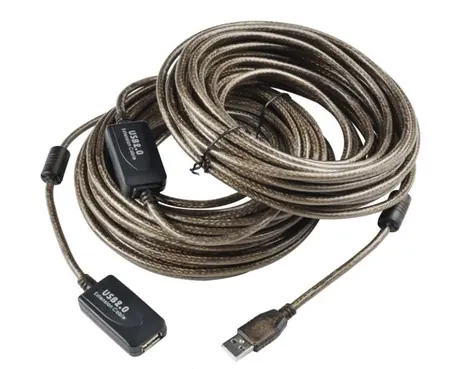

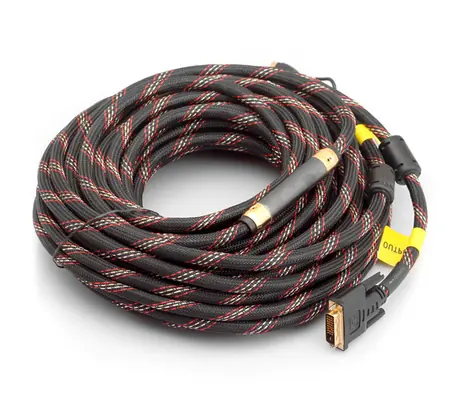

Active HDMI CableLong Cable Signal EnhancementActive HDMI CableActive HDMI Cable 2Long Cable Signal EnhancementActive HDMI Cable 2Active HDMI Cable 2 MetalLong Cable Signal EnhancementActive HDMI Cable 2 MetalActive HDMI-DVI CableLong Cable Signal EnhancementActive HDMI-DVI CableUSB 2.0 Extender Cable 5~30MLong Cable Signal EnhancementUSB 2.0 Extender Cable 5~30MUSB 3.0 Extender Cable 5~30MLong Cable Signal EnhancementUSB 3.0 Extender Cable 5~30MUSB 2.0 Pringter Cable 5~30MLong Cable Signal EnhancementUSB 2.0 Pringter Cable 5~30MUSB 2.0 Hub with Cable 5~20MLong Cable Signal EnhancementUSB 2.0 Hub with Cable 5~20M

Questions About Long Distance Signal Extension

Which model should I start with?
Tell us the distance, the resolution and the connector at each end. Those three answers usually narrow this list to one or two models.
Can you supply everything in this chain from one factory?
Yes. The cable, the active cable, the extender pair and the distribution box are all made by Zhongshan Zhiyuan Electronics Co., Ltd.
Are connection diagrams available?
The factory connection drawings that exist are published on the product pages in this solution. Ask us for anything else you need.
What if my requirement is slightly different?
We can research and design special cables according to your requirements and help you to protect your patents. Send the specification and we will tell you what is possible.
How long does a quotation take?
Within 12 hours of your message. Order-specific packing, MOQ, payment terms and lead time are agreed at the same time.
