Video Distribution And Switching

Send one source to many screens or many sources to one screen with splitters, matrices, switches, multi-viewers and video wall controllers.

Talk to an engineer Email a drawing

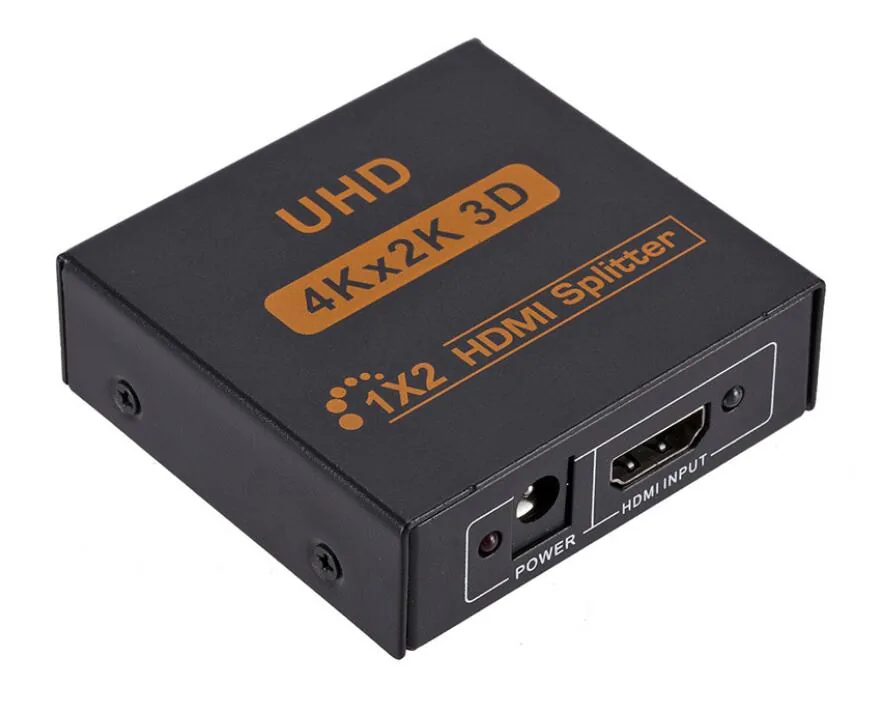

Video Distribution And Switching product from ZIESY

What Goes Wrong Without It

  • One player has to feed more screens than it has outputs
  • Several sources compete for a single display and someone has to switch between them
  • A video wall needs one image split across a grid of panels
  • An operator needs to watch four or eight sources on one screen at once

What We Need From You

  • Source device and its output connector
  • Display or destination and its input connector
  • Cable route length, measured the way it will actually be pulled
  • Resolution and refresh rate you have to hold
  • Number of screens or destinations
  • Quantity and delivery destination

How We Work Through It

Count inputs and outputs

How many sources, how many displays, and does any source have to reach any display independently.

Pick the topology

Splitter for one to many, switch for many to one, matrix where any input has to reach any output, wall controller for a panel grid.

Set the resolution and audio path

4K60, HDCP and whether audio has to break out or return over ARC.

Rack and control

Confirm mounting, power and how the unit will be switched day to day.

Products For This Solution

15 models from our catalogue, grouped by range.

HDMI Device 12 in this solution

HDMI Splitter 1*2HDMI DeviceHDMI Splitter 1*2HDMI Splitter 1*4HDMI DeviceHDMI Splitter 1*44K HDMI Matrix 4x4HDMI Device4K HDMI Matrix 4x44K HDMI Matrix 8x8HDMI Device4K HDMI Matrix 8x8HDMI2.0 Switch 2 Ports 4K@60HZ ARCHDMI DeviceHDMI2.0 Switch 2 Ports 4K@60HZ ARC4x2 HDMI2.0 Switch Splitter Audio & ARCHDMI Device4x2 HDMI2.0 Switch Splitter Audio & ARCHDMI 4x1 Quad Multi-viewerHDMI DeviceHDMI 4x1 Quad Multi-viewerHDMI 8x1 Multi-viewer 4KHDMI DeviceHDMI 8x1 Multi-viewer 4K2x2 Video Wall ControllerHDMI Device2x2 Video Wall Controller3x3 HDMI Video wall controllerHDMI Device3x3 HDMI Video wall controller3X3 USB Video wall controllerHDMI Device3X3 USB Video wall controllerUSB 2.0 KVM Synchronous Controller 8 PC ports inputHDMI DeviceUSB 2.0 KVM Synchronous Controller 8 PC ports input

DVI Device 1 in this solution

4K DVI Splitter 1 to 2DVI Device4K DVI Splitter 1 to 2

SDI Device 2 in this solution

SDI Splitter 1 to 2SDI DeviceSDI Splitter 1 to 2SDI Splitter 1 to 4SDI DeviceSDI Splitter 1 to 4

Questions About Video Distribution And Switching

Which model should I start with?
Tell us the distance, the resolution and the connector at each end. Those three answers usually narrow this list to one or two models.
Can you supply everything in this chain from one factory?
Yes. The cable, the active cable, the extender pair and the distribution box are all made by Zhongshan Zhiyuan Electronics Co., Ltd.
Are connection diagrams available?
The factory connection drawings that exist are published on the product pages in this solution. Ask us for anything else you need.
What if my requirement is slightly different?
We can research and design special cables according to your requirements and help you to protect your patents. Send the specification and we will tell you what is possible.
How long does a quotation take?
Within 12 hours of your message. Order-specific packing, MOQ, payment terms and lead time are agreed at the same time.

Other Solutions

Long Distance Signal ExtensionAV Over IP Encoding And DecodingActive Optical Fiber ConnectivityDisplay Interface Conversion

Get This Specified Properly

Send the distance, the resolution and the connector at each end. We answer within 12 hours with the models that fit.
