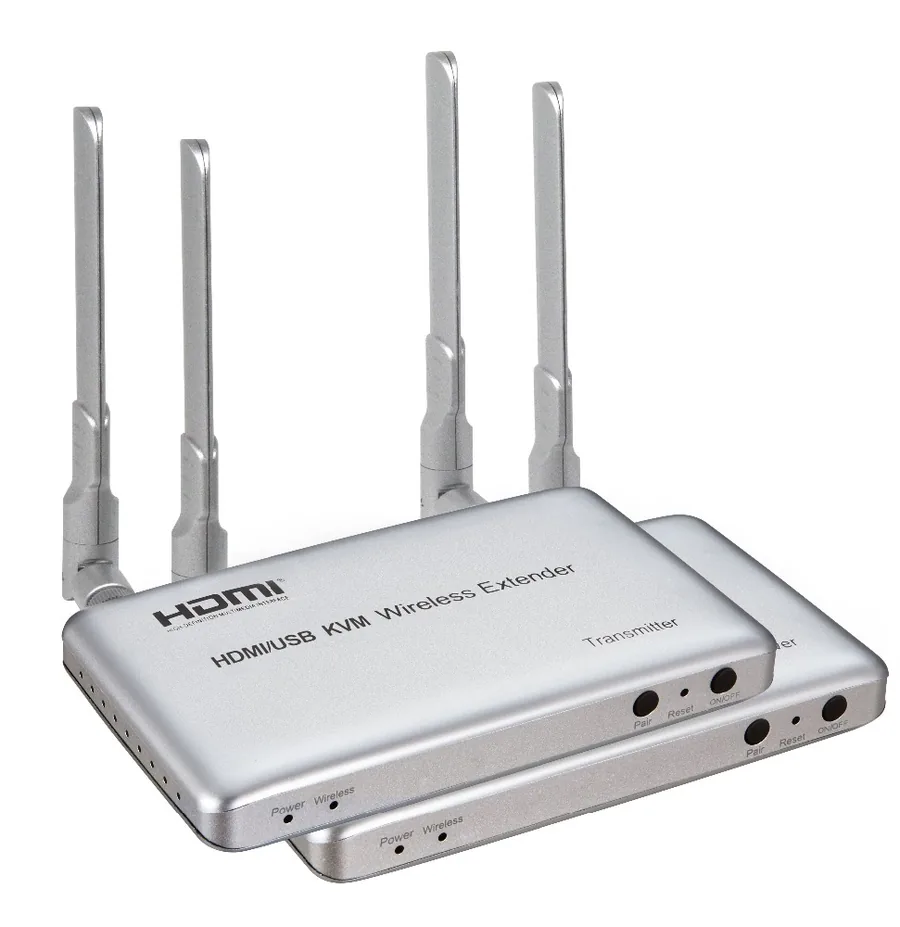

Wireless Wall-Mountable 1080P HDMI Extender Video Kit 165 Feet
HDM/KVM Wireless extender 50M This HDMI/KVM Wireless extender uses 2.4G and 5G technology to enable high-speed, high performance wireless communication among consumer electronics, computer and mobile devices. It combines high bandwidth capacity with strong error-correction , to deliver uncompressed HD video.
Send a drawing or a sample photo on WhatsApp or by email and we will match it. Replies within 12 hours.
Used in these solutions
Product Overview
Features
- Transmitter: connect with the power supply for about 40 seconds, when the “wireless” indicator lights up, press the “Pair” button on the transmitter, “wireless” indicator will flash slowly.
- Receiver: connect with the power supply for about 40 seconds, “wireless” indicator lights up, then press the “Pair” button on the receiver, “wireless” indicator flashes slowly.
- When the “Wireless” indicators on the transmitter and receiver start to light up, the pair code is successful.
- When the “Power” indicator lights up, it means the power is on.
- When the “Wireless” indicator lights long, it means the extender is running well. And the “Wireless” indicator on the transmitter flashes quickly means wireless signal is received and transmitted well.
- Support HDMI 1.4a
- Support HDCP1.3
- Support standard IEEE802.11a/b/g/n
- Support resolution up to 1920x1080/60Hz
- Support the highest rate 1.485G and TMDS clock up to 148.5Mhz
- Support IR control
- Support KVM function
- Work in 5G frequency band, it is not easy to be interfered by wireless signals
- The max transmitting distance can be 50m (In the open area)
- 5V/1.5A power adaptor
- After connecting well, there are two methods to send the control signal from the RX back to the TX.
- Method 1: IR control function. 1) Connect the IR receiver to the “IR-RX” port on the wireless extender receiver; 2) Connect the IR transmitter to the “IR-TX” port on the wireless extender transmitter; 3) Put the IR transmitter port near to the HD source IR receiving hole. The method is usually used in DVDs.
- Method 2: KVM function. 1) Connect the keyboard and mouse to the USB ports on wireless extender RX; 2) Use a double male USB cable, one male USB port connects with the USB on the wireless extender TX, the other male USB port connects with the USB on the signal source. The method is usually used in computers.
- The Pair code matching :
- The wireless extender transmitter and receiver have been matched well in the factory. If the users need to match again (ex: The matched well transmitter or receiver needs to match another receiver or transmitter)
- Please follow the steps:
- Instruction
Who It Is For
- AV integrators building meeting rooms, classrooms and control rooms
- Digital signage operators feeding several screens from one player
- Broadcast and live streaming teams capturing or distributing HDMI feeds
- Distributors and importers supplying installers with rack-mount AV hardware
- OEM buyers sourcing HDMI distribution hardware under their own label
Problems It Solves
- A single source has to reach more screens than it has outputs
- The screen is further away than an HDMI cable can reliably drive
- Several sources compete for one display and need switching or a multi-view layout
- A video wall needs one image split across a grid of panels
- A source and a display disagree on resolution, colour space or audio format
Typical Applications
- Conference and huddle rooms
- Classrooms and lecture theatres
- Retail and transport digital signage
- Control rooms and video walls
- Live event and streaming racks
- Hotel and hospitality AV

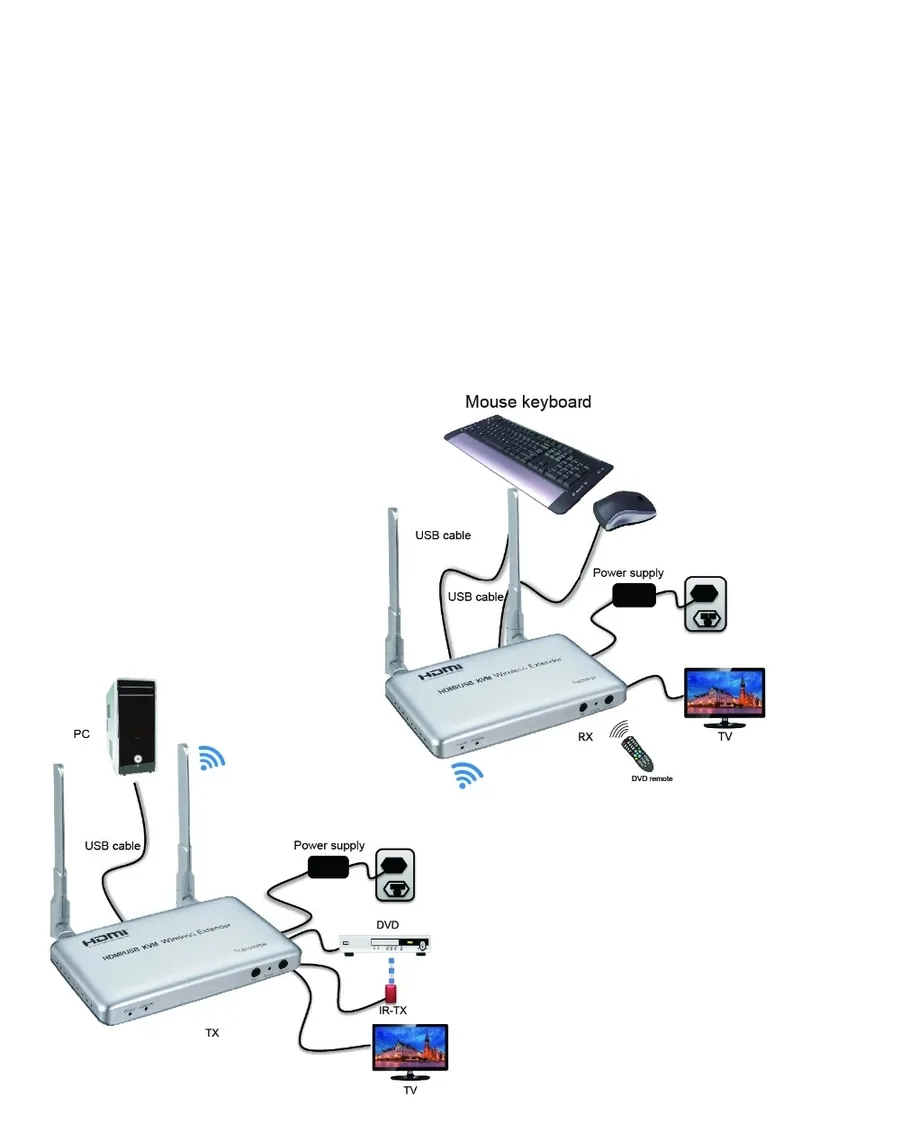

Connection Diagram
The application drawing supplied with this model.
