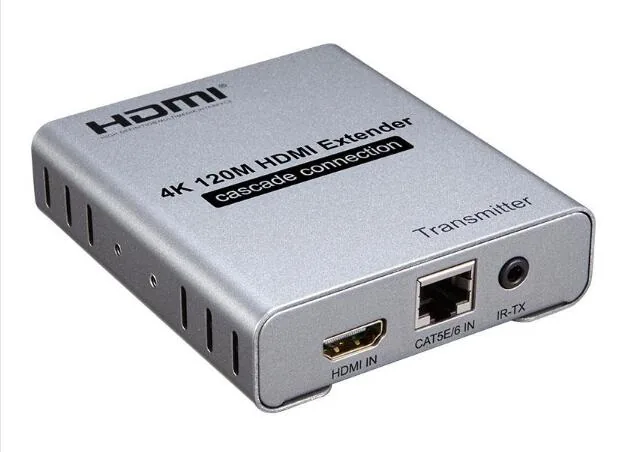

4K 120M HDMI Extender Cascade connection
The 4K 120M HDMI extender uses one single cat-5E or cat-6(recommended) cable instead of HDMI cable, you can extend the HDMI1.3-1080P signal to 120 meters or HDMI2.0 4K@60Hz to 60 meters. The purpose of the extender is to achieves long-distance signal transmission with low-cost wires.
Send a drawing or a sample photo on WhatsApp or by email and we will match it. Replies within 12 hours.
Used in these solutions
Product Overview
Specifications
Power adapter format…Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Who It Is For
- AV integrators building meeting rooms, classrooms and control rooms
- Digital signage operators feeding several screens from one player
- Broadcast and live streaming teams capturing or distributing HDMI feeds
- Distributors and importers supplying installers with rack-mount AV hardware
- OEM buyers sourcing HDMI distribution hardware under their own label
Problems It Solves
- A single source has to reach more screens than it has outputs
- The screen is further away than an HDMI cable can reliably drive
- Several sources compete for one display and need switching or a multi-view layout
- A video wall needs one image split across a grid of panels
- A source and a display disagree on resolution, colour space or audio format
Typical Applications
- Conference and huddle rooms
- Classrooms and lecture theatres
- Retail and transport digital signage
- Control rooms and video walls
- Live event and streaming racks
- Hotel and hospitality AV
Specifications
Values published by the factory for this model. Anything not listed here we will confirm in writing before you order.
- Length of CAT-5E/CAT-6 cable between Rx and TX
- up to 120 meters
- HDMI input
- 4K/1080p/720p/576p/576i/480p/480i
- Support audio format
- DTS/Dolby/LPCM
- HDMI output
- 1080p/720p/576p/576i/480p/480i
- Max bandwidth
- 340MHz
- Max baud rate
- 3.4x3Gbps
- Input video signal
- 0.5~1.5Volts p-p
- Output DDC signal
- 5Volts p-p (TTL)
- Input HDMI cable distance
- ≤15m AWG26 HDMI standard cable
- Output HDMI cable distance
- ≤15m AWG26 HDMI standard cable
- TX Max working current
- 350mA
- RX Max working current
- 200mA
- Operating Temperature range
- (-15 to +55℃)
- Operating Humidity range
- 5% to 90%RH (No Condensation)
- Dimension (L x W x H)
- 94x84x24(mm)
- TX Weight
- 223g
- RX Weight
- 223g
Buying And Customisation
Model, length, connector type, quantity and destination. A photo or drawing on WhatsApp is enough to start.
We reply within 12 hours with availability, the specification we can hold and an indicative price.
Packing details, MOQ, payment terms and lead time are agreed per order. Own-brand packaging is available.
Order status is tracked through production and shipping, and our team stays online 24×7 after delivery.
We can research and design special cables according to your requirements and help you to protect your patents. Tell us the board dimensions, schemes, BOM and critical routing requirements and we will work to them.
