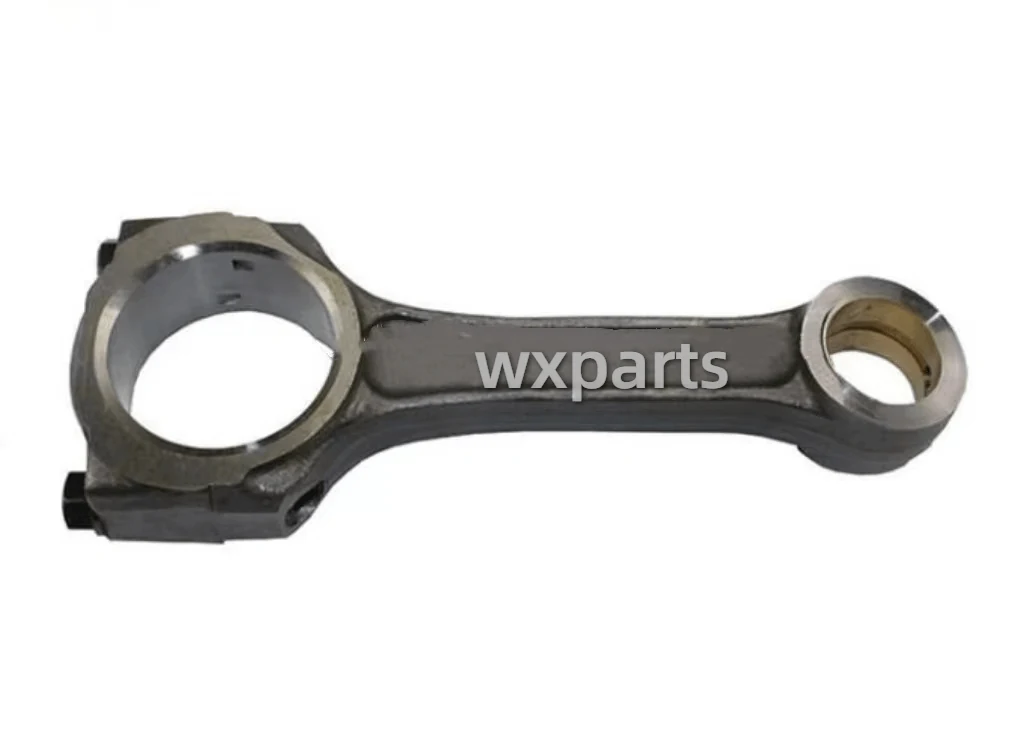

ISUZU NPR 600P 4KH1 4JH1 Connecting Rod 8973528901 8980126021
ISUZU NPR 600P 4KH1 4JH1 Connecting Rod 8973528901 8980126021 is supplied against OEM reference 8973528901,8980126021 for ISUZU 600P NPR.
Connecting Rod for ISUZU 600P NPR
ISUZU NPR 600P 4KH1 4JH1 Connecting Rod 8973528901 8980126021 is supplied against OEM reference 8973528901,8980126021 for ISUZU 600P NPR. The function of the connecting rod bears the gas force from the piston pin and its own swing and the inertia force of the reciprocating motion of the piston group. Our connecting rods have sufficient fatigue strength and structural rigidity to better withstand alternating loads such as compression and tension. The minimum order is one piece, packed neutral or under your own brand, with ISO9001 certification.
- OEM 8973528901,8980126021
- Category: Engine System Parts
- ISO9001
- MOQ 1 piece
What You Get With This Reference
- Single piece minimum order suits a workshop replacing one damaged rod
- Ships together with pistons and bearings for the same engine on one order
- Listed against OEM reference 8973528901,8980126021 so the part is confirmed before it is packed
Why Buyers Order It
- Rods sold without the OEM number can differ in length between engine variants
- Workshops need one or two rods, not a set of six
- A bent rod is easy to miss in a hurried rebuild and destroys the new bearings within hours
- Finding this reference for ISUZU 600P NPR locally often means a long wait or a used part of unknown history.
Where This Part Is Used and Who Buys It
Application Scenarios
- Rebuilding a high mileage diesel engine
- Stock for a workshop that rebuilds light truck engines
- Replacing a bent rod after hydraulic lock
Who It Is For
- Fleet workshops maintaining ISUZU 600P NPR
- Machine shops rebuilding diesel engines locally
- Aftermarket parts distributors building a pickup and light truck range
- Traders consolidating mixed parts orders from Yiwu
Technical Data From the Product Record
| OEM No. | 8973528901,8980126021 |
|---|---|
| Engine Model | 4KH1 4JH1 |
| Actual Size | 23*8.5*3.5 |
| Matched Model | ISUZU 600P NPR |
| Place of Origin | China |
| MOQ | 1 Pc |
| Shelf Life | 1 Year |
| Certification | ISO9001 |
| Packing | Neutral or custom packaging |
Only values recorded against this reference are listed. Send the number from your old part if you need a dimension that is not shown.
What the Part Is Built To Do
- Small end sized for the OEM gudgeon pin
- Cap and rod supplied matched and marked
- Packed to protect the machined faces
- Engine Model: 4KH1 4JH1
- Actual Size: 23*8.5*3.5
- Big-end bore machined for standard bearing shells
Symptoms That Point Here
- Knocking under load that follows engine speed
- Big-end bearing failure repeating after a rebuild
- A bent rod found when the piston crown contacts the head
- Uneven piston protrusion measured at TDC
How It Compares With the Alternatives
Compared with straightening a bent rod
Straightening restores geometry on paper but leaves residual stress in a part that sees full combustion load every cycle.
Compared with a salvage rod set
A salvage set arrives without measurements and usually without matched caps.
Fitting and Service Notes
- Keep caps with their own rods and fit them in the original orientation.
- Use new rod bolts where the manufacturer specifies them.
- Check big-end clearance with plastigauge before final torque.
- Have the rod checked for straightness and big-end roundness before assembly if it is going into a rebuilt engine.
Parts Usually Ordered With It
MITSUBISHI L200 4D56U CR 07-14 Connecting Rod 1115A035
View details →
ISUZU 600P 4KH1 INLET VALVE 8971317291
View details →
ISUZU 4HF1 Camshaft 8-97077-829-0 8-97077-830-0
View details →
MITSUBISHI 4D34 Camshaft ME013677
View details →
Toyota 2TR IN & EX Camshafts 13501-75060,13502-75070
View details →Guides for This Kind of Job
How To Read and Verify an OEM Number Before You Order
Most wrong-part shipments start with an order placed on a vehicle name. This guide shows where the number is, how to read it and what to send a supplier.
Read →Product GuideBuying a Replacement Diesel Cylinder Head Without Guesswork
What to measure, what to ask and what to replace at the same time when a light truck or pickup head has to be changed.
Read →Maintenance GuideWhen To Change Fuel and Oil Filters in Hard Service
Service book intervals assume clean fuel and light duty. This guide explains how to set a realistic interval for pickups, light trucks and delivery motorcycles.
Read → IndustryTruck and Pickup Fleet Workshops
A fleet workshop is measured on how quickly a vehicle returns to work, so parts availability matters more than list price.
Read →Questions About ISUZU NPR 600P 4KH1 4JH1 Connecting Rod 8973528901 8980126021
Which vehicles does 8973528901,8980126021 fit?
Are the rod bolts included?
Can I order a single rod?
Will the rod be weight matched to my existing set?
What is the minimum order and how is it packed?
Need This Part Confirmed For Your Vehicle
Send the OEM number, the engine code or a photograph of the old part. The reference and the matched models are confirmed in writing before you pay anything.
