Wearable Hidden Cameras · DVR-2KPNC

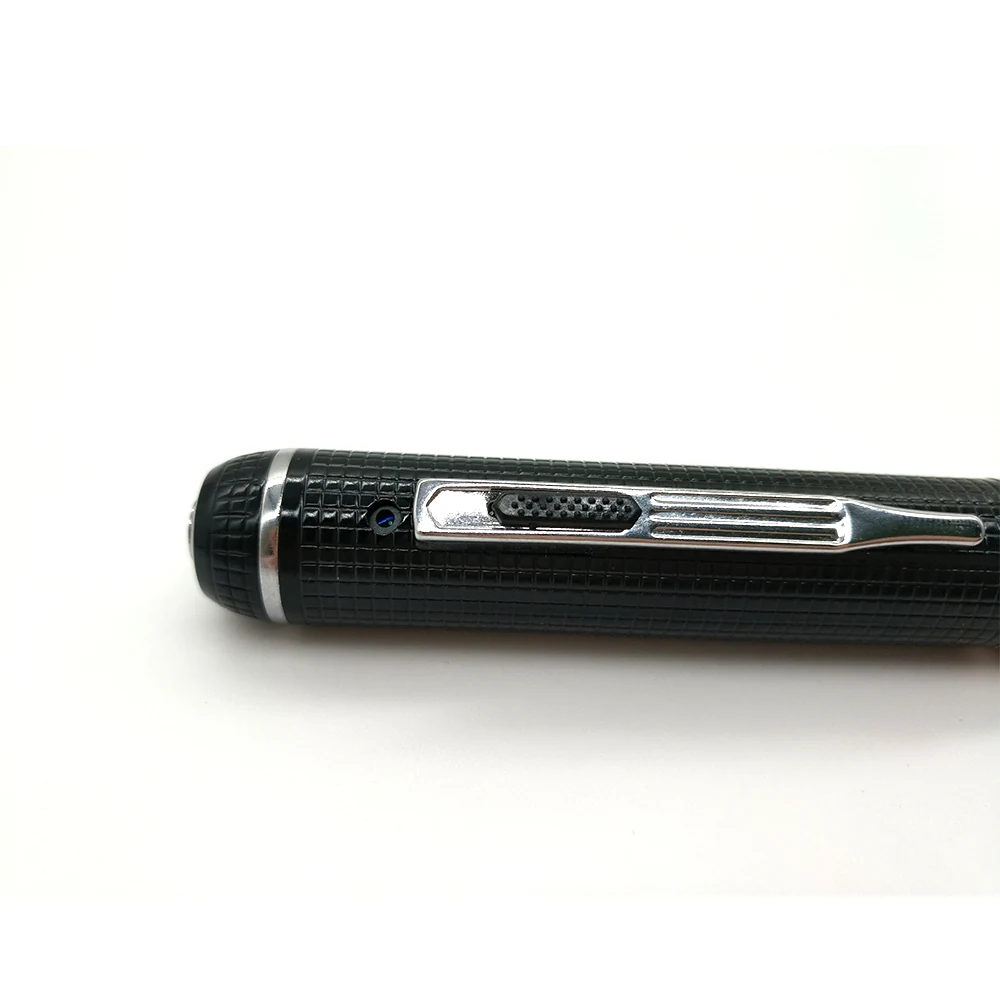

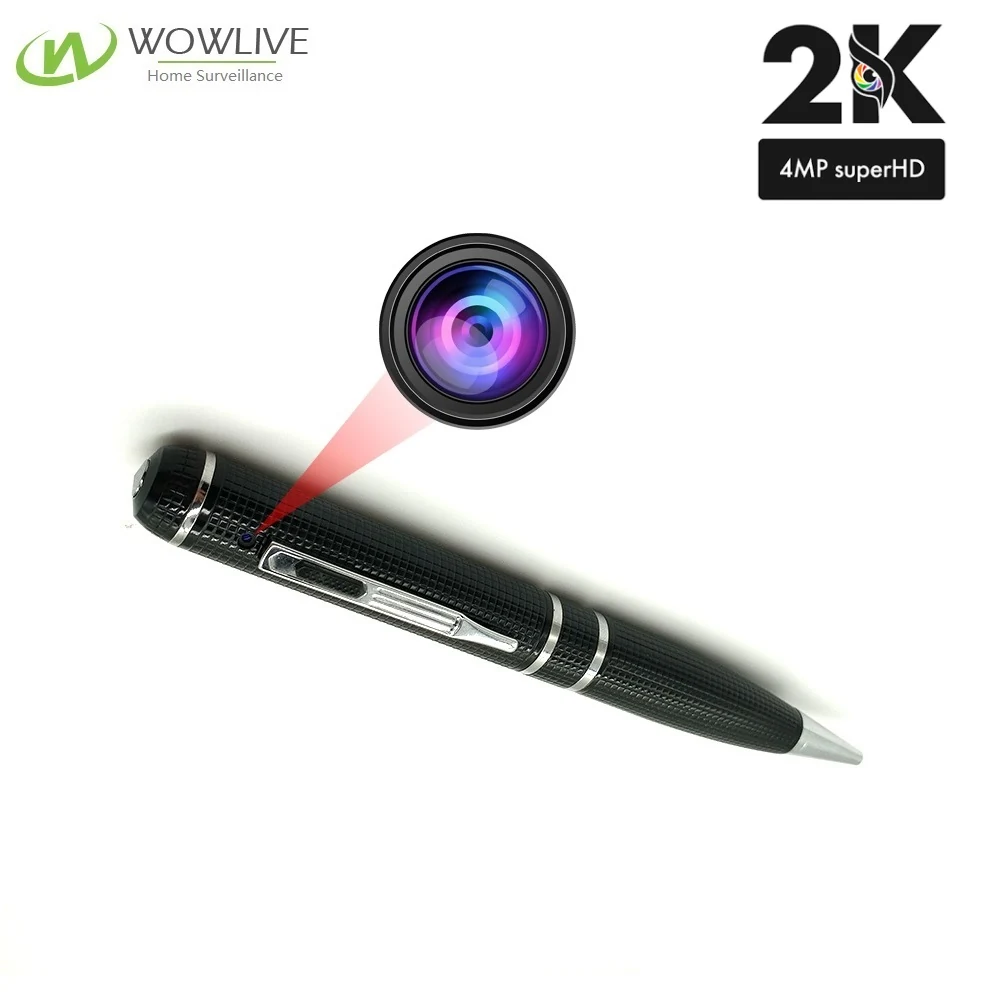

2K Resolution Pen Camera DVR-2KPNC
The highest resolution wearable in the range. A working pen that records 1920x1080 at 30fps or 1280x720 at 60fps to 16GB of built-in storage, through a 0.6mm lens, for about 60 minutes on a 380mAh cell.
- 720P at 60fps for movement that a 30fps camera smears
- 16GB built in, so there is no card to buy and none to lose
- 0.6mm lens aperture keeps the optic invisible at arm's length
- MOV output that drops straight into standard editing software
One year warranty · PayPal, T/T or Western Union · DHL, UPS, FedEx or EMS
Who It Is For
- Field inspectors and surveyors documenting site visits
- Licensed investigators working within the rules of their jurisdiction
- Resellers who need a premium pen above the 720P and 1080P models
Problems It Solves
- A fixed camera cannot follow a walkthrough
- 30fps footage of moving machinery or hands is hard to read frame by frame
- Removable cards get lost between a site visit and the office
Application Scenarios
- Recording a site inspection hands free
- Documenting a handover or an equipment fault
- Capturing a process demonstration for training
- Note taking where writing and recording happen together
Technical Features
- Hidden Pen Camera
- Connect You And I And Her And Life
Specifications
DVR-2KPNC Technical Data
Taken from the factory specification sheet. Anything the sheet does not state is left out rather than estimated, and the FAQ below says which figures are still being confirmed.
| Video Resolution | 1920x1080p @ 30fps, 1280x720p @ 60fps |
|---|---|

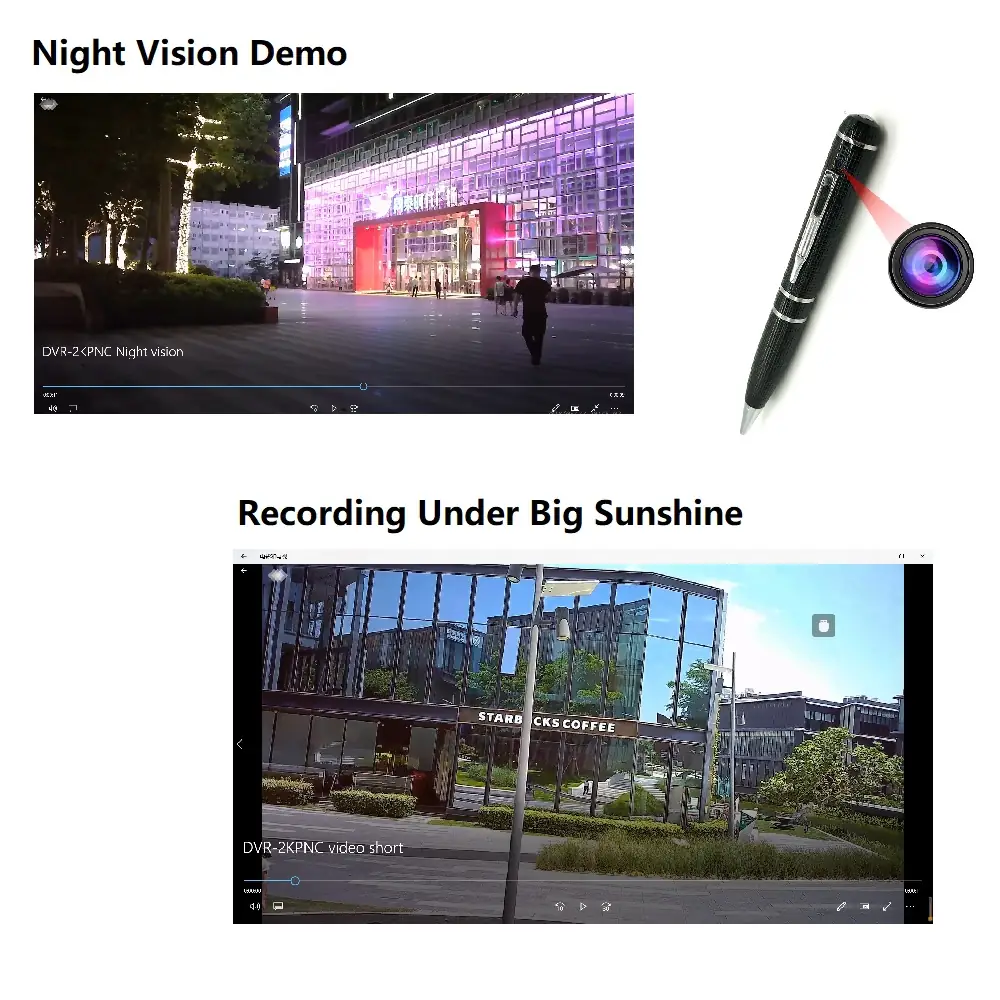

| Minimum Illumination | 0.01LUX |
| Camera | 4MP CMOS |
| Lens | 0.6mm |
| Viewing Angle | 65 deg |
| Video Format | MOV |
| Battery Capacity | 380mAh |
| Recording Space | to 6.5GB every 60 Minutes |
| Charging | USB 5V,600Mah |

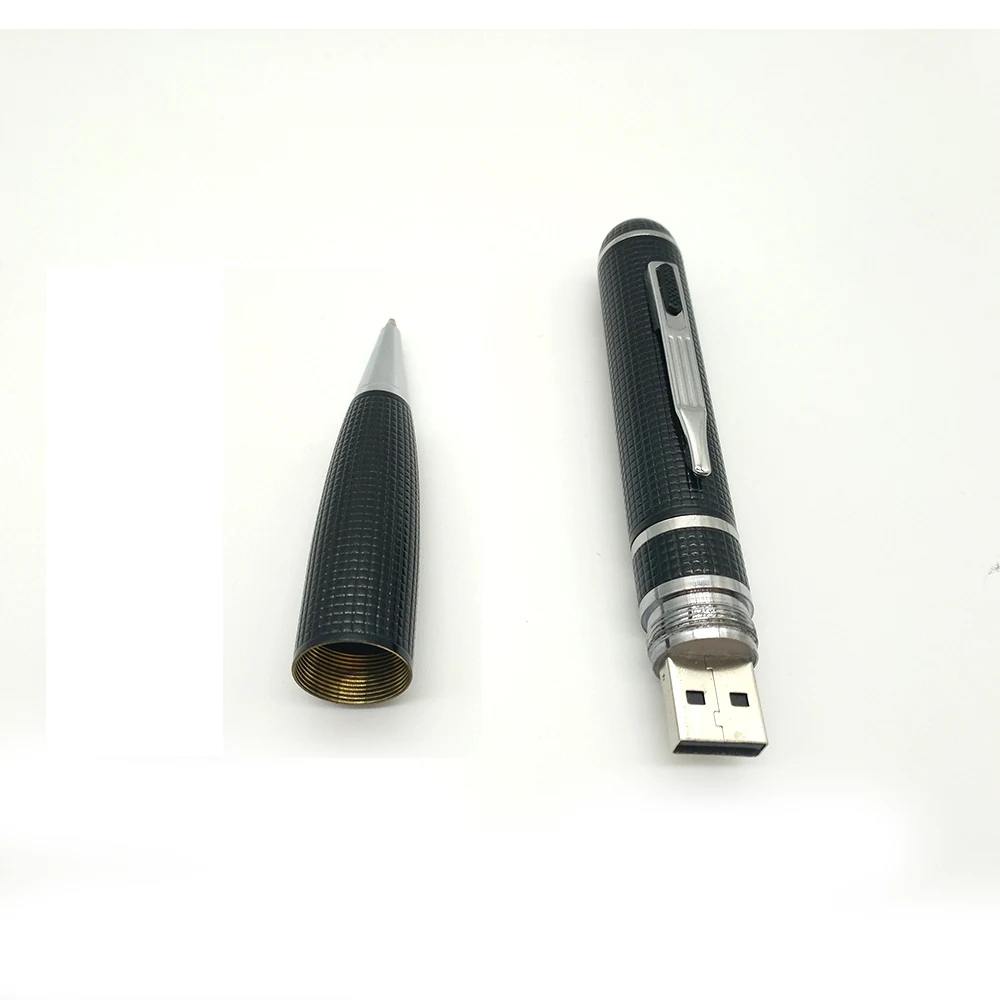

| Memory Card | Built-in 16GB |
| Total Recording Time | Approximately 60 minutes |
| Record Modes | Continuous |
| Time/Date Stamp | Yes – embedded |
| Photo taken | support |
| CNT | 40pcs |
Comparison
How It Differs From The Closest Alternatives
Compared With The DVR-1080PVC pen
The DVR-1080PVC records 1080P for 115 minutes to a removable card up to 32GB. The DVR-2KPNC runs about 60 minutes but adds a 720P 60fps mode and fixed internal storage.
Compared With The DVR-720PNC pen
The DVR-720PNC is the budget model at 720P and 70 minutes. The DVR-2KPNC is the high frame rate option.
Use Guide
Getting The Unit Into Service
- Charge or connect power first. Battery models should be fully charged before the first placement; mains models simply run from the socket.
- Fit a micro SD card within the stated limit. Fitting a card larger than the model supports will not work, and cards are not supplied unless the specification says otherwise.
- Place for the lens, then check the frame. Set the unit where it needs to see, record a short test clip and review it before leaving it in position.
- Check the legal position before use. Recording rules differ by country and by room, and audio is usually regulated more tightly than video.
Customisation
OEM And ODM Options
- Housing printing with your own logo and artwork
- Printed manual and insert in your own wording
- Retail packaging produced to your artwork
- Plug type, colour and card capacity variations where the model allows
Related Products
Other Models Buyers Compare With This One
Wearable Hidden Cameras
Mini 720P Pen Camera DVR-720PNC
Lowest cost entry into the wearable family
DVR-720PNC
Specifications
Wearable Hidden Cameras
Live Streaming WiFi Glasses Camera WF-1080GTC
Live view on a phone app while the wearer is still walking the site
WF-1080GTC
Specifications
Wearable Hidden Cameras
Wearable 1080P Sunglasses Camera DVR-1080GTC
16GB DVR on board, so there is no card to fit and none to lose
DVR-1080GTC
Specifications
Guides About This Kind Of Camera
Technical Guide
Micro SD Card Capacity And Loop Recording Explained
Why the maximum card size varies from 32GB to 128GB across one catalogue, and what happens when the card fills up.
Industries Buying This Model
Security Product Distributors
One Supplier Covering A Whole Covert Camera Catalogue
Licensed Investigators And Security Firms
Body Worn And Fixed Units For Licensed Professional Work
Logistics And Warehouse Operators
Cover A Loading Bay Or An Aisle Without Running Cable
Lawful Use Only
WOWLIVE products are supplied for lawful security and property protection. Laws on recording people, and on recording audio in particular, differ between countries and between rooms in the same building. Recording in places where people reasonably expect privacy, such as bathrooms, changing rooms and bedrooms that are not your own, is a criminal offence in most jurisdictions. Buyers and resellers are responsible for checking the rules that apply where the goods are used and sold, including any import, notification and signage requirements. We will not supply orders intended for unlawful surveillance.
Questions
DVR-2KPNC Questions
Why does the model say 2K when the resolution is 1080P?
The source site lists the model as 2K and the specification as 1920x1080 at 30fps with a 1280x720 60fps mode. We publish the measured specification rather than the model name.
Can the internal memory be expanded?
No. Storage is a fixed 16GB.
How long does it record on one charge?
Approximately 60 minutes from the 380mAh battery.
Does the pen write?
Yes, it is a working pen with a standard refill.
Get Pricing On The DVR-2KPNC
Send us the quantity and destination country for the 2K Resolution Pen Camera DVR-2KPNC and we will come back with a price, a lead time and a shipping option.
