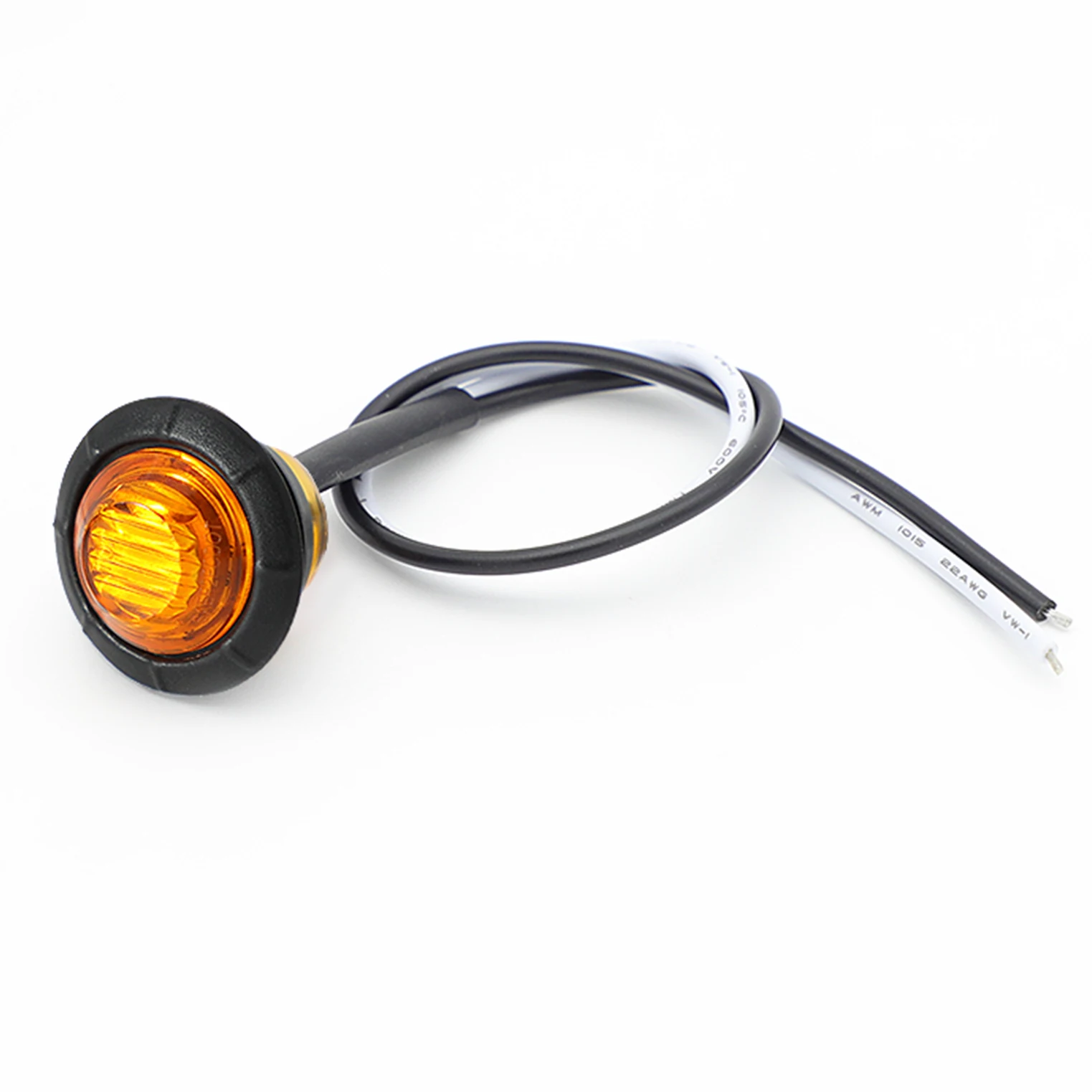

Sealed 3/4 inch 3 LED side marker and clearance light
The plain sealed version of the 0.75 inch three-diode marker, without a trim ring. It is the volume clearance lamp: cheap enough to fit in long strings, sealed well enough to survive the wheel arch.
Purchasing teams buying small markers by the thousand where unit cost and seal reliability decide the order.
PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.
| Brand Name | WEIKANG or Privately Labelled |
|---|---|
| Input Voltage | 12V, 24V, 10~30V |
| Functions | Marker |
| Mounting Type | Rubber Grommet |

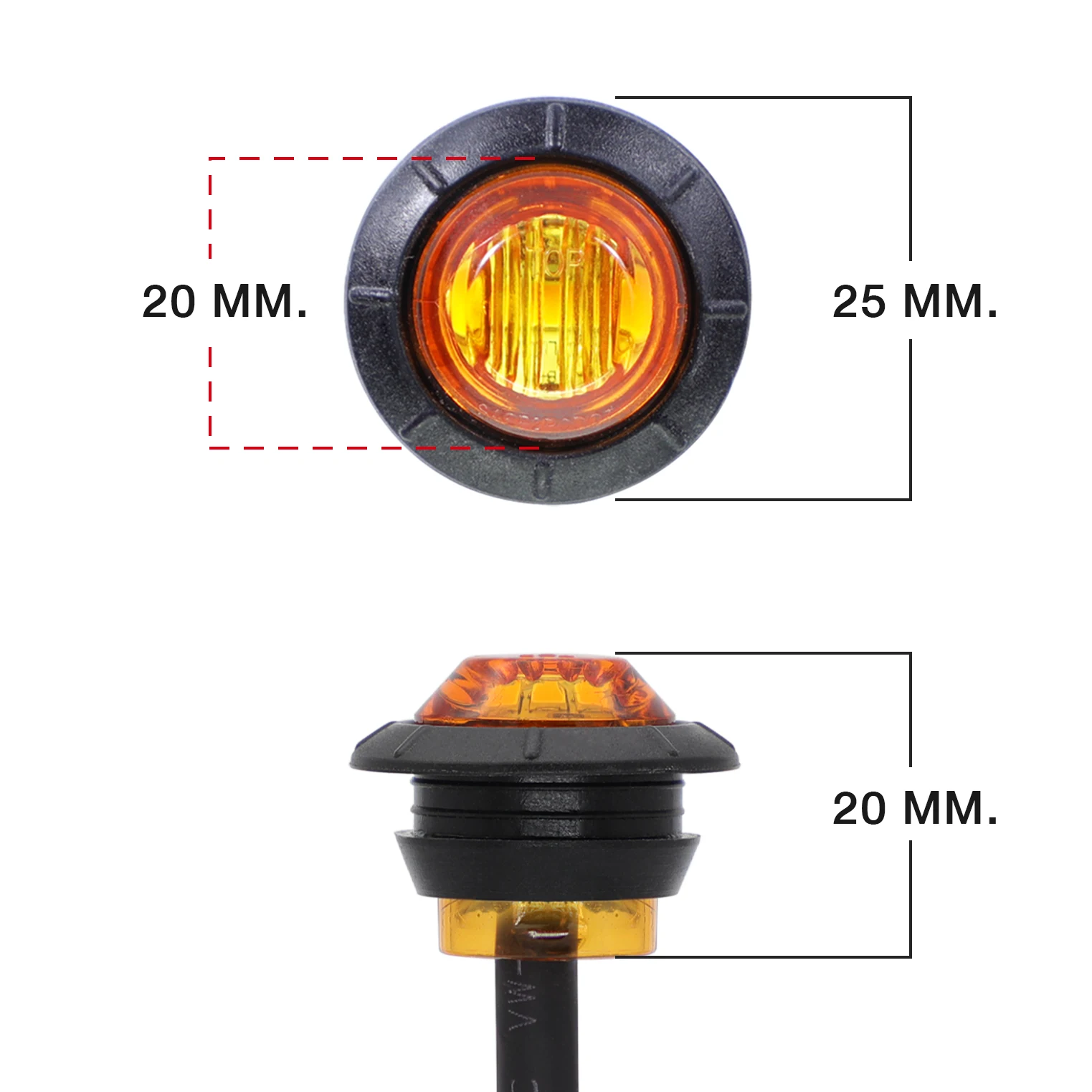

| Light Size with Grommet | 0.75” |
| Lens Marking | STI |
| IP Rating | IP67 |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
| Category | LED Side Marker Lights |
| Warranty | 5 years on light products |
| Packing | 1 piece per carton as standard; custom packaging from 200 pcs |
| Unit weight | TBC |
Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.
Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
Batches are sampled to the factory's level 2 sampling and testing standard and inspected 100% before shipment.
The no-ring version of the stainless-ring 3/4 inch marker — same lamp, lower cost, less trim.
Use a clean cut 0.75 inch hole so the grommet seals evenly
Press the lamp in until the lens face sits proud of the grommet
Test the full string before the vehicle leaves the line
This one has no trim ring; the lamp and grommet are the same 0.75 inch format.
IP67.
100 pcs for stock orders; 100 to 500 pcs for custom projects.
Standard packing is one piece per carton; custom packaging is available from 200 pcs.
7-10 business days.
