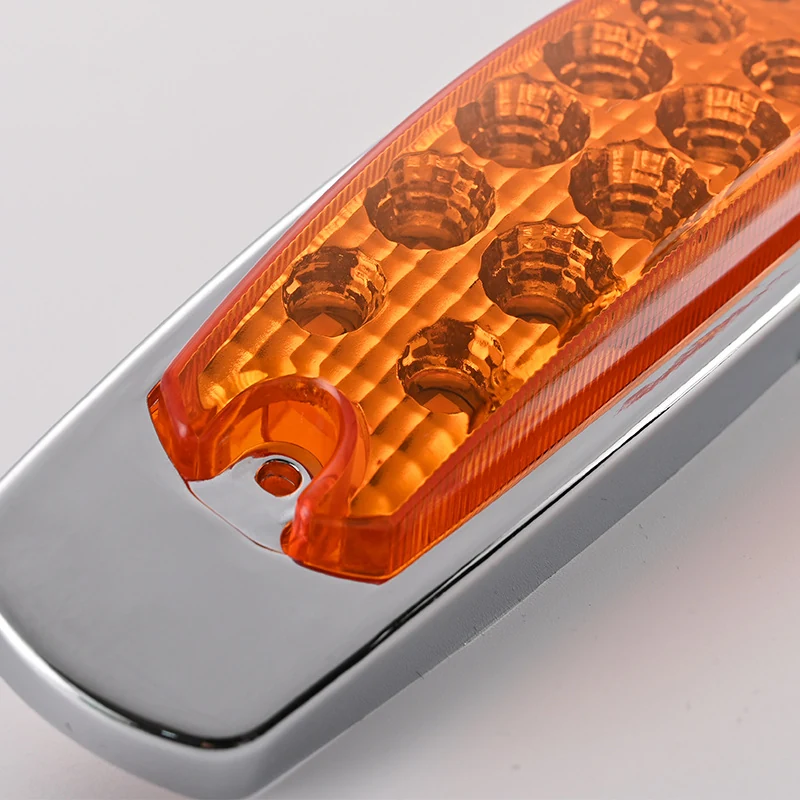

Chromed bezel side marker, 12 diodes, 116 mm
An 11.6*5*5.6 cm surface-mounted side marker with 12 diodes and a chromed bezel, running low-high and flashing. It is the trim-grade marker for cab sides and visible body positions where the plain black lamp looks unfinished.
Accessory distributors and fleets that care how the lamp looks as well as how long it lasts.

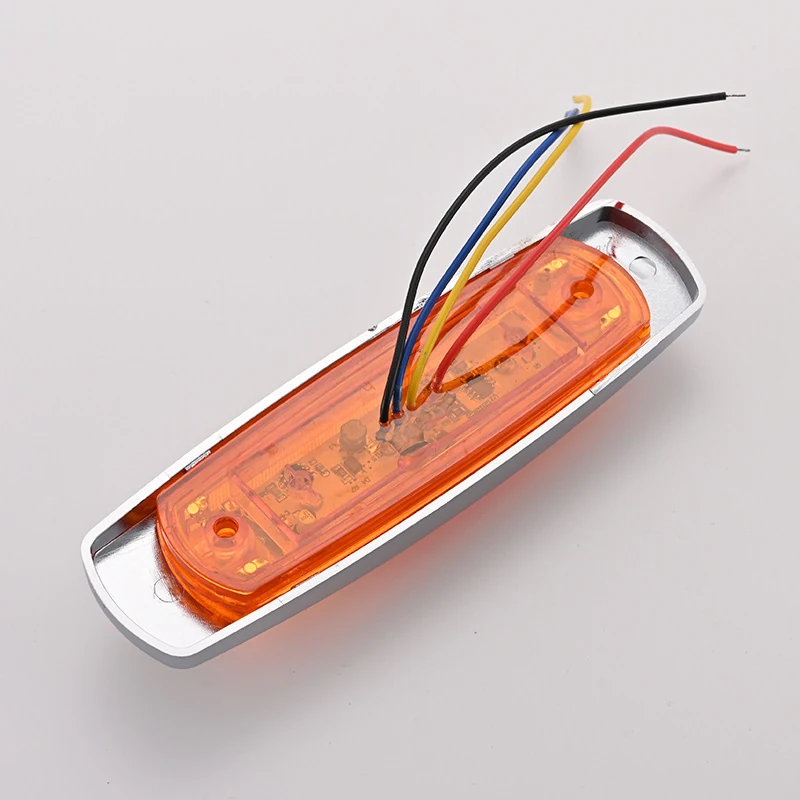

PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.
| Brand Name | WEIKANG or Privately Labelled |
|---|---|
| Input Voltage | 12V, 24V, 10~30V |
| Functions | Low-High/Flashing Function |
| Mounting Type | Surface Mount |

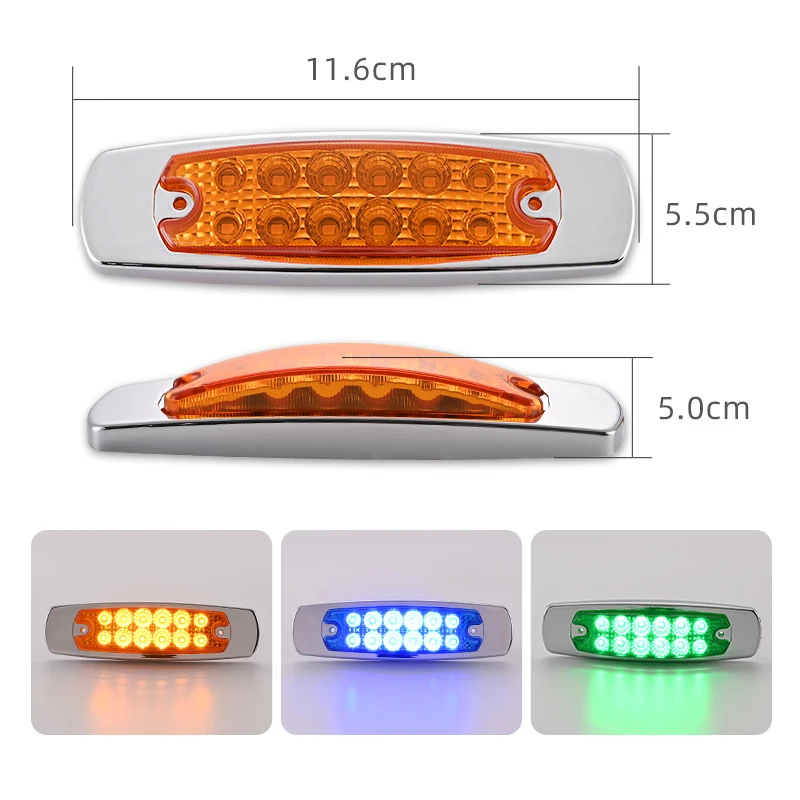

| Light Size | 11.6*5*5.6 cm |
| Lens Marking | STI |
| IP Rating | IP67 |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
| Category | LED Side Marker Lights |
| Warranty | 5 years on light products |
| Packing | 1 piece per carton as standard; custom packaging from 200 pcs |
| Unit weight | TBC |
Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.
Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
Plated bezels are checked for coverage and pass salt spray testing; finished lamps are 100% electrically inspected.
The trimmed, larger alternative to the 3/4 inch markers, with output control the small lamps do not have.
Mark fixings from the lamp base onto a flat panel area
Seal the fixing face and cable entry
Avoid abrasive cleaners on the bezel
12 diodes.
11.6*5*5.6 cm.
Low-high and flashing functions are both listed for this model.
Yes, WEIKANG brand or private label with logo printing.
30% TT in advance, 70% balance before shipment preferred.
