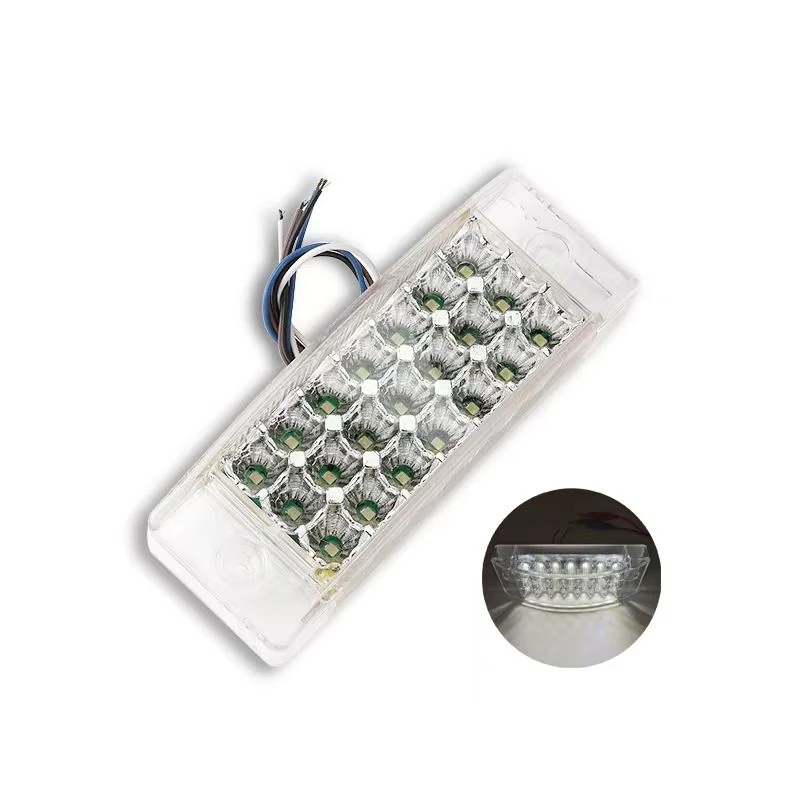

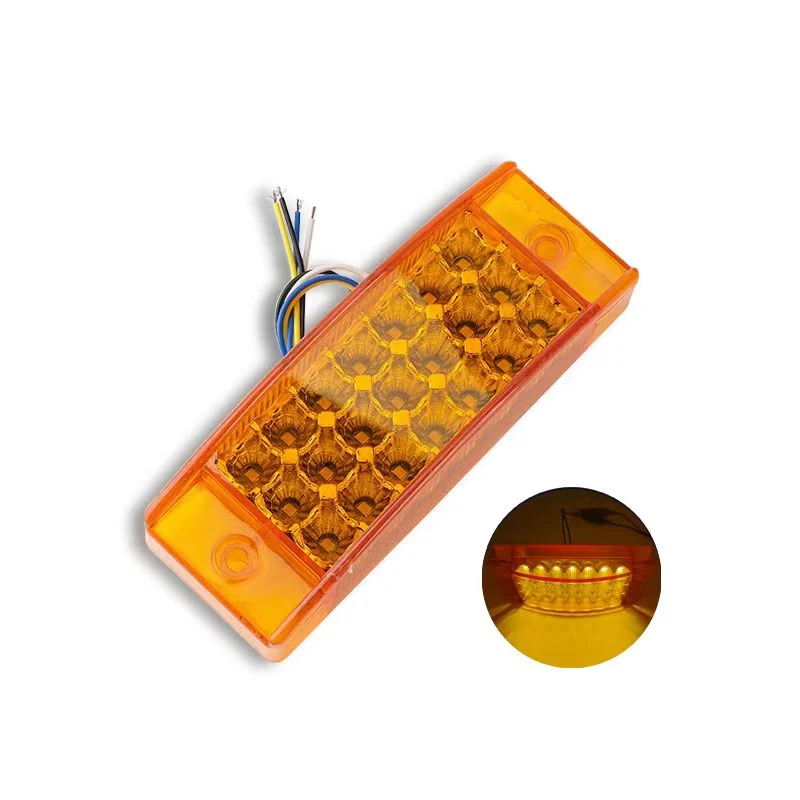

6 inch side marker with steady, flowing and flashing modes
A surface-mounted side marker measuring 5 7/8" long x 2 1/8" wide x 1 7/16" deep with mounting holes at 4 3/4" centres, carrying 21 diodes and three behaviours: steady, flowing and flashing. It gives a sequential side signal on a standard 6 x 2 inch marker footprint.
Fleets and builders upgrading side marker behaviour on panels already drilled for a standard marker.
PC lens and housing, ultrasonically welded into one permanent waterproof body. Housing material and finish vary by model and are listed in the specification table.
| Brand Name | WEIKANG or Privately Labelled |
|---|---|
| Input Voltage | 12V, 24V, 10~30V |
| Functions | Steady/ Flowing/ Flashing |
| Mounting Type | Surface Mount |
| Light Size with Grommet | 5 7/8 ” Long x 2 1/8″ Wide x 1 7/16″ Deep (6″ x 2″) Surface Mounting Holes at 4 3/4” |
| Lens Marking | STI |
| IP Rating | IP67 |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
| Category | LED Side Marker Lights |
| Warranty | 5 years on light products |
| Packing | 1 piece per carton as standard; custom packaging from 200 pcs |
| Unit weight | TBC |
Values marked TBC are not published in our current documentation. Ask the sales team and we will confirm from the production record.
Hardware production, laser marking, heat diffuser assembly, light source welding and thermal grease application run on our own semi-automatic lines. Lens installation, shell assembly, ring fixing and spring insertion follow in product assembly.
All three modes are run during the aging test, and the lamp is inspected against the specification sheet at final inspection.
Similar behaviour to the 250 mm light bar in a conventional marker footprint that matches existing fixings.
Check existing fixings are at 4 3/4" centres before ordering
Seal the fixing face against the panel
Test steady, flowing and flashing modes separately
4 3/4 inches.
5 7/8" long x 2 1/8" wide x 1 7/16" deep, a nominal 6" x 2" footprint.
It runs the diodes as a sequence rather than a fixed output.
Yes, samples ship in 7-10 business days; they are chargeable.
The factory lists ENEC, CE (LVD, EMC), CB, RoHS, LM79 and TM21 reports, with ISO 9001 and ISO 14001.
