Solar Hybrid Energy System 30KW/50KW/100KW

5kW 10kW Complete Solar Hybrid Energy System for Home Use

5kWh Solar Energy Storage System Off Grid Type for Home Use All-in-One Inverter + Hybrid Inverter Power by Solar/Battery/Grid

Request A Quote Email Us

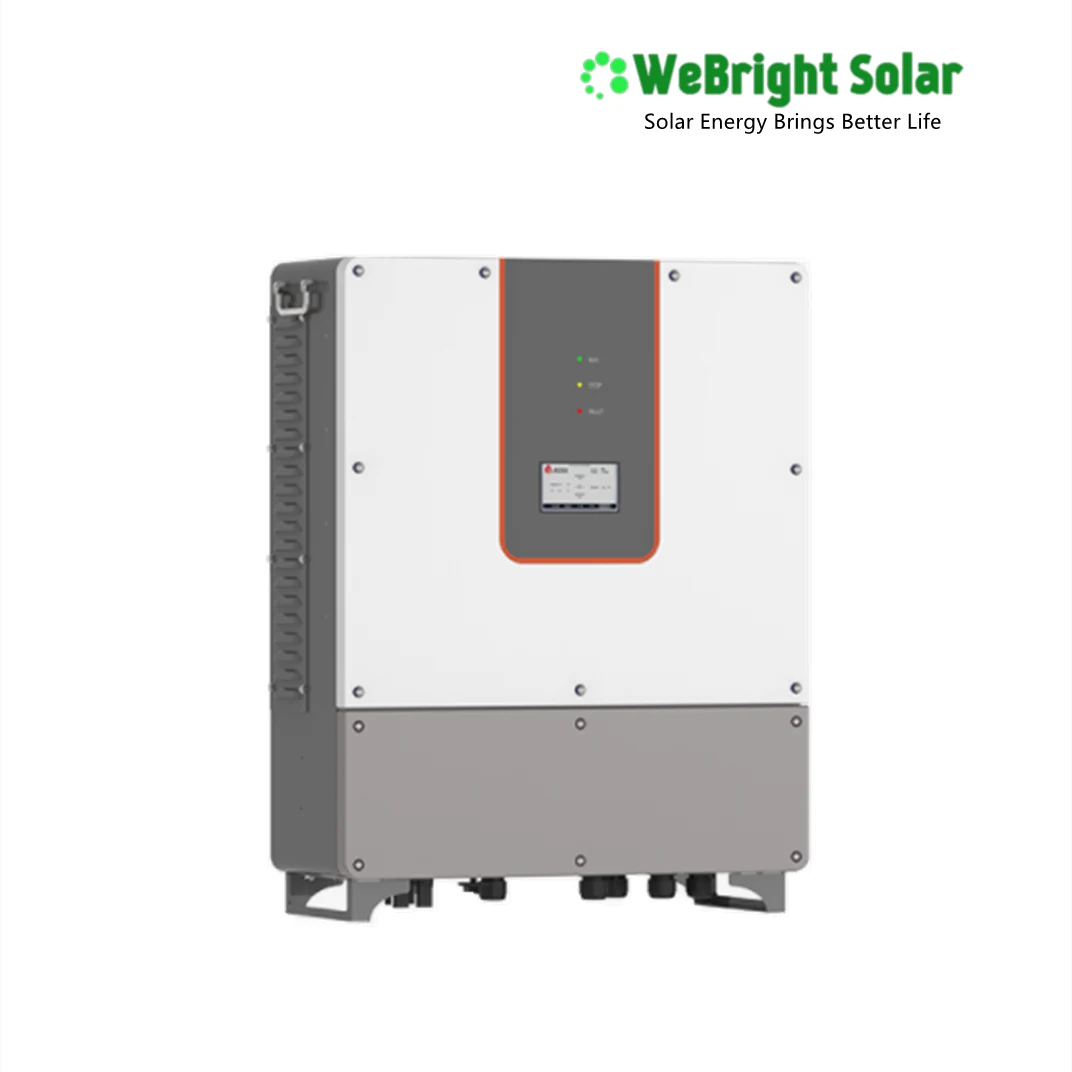

WeBright Solar inverter on white background

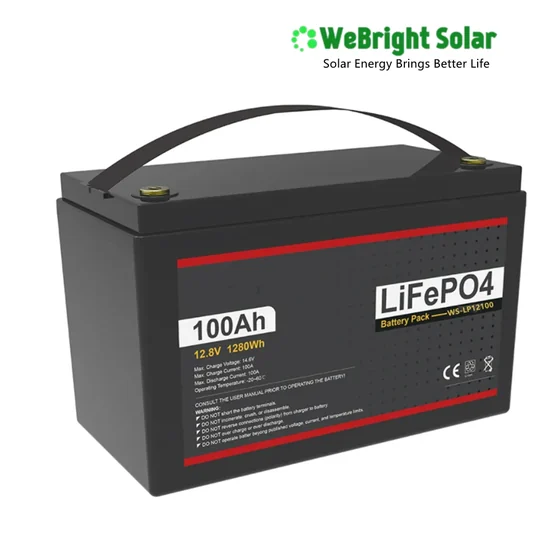

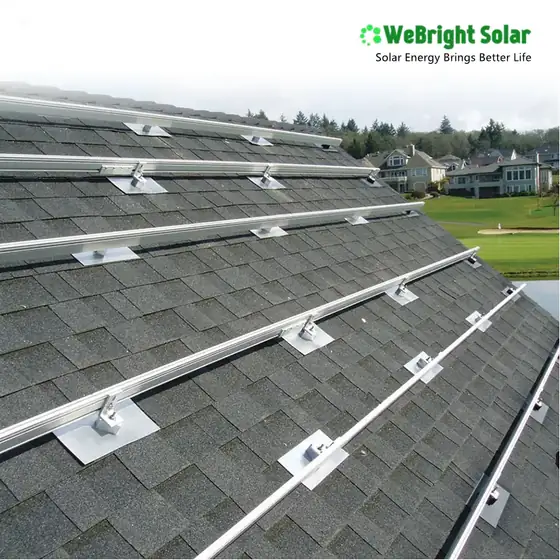

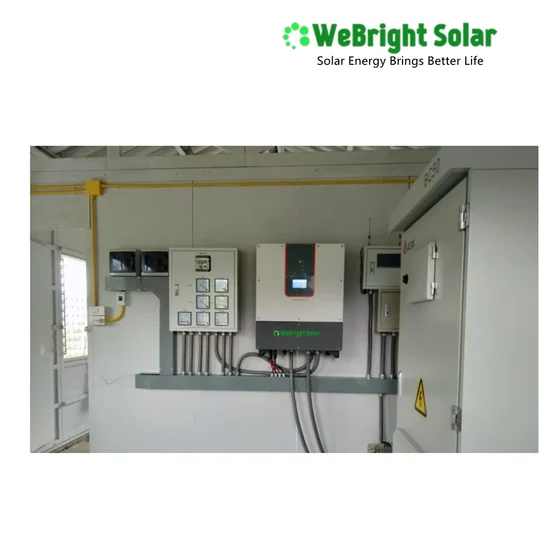

Wall-mounted solar inverter and electrical control panel system.A large solar panel leaning against a wall on a wooden pallet.Metal solar panel mounting rails and flashing installed on a shingled roofWeBright Solar 12.8V 100Ah LiFePO4 Battery Pack with carrying handle and red label3D render of a solar panel mounting structure on concrete blocks.
Product Overview

What This Product Is

A 5KW or 10KW hybrid solar energy system for homes that have grid access but face high electricity bills or frequent outages. It ships as a matched set: 14 pieces of 455W mono solar panels, a 5KW EU or US standard hybrid inverter, a 5KWH adjustable LiFePO4 or lead acid battery pack, a customised combiner box, mounting structure, 400 meters of 4mm2 single-core PV cable, 16 pairs of MC4 connectors, and a tool bag with five PV installation tools. The system is pre-configured to work together, so the installer commissions it instead of testing component compatibility on site.

Key Benefits

What You Get

  • Runs a home using solar, battery or grid power with no need to switch between sources manually
  • Hybrid inverter supports grid feed-in, battery charging and backup power in one unit
  • Battery capacity adjustable at 5KWH to match household energy needs
  • Combiner box customised for the 14-panel array and included in the shipment
  • 400 meters of 4mm2 PV cable and 16 pairs of MC4 connectors supplied with the kit
  • Tool bag includes MC4 crimping pliers, wire stripper, spanner and other essential tools
Who It Is For

Buyers and Sites

  • Solar installers building complete hybrid systems from one delivery
  • Importers and wholesalers supplying homes in unstable-grid markets
  • Small families and couples with moderate household energy consumption
  • Homeowners who want to reduce electricity bills and gain backup power
Application Scenarios

Where It Is Installed

  • Homes in areas with high electricity tariffs and frequent grid outages
  • Small family homes with average daily power use and desire for energy independence
  • Homes where the grid is unreliable but not completely absent
  • Properties with rooftop or ground space for solar installation and battery storage
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • All-in-one design supports solar, battery, grid and load connections
  • Programmable working modes: peak-shaving, backup, or custom operation
  • Transformerless topology with compact size and lightweight design
  • Touchscreen LCD for parameter setting and system monitoring
  • Seamless transfer between grid, solar and battery power with no interruption
  • Dry contact output for remote control of diesel generator or other backup sources
  • PV array connected through a 4-input combiner box with switches and SPD
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power5KW or 10KW
Battery Capacity5KWH adjustable
Solar Modules14 pieces 455W mono
Hybrid Inverter5KW EU Standard or US Standard
Battery TypeLiFePO4 or Lead Acid, adjustable
Combiner BoxCustomised, 4 inputs
PV Cable400 meters single-core 4mm2
Module Max Power Voltage41.7V
Module Open Circuit Voltage49.5V
MountingPitched roof, flat roof, ground or vertical wall, customisable
Tools5 kinds of PV installation tools in one bag
Configuration

What Is in the Shipment

The packing list follows this table item by item.

temModelDescriptionQuantity
1Solar PanelMono 455W solar panel14 pieces
2Combiner BoxCustomized1 piece
3Hybrid Inverter5KW EU Standard or US Standard1 piece
4BatteryLithium or Lead Acid Battery (adjustable)5KWH adjustable
5Mounting SupportPitched / flat roof, ground can be customized1 set
6CableSingle-core 4mm2 PV cable400 meters
7ConnectorMC4 connector16 pairs
8Tools Bag5 kinds of PV installation tools1 bag
Materials

What It Is Made Of

  • Monocrystalline silicon solar panels with shingled or mono technology
  • LiFePO4 or lead acid battery cells, capacity adjustable at order stage
  • All-aluminum structure for solar mounting system, suitable for roof and ground
  • Single-core PV cable in 4mm2 cross section, black standard
Manufacturing and Preparation

Before It Ships

  • Review household load profile against the 5KW or 10KW inverter rating
  • Customise mounting structure for pitched roof, flat roof, ground or wall installation
  • Assemble and function test the system before packing
  • Pack inverter, panels, mounting bracket, battery and tools in wooden boxes for export
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery capacity adjusted between 5KWH and higher, depending on load needs
  • Battery type changed between LiFePO4 and lead acid at order stage
  • Inverter standard changed between EU and US at order stage
  • Mounting structure customised with CAD drawings for roof or ground condition
  • Combiner box designed for the 14-panel array with switches and SPD
Comparison

How It Compares With the Alternatives

Grid-tie solar systemCan store energy and supply power during outages, but requires a battery bank that a grid-tie system does not
Off-grid solar systemCan use the grid as backup when the battery is low, but needs grid access to feed surplus power
Buying components separatelyFixed configuration and less brand choice, but ensures voltage and communication compatibility
Use Guide

Getting It Working on Site

1

Size the daily load first, then confirm the 5KW or 10KW inverter covers the largest starting load

2

Mount the solar array so all 14 panels face the same direction and avoid shading

3

Connect the array to the combiner box before the inverter, with SPD earth bonded

4

Bring the battery bank to a matched state of charge before first commissioning

5

Keep the battery room ventilated and check bank voltage on a regular schedule

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Guides

Related Products

Others in Solar Hybrid Energy System 30KW/50KW/100KW

White industrial electrical cabinet with control panel and ventilation grilles, featuring a red label.
Solar Hybrid Energy System 30KW/50KW/100KW

50kW Solar PV Hybrid Energy System with ESS for Commerical Use

50kW/100KW Solar Hybrid Energy System Hybrid Grid Type for Commercial Use One-stop Energy System + Hybrid Inve

View product →
White industrial electrical cabinet with a digital display, emergency stop button, and ventilation grille.
Solar Hybrid Energy System 30KW/50KW/100KW

30kW Complete Solar Hybrid Energy System for Villa Power Supply

30kW Solar Hybrid Energy System Hybrid Grid Type for Residential/Commercial Use All-in-One Inverter + Hybrid I

View product →
White solar inverter with grey display panel and side cooling vents.
Solar Hybrid Energy System 30KW/50KW/100KW

30kW 50kW Complete Solar Hybrid Inverter Energy System for Home Use

Solar Hybrid Energy Storage System 30KW/50KW/100W Hybrid Type for Residential/Commercial Use To Connect Lithiu

View product →
Large industrial cabinet with control panel and red buttons, positioned next to a metal rack frame.
Solar Hybrid Energy System 30KW/50KW/100KW

30kW 50kW Solar Hybrid Energy System Inverter for Commerical Use

30kW Solar Hybrid Energy System Hybrid Grid Type for Commercial Use All-in-One Inverter + Hybrid Inverter Powe

View product →
FAQ

Questions About the 5kW 10kW Complete Solar Hybrid Energy System for Home Use

What is the battery capacity in this system?

The system includes a 5KWH adjustable LiFePO4 or lead acid battery pack, and the capacity can be changed at order stage.

Can I use lithium instead of lead acid battery?

Yes. LiFePO4 batteries are available and can replace the lead acid bank. Specify the battery type when placing the order.

Does the kit include the solar panels?

Yes. The standard configuration includes 14 pieces of 455W mono solar panels, and the panel type can be changed to shingled tech if needed.

What is included besides the main components?

The kit includes a customised combiner box, 400 meters of 4mm2 single-core PV cable, 16 pairs of MC4 connectors, a mounting structure, and a tool bag with five PV installation tools.

How is the system packed for shipping?

The inverter, solar panels, mounting bracket, battery and tools are packed in wooden boxes for export loading.

Can the mounting structure be customised for my roof?

Yes. The mounting structure can be customised with CAD drawings for pitched roof, flat roof, ground or vertical wall installation.

What inverter standard is available?

The hybrid inverter is available in EU standard or US standard, and the choice can be made at order stage.
