Solar Hybrid Energy System 30KW/50KW/100KW

30kW 50kW Complete Solar Hybrid Inverter Energy System for Home Use

Solar Hybrid Energy Storage System 30KW/50KW/100W Hybrid Type for Residential/Commercial Use To Connect Lithium Battery System (ESS) Power by Solar/Battery/Grid

Request A Quote Email Us

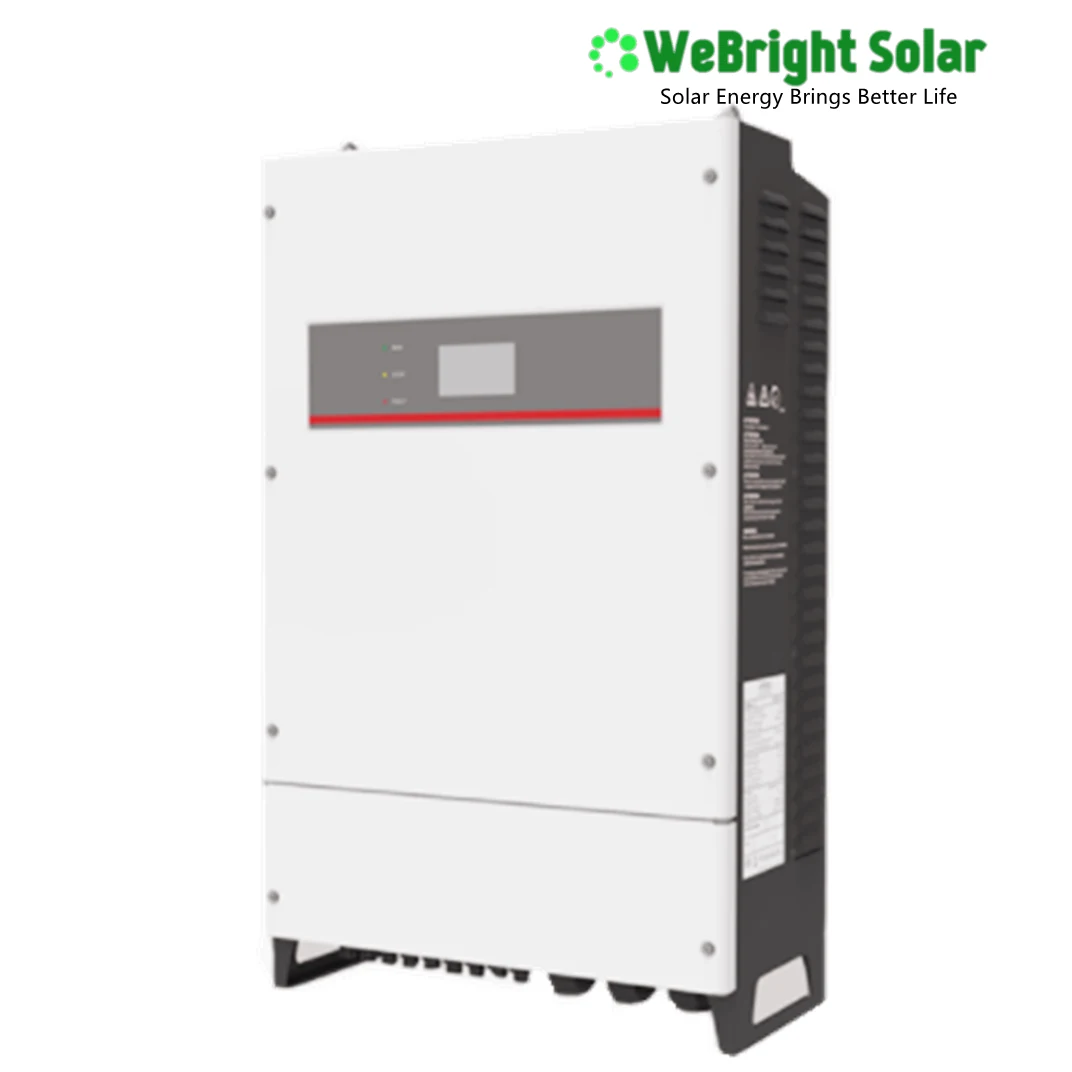

White solar inverter with grey display panel and side cooling vents.

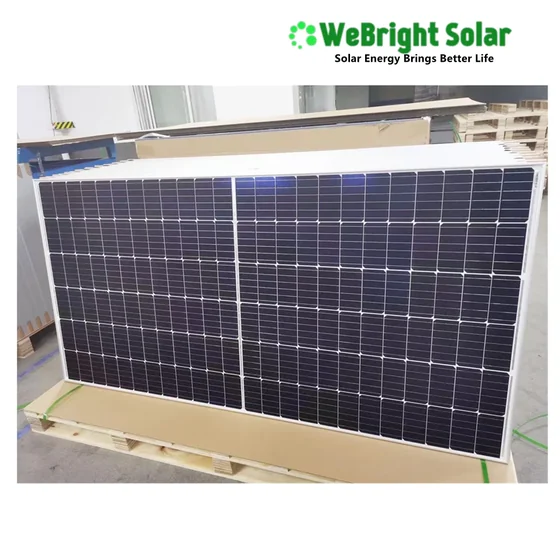

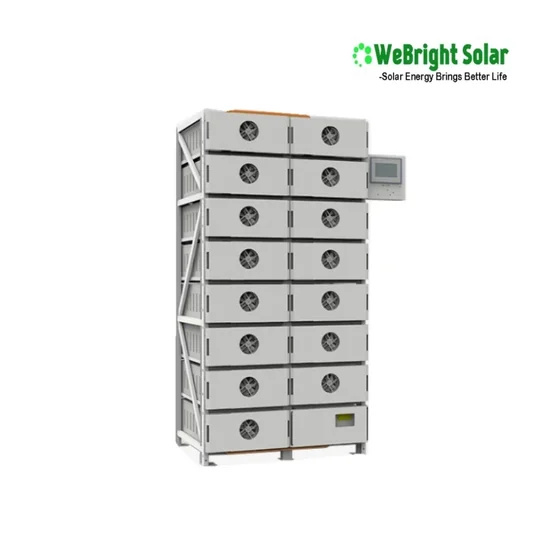

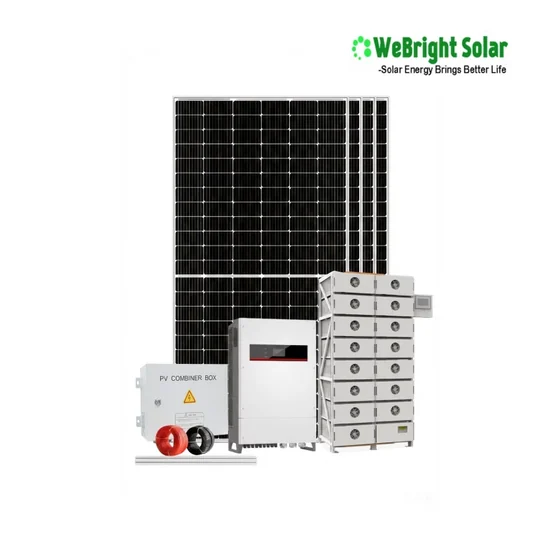

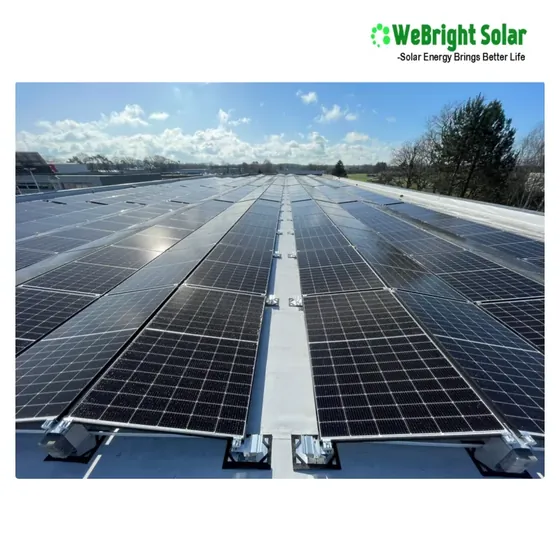

Solar panel, inverter, battery stack, combiner box, and cable reels arranged on a white background.3D render of a vertical industrial battery cabinet with cooling fans and a display screen on a white backgroundA large solar panel leaning against a wall on a wooden pallet.Rows of solar panels installed on a flat industrial rooftop under a blue sky.3D render of a solar panel mounting structure on concrete blocks.
Product Overview

What This Product Is

A 30KW or 50KW solar hybrid energy system for residential or small commercial use with a 3-phase 380V transformerless inverter, LiFePO4 or lead-acid battery bank, and a complete set of components pre-configured for integration. The system includes 60 pieces of 550W mono solar panels, a 3-phase 380V hybrid inverter, a customised combiner box, 400 meters of 6mm2 PV cable, 16 pairs of MC4 connectors, a mounting structure for pitched roof, flat roof or ground, and a tool bag with installation tools. All components are matched for voltage and power compatibility before shipment, so the installer commissions the system instead of testing compatibility on site.

Key Benefits

What You Get

  • Supports grid-tie, battery storage, and backup power in one system with seamless transfer
  • 3-phase 380V output suitable for villa power supply and larger household loads
  • Transformerless inverter design reduces weight and size while improving efficiency
  • Programmable operating modes for peak-shaving, backup, or full self-consumption
  • Battery bank capacity adjustable at 30kWh for LiFePO4 or lead-acid, depending on order
  • All components shipped together in one package with no need to source parts separately
Who It Is For

Buyers and Sites

  • Solar installers building complete hybrid systems for homes or small businesses
  • Importers and wholesalers supplying energy systems to markets with unstable or expensive grid power
  • Homeowners and villa managers who want to reduce electricity bills and gain backup power
  • EPC contractors delivering turnkey solar energy solutions with integrated storage
Application Scenarios

Where It Is Installed

  • Villas and large homes with high daily power consumption and unreliable grid supply
  • Small commercial buildings such as offices, workshops, or retail spaces with 3-phase power
  • Areas with high electricity tariffs where self-consumption and peak-shaving reduce bills
  • Locations with frequent outages where uninterrupted power is required during grid failure
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • 30KW or 50KW hybrid inverter with transformerless topology and 3-phase 380V output
  • Supports grid feed-in, battery charging, and load supply from solar, battery, or grid
  • Programmable operating modes including peak-shaving, backup, and self-consumption
  • Touchscreen LCD interface for easy parameter setting and system monitoring
  • Seamless transfer between grid, solar, and battery power with no interruption
  • Dry contact output for remote control of diesel generator or other backup sources
  • 60 pieces of 550W mono solar panels with max power voltage 41.7V and open circuit voltage 49.5V
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power30KW or 50KW
Output Type3-phase 380V
Inverter TypeTransformerless
Solar Modules60 pieces 550W mono
Battery Storage30kWh adjustable, LiFePO4 or lead acid
Combiner BoxCustomised 60 inputs 1 output with switches breaker and SPD
PV Cable400 meters single-core 6mm2
MountingPitched roof flat roof ground or vertical wall, all aluminium structure
Tools5 kinds of PV installation tools in one bag
Module VoltageMax Power Voltage 41.7V, Open Circuit Voltage 49.5V
Module CurrentMax Power Current 10.92A, Short Circuit Current 11.66A
Module Dimensions2094*1038*35mm
Module Weight23.5kg per piece
Configuration

What Is in the Shipment

The packing list follows this table item by item.

temModelDescriptionQuantity
1Solar PanelMono 550W solar panel60 pieces
2Combiner BoxCustomized1 piece
3Hybrid Inverter30KW EU Standard or US Standard1 piece
4BatteryLithium Battery (ESS)or Lead Acid Battery (adjustable)30KWH adjustable
5Mounting SupportPitched / flat roof, ground can be customized1 set
6CableSingle-core 6mm2 PV cable400 meters
7ConnectorMC4 connector16 pairs
8Tools Bag5 kinds of PV installation tools1 bag
Materials

What It Is Made Of

  • Monocrystalline silicon solar panels with shingled or standard mono technology
  • LiFePO4 or lead-acid battery cells, capacity adjustable at order stage
  • All aluminium structure for mounting rails and brackets, corrosion-resistant
Manufacturing and Preparation

Before It Ships

  • Review the load profile to confirm the 30KW or 50KW inverter matches the peak demand
  • Match the solar array and battery bank to the 3-phase 380V inverter voltage and power rating
  • Select mounting structure based on roof type (pitched, flat) or ground condition
  • Assemble the kit with all components including combiner box, cable, connectors, and tools
  • Function test the inverter, battery, and controller before packing
  • Pack the inverter, solar panels, mounting structure, and battery in wooden boxes for export
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery type changed between LiFePO4 and lead-acid, with capacity adjustable at 30kWh
  • Mounting structure customised from CAD drawings for pitched roof, flat roof, ground, or wall
  • Solar panel type changed between mono and shingled technology
  • Combiner box designed for 60 inputs with custom switch and SPD rating
  • System power set to 30KW or 50KW based on load and site conditions
Comparison

How It Compares With the Alternatives

Grid-tie solar systemCan store energy and supply backup power, but requires a battery bank that a grid-tie system does not
Off-grid solar systemCan use the grid as backup when the battery is low, but needs grid availability for full operation
Buying components separatelyPre-matched voltage and phase reduce on-site compatibility issues, but less flexibility in brand selection
Use Guide

Getting It Working on Site

1

Size the daily load first, then confirm the 30KW or 50KW inverter covers the largest starting load

2

Mount the solar array so all 60 panels share the same orientation and shading condition

3

Connect the array to the combiner box before the inverter, ensuring SPD earth is bonded

4

Bring the battery bank to a matched state of charge before first commissioning

5

Keep the battery room ventilated and check bank voltage on a regular schedule

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Guides

Project References

Related Products

Others in Solar Hybrid Energy System 30KW/50KW/100KW

White industrial electrical cabinet with control panel and ventilation grilles, featuring a red label.
Solar Hybrid Energy System 30KW/50KW/100KW

50kW Solar PV Hybrid Energy System with ESS for Commerical Use

50kW/100KW Solar Hybrid Energy System Hybrid Grid Type for Commercial Use One-stop Energy System + Hybrid Inve

View product →
White industrial electrical cabinet with a digital display, emergency stop button, and ventilation grille.
Solar Hybrid Energy System 30KW/50KW/100KW

30kW Complete Solar Hybrid Energy System for Villa Power Supply

30kW Solar Hybrid Energy System Hybrid Grid Type for Residential/Commercial Use All-in-One Inverter + Hybrid I

View product →

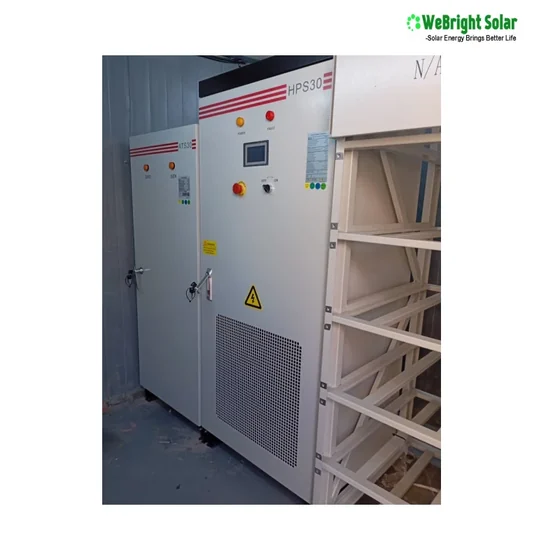

Large industrial cabinet with control panel and red buttons, positioned next to a metal rack frame.
Solar Hybrid Energy System 30KW/50KW/100KW

30kW 50kW Solar Hybrid Energy System Inverter for Commerical Use

30kW Solar Hybrid Energy System Hybrid Grid Type for Commercial Use All-in-One Inverter + Hybrid Inverter Powe

View product →
WeBright Solar inverter on white background
Solar Hybrid Energy System 30KW/50KW/100KW

5kW 10kW Complete Solar Hybrid Energy System for Home Use

5kWh Solar Energy Storage System Off Grid Type for Home Use All-in-One Inverter + Hybrid Inverter Power by Sol

View product →
FAQ

Questions About the 30kW 50kW Complete Solar Hybrid Inverter Energy System for Home Use

What is the battery capacity in this system?

The system includes a 30kWh battery bank, which is adjustable between LiFePO4 and lead-acid types at the time of order.

Does the kit include the solar panels?

Yes. The standard configuration includes 60 pieces of 550W mono solar panels, which are included in the shipment.

What is included besides the main components?

The kit includes a customised combiner box, 400 meters of 6mm2 PV cable, 16 pairs of MC4 connectors, a mounting structure for roof or ground, and a tool bag with 5 PV installation tools.

Can I change the battery type after ordering?

Yes. The battery type can be changed between LiFePO4 and lead-acid before final packing, but the controller and inverter settings must be adjusted accordingly.

How is the system packed for shipping?

The inverter, solar panels, mounting structure, and battery are packed in wooden boxes for export loading.

Can the mounting structure be customised for my roof?

Yes. The mounting structure can be customised from CAD drawings for pitched roof, flat roof, ground, or vertical wall installation.

Request a Quote for the 30kW 50kW Complete Solar Hybrid Inverter Energy System for Home Use

Send your load list or drawing on WhatsApp or by email and an engineer will reply with pricing, the configuration and the packing details.
