Solar Hybrid Energy System 30KW/50KW/100KW

30kW 50kW Solar Hybrid Energy System Inverter for Commerical Use

30kW Solar Hybrid Energy System Hybrid Grid Type for Commercial Use All-in-One Inverter + Hybrid Inverter Power by Solar/Battery/Grid

Request A Quote Email Us

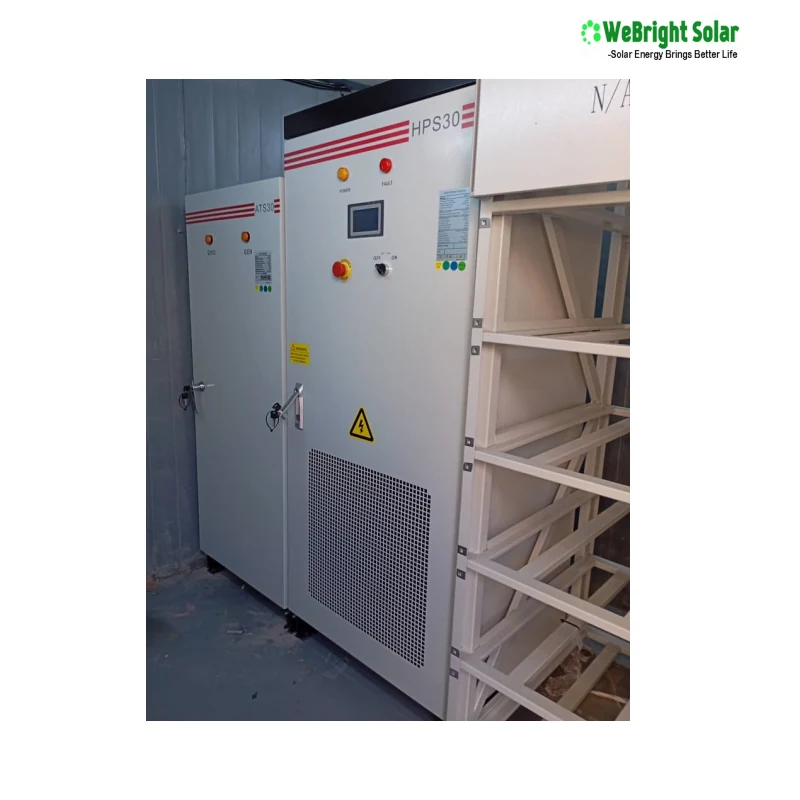

Large industrial cabinet with control panel and red buttons, positioned next to a metal rack frame.
3D render of a vertical industrial battery cabinet with cooling fans and a display screen on a white backgroundA large solar panel leaning against a wall on a wooden pallet.3D render of a solar panel mounting structure on concrete blocks.Collage of four photos showing solar panel arrays installed on industrial rooftops.White industrial electrical cabinet with control panel and ventilation grilles, featuring a red label.
Product Overview

What This Product Is

A 30KW or 50KW hybrid solar energy system for commercial buildings with a battery backup and grid connection. It includes 60 pieces of 715W mono solar panels, a 30KW/50KW EU or US standard hybrid inverter with transformer, a 51.2V 280Ah LiFePO4 battery bank of 12 pieces, a customised combiner box, mounting structure for pitched roof or ground, 800 meters of 6mm2 single-core PV cable, 30 pairs of MC4 connectors, and a tool bag with five PV installation tools. The system is pre-configured for voltage compatibility and shipped as a matched kit to avoid on-site integration issues.

Key Benefits

What You Get

  • All-in-one inverter supports battery load grid and solar connections
  • Programmable working modes for peak-shaving backup or custom operation
  • Scalable design by paralleling up to four units for higher capacity
  • Seamless transfer ensures uninterrupted power supply during grid failure
  • Dry contact output enables remote control of diesel generator
  • Battery bank can be adjusted between lead-acid and lithium types
Who It Is For

Buyers and Sites

  • Solar installers building complete commercial solar systems from one delivery
  • EPC contractors managing turnkey solar projects for businesses
  • Electrical wholesalers supplying hybrid systems to commercial clients
  • Business owners investing in energy independence and cost savings
  • Importers sourcing pre-configured solar kits for unstable-grid markets
Application Scenarios

Where It Is Installed

  • Commercial offices with frequent grid outages or high electricity bills
  • Hospitals and schools requiring stable power with backup during outages
  • Villas and large homes needing a micro-grid solution with solar and storage
  • Businesses aiming to reduce grid dependency and lower energy costs
  • Facilities in remote areas where grid connection is unreliable or absent
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • All-in-one hybrid inverter with battery load grid and solar connections
  • Programmable working modes: peak-shaving backup or custom operation
  • Scalable design by paralleling up to four units
  • Touchscreen LCD for easy parameter setting and maintenance
  • Seamless transfer ensures uninterrupted power supply
  • Dry contact output supports remote control of diesel generator
  • 51.2Vdc battery voltage compatible with 30KW/50KW inverter
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power30KW or 50KW
Battery Voltage51.2Vdc
Solar Modules60 pieces 715W mono
Hybrid Inverter30KW/50KW EU Standard or US Standard
Battery Bank12 pieces 51.2V 280Ah LiFePO4 (adjustable)
Combiner BoxCustomised 4 inputs 1 output with switches breaker and SPD
PV Cable800 meters single-core 6mm2
Module Max Power Voltage41.7V
Module Open Circuit Voltage49.5V
MountingPitched roof flat roof or ground, customisable
Tools1 bag with 5 kinds of PV installation tools
Configuration

What Is in the Shipment

The packing list follows this table item by item.

ItemModelDescriptionQuantity
1Solar PanelMono 715W solar panel60pieces
2Combiner BoxCustomized1 piece
3Hybrid Inverter30KW/50KW EU Standard or US Standard1 piece
4Battery51.2V 280Ah Lithium Battery(LiFePO4 Battery) (adjustable)12 pieces
5Mounting SupportPitched / flat roof, ground can be customized1 set
6CableSingle-core 6mm2 PV cable800 meters
7ConnectorMC4 connector30 pairs
8Tools Bag5 kinds of PV installation tools1 bag
Materials

What It Is Made Of

  • Monocrystalline silicon solar modules with shingled technology available
  • LiFePO4 lithium battery cells with 51.2Vdc nominal voltage
  • Galvanised steel or aluminium mounting rails for roof or ground
  • Single-core PV cable in 6mm2 cross section, black standard
Manufacturing and Preparation

Before It Ships

  • Review load profile against the 30KW or 50KW inverter rating
  • Match solar array and battery bank to the 51.2Vdc bus voltage
  • Customise mounting structure for pitched roof flat roof or ground
  • Assemble the kit and function test all components before packing
  • Pack inverter battery panels and mounting bracket in wooden boxes for export
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery type changed between LiFePO4 and lead-acid
  • Battery capacity adjusted based on energy storage needs
  • Inverter standard changed between EU and US
  • Mounting structure customised from CAD drawings for roof or ground
  • System capacity scaled by paralleling up to four units
Comparison

How It Compares With the Alternatives

Grid-tie solar systemSupports battery backup and off-grid operation, but requires a battery bank that a grid-tie system does not
Off-grid solar systemCan use the grid as a backup when the battery is low, but requires a hybrid inverter instead of an off-grid inverter
Buying components separatelyFixed voltage compatibility and pre-tested configuration, in exchange for less flexibility in component choice
Use Guide

Getting It Working on Site

1

Size the daily load first, then confirm the 30KW or 50KW inverter covers the largest starting load

2

Mount the array so all 60 modules share the same orientation and shading condition

3

Land the array on the combiner box before the inverter, keeping the SPD earth bonded

4

Bring the battery bank to a matched state of charge before first commissioning

5

Keep the battery room ventilated and check bank voltage on a regular schedule

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Guides

Project References

Related Products

Others in Solar Hybrid Energy System 30KW/50KW/100KW

White industrial electrical cabinet with control panel and ventilation grilles, featuring a red label.
Solar Hybrid Energy System 30KW/50KW/100KW

50kW Solar PV Hybrid Energy System with ESS for Commerical Use

50kW/100KW Solar Hybrid Energy System Hybrid Grid Type for Commercial Use One-stop Energy System + Hybrid Inve

View product →
White industrial electrical cabinet with a digital display, emergency stop button, and ventilation grille.
Solar Hybrid Energy System 30KW/50KW/100KW

30kW Complete Solar Hybrid Energy System for Villa Power Supply

30kW Solar Hybrid Energy System Hybrid Grid Type for Residential/Commercial Use All-in-One Inverter + Hybrid I

View product →
White solar inverter with grey display panel and side cooling vents.
Solar Hybrid Energy System 30KW/50KW/100KW

30kW 50kW Complete Solar Hybrid Inverter Energy System for Home Use

Solar Hybrid Energy Storage System 30KW/50KW/100W Hybrid Type for Residential/Commercial Use To Connect Lithiu

View product →
WeBright Solar inverter on white background
Solar Hybrid Energy System 30KW/50KW/100KW

5kW 10kW Complete Solar Hybrid Energy System for Home Use

5kWh Solar Energy Storage System Off Grid Type for Home Use All-in-One Inverter + Hybrid Inverter Power by Sol

View product →
FAQ

Questions About the 30kW 50kW Solar Hybrid Energy System Inverter for Commerical Use

What is the battery type in the standard configuration?

The standard battery is 51.2V 280Ah LiFePO4. Lead-acid or GEL can be used instead if specified.

Can I scale the system beyond 30KW or 50KW?

Yes. The system is scalable by paralleling up to four units.

Does the kit include the solar panels?

Yes. The standard kit includes 60 pieces of 715W mono solar panels.

What is included in the tool bag?

The tool bag contains five PV installation tools: MC4 spanner crimping pliers wire stripper and two types of wrenches.

Can the inverter be set for EU or US standard?

Yes. The inverter is available in EU or US standard at order stage.

How is the system packed for shipping?

Inverter battery panels and mounting bracket are packed in wooden boxes for export loading.

Can the mounting structure be customised for my roof?

Yes. Mounting is customised from CAD drawings for pitched roof flat roof or ground installation.

Request a Quote for the 30kW 50kW Solar Hybrid Energy System Inverter for Commerical Use

Send your load list or drawing on WhatsApp or by email and an engineer will reply with pricing, the configuration and the packing details.
