Solar Hybrid Energy System 30KW/50KW/100KW

30kW Complete Solar Hybrid Energy System for Villa Power Supply

30kW Solar Hybrid Energy System Hybrid Grid Type for Residential/Commercial Use All-in-One Inverter + Hybrid Inverter Power by Solar/Battery/Grid

Request A Quote Email Us

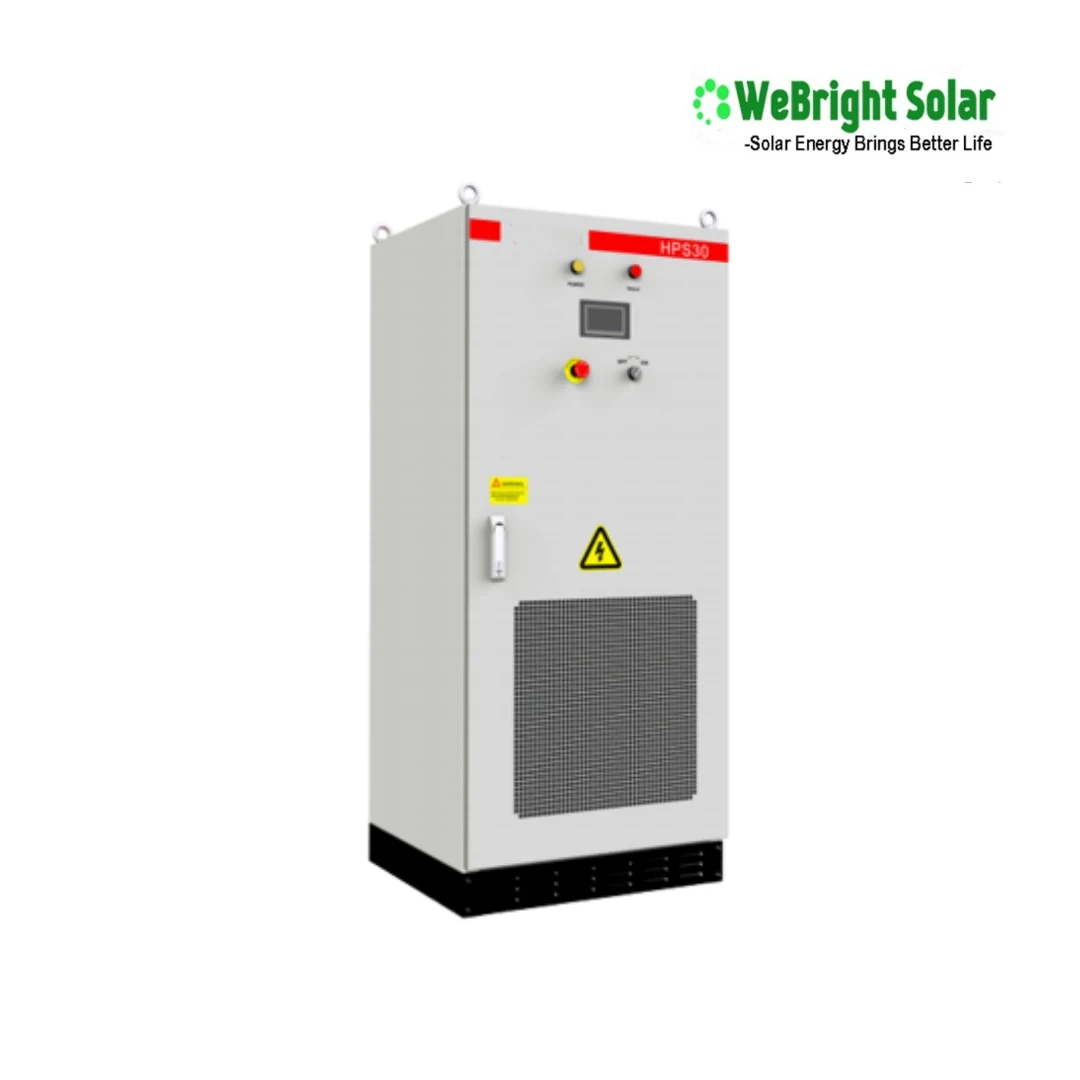

White industrial electrical cabinet with a digital display, emergency stop button, and ventilation grille.
Large industrial cabinet with control panel and red buttons, positioned next to a metal rack frame.3D render of a vertical industrial battery cabinet with cooling fans and a display screen on a white backgroundA large solar panel leaning against a wall on a wooden pallet.3D render of a solar panel mounting structure on concrete blocks.Collage of four photos showing solar panel arrays installed on industrial rooftops.
Product Overview

What This Product Is

A 30KW hybrid solar energy system for villa power supply with a complete matched configuration: 60 pieces of 715W mono solar panels, a 30KW hybrid inverter with transformer, 12 pieces of 51.2V 280Ah LiFePO4 battery, a customised combiner box, mounting structure, 800 meters of 6mm2 PV cable, 30 pairs of MC4 connectors, and a tool bag. The system is designed to operate in grid-tie, off-grid or hybrid mode, with seamless transfer between sources and programmable working modes. All components are pre-selected to work together at the same voltage and power level before shipment.

Key Benefits

What You Get

  • Runs a villa or small commercial building with stable power using solar, battery and grid as needed
  • Hybrid inverter supports grid feed-in, battery charging and off-grid backup in one unit
  • Programmable modes allow peak-shaving, backup or full solar autonomy based on user preference
  • Seamless transfer between grid and battery ensures no power interruption during outages
  • Lithium battery bank provides long life and high efficiency with minimal maintenance
  • Customised mounting structure for pitched roof, flat roof or ground installation
Who It Is For

Buyers and Sites

  • Solar installers building complete hybrid systems for villas and small commercial sites
  • EPC contractors delivering turnkey solar energy systems with battery backup
  • Importers and wholesalers supplying solar kits to markets with unstable grid supply
  • Homeowners and property managers seeking a reliable, low-maintenance power solution
  • Commercial operators looking to reduce electricity costs through solar self-consumption
Application Scenarios

Where It Is Installed

  • Villas in areas with frequent grid outages or unreliable utility supply
  • Commercial buildings like offices, schools or clinics needing stable power without diesel
  • Homes where electricity bills are high and solar self-consumption is prioritised
  • Properties with high energy demand that want to reduce grid dependency and utility costs
  • Projects where a micro-grid solution is needed but full off-grid is not required
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • All-in-one hybrid inverter with battery, load, grid and solar connections supported
  • Programmable operating modes: peak-shaving, backup, solar-first, grid-tie or off-grid
  • Scalable design: up to quadruple capacity by paralleling four 30KW units
  • Touchscreen LCD interface for easy parameter setting and system monitoring
  • Seamless transfer between grid and battery ensures uninterrupted power supply
  • Dry contact output available for remote control of diesel generator or other equipment
  • PV array connected through a customised 4-input combiner box with switches and SPD
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power30KW
Battery Voltage51.2Vdc
Solar Modules60 pieces 715W mono
Hybrid Inverter30KW/50KW EU Standard or US Standard
Battery Bank12 pieces 51.2V 280Ah LiFePO4, adjustable
Combiner BoxCustomised, 4 inputs 1 output with switches and SPD
PV Cable800 meters single-core 6mm2
MountingPitched roof, flat roof, or ground, customisable
Tools5 kinds of PV installation tools in one bag
Module Peak Power715W
Module Max Power Voltage41.7V
Module Open Circuit Voltage49.5V
Module Weight23.5kg per piece
Inverter OutputSingle phase or three phase, EU or US standard
Configuration

What Is in the Shipment

The packing list follows this table item by item.

ItemModelDescriptionQuantity
1Solar PanelMono 715W solar panel60pieces
2Combiner BoxCustomized1 piece
3Hybrid Inverter30KW/50KW EU Standard or US Standard1 piece
4Battery51.2V 280Ah Lithium Battery(LiFePO4 Battery) (adjustable)12 pieces
5Mounting SupportPitched / flat roof, ground can be customized1 set
6CableSingle-core 6mm2 PV cable800 meters
7ConnectorMC4 connector30 pairs
8Tools Bag5 kinds of PV installation tools1 bag
Materials

What It Is Made Of

  • Monocrystalline silicon solar panels with shingled technology available
  • LiFePO4 lithium iron phosphate battery cells with long cycle life
  • Hot-dip galvanised steel or anodised aluminium mounting rails
  • Single-core PV cable in 6mm2 cross section, black standard
Manufacturing and Preparation

Before It Ships

  • Load profile reviewed against the 30KW inverter capacity and battery bank size
  • Solar array and battery bank matched to the 51.2Vdc system voltage before configuration
  • Mounting structure designed for pitched roof, flat roof or ground using CAD drawings
  • System assembled and function tested with all components connected and powered
  • Inverter, battery, panels and mounting structure packed in wooden boxes for export
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery capacity adjusted based on energy storage needs
  • Inverter output set for EU or US standard single-phase or three-phase
  • Mounting structure customised from CAD drawings for roof or ground condition
  • Solar panel type changed between mono and shingled technology
  • System expanded by paralleling up to four 30KW inverters for higher capacity
Comparison

How It Compares With the Alternatives

Grid-tie solar systemCan operate without grid and store energy, but requires a battery bank that a grid-tie system does not
Off-grid solar systemCan use the grid as backup when battery is low, but requires more complex inverter control than a pure off-grid setup
Buying components separatelyPre-matched voltage and power levels reduce on-site integration risk, but less flexibility in brand selection
Use Guide

Getting It Working on Site

1

Review daily load profile to confirm the 30KW inverter can handle the largest starting load

2

Install solar array so all 60 panels face the same direction and avoid shading

3

Connect array to combiner box before controller, ensuring SPD earth is bonded

4

Charge battery bank to 100% before first system commissioning

5

Set inverter mode (peak-shaving, backup, solar-first) based on electricity cost and grid reliability

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Guides

Project References

Related Products

Others in Solar Hybrid Energy System 30KW/50KW/100KW

White industrial electrical cabinet with control panel and ventilation grilles, featuring a red label.
Solar Hybrid Energy System 30KW/50KW/100KW

50kW Solar PV Hybrid Energy System with ESS for Commerical Use

50kW/100KW Solar Hybrid Energy System Hybrid Grid Type for Commercial Use One-stop Energy System + Hybrid Inve

View product →
White solar inverter with grey display panel and side cooling vents.
Solar Hybrid Energy System 30KW/50KW/100KW

30kW 50kW Complete Solar Hybrid Inverter Energy System for Home Use

Solar Hybrid Energy Storage System 30KW/50KW/100W Hybrid Type for Residential/Commercial Use To Connect Lithiu

View product →
Large industrial cabinet with control panel and red buttons, positioned next to a metal rack frame.
Solar Hybrid Energy System 30KW/50KW/100KW

30kW 50kW Solar Hybrid Energy System Inverter for Commerical Use

30kW Solar Hybrid Energy System Hybrid Grid Type for Commercial Use All-in-One Inverter + Hybrid Inverter Powe

View product →
WeBright Solar inverter on white background
Solar Hybrid Energy System 30KW/50KW/100KW

5kW 10kW Complete Solar Hybrid Energy System for Home Use

5kWh Solar Energy Storage System Off Grid Type for Home Use All-in-One Inverter + Hybrid Inverter Power by Sol

View product →
FAQ

Questions About the 30kW Complete Solar Hybrid Energy System for Villa Power Supply

What is the battery type in the 30KW hybrid system?

The standard battery is 51.2V 280Ah LiFePO4. Lead-acid is available on request, but lithium is recommended for longer life and higher efficiency.

Can the system work without grid connection?

Yes. The system can run in off-grid mode when the grid is unavailable, using solar and battery to power the load.

Is the inverter compatible with EU and US standards?

Yes. The inverter is available in EU standard or US standard, with single-phase or three-phase output options.

What is included in the tool bag?

The tool bag contains five PV installation tools: MC4 spanner, crimping pliers, wire stripper, cable cutter, and insulation tester.

How is the system packed for shipping?

The inverter, solar panels, mounting bracket, and battery are packed in wooden boxes for export loading.

Are the solar panels mono or shingled?

The standard panel is mono 715W. Shingled technology is available as an option upon request.
