YT1000L Valve Positioner — Rotork YTC New Module, Custom Colour

Rotork-pattern YT-1000L, new module, custom colour

The new-module Rotork-pattern linear positioner in a customer colour. It is the build ordered when the positioner has to survive tight packing and high stem friction — the case for a positioner when the medium is hot, cold, toxic or explosive and the gland is pressed hard.

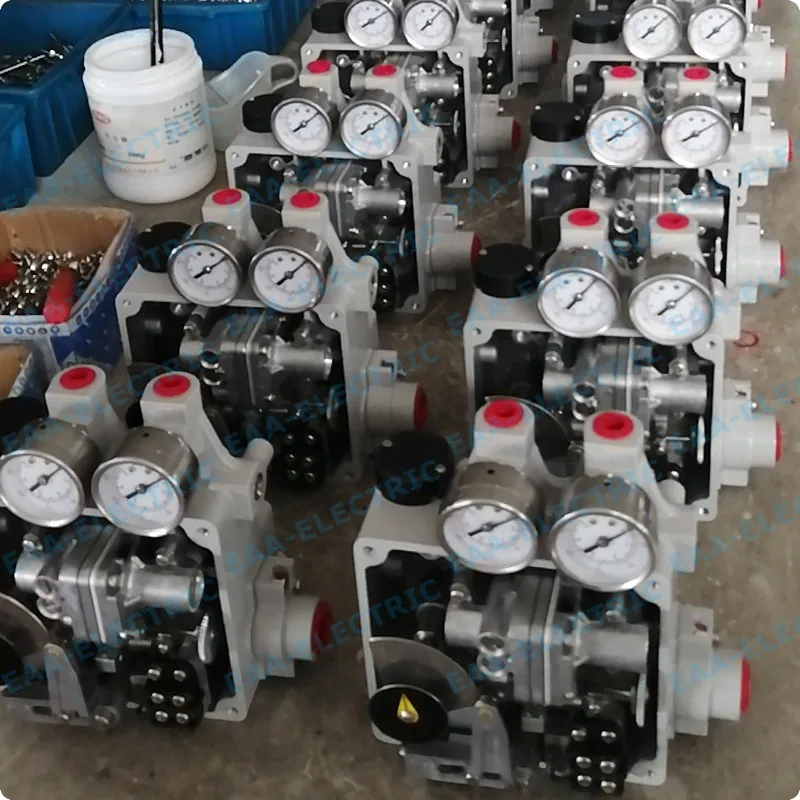

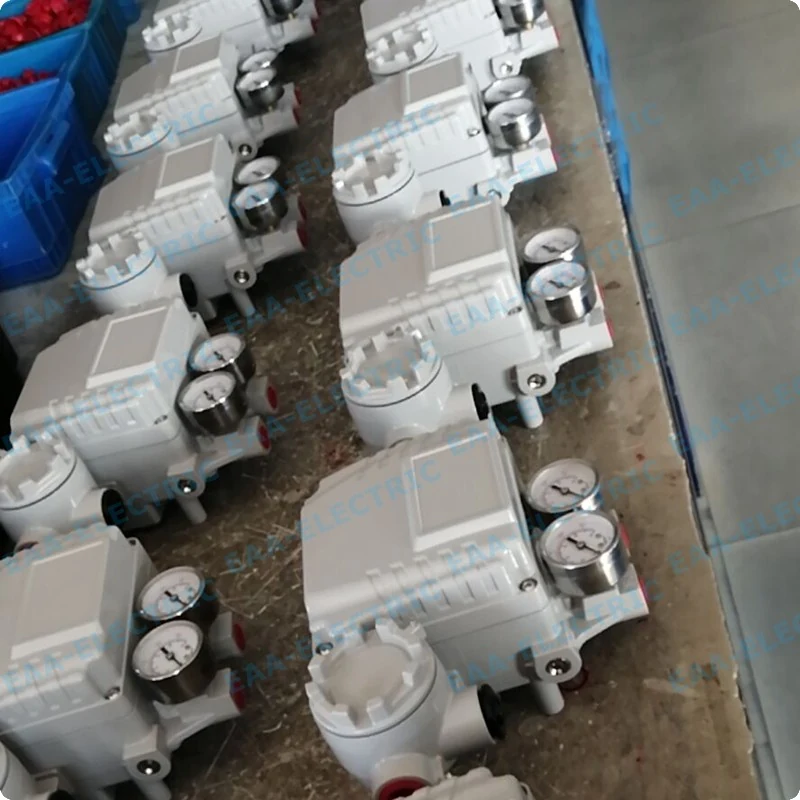

New-generation module, customer-specified housing colour
Overcomes the time lag caused by tightly pressed packing
Holds position against media that are viscous or carry solid suspended matter
Stem displacement compared against the controller setting signal continuously
Aluminium diecast body, IP66

Request a quotation WhatsApp

Typical duty: Valves on high-temperature, low-temperature, toxic or flammable media where the packing is deliberately tight and stem friction is high.

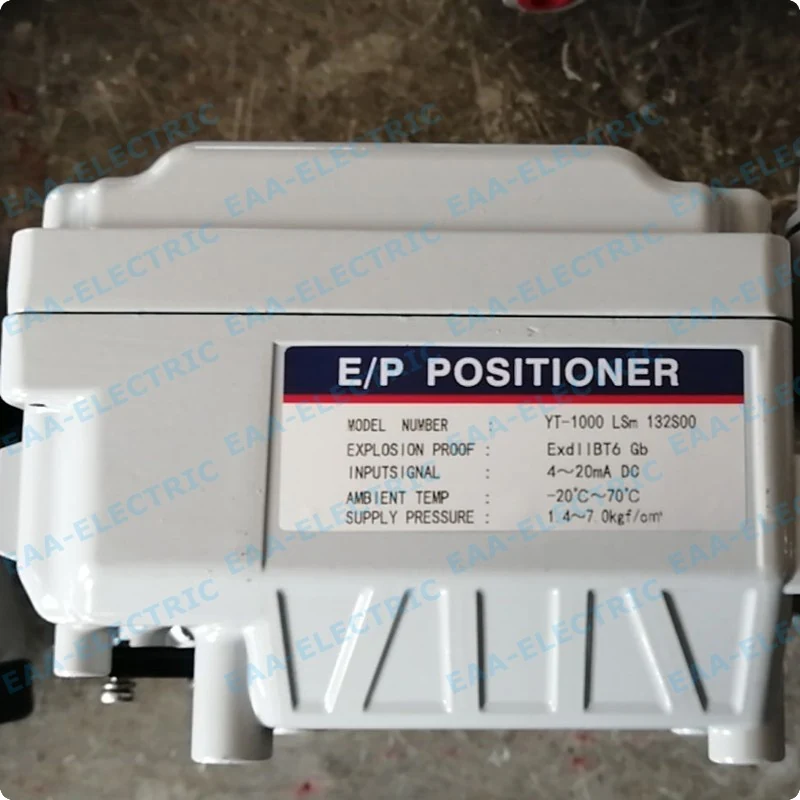

Specification

YT-1000L specification (EAA Electric data sheet)
Input signal	4–20 mA DC
Impedance	250 ± 15 Ω
Supply pressure	1.4–7 kgf/cm² (20–100 psi)
Stroke	10–150 mm
Air connection	PT (NPT) 1/4
Gauge connection	PT (NPT) 1/8
Conduit	PF 1/2 (G1/2)
Explosion proof	Ex dm IIB T5 / Ex dm IIC T5 / Ex ia IIB T6
Protection	IP66
Ambient temperature	-20 to +70 °C operating; -20 to +60 °C explosion-proof
Linearity	±1 % F.S. single acting / ±2 % F.S. double acting
Hysteresis	±1 % F.S.
Sensitivity	±0.2 % F.S. single acting / ±0.5 % F.S. double acting
Repeatability	±0.5 % F.S.
Air consumption	3 LPM (supply 1.4 kgf/cm², 20 psi)
Flow capacity	80 LPM (supply 1.4 kgf/cm², 20 psi)
Material	Aluminium diecasting
Weight	2.7 kg (6.1 lb)
Acting type	Single acting (S) or double acting (D)
Lever type	10–40 / 30–70 / 60–100 / 100–150 mm
Orifice type	Ø1, Ø2 or none
Connection type	PT or NPT

Technical background

Type YT-1000L Electro-pneumatic valve positioner is used for operation of pneumatic linear valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20 mA or split Ranges. YT1000L Electro Pneumatic Valve Positioner- The YT1000 electro pneumatic positioner is the main accessory of the control valve.

Rotary electro pneumatic positioner takes the stem displacement signal as the input feedback measurement signal and the controller output signal as the setting signal for comparison.

When the medium to be adjusted is high temperature, high pressure, low temperature, toxic, flammable, and explosive, in order to prevent external leakage, the packing is often pressed tightly, so the friction between the valve stem and the packing is relatively large. Use the valve positioner to overcome the time lag.

When the medium to be adjusted is viscous fluid or contains solid suspended matter, electropneumatic positioner can overcome the resistance of the medium to the movement of the valve stem.

Questions buyers ask

Why does tight packing need a positioner?

Pressing the packing to stop external leakage raises the friction between stem and packing; the positioner overcomes the resulting time lag.

Can the housing be produced in our colour?

Yes — colour runs are standard OEM work here; examples are in the Customer OEM Case gallery.
