Roller

Gravity and accumulation rollers for conveyor lines with consistent tube diameter shaft size and drive type, available in plastic metal and steel with end caps and sprockets to match existing system dimensions.

Request A Quote See All Products
Roller from the Tianhe catalogue
Roller from the Tianhe catalogue

All 29 Models

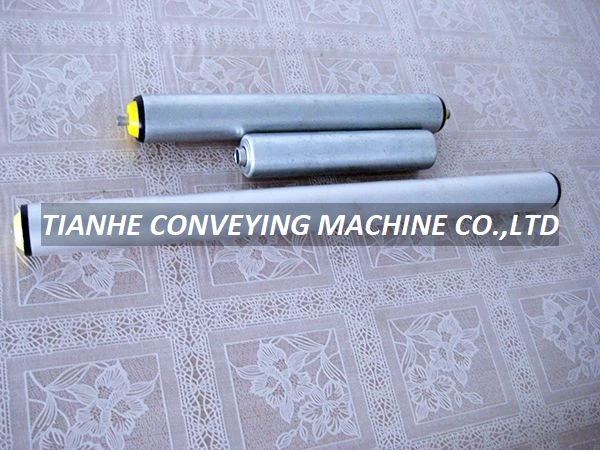

Plastic PVC gravity roller with plastic end cap, showing tube, shaft, and end cap assemblyPlastic PVC Gravity Roller With Plastic End CapRollerPlastic gravity roller THJR-6030B with 60 mm diameter, 3.0 mm tube thickness, and 12 mm shaftPlastic Gravity RollerRollerAluminum gravity roller with plastic end cap, precision bearing, and adjustable end cap lengthAluminum Gravity RollerRollerDouble sprocket adjustable accumulation roller 03K2R with dual sprockets and galvanized surfaceDouble Sprocket Adjustable Accumulation RollerRollerSingle sprocket adjustable accumulation roller 03K1R5015-12 with adjustable sprocket and galvanized surface treatmentSingle Sprocket Adjustable Accumulation RollerRollerDouble sprocket plastic taper sleeve roller model 06L2R5615/D2-12 with steel tube and 08B14T sprocketDouble Sprocket Plastic Taper Sleeve RollerRollerSingle sprocket plastic taper sleeve roller 06L1R5615/D2-12 mounted on a steel tube with visible sprocket and taper sleeveSingle Sprocket Plastic Taper Sleeve RollerRollerDouble sprocket taper roller 05L2R5020/D2-12 with steel tube and dual 08B14T sprockets, showing 12 mm small end diameter and tapered bodyDouble Sprocket Taper RollerRollerSingle Sprocket Taper Roller 05L1R5020/D2-12 with steel tube and 08B14T sprocket teethSingle Sprocket Taper RollerRollerSteel double sprocket roller model 03L2R3815-12 with galvanized surface treatmentSteel Double Sprocket RollerRollerSteel single sprocket roller with chain drive sprocket mounted on a steel tube, showing shaft and surface coatingSteel Single Sprocket RollerRollerPlastic double sprocket roller 02L2R5015-12 with double sprockets, steel tube, galvanized surface, and precision bearing in nylon and PP housingPlastic Double Sprocket RollerRollerPlastic single sprocket roller 02L1R with 08B14T sprocket, ø50 mm diameter, ø12 mm shaft, and galvanized surface treatmentPlastic Single Sprocket RollerRollerDouble O Groove Plastic Taper Sleeve Roller model 06C2R5615/D2-12 mounted on a steel tube with galvanized surface treatmentDouble O Groove Plastic Taper Sleeve RollerRollerDouble O groove gravity roller 05C2R5020/D2-12 with plastic end cap, 12 mm shaft, and visible double groove designDouble O Groove Taper RollerRollerSingle O Groove Taper Roller 05C1R5020/D2-12 mounted on a shaft with galvanized surface treatmentSingle O Groove Taper RollerRollerDouble O groove gravity roller with steel end cap, model 03C2R5015-12, showing steel tube and steel end cap with precision bearing housingDouble O Groove Roller with Steel End CapRollerSingle O groove gravity roller with steel end cap, ø50 tube, ø12 shaft, precision bearing, galvanized surfaceSingle O Groove Roller With Steel End CapRollerDouble O groove gravity roller with plastic end cap, showing precision bearing in nylon and PP housing, steel tube with galvanized coating, and plastic end cap sealed on both endsDouble O Groove Roller with Plastic End CapRollerSingle O groove gravity roller with plastic end cap, model 02C1R5015-12, showing plastic end cap and steel tube with galvanized finishSingle O Groove Roller With Plastic End CapRollerPlastic taper sleeve roller 05WR with precision bearing, nylon and PP casing, mounted on a steel tube with 3.6 degree taperPlastic Taper Sleeve RollerRollerTapered gravity roller model 04WR with steel tube, carbon steel bearing house, and galvanized surface treatmentTapered Gravity RollerRollerMachined gravity roller 03WR with carbon steel bearing house and galvanized tubeMachined Gravity RollerRollerGravity roller with plastic end cap, model 02WR, showing shaft end tapping and plastic end cap on both sidesGravity Roller With Plastic End CapRollerPU coated gravity roller model 01GR with polyurethane shaft and carbon steel bearing housePU Coated Gravity RollerRollerNitrile-butadiene rubber coated gravity roller 01GR with carbon steel bearing house and precision bearingNitrile-Butadiene Rubber Coated Gravity RollerRollerNatural rubber coated gravity roller 01GR with precision bearing in carbon steel housingNatural Rubber Coated Gravity RollerRollerGravity roller with steel hexagon shaft, precision bearing, carbon steel bearing house, model 01GRGravity Roller With Hexagon ShaftRollerGravity roller with steel end cap model 01WR mounted on a conveyor frame, showing shaft end features and steel end capsGravity Roller with steel end capRoller

Problems It Solves

  • Need to replace or extend a conveyor line with rollers that match the existing tube diameter and shaft size
  • Requiring accumulation rollers that engage sprockets at precise pitch and alignment
  • Using plastic rollers in light load applications where weight and cost are critical
  • Requiring steel rollers with end caps for heavy load or high durability environments
  • Integrating rollers into a system where sprocket type and mounting must align with existing drive components

Who It Is For

  • Conveyor system integrators building or upgrading gravity and accumulation conveyor lines
  • Material handling equipment builders sourcing rollers with consistent dimensions and drive compatibility
  • Warehouse and logistics automation contractors installing conveyors with specific tube and shaft sizes
  • Assembly line builders needing rollers that match existing end cap and sprocket configurations
  • Industrial distributors stocking rollers by tube diameter shaft size and sprocket type

Why This Range

  • Rollers available in plastic PVC aluminum steel with matching tube diameter shaft size and end cap options
  • Sprocket types include single and double sprocket with 0 groove and O groove configurations
  • Accumulation rollers with precise sprocket pitch and mounting dimensions for consistent drive engagement
  • End caps available in plastic steel or as taper sleeves to match existing roller assemblies
  • Model numbers and specifications published for each product to verify compatibility with existing systems

Application Scenarios

  • Gravity roller conveyor sections in a warehouse where light loads move by hand
  • Accumulation zones in a packaging line using double sprocket rollers to hold products at set intervals
  • Assembly line transfer points using tapered rollers to guide parts between stations
  • Material handling systems where plastic rollers are used to avoid marking sensitive surfaces
  • Heavy-duty applications requiring steel rollers with steel end caps for durability and load support

Where To Go Next

Industries

  • Warehouse and production lines

Selection Guides

  • See the solutions pages

Knowledge Center

Roller Questions

How do I find the right roller for my existing tube diameter and shaft size?

Match the model number and specifications from your current roller to the published diameter tube thickness shaft size and length in the product data

Can I use plastic end caps on steel rollers?

Yes, plastic end caps are available on steel rollers for applications where marking or noise reduction is required

What is the difference between O groove and non-O groove rollers?

O groove rollers have a groove on the outer surface to hold the sprocket in place, while non-O groove rollers rely on the sprocket's fit and alignment

Are sprockets included with the accumulation rollers?

Yes, sprockets are included with double and single sprocket accumulation rollers, with specified pitch and type

Can I mix plastic and steel rollers on the same conveyor?

Yes, as long as the tube diameter shaft size and sprocket type are consistent across all rollers in the system

What materials are available for the roller tube?

Roller tubes are available in PVC plastic aluminum steel and stainless steel, with surface treatments including galvanized and chrome

Do you supply tapered rollers with hexagon shafts?

Yes, tapered gravity rollers and some accumulation rollers are available with hexagon shafts for drive compatibility

Quote Roller Against Your Model List

Send the models and quantities you need, or the dimensions of the line you are building, and a quotation comes back on those figures.
