Heat Pump 7 Day Programmable Thermostat
STN2320 is a heat pump room thermostat built for installers who need one part number to cover scheduled and non-scheduled jobs. The same unit runs as 7 day, 5/1/1 or fully non-programmable, drives 2 heat and 1 cool stages, and reads room temperature to +/-1 C at 20 C. Separate B and O terminals let it sit on reversing valve systems that energise in either heating or cooling without a wiring adapter.
Key Benefits
- One SKU covers 7 day, 5/1/1 and non-programmable jobs so distributors hold less stock
- Separate B and O terminals suit both B-energised and O-energised reversing valves
- Electric or gas configuration is set on site instead of ordering a different model
- 5 minute compressor delay protection is selectable, protecting the outdoor unit after short cycles
- Runs on 2 x AAA alkaline batteries or 24VAC common wire, so no C wire is not a blocker
Problems It Solves
- Stocking three different heat pump stats for programmable and non-programmable jobs
- Reversing valve wiring mistakes when B and O share a single terminal
- Short cycling damage to compressors after a power interruption
- Call backs caused by schedules that end users find hard to program
Who It Is For
- HVAC wholesalers who need a heat pump stat that installers can configure on the van
- Heat pump OEMs bundling a controller with the outdoor unit
- Property maintenance contractors standardising on one heat pump control
- Importers building a private label heat pump accessory range
Technical Features
- 2 heat / 1 cool heat pump control with second stage swing adjustment
- 7 day, 5/1/1 or non-programmable operation selected in the setup menu
- Temperature range 32 F to 99 F (1 C to 40 C), control range 44 F to 90 F (7 C to 32 C)
- Measurement accuracy +/-1 C at 20 C with room temperature calibration offset
- Separate heating and cooling swing (cycle rate) adjustment including second stage
- Filter change indicator that can be switched on or off
- 5 minute compressor delay protection, selectable
- Large LCD with selectable backlight colour and wake, leave, return, sleep icons
Specifications
| Programmability | 7 Day,5/1/1 or Non-Programmable |
| Power Source | DC 2 x AAA 1.5V Alkaline batteries 24VAC (18~30VAC), 50/60 Hz for hardwire (common wire) |
| Temperature Range | 32˚F-99˚F (1°C-40°C) |
| Control Temp.Range | 44˚F-90˚F (7°C-32°C) |
| Temp.Meas.Accuracy | ±1°C (at 20°C) |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Single family homes on air source heat pumps with auxiliary electric backup
- Apartment retrofits where the existing wiring has no common conductor
- Light commercial offices running packaged heat pump units
- Replacement of failed mechanical heat pump stats in rental housing
Quality Control
- Every unit is powered up and run through a heat and cool call before packing
- Temperature reading is verified against a reference probe at 20 C
- Relay contacts are cycled under load as part of the line test
Customisation Options
- Backlight colour selected from the standard white, blue and green options
- Customer logo and model marking on the housing and the retail carton
- Printed instruction sheet in the buyer's language
- Default schedule preset to the buyer's climate before shipment
How It Compares
Installing And Commissioning
Step 1
Isolate the 24V supply before removing the old thermostat and label each conductor
Step 2

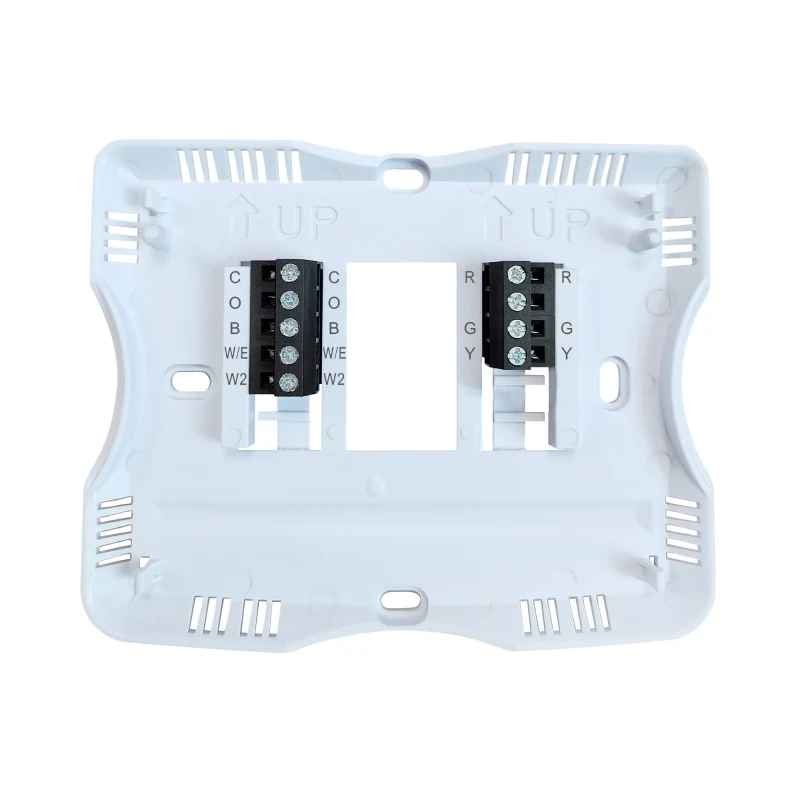

Mount the sub-base to the wall or junction box and land the wires on the colour coded terminals
Step 3
Set electric or gas configuration and the B or O reversing valve option in the installer menu
Step 4

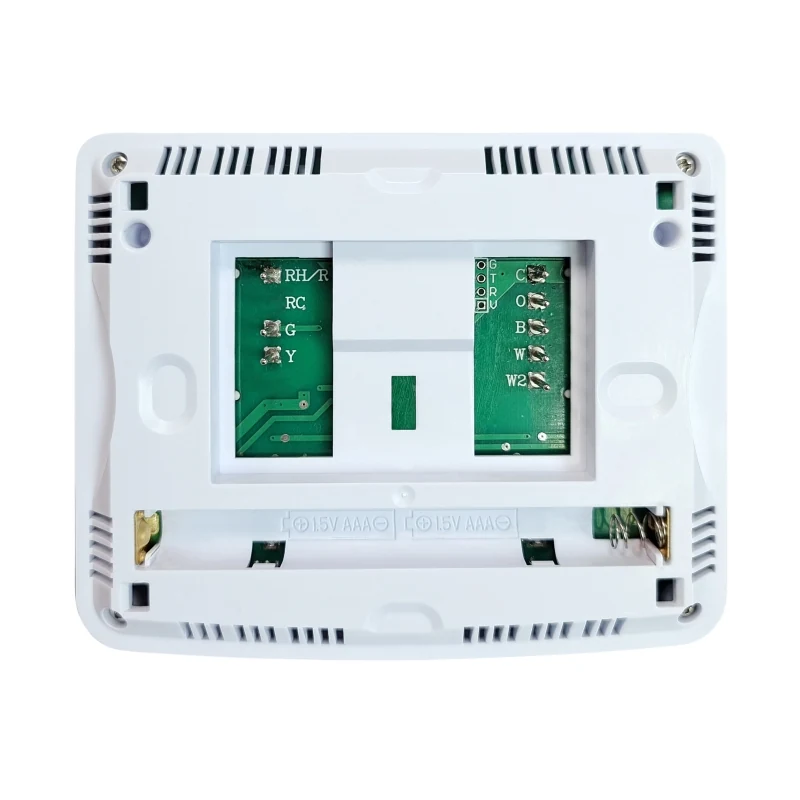

Fit 2 x AAA alkaline batteries if no common wire is available
Step 5
Confirm the 5 minute compressor delay and filter indicator settings before handover
Heat Pump 7 Day Programmable Thermostat: Buyer Questions
Does the STN2320 work without a C wire?
Yes. It runs on 2 x AAA 1.5V alkaline batteries, or on 24VAC (18 to 30VAC, 50/60 Hz) when a common wire is present.
Can it control a reversing valve that energises in heating?
Yes. B and O are separate terminals, so the valve can be driven in heating or in cooling without an external relay.
How accurate is the room temperature reading?
Measurement accuracy is +/-1 C at 20 C, and a calibration offset is available in the setup menu.
What is the minimum order quantity for an OEM version?
MOQ depends on how much of the tooling and firmware changes. Send us the marking and packaging you need on WhatsApp and we will confirm the quantity and lead time.
Can the schedule be locked so tenants cannot change it?
The unit can be delivered set to non-programmable operation, which removes the schedule from the user menu.
Which certifications does the range hold?
Our thermostat range is built to RoHS, CE, UL, FCC and CSA requirements. Ask us for the certificate that covers the exact model and market.
