AD110 Simple & small variable frequency drive

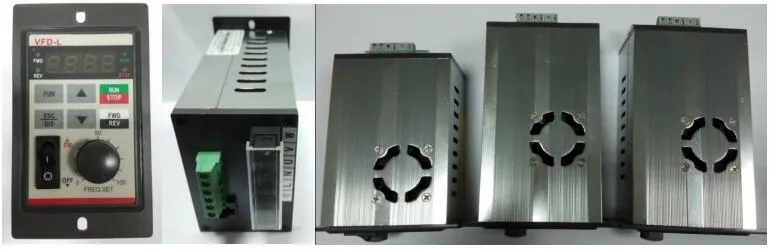

AD110 small VFD is a new and innovation small, economical type and stable running variable frequency inverter.
It is focus on small power 100w to 750w 3 phase 200-240V small motor speed control.
It can provides basic function of general purpose inverter that own, such as soft start, soft stop, speed adjusting, start/stop by external terminals, speed control by analog, running in revere...etc.
We make the cost of this VFD down to limit with great power innovation technology.
And make every piece of 3 phase 220V smaller power motor with VFD control is available with low cost.

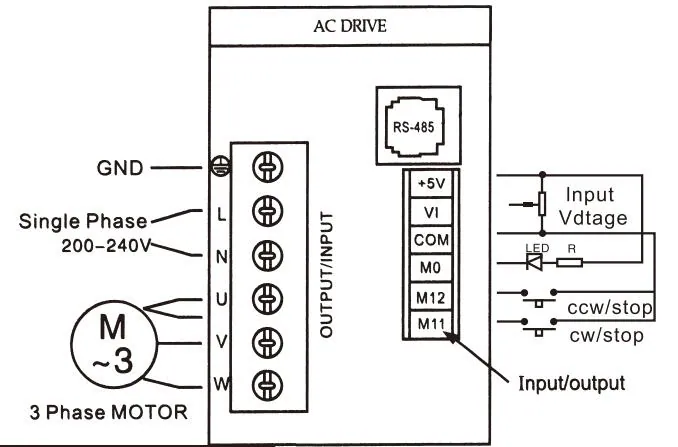

2. Basic Wiring Diagram

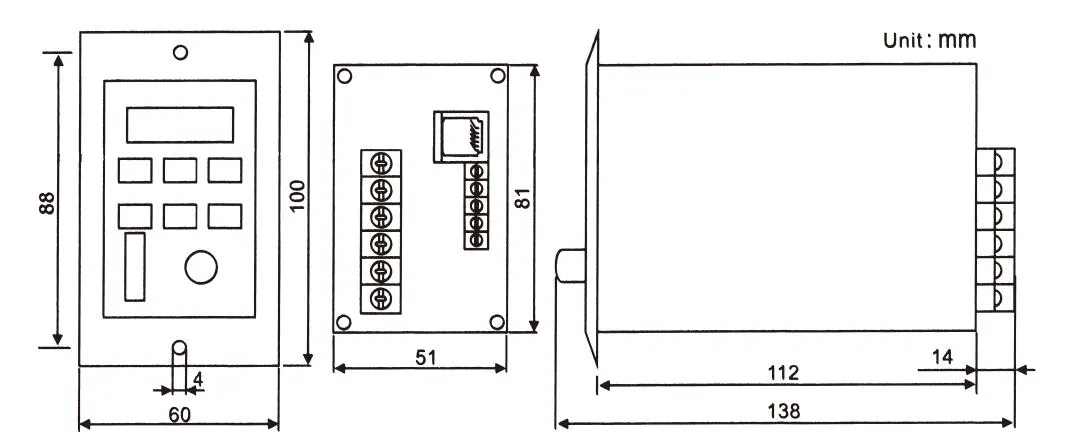

4. Using conditions of AD110 VFD

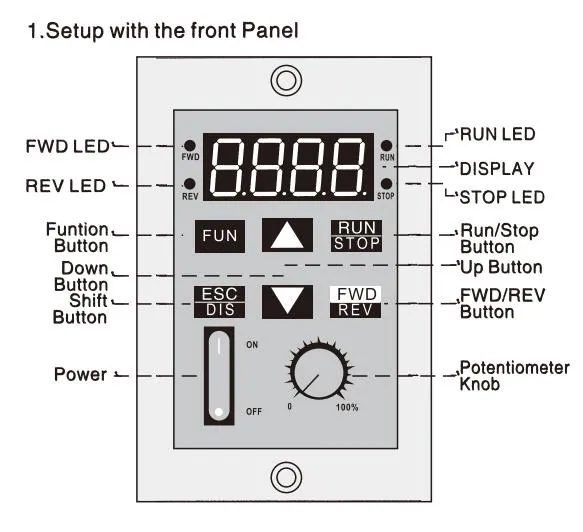

5. Setup with the front panel

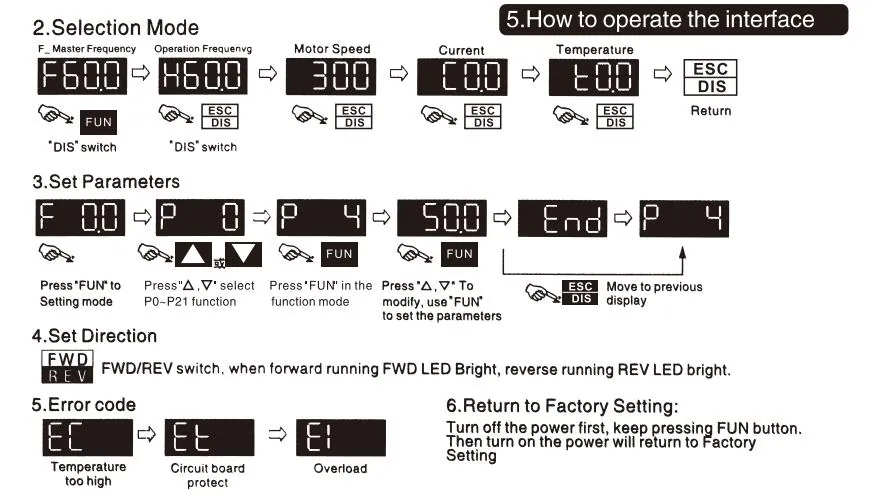

6. Operation guide of keypad
Note:
If you need more powerful function and multiple function variable speed drive, please get more information from AD100/AD350 and AD800.
And we also provide AS850 enhanced version VFD AC servo drive for simple position control, torque control, syn. Speed control for PMSM and IM.
AD110 small VFD is a new and innovation small, economical type and stable running variable frequency inverter.
It is focus on small power 100w to 750w 3 phase 200-240V small motor speed control.
It can provides basic function of general purpose inverter that own, such as soft start, soft stop, speed adjusting, start/stop by external terminals, speed control by analog, running in revere...etc.
We make the cost of this VFD down to limit with great power innovation technology.
And make every piece of 3 phase 220V smaller power motor with VFD control is available with low cost.
| 1. Specification of AD110 small and economical type 1PH, 220V input, 3 phase output VFD | |||||
| Model | AD110-2S0.1G | AD110-2S0.2G | AD110-2S0.4G | AD110-2S0.75G | |
| Output | Rated output power | 100w | 200w | 400w | 750w |
| Rated output current | 0.8A | 1.0A | 2.0A | 3.8A | |
| Overload tolerance | 150% rated current for 60s | ||||
| Max output voltage | 3 phase 240V | ||||
| Input | Rated input voltage | single phase 200- 240VAC | |||
| Voltage Tolerance | Single phase 180 -250VAC | ||||
| Frequency accurace | ±5% | ||||
| Power capacity | 0.8 KVA | ||||
| Cooling Method | Nature Air- Cooling | ||||
| Consumption wattage | 15w -25w | ||||
4. Using conditions of AD110 VFD
| Using conditions of AD110 VFD | ||
| Operation conditions | Ambient Temperature | -10℃ to 50℃ |
| Relative Humidity | < 85% ( no condensation Allowed) | |
| Atmosphere pressure | 86 to 105Kpa | |
| Installation Site Altitude | <1000m | |
| Vibration | <20Hz | |
| Storage Transportation conditions | Air Temperature | -10℃ to 60℃ |
| Ambient Humidity | < 90% ( no condensation allowed) | |
| Vibration | <20Hz | |
| Pollution Degree | 2 Class: good for factory type environment | |
5. Setup with the front panel
6. Operation guide of keypad
7. Summary of parameters settings of AD110 VFDs
| Parameter | explanation | settings | Factory setting |
| P00 | Frequency reference | 0 ~ 99Hz ( unit: 0.5Hz) | |
| P01 | source of frequency command |
0: Interface keypad control 1: Interface Potentiometer 2：exterior potentiometer 3:Rs485 |
1 |
| P02 | Run/stop of operation command |
0:interface keypad control 1:Rs485 2:Forward running while power input 3:Reverse Running while power input 4:Exterior input |
0 |
| P03 | Stop method | 0: Cost stop 1: Ramp stop 2: Brake stop | 1 |
| P04 | Max output frequency | 0 ~ 100Hz | 65Hz |
| P05 | Min Output frequency | 0 ~ 100Hz | 5Hz |

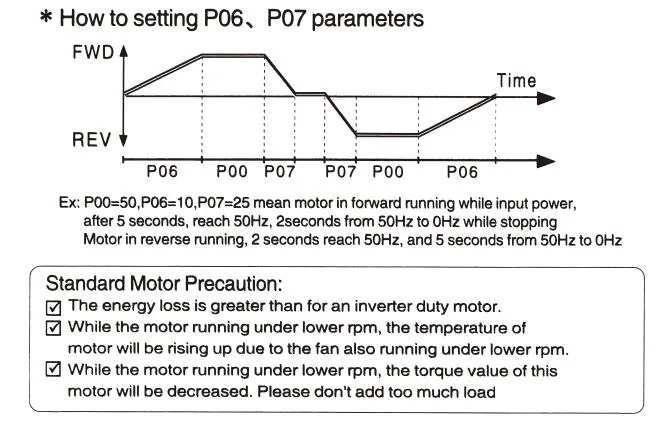

| P06 | Acceleration time | 0 ~ 250Hz/sec | 50Hz/sec |
