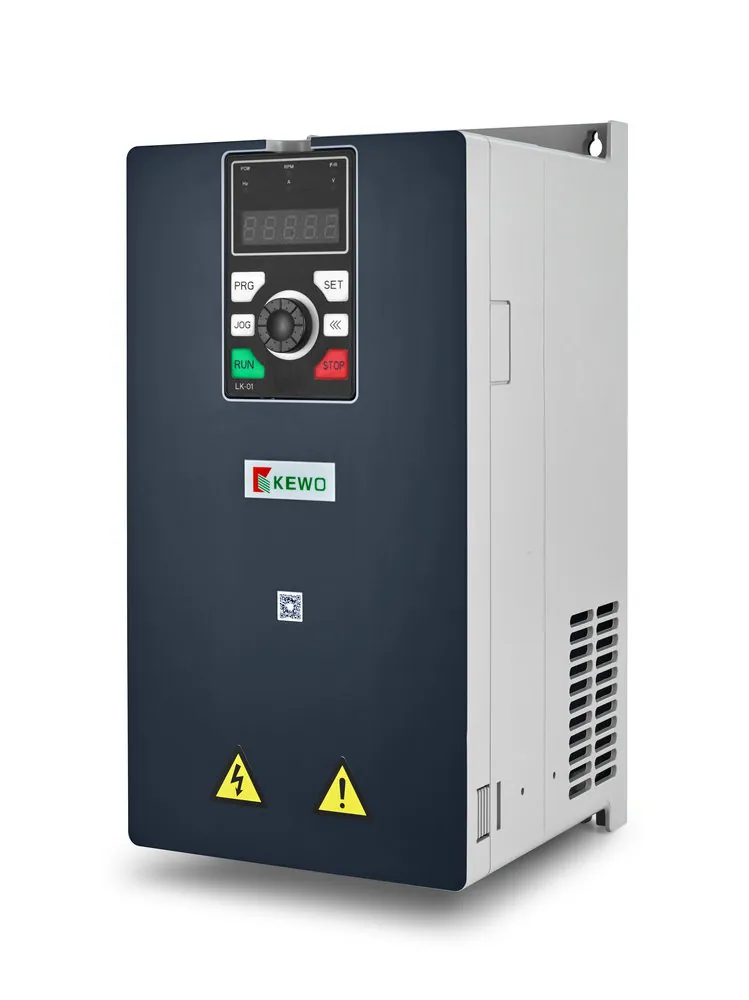

AD1000 High-Performance Vector Inverter

AD1000 series vector control VFD frequency inverter is a high-performance, high-reliability and multi-function general-purpose inverter.

AD1000 series VFD is equipped with a 32-bit DSP motor-specific processor and adopts advanced vector control algorithms to ensure high precision and high torque output, with good torque dynamic response and super overload capacity. It can match a variety of motor types (IM, IPM, SPM) and has excellent drive performance.

Considering the complexity of user usage scenarios, AD1000 series VFD fully reflects the product characteristics of easy installation, easy debugging, easy maintenance and high reliability.



Feature


AD1000 series VFD Specification

 Single phase, 220V, 0.4kw to 5.5kw     ▎   Three phase, 220V, 0.75kw to 75kw     ▎   Three phase, 380V/660V/1140V, 0.75 to 630kw

   Power:    Three-phase 380-480VAC 0.4~800kW

   ◆     Supports various types of motor control

   ◆     Support a variety of mainstream communication protocols

   ◆     Easy-to-use functions and flexible expansion

   ◆     Complete machine protection, long design life

   ◆     Support LCD keyboard and parameter copy function

   ◆     Simple and easy to use:

          compatible with our old model AD1000 usage habits, seamless connection

   ◆     High performance:

          3% torque accuracy, 3% torque linearity

   ◆     High reliability:

          The design is suitable for high dust, high humidity and high heat, and is more reliable in harsh environments

 AD1000 series VFD Features

It has V/F, OLV( open loop vector control ), CLV ( close loop vector control), Compatible with variety of encoder such as collector, differential / rotary transformer .

   ◆     Wide speed control range

   ◆     Response speed improving

   ◆     High torque output under low speed to meet some big inertia load conditions

   ◆     Torque control in OLV and CLV

   ◆     Powerful PID function

   ◆     Stall protection function

   ◆     Speed tracking restart function

   ◆     S curve function

   ◆     16 segment speed circle running, easy to configure

   ◆     Advanced energy saving technology

Specification

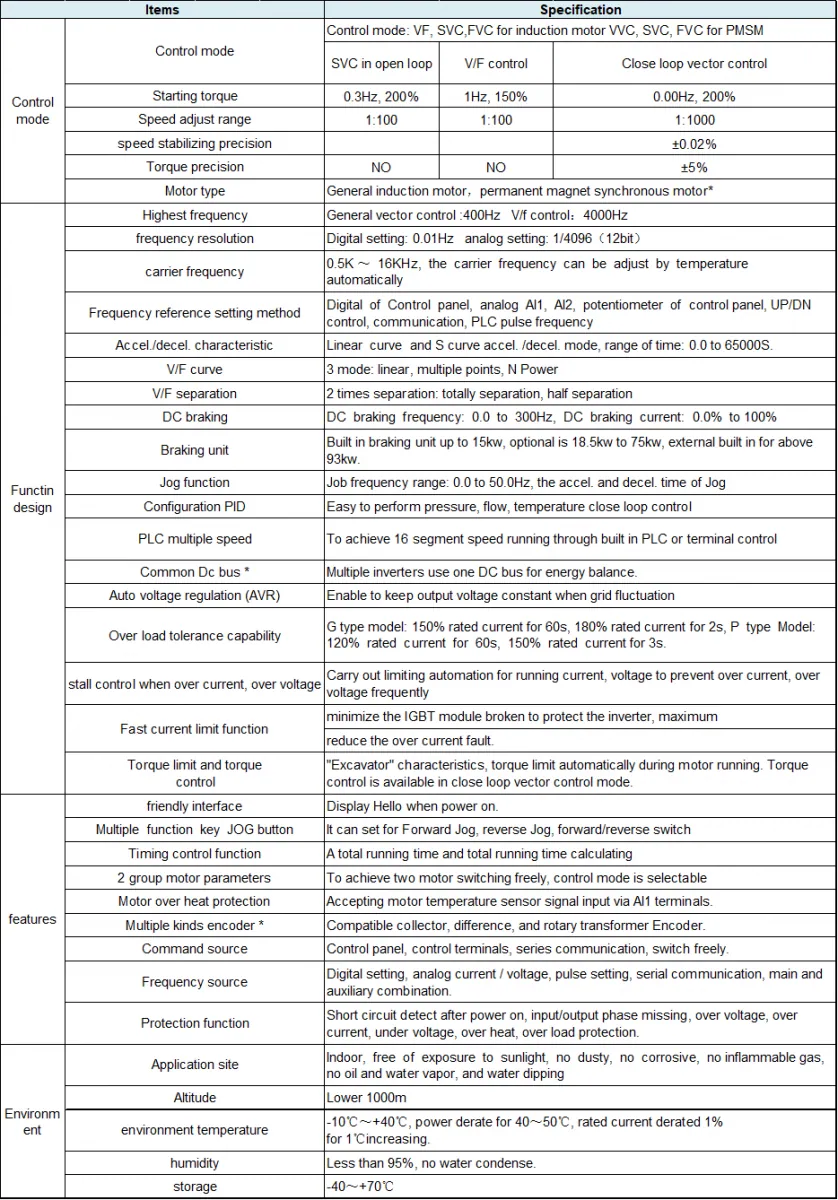

AD1000 series VFD Technical specification


Model Selection

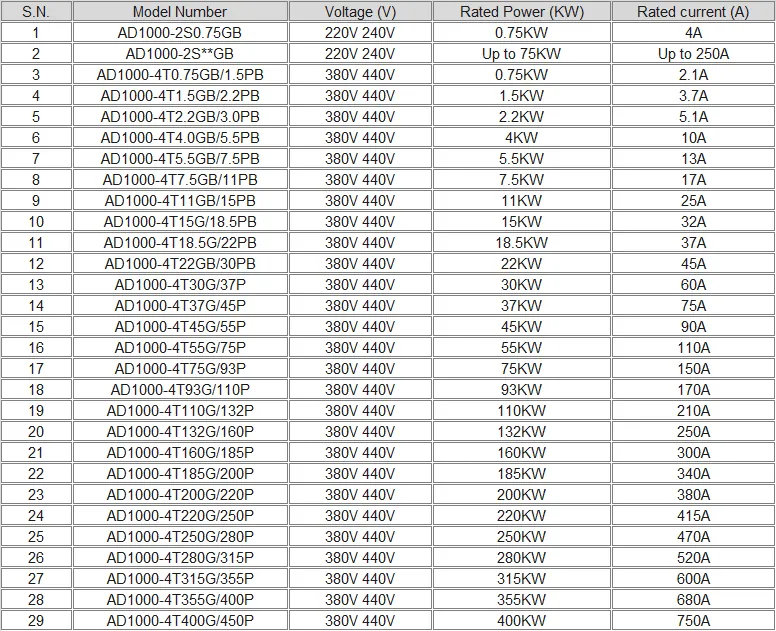

AD1000 series VFD Model List
