AD100 mini frequncy inverter

AD100 Mini Frequency Inverter. AD100 is a small and economical type frequency inverter, which designed for small machine OEM general purpose application. The good performance of V/F control mode, multiple segment speed, flexible and…

Request A Quote Email Us

Guarantee

18 months

Service Response

Within 24 hours

Manufacturer

KEWO Shenzhen

Certification

ISO9001 · CE

Download the matching PDF catalogKEWO AD100 / AD350 / AD800 Frequency Inverter Catalog

CAD files are available on request via WhatsApp or email.

Product Details

Technical description, specifications and application notes as supplied by the KEWO factory.

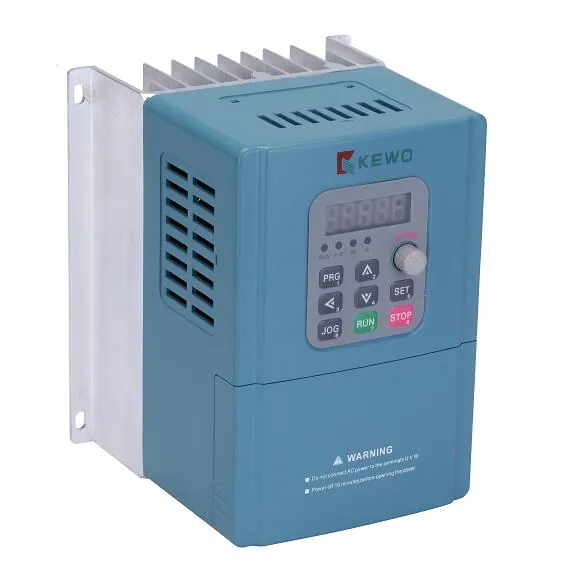

AD100 Mini Frequency Inverter.

AD100 is a small and economical type frequency inverter, which designed for small machine OEM general purpose application. The good performance of V/F control mode, multiple segment speed, flexible and accuracy PID, DC braking function, ModBus communication, that will make you machine become powerful and improving his competitive edge.

Power range: 0.4 to 1.5kw
Input voltage: single phase 220V ±15%
Control mode: V/f control indefualt, sensorless vector control is option
Protection function: Provide up to 25 kinds fault protection, over current, over voltage, under voltage, phase missing, overload protection function
Cooling method: force cooling

Installation method: wall mount, IP20
IPM iGBT using

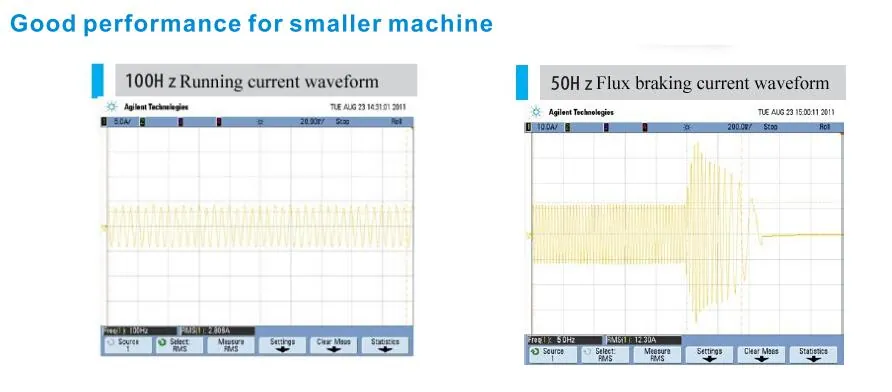

Good performance for smaller machine.

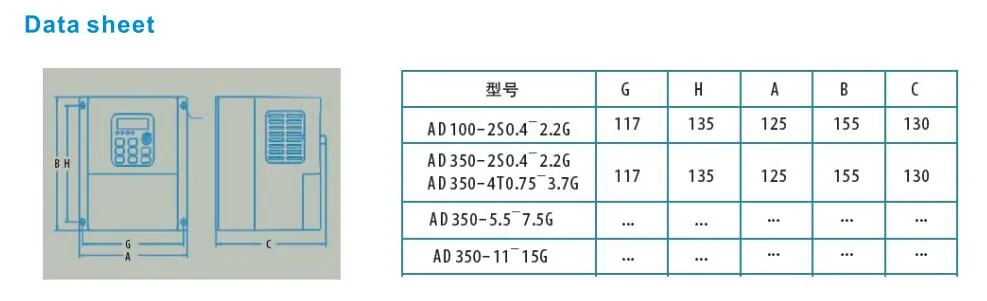

Data sheet (Dimension and size)

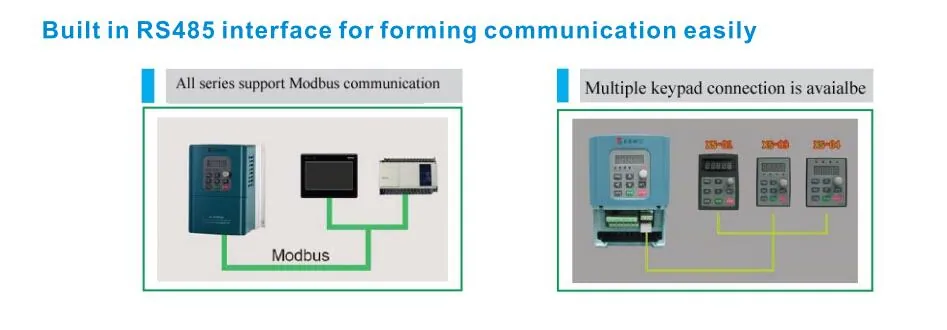

Built in Rs485 interface for forming communication easily.

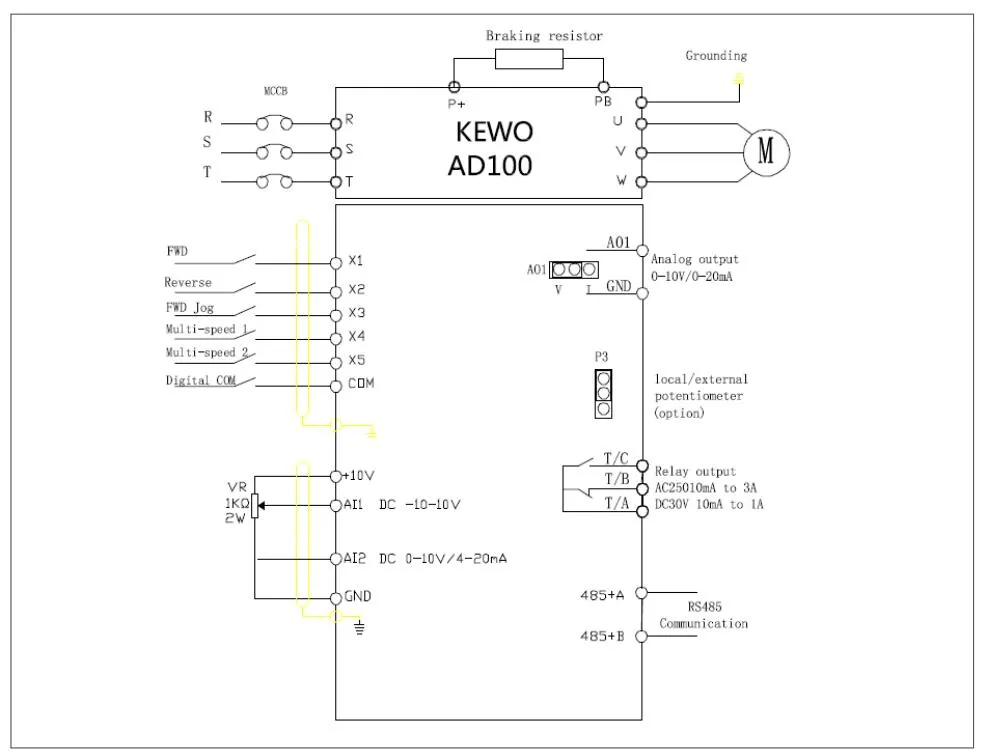

Wiring diagram
It has 5 digital input, DI5 can use for high pulse train inut.
2 analog signal input,
1 analog output and
1 relay output.

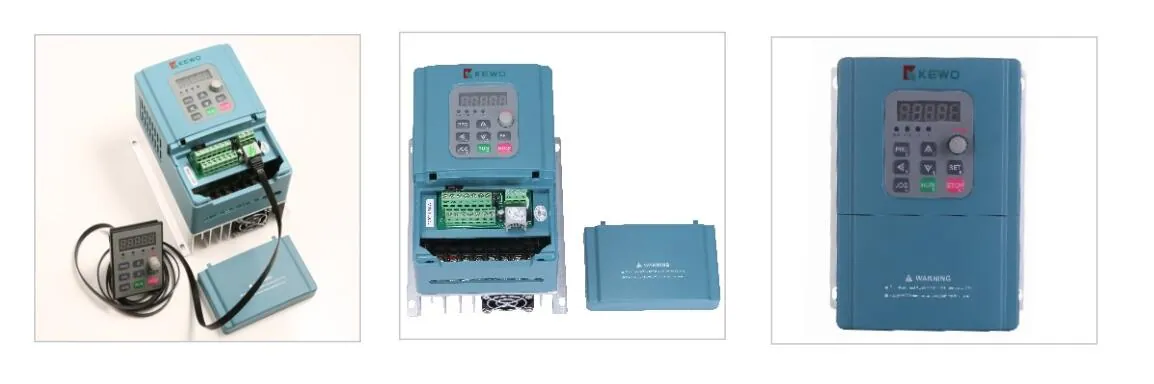

Terminals diagram:
