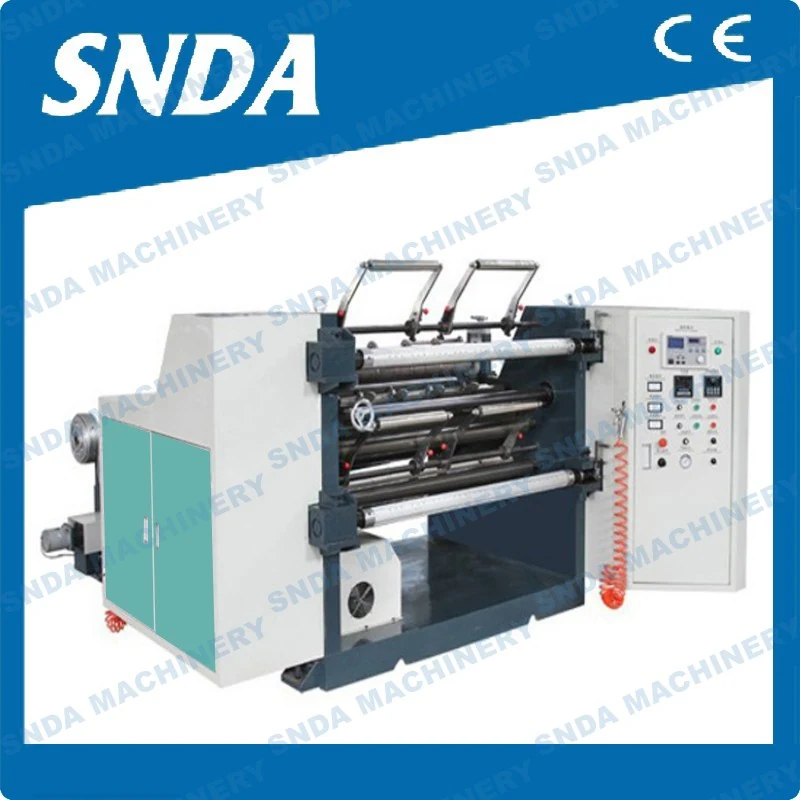

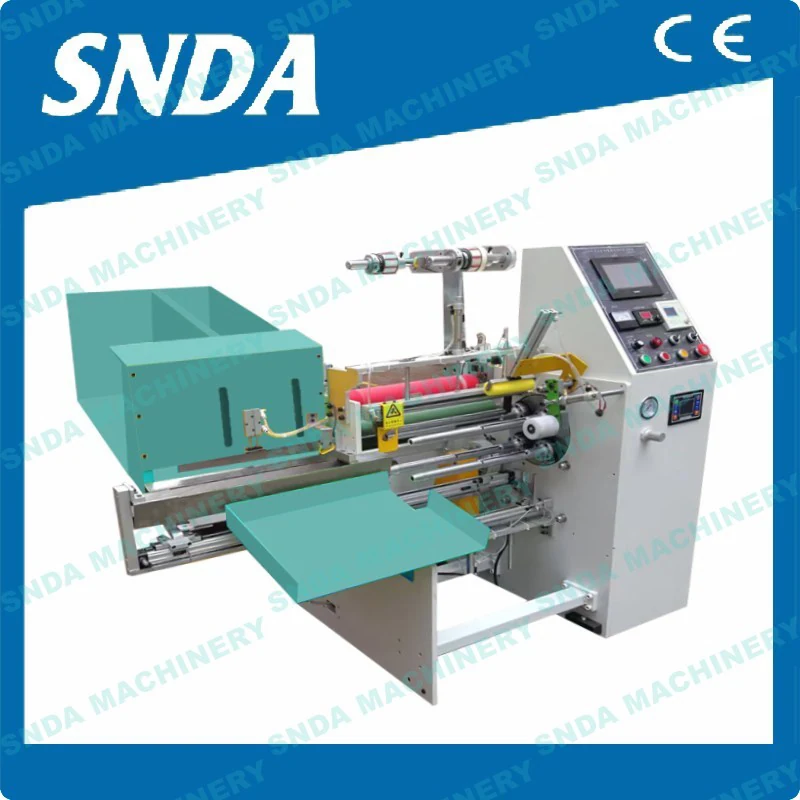

Kraft Paper Slitting Machine-horizontal type
The Kraft Paper Slitting Machine horizontal type converts a wide mother roll of kraft paper into multiple narrower finished rolls in a single pass. Unwinding and rewinding shafts are positioned at the front and back of the machine, allowing continuous operation. This machine enables a paper converter or packaging producer to slit kraft reels to custom widths for downstream use in honeycomb paper, paper bubble, or pre-opened bag production, reducing reliance on third-party slitting services.
- Converts wide kraft paper reels into custom widths without outsourcing slitting
- Horizontal design allows stable unwinding and rewinding with consistent tension control
- Adjustable cutting speed from 5 to 180 m/min matches production line throughput
- Precision slitting within ±0.5 mm ensures consistent roll width and reduces waste
- Automatic meter counting stops the machine at set lengths for uniform roll sizes
Why Buyers Choose It
- Third-party slitting services add cost and delay to production schedules
- Inconsistent roll widths from outsourced slitting cause jams or misfeeds in downstream machines
- Lack of control over slitting precision leads to waste and rework
- Manual slitting is slow and unsafe compared to automated horizontal slitting
- Inability to produce custom roll widths in-house limits flexibility in packaging design
Who Runs This Machine
- Paper converters adding slitting capacity to their existing converting lines
- Protective packaging producers sourcing kraft paper in wide reels and needing narrower rolls
- Slitting houses serving regional markets with custom-width paper rolls
- E-commerce packers running roll-fed bagging systems requiring consistent roll widths
Where This Machine Is Used
- Paper converters slitting kraft paper reels to feed into honeycomb or bubble paper machines
- Packaging producers preparing narrow rolls for use in pre-opened bag lines
- Slitting houses processing kraft paper for local distribution to small-scale packers
- E-commerce fulfilment centres converting bulk kraft paper into roll stock for automated bagging
- Manufacturers producing paper cushioning materials that require precise width control
Features And Specifications
Technical features
- Horizontal slitting and rewinding configuration with front and back shafts
- Independent master control panel for flexible and easy operation
- Automatic EPC (edge position control) for tracking transparent or low-contrast edges
- Photocell sensor for edge and color tracking on transparent materials
- Magnetic powder brake for stable unwinding tension control
- Magnetic clutch for consistent rewinding tension
- Straight blade option for film (10–75 um) and circle blade for paper (10–350 um)
- Automatic meter counting device stops machine at preset roll length
Specifications
| Machine model | LFQ-1100, LFQ-1300, LFQ-1600 |
|---|---|
| Max width of mother roll | 1050 mm (LFQ-1100), 1250 mm (LFQ-1300), 1550 mm (LFQ-1600) |
| Max diameter of mother roll | 1000 mm |
| Max diameter of finished roll | 500 mm |
| Min slitting width | 30 mm |
| Width of final roll | 30–600 mm |
| Slitting thickness | 10–75 um (straight blade) for film; 10–350 um (circle blade) for paper |
| Cutting speed | 5–180 m/min |
| Precision for correct and error | Less than ±0.5 mm |
| Total power | 3.3 kW (LFQ-1100), 3.8 kW (LFQ-1300), 4.3 kW (LFQ-1600) |
| Gross weight | 1800 kg (LFQ-1100), 2200 kg (LFQ-1300), 2500 kg (LFQ-1600) |
| Overall dimensions | 2400 x 1880 x 1450 mm (LFQ-1100), 2400 x 2080 x 1450 mm (LFQ-1300), 2400 x 2280 x 1450 mm (LFQ-1600) |
How The Machine Runs
Materials
- Kraft paper reels up to 1000 mm diameter and 1050–1550 mm width
- BOPP, PET, CPP, CPE, PVC, aluminum foil, and other film or paper materials
- Transparent or low-contrast materials with edge tracking via photocell
Quality Control
- Magnetic powder brake maintains consistent unwinding tension to prevent web distortion
- Magnetic clutch ensures even rewinding tension across all finished rolls
- Precision slitting within ±0.5 mm verified during test runs with customer material
- Edge tracking system prevents misalignment and roll edge damage
- Machine tested with customer-supplied paper before shipment to confirm performance
Customisation
- Blade type selected based on material: straight blade for film, circle blade for paper
- Rim charge conveying or rewinding device added on request
- Power supply built to voltage and frequency of destination country on request
- Adjustable slitting width and roll diameter settings for different production needs
- Control panel configured for local language and operational preferences
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Outsourced slitting services | In-house slitting removes third-party costs and delivery delays but requires machine investment and operator time |
|---|---|
| Vertical slitting machines | Horizontal design offers better stability and easier access for maintenance and roll loading |
| Manual slitting | Automated slitting is faster, safer, and more precise, reducing waste and operator risk |
Running It On Your Floor
- Ensure the unwinding shaft is properly secured and the mother roll is centered before starting
- Set the desired roll width and confirm blade type matches the material being slitted
- Start at low speed (5 m/min) and gradually increase while monitoring web tracking
- Check the first few meters of slitting for edge alignment and width accuracy
- Use the photocell sensor to verify edge tracking on transparent or low-contrast materials
Kraft Paper Slitting Machine-horizontal type FAQ
What materials can this machine slit
It handles kraft paper, BOPP, PET, CPP, CPE, PVC, aluminum foil, and other film or paper materials.
What is the minimum slitting width
The minimum slitting width is 30 mm for all models.
How precise is the slitting
The machine achieves a precision of less than ±0.5 mm for correct and error.
Can it handle transparent materials
Yes, it includes a photocell sensor and automatic EPC for edge and color tracking on transparent materials.
What power supply do you provide
Standard is 380 V three phase; we build to the voltage and frequency of your country on request.
Do you offer blade options
Yes, straight blade for film (10–75 um) and circle blade for paper (10–350 um) are available.
