High Speed Paper Sheeting Machine
The HQ-H1400 and HQ-H1700 convert paper rolls into individual sheets at high speed using a two-roll feeding system. Designed for paper slitting and sheeter operations, it cuts paper from 50 to 500 gsm to precise lengths between 400 and 1600 mm. The machine runs at up to 300 cuts per minute and 300 meters per minute, making it suitable for high-volume production lines in converting facilities. It supports both standard and custom sheet sizes with consistent accuracy.
- Converts paper rolls into individual sheets at up to 300 cuts per minute for high throughput
- Cutting accuracy is maintained at +/-0.4 mm across the full sheet length
- Handles paper weights from 50 to 500 gsm and widths up to 1700 mm
- Two-roll feeding system ensures stable web entry and consistent sheet formation
- Built for continuous operation with automatic cutting and sheet stacking
- Supports custom sheet lengths and can be integrated into existing converting lines
Why Buyers Choose It
- Manual sheet cutting is slow and inconsistent compared to automated high-speed sheeters
- Inconsistent sheet lengths cause misfeeds in downstream packaging or printing equipment
- Lack of precision in cutting leads to material waste and rework
- Limited capacity in existing lines prevents scaling with customer demand
- Reliance on third-party sheeting services adds lead time and cost
Who Runs This Machine
- Paper converters processing reels into cut sheets for downstream packaging
- Slitting houses adding sheeting capability to existing converting lines
- Packaging producers requiring consistent sheet sizes for roll-fed or automated systems
- Industrial suppliers producing paper-based components in high volume
Where This Machine Is Used
- Paper converters producing custom-sized sheets for packaging, printing, or industrial use
- Fulfilment centres needing high-speed sheeting for label stock, inserts, or protective pads
- Slitting houses expanding capacity to include sheeting without adding separate equipment
- Manufacturers of pre-cut paper products like paper bags, dividers, or cushioning sheets
- Facilities replacing manual cutting with automated sheeting to reduce labour and errors
Features And Specifications
Technical features
- Two-roll feeding system for stable paper entry and consistent tension

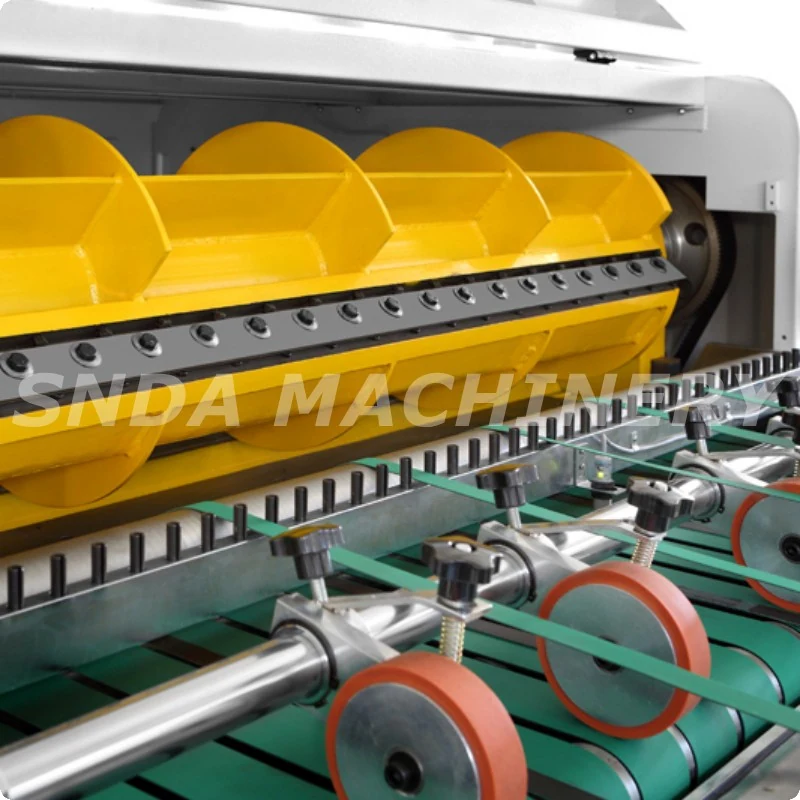

- Automatic cutting mechanism with precision control for repeatable sheet lengths
- Adjustable cutting length from 400 to 1600 mm to match product requirements
- Cutting accuracy maintained at +/-0.4 mm across the full sheet width
- Maximum cutting speed of 300 cuts per minute and 300 meters per minute
- Air pressure system operating at 0.8 MPa for reliable actuation
- Inverter-driven motors for smooth speed control and energy efficiency

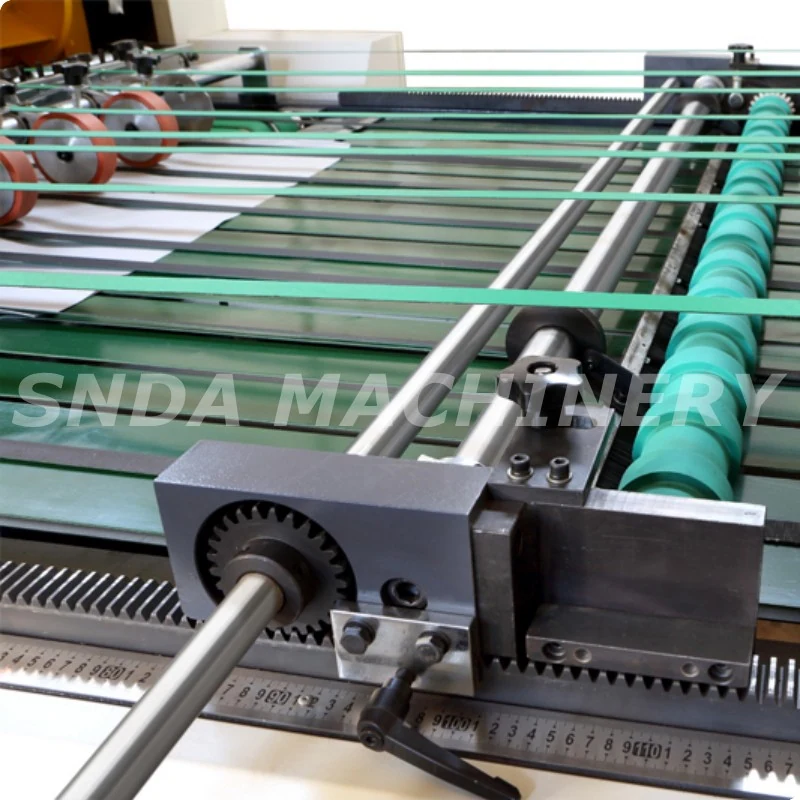

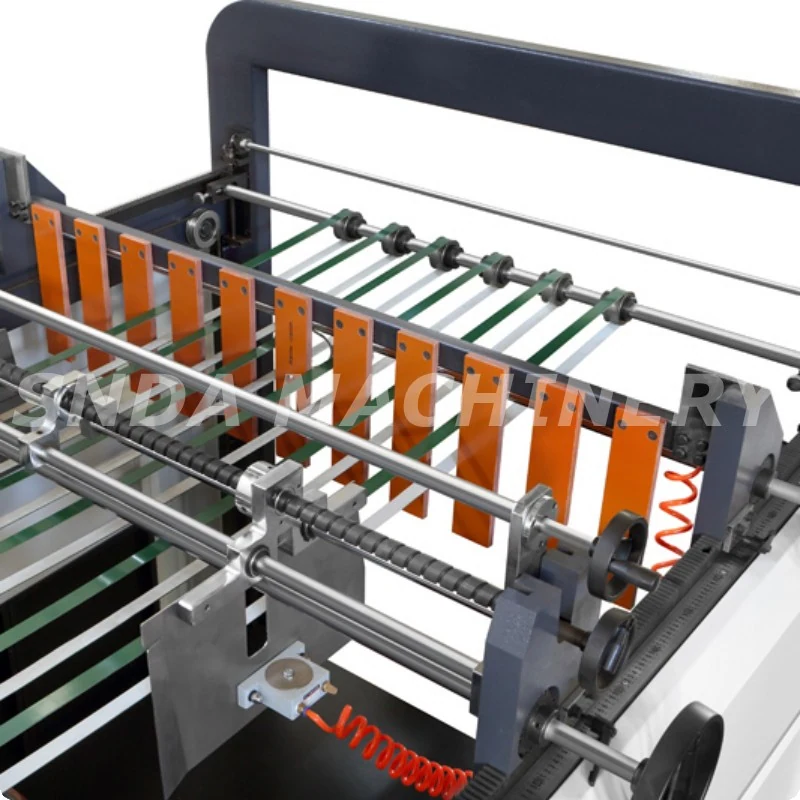

- Integrated sheet stacking system for downstream handling
Specifications
| Machine model | HQ-H1400, HQ-H1700 |
|---|---|
| Max paper width | 1400 mm (55 inch) for HQ-H1400, 1700 mm (67 inch) for HQ-H1700 |
| Max paper diameter | 1650 mm (65 inch) maximum |
| Paper weight range | 50 to 500 gsm |
| Cutting length range | 400 to 1600 mm |
| Cutting accuracy | +/-0.4 mm |
| Maximum cutting speed | 300 cuts per minute |
| Maximum cutting meter speed | 300 m/min |
| Atmospheric pressure | 0.8 MPa |
| Power supply | AC380V/220V x 50 Hz |
| Total power | 25 KW for HQ-H1400, 28 KW for HQ-H1700 |
| Machine dimensions | 12 m x 3.9 m x 2.35 m for HQ-H1400, 12 m x 4.2 m x 2.35 m for HQ-H1700 |
| Machine weight | 11000 kg for HQ-H1400, 13000 kg for HQ-H1700 |
How The Machine Runs
Materials
- Paper reels from 50 to 500 gsm including kraft paper, wrapping paper, and coated paper
- Standard paper rolls up to 1650 mm diameter and 1700 mm width
- Optional paper types compatible with the machine’s tension and cutting system
Quality Control
- Cutting accuracy is verified at +/-0.4 mm across the full sheet length using calibrated sensors
- Web tension is maintained consistently to prevent stretching or misalignment
- Air pressure system tested at 0.8 MPa to ensure reliable actuation of cutting tools
- Machine tested with customer paper before shipment to confirm performance
- All electrical components checked for correct voltage and frequency matching
Customisation
- Cutting length range can be adjusted within 400 to 1600 mm to suit specific product needs
- Power supply can be built to match the voltage and frequency of the destination country
- Machine dimensions can be reviewed for site fit, though no changes are made to the standard size
- Optional sheet stacking or conveying systems can be added for integration with downstream lines
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Manual sheet cutting | Automated sheeter eliminates operator variability and increases speed, but requires machine investment and space |
|---|---|
| Third-party sheeting services | In-house sheeter reduces lead time and cost per sheet, but requires internal maintenance and operator training |
| Low-speed slitters | This machine supports higher cutting speeds and precision, but requires more power and space |
Running It On Your Floor

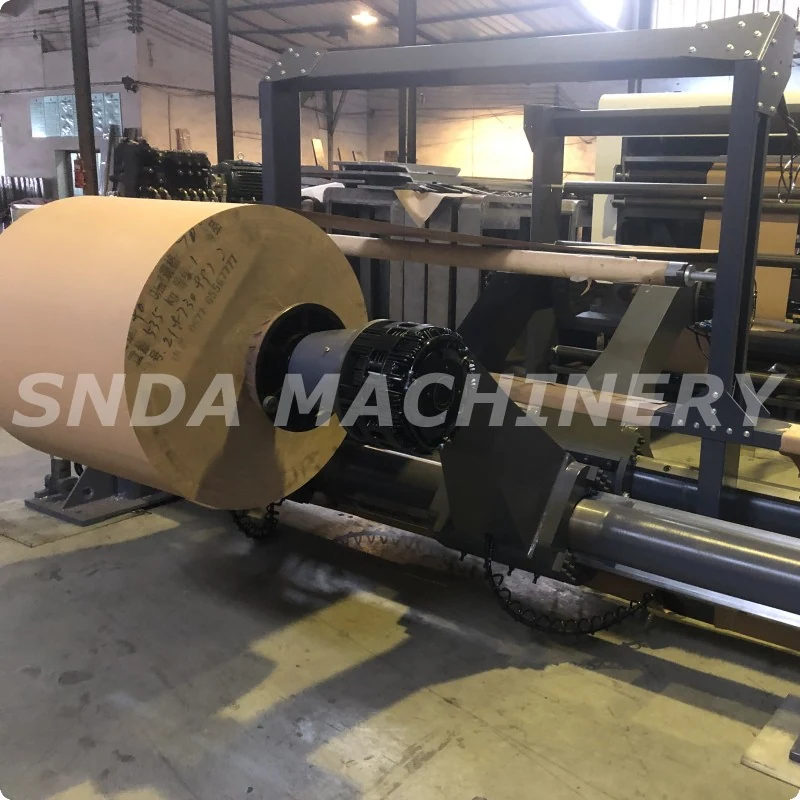

- Ensure the paper reel is within 1650 mm diameter and 50 to 500 gsm before loading
- Set the target sheet length on the control panel and verify the cutting accuracy
- Start the machine at low speed and monitor the first few sheets for alignment and cut quality
- Adjust web tension and air pressure if the web drifts or cuts are inconsistent
- Keep the cutting blade clean and free of debris to maintain sharpness and accuracy
- Use the automatic stop function when the set number of sheets is reached
High Speed Paper Sheeting Machine FAQ
What paper weights can the machine handle
It is designed for paper from 50 to 500 gsm, including kraft paper, wrapping paper, and coated paper.
What is the maximum sheet length it can cut
The machine can cut sheets from 400 mm to 1600 mm in length.
How fast does it cut sheets
It can cut up to 300 sheets per minute, with a maximum cutting speed of 300 meters per minute.
What power supply does it require
Standard power supply is AC380V/220V x 50 Hz; we can build to the voltage and frequency of your country on request.
What are the machine dimensions and weight
The HQ-H1400 is 12 m x 3.9 m x 2.35 m and weighs 11000 kg; the HQ-H1700 is 12 m x 4.2 m x 2.35 m and weighs 13000 kg.
Can it be used for both kraft and coated paper
Yes, it handles kraft paper, wrapping paper, and coated paper within the 50 to 500 gsm range.
Do you hold quality certificates
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
