Honeycomb Paper Cutting Machine
The HQ 600-one roll cuts finished honeycomb paper rolls into consistent pads or sheets for packaging. It handles one roll at a time, feeding the web through a cutting station to produce individual protective pads. This machine supports the final step in converting kraft paper into ready-to-use cushioning, replacing plastic bubble wrap with a recyclable alternative.
- Converts finished honeycomb paper rolls into uniform pads for consistent packaging performance
- Produces sheets or pads that protect fragile items without surface scratching
- Operates at 30 to 60 m/min, allowing fast output for high-volume packing lines
- Single roll feeding reduces setup time and simplifies operation for small to mid-scale producers
- Supports eco-friendly packaging by replacing plastic bubble wrap with paper cushioning
Why Buyers Choose It
- Plastic bubble wrap is being rejected by retailers and end customers in export markets
- Manual cutting of honeycomb paper leads to inconsistent pad sizes and wasted material
- Inconsistent pad size causes poor fit and reduced protection in final packaging
- Lack of automated cutting means higher labour cost and slower throughput
- Finished honeycomb rolls are not ready to use without a cutting step
Who Runs This Machine
- Packaging producers that already make honeycomb paper and need to cut it into pads
- Fulfilment centres packing high volumes of fragile goods with consistent cushioning
- Small to mid-sized converters adding a finishing step without full automation
- E-commerce packers replacing plastic inserts with paper-based protection
Where This Machine Is Used
- Protective packaging producers cutting honeycomb paper into pads for e-commerce fulfilment
- Fruit and flower packers using paper pads to prevent bruising during transit
- Ceramics and glassware manufacturers packing fragile goods with paper cushioning
- 3PL operators preparing pre-cut pads for automated bagging lines
- Paper converters adding value by turning honeycomb rolls into ready-to-use pads
Features And Specifications
Technical features
- Single roll feeding system for continuous cutting of honeycomb paper
- Adjustable cutting width up to 550 mm to match pad size requirements
- Maximum cutting length of 999 mm allows for large pad formats
- Production capacity of 30 to 60 m/min for efficient output
- 2.5 kW power supply for stable operation with standard industrial power
- Pneumatic or manual feed system to control web tension during cutting
- Cutting blade alignment ensures clean edges and consistent pad dimensions
- Machine frame built for stability during continuous operation
Specifications
| Machine model | HQ 600-one roll |
|---|---|
| Max cutting width | 550 mm |
| Max cutting length | 999 mm |
| Production capacity | 30-60 m/min |
| Power | 2.5 kW |
| Machine dimension | 3200 x 1200 x 1200 mm (L x W x H) |
| Weight of machine | 800 kg |
How The Machine Runs
Materials
- Finished honeycomb paper rolls from the this machine or similar forming machine

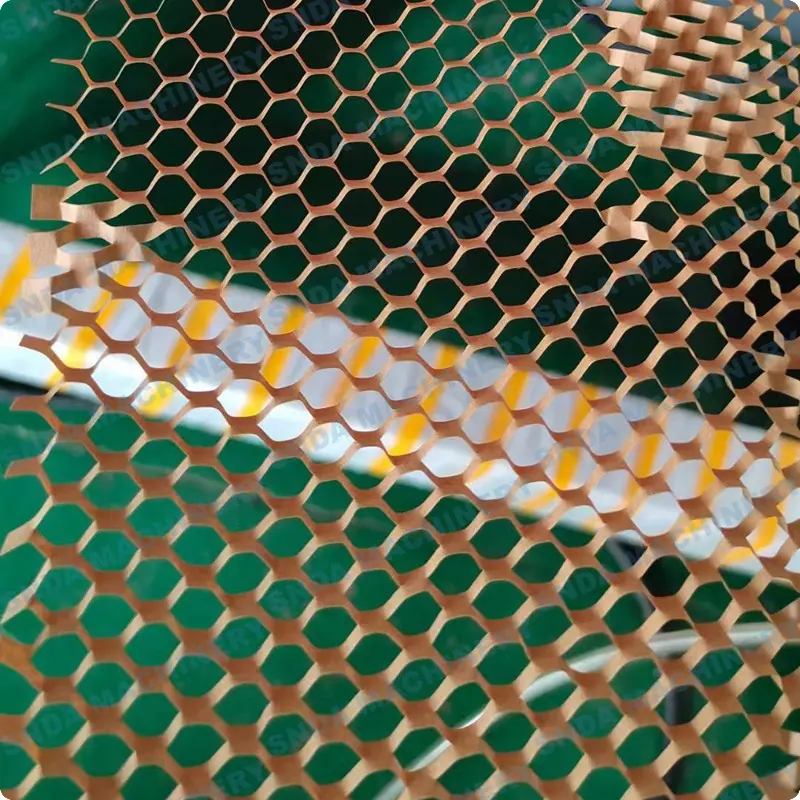

- Kraft paper-based honeycomb cushioning with hexagonal cell structure
- Optional soft white paper backing layer for laminated honeycomb liner
Quality Control
- Cutting blade alignment checked before each run to ensure consistent pad size
- Web tension maintained during feeding to prevent stretching or misalignment
- Machine tested with customer honeycomb paper before shipment to verify cut quality
- Cut edges inspected for clean separation and absence of fraying
Customisation
- Cutting width and length can be adjusted to match customer pad specifications
- Blade type can be changed for different honeycomb paper thicknesses
- Machine frame can be modified for different roll core sizes if needed
- Optional guide rails added to improve web tracking on wider cuts
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying pre-cut pads from a supplier | Converting in house removes the supplier margin but requires inventory of finished honeycomb rolls and machine investment |
|---|---|
| Plastic bubble wrap inserts | Paper pads are recyclable and accepted in markets restricting plastic, though they are heavier per pad |
| Manual cutting with scissors or guillotine | Automated cutting ensures consistent pad size and faster throughput with less labour |
Running It On Your Floor
- Ensure the honeycomb paper roll is properly mounted on the feeding stand
- Set the desired cutting width and length using the machine controls
- Start at the lowest speed to verify alignment and cut quality
- Check the first few pads for clean edges and correct dimensions
- Adjust blade pressure or feed tension if the cut is ragged or inconsistent
Honeycomb Paper Cutting Machine FAQ
What is the maximum cutting width and length
The machine can cut up to 550 mm in width and 999 mm in length.
How fast does it run in production
The production capacity is 30 to 60 m/min, depending on paper thickness and cutting settings.
What power supply does it require
The machine uses 2.5 kW and is designed for standard industrial power supply.
What is the machine footprint and weight
The machine measures 3200 x 1200 x 1200 mm and weighs 800 kg.
Can it cut different honeycomb paper types
Yes, it cuts finished honeycomb paper rolls from kraft paper, including laminated or soft-backed variants.
Do you hold quality certificates
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
