Kraft Paper Slitting Machine-vertical type

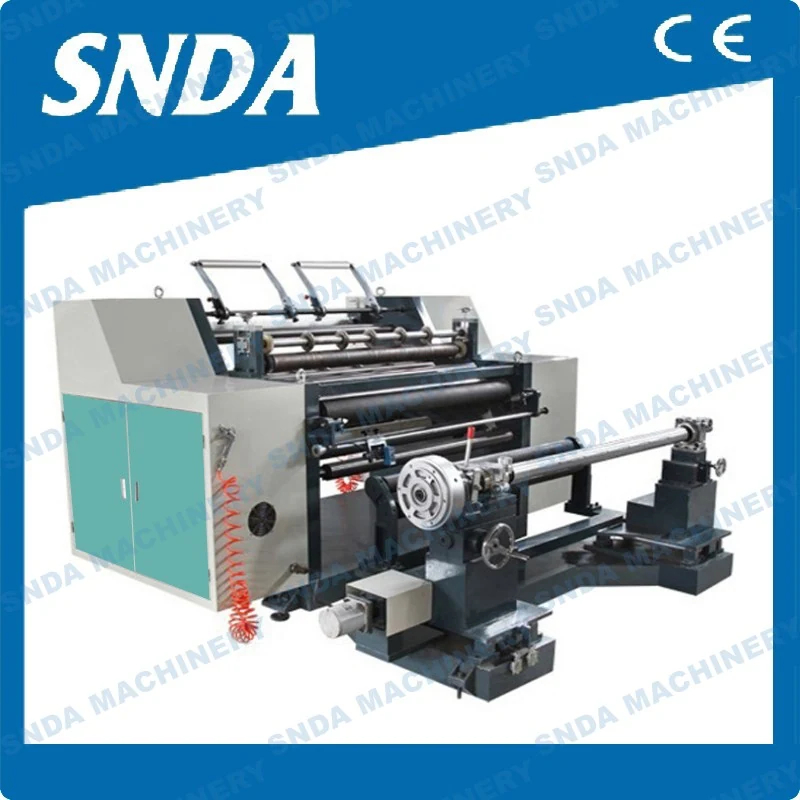

The LFQ series vertical slitting machine converts large kraft paper mother rolls into narrower finished rolls in a single pass. Unwinding, slitting and rewinding are integrated, so a paper converter can split wide reels into custom widths without manual handling. This is used by producers who need consistent roll widths for downstream processes like paper cushioning, fanfold paper or pre-opened bags on a roll.
- Converts wide kraft paper reels into multiple narrower rolls in one process, reducing manual handling
- Slitting precision is within ±0.5 mm, ensuring consistent roll widths for automated bagging or wrapping lines
- Adjustable cutting speed from 5 to 180 m/min allows matching output to downstream production rates
- Magnetic powder brake and clutch control maintain stable tension during unwinding and rewinding
- Automatic meter counting stops the machine at the set length, ensuring uniform roll lengths
- Can handle both 3 inch and 6 inch paper cores, matching existing core stock or supplier standards
Problems It Solves
Why Buyers Choose It
- Manual slitting of kraft paper reels is slow and inconsistent, leading to roll width variation
- Buying pre-slitted rolls from third parties adds cost and lead time to production schedules
- Inconsistent roll widths cause jams or misfeeds in downstream automated packaging equipment
- Lack of in-house slitting capacity forces reliance on external suppliers with limited flexibility
- Wide kraft reels are difficult to handle and store without a dedicated slitting line
Who It Is For
Who Runs This Machine
- Paper converters adding slitting capability to their existing converting line
- Packaging producers using kraft paper reels and needing narrower rolls for downstream processes
- Slitting houses serving local or regional markets with custom roll widths
- E-commerce fulfilment centres sourcing narrow kraft rolls for automated bagging systems
Application
Where This Machine Is Used
- Paper converters splitting 1100 mm to 1600 mm kraft reels into 30 mm to 600 mm widths for honeycomb paper or paper cushioning production
- Slitting houses producing custom-width rolls for e-commerce packaging lines that use fanfold paper or pre-opened bags
- Packaging producers preparing narrow rolls for use in paper bubble or paper cushioning machines
- Manufacturers of pre-opened bags on a roll that require consistent roll widths for automated bagging equipment
- Facilities adding in-house slitting capacity to avoid relying on third-party slitting services
Technical
Features And Specifications
Technical features
- Vertical slitting and rewinding configuration with unwinding and rewinding shafts in front of the machine
- Independent master control panel for flexible and straightforward operation
- Automatic edge tracking using photocell for transparent or color-coded materials
- Magnetic powder brake for stable unwinding tension control
- Magnetic clutch for consistent rewinding tension control
- Automatic meter counting device stops the machine at the set roll length
- Optional rim charge conveying or rewinding device available on order
- Slitting width adjustable from 30 mm to 600 mm across all models
Specifications
| Machine model | LFQ-1100, LFQ-1300, LFQ-1600 |
|---|---|
| Max width of mother roll | 1100 mm (LFQ-1100), 1300 mm (LFQ-1300), 1600 mm (LFQ-1600) |
| Max diameter of mother roll | 800 mm |
| Max diameter of finished roll | 450 mm |
| Paper core diameter (rewind and unwind) | 3 inch (75-76 mm) and 6 inch (152 mm) |
| Min slitting width | 30 mm |
| Width of final roll | 30-600 mm |
| Cutting speed | 5-180 m/min |
| Precision for correct and error | ＜ ±0.5 mm |
| Total power | 3 kW (LFQ-1100), 3.5 kW (LFQ-1300), 4 kW (LFQ-1600) |
| Gross weight | 1500 kg (LFQ-1100), 1800 kg (LFQ-1300), 2000 kg (LFQ-1600) |
| Overall dimensions | 2400 x 1110 x 1500 mm (LFQ-1100), 2600 x 1110 x 1500 mm (LFQ-1300), 2800 x 1110 x 1500 mm (LFQ-1600) |
Process
How The Machine Runs
Step 1Load the mother roll onto the front unwinding shaft with a 3 inch or 6 inch core
Step 2Set the target slitting width and roll length on the control panel
Step 3Start the machine at low speed and adjust the cutting speed to match the material
Step 4Use the photocell edge tracker to keep the web aligned during slitting
Step 5Monitor tension with the magnetic powder brake and clutch
Materials
- Kraft paper reels from 1100 mm to 1600 mm wide
- BOPP, PET, CPP, CPE, PVC, aluminum foil, and other roll materials
- Transparent or color-coded materials with edge or color tracking requirements
Quality Control
- Photocell edge tracking maintains alignment for transparent or color-coded materials
- Magnetic powder brake and clutch ensure consistent tension across the entire roll
- Slitting precision is verified to be within ±0.5 mm across the width of the roll
- Automatic meter counting ensures consistent roll lengths before shipment
- Machines are tested with customer material before delivery to verify performance
Customisation
- Rim charge conveying or rewinding device can be added on order
- Power supply can be built to match the voltage and frequency of the destination country
- Slitting knife configuration can be adjusted for different material types and thicknesses
- Core size can be set to 3 inch or 6 inch based on existing core stock
- Control panel layout can be adapted for local language or operational preference
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
Comparison
How It Compares
| Buying pre-slitted rolls from a third party | In-house slitting removes supplier margin and delivery delays, but requires investment in equipment and operator training |
|---|---|
| Manual slitting with hand tools | The machine provides consistent width and tension control, reducing waste and operator fatigue |
| Horizontal slitting machines | Vertical design allows easier access to the slitting zone and better material handling for wide rolls |
Use Guide
Running It On Your Floor
- Ensure the unwinding shaft is properly secured with a 3 inch or 6 inch core before loading the mother roll
- Set the slitting width and roll length on the control panel before starting the machine
- Begin at low speed and gradually increase to avoid web misalignment or tension spikes
- Check the first few metres of slitting for edge accuracy and tension stability
- Clean the slitting knives regularly to maintain sharpness and prevent paper dust buildup
FAQ
Kraft Paper Slitting Machine-vertical type FAQ
What is the minimum slitting width
The minimum slitting width is 30 mm across all models.
Can it handle both 3 inch and 6 inch cores
Yes, all models support both 3 inch (75-76 mm) and 6 inch (152 mm) paper cores.
What is the maximum speed of the machine
Cutting speed is adjustable from 5 to 180 m/min, depending on material and setup.
How accurate is the slitting width
The slitting precision is within ±0.5 mm, ensuring consistent roll widths.
Can the machine be built for my country's power supply
Yes, the power supply can be configured to match the voltage and frequency of your country.
What is the machine footprint for installation
Dimensions range from 2400 x 1110 x 1500 mm (LFQ-1100) to 2800 x 1110 x 1500 mm (LFQ-1600).
Do you have quality certifications
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
