Kraft Masking Paper Making Machine

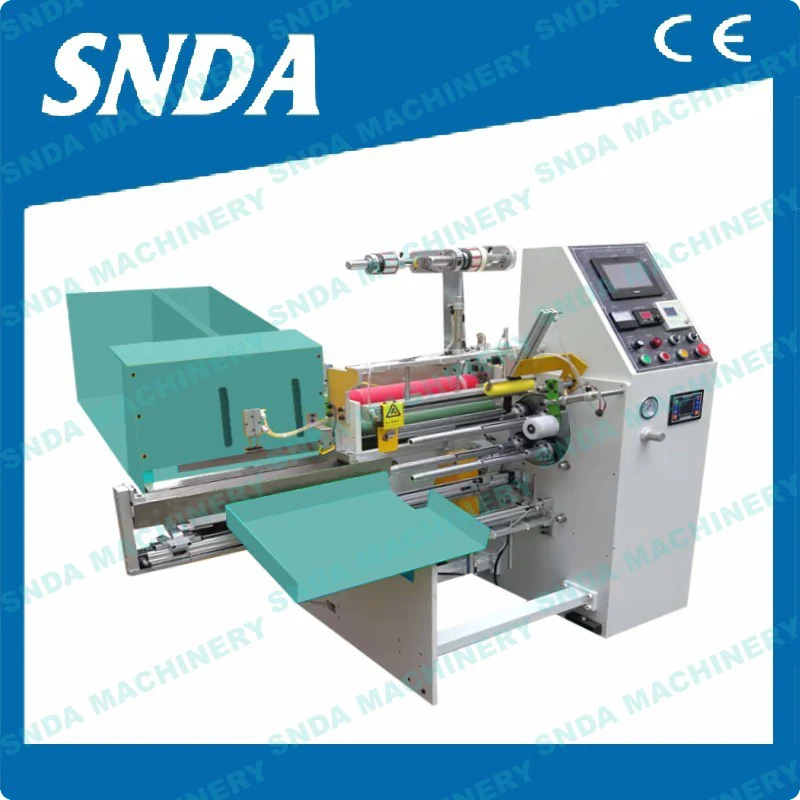

The SD-ZB260 slits and rewinds a mother roll of kraft paper or protective film into narrower finished rolls for dustproof and scratch-resistant covering. It is designed for converting large reels into smaller rolls used in construction, automotive painting, and appliance protection. The machine handles both kraft paper and polyethylene film, enabling a packaging producer to make its own masking rolls instead of buying them pre-made.
- Converts large kraft paper or PE film reels into smaller rolls on site, reducing reliance on external suppliers
- Slits and rewinds in one continuous process, so one operator can manage the line
- Cutting speed is fixed at 100 m/min, suitable for consistent production runs
- Automatic tension control on unwinding and rewinding ensures even roll formation
- Two-stage electronic length counting allows accurate roll length setting and repeatable output
Why Buyers Choose It
- Buying pre-made masking rolls adds a supplier margin and long lead times for replenishment
- Manual slitting of kraft paper is slow and inconsistent, leading to uneven roll widths
- Lack of control over roll length causes waste or customer complaints about short rolls
- Inconsistent tension during rewinding leads to loose or collapsed rolls
- Need for custom roll sizes is not met by standard off-the-shelf products
Who Runs This Machine
- Packaging converters that already buy kraft paper in large reels and want to produce masking rolls
- Paint shops and construction firms needing on-site masking roll production
- Automotive service centres requiring consistent protective film for vehicle painting
- Appliance and furniture manufacturers protecting products during transit or storage
Where This Machine Is Used
- Protective packaging producers making custom-sized masking rolls for construction site use
- Automotive workshops producing pre-cut protective film for car painting and bodywork
- Appliance manufacturers converting kraft paper into dust covers for household goods
- Furniture makers supplying masking rolls to paint shops for pre-assembly protection
- Packaging converters adding a value-added slitting step to existing kraft paper inventory
Features And Specifications
Technical features
- Uses frequency conversion speed regulation and full integrated circuit control for stable operation
- Automatic tension control on both unwinding and rewinding stages maintains web stability
- Two-stage electronic length counting ensures accurate roll length and repeatable output
- Capable of handling kraft paper and environmental polyethylene film for protective use
- Tapered core design with 16mm taper and 3 inch core diameter ensures secure roll mounting
Specifications
| Machine model | SD-ZB260 |
|---|---|
| Max. width of mother roll | 450 mm |
| Max. diameter of mother roll | 1000 mm |
| Max. width of final roll | 240 mm |
| Max. diameter of finished roll | 100 mm |
| Paper core diameter (rewind and unwind) | 1 inch and 3 inch |
| Taper width and core diameter | 16 mm / 3 inch |
| Cutting speed | 100 m/min |
| Total power | 2.5 kW |
| Gross weight | 800 kg |
| Overall dimensions | 2000 x 1800 x 1400 mm (L x W x H) |
How The Machine Runs
Materials
- Kraft paper reels up to 450 mm wide and 1000 mm diameter
- Environmental polyethylene (PE) film for protective covering
- HDPE film as an alternative for durable, waterproof protection

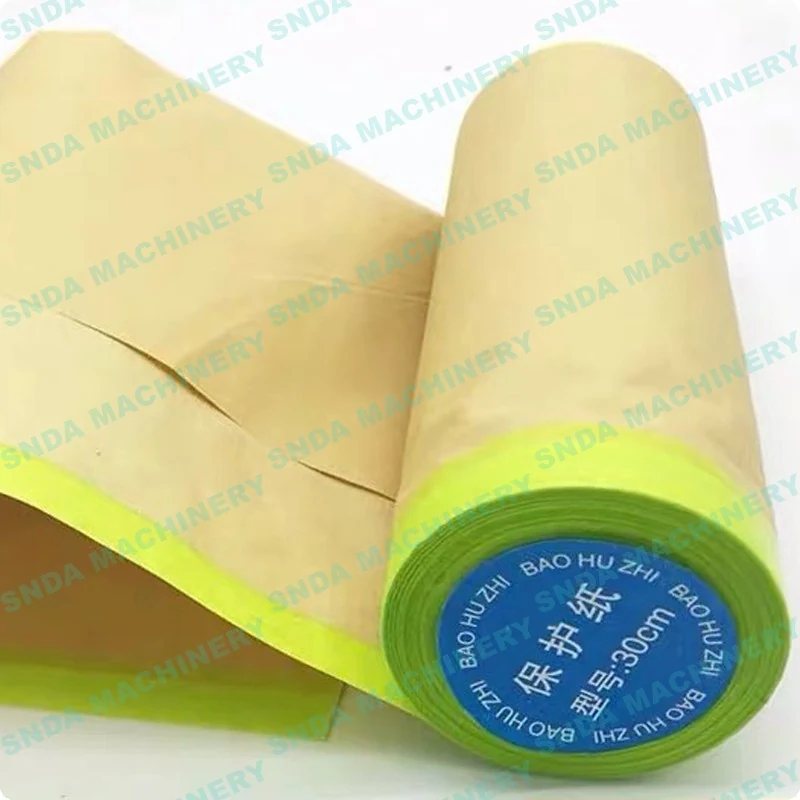

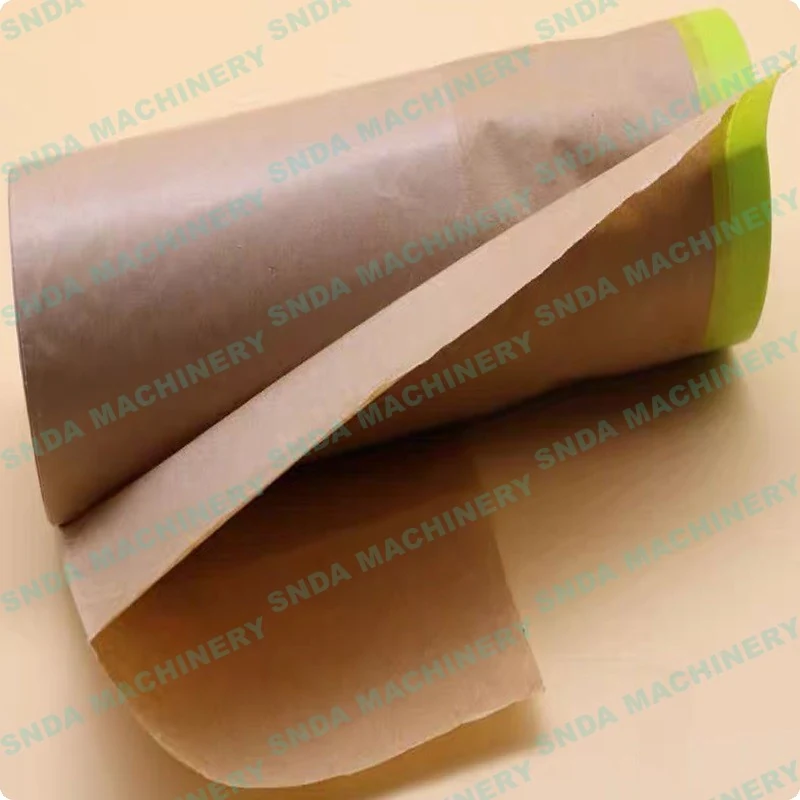

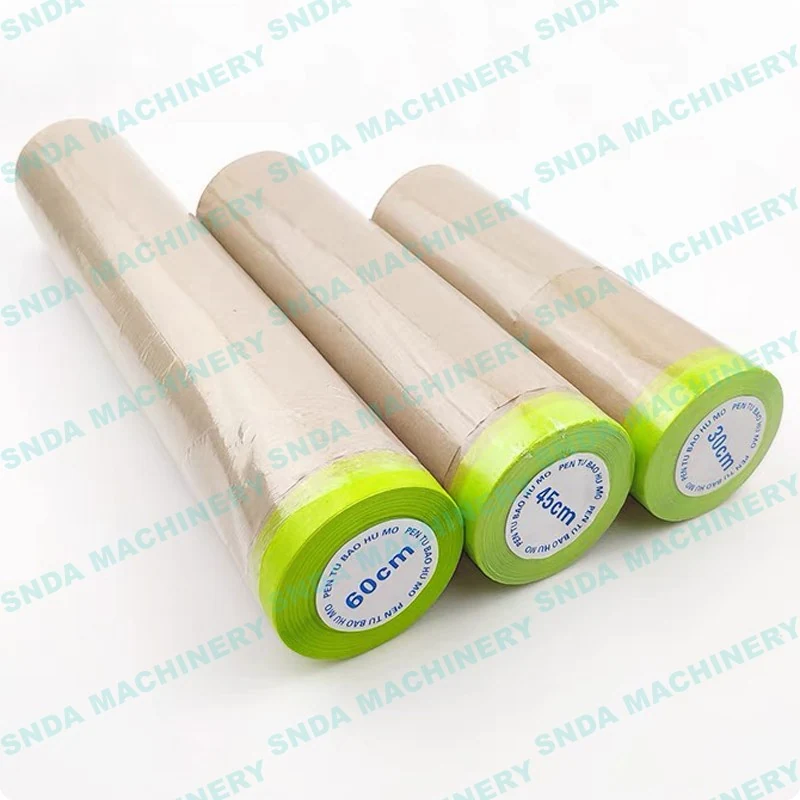

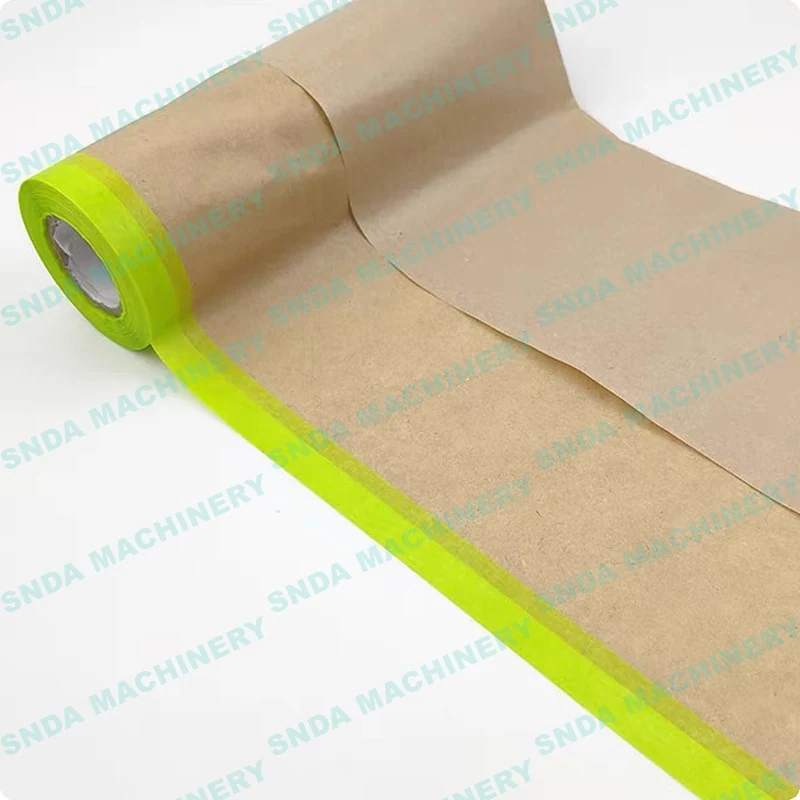

- Optional pre-taped masking film using adhesive tape applied inline
Quality Control
- Automatic tension control prevents slack or over-tension during unwinding and rewinding
- Electronic length counter verifies roll length before the machine stops
- Machine is tested with customer material before shipment to confirm slitting accuracy
- Core taper and diameter match ensure secure roll mounting and no slippage
Customisation
- Cutting width can be adjusted to produce rolls under 240 mm if needed
- Core diameter can be supplied in 1 inch or 3 inch to match existing core stock
- Taper width can be adjusted to 16 mm for 3 inch cores to ensure tight fit
- Pre-tape application unit can be added for adhesive-backed masking film
- Power supply can be built to match voltage and frequency of destination country
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying pre-made masking rolls | Converting in house removes the supplier margin but requires inventory of mother rolls and machine investment |
|---|---|
| Manual slitting with hand tools | This machine ensures consistent width, even tension, and accurate length, reducing waste and rework |
| General paper slitting machines | This machine includes automatic tension control and electronic length counting, which are not standard on basic models |
Running It On Your Floor
- Ensure the unwinding shaft is fitted with a 1 inch or 3 inch core before loading the mother roll
- Set the desired final roll width using the adjustable slitting knives
- Start the machine at low speed and increase gradually to 100 m/min once the web tracks steadily
- Verify the first few meters of slitting for width accuracy and edge quality
- Use the two-stage length counter to set the target roll length before starting a new run
Kraft Masking Paper Making Machine FAQ
What is the maximum width of the mother roll it can handle
The machine can handle mother rolls up to 450 mm wide and 1000 mm in diameter.
What is the cutting speed
The cutting speed is fixed at 100 m/min.
What core sizes does it support
The machine uses 1 inch and 3 inch paper cores for both unwinding and rewinding.
Can it handle polyethylene film
Yes, it is designed for both kraft paper and environmental polyethylene (PE) film.
What power supply is required
The total power is 2.5 kW. We can build to the voltage and frequency of your country on request.
What are the machine dimensions and weight
The machine is 2000 x 1800 x 1400 mm and weighs 800 kg.
Does it have automatic length counting
Yes, it has two-stage electronic length counting for accurate roll length control.
