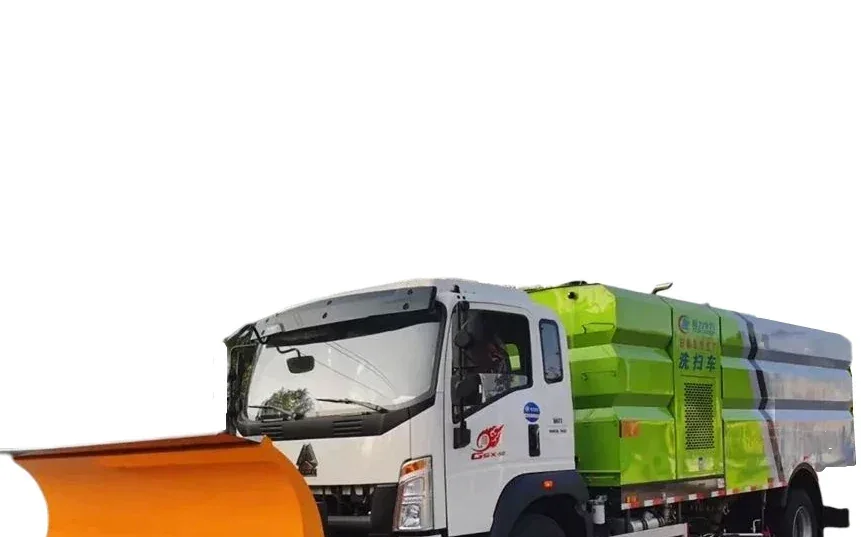

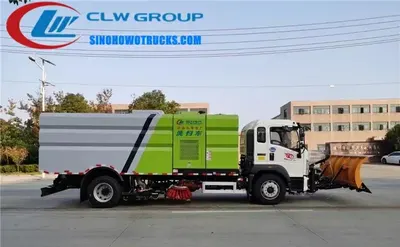

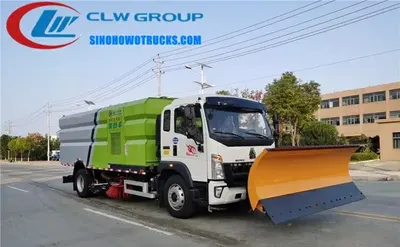

The Sinotruk HOWO road sweeper with snow plow function is a 4x2 chassis vehicle designed for municipal road cleaning and snow removal in urban and suburban environments. It is built on a Dongfeng one and a half row forward control cab with a 220 HP diesel engine and 8-speed manual gearbox. The truck carries a 9 cubic meter stainless steel dustbin and a 7 cubic meter water tank, enabling it to sweep, wash, and vacuum collect surface debris including dust, leaves, mud, sand, and small stones. The high-pressure jetting system flushes stubborn road grime, and the self-cleaning system automatically tips the dustbin and rinses it after each cycle. It is used by city sanitation departments and public works agencies in cold climates where snow and ice accumulation requires immediate clearance.
| Model | CLW5160SLCEQ16 |
|---|---|
| Chassis | Sinotruk HOWO 4x2 left hand drive |
| Engine | 220 HP diesel |
| Gearbox | 8 shift manual |
| Cab Type | Dongfeng one and a half row forward control, tilt type |
| Overall Size | Approx. 8580 x 2500 x 3100 mm |
| GVW | Approx. 16000 kg |
| Tare Weight | Approx. 11350 kg |
| Wheelbase | 5000 mm |
| Approach Angle | 22 degrees |
| Departure Angle | 13 degrees |
| Frame Section Height | 250 mm |
| Frame Section Width | 80 mm |
| Front Suspension | 8-leaf spring with shock absorber |
| Rear Suspension | 10+8-leaf spring |
| Tire Size | 10.00R20 |
| Tire Quantity | 7 pieces (including one spare) |
| Clutch Diameter | 395 mm |
| Control Method | Hydraulic control with air booster |
| Max Speed | 99 km/h |
| Dustbin Capacity | 9 CBM stainless steel |
| Water Tank Capacity | 7 CBM |
| Pump Type | Italy imported high-pressure plunger pump |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 3x2 road sweeper with 5 CBM dustbin | Lower capacity and less water for washing but better turning radius in narrow city streets |
|---|---|
| Truck with separate snow plow and sweeper | More expensive and requires two vehicles; this model combines both functions in one chassis |
| Basic vacuum sweeper without high-pressure wash | Cannot remove sticky or compacted debris; lacks the ability to clean after snow removal |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and equipment configuration.
Yes. The standard is stainless steel. Carbon steel is available on request. Let us know your expected service life and operating environment.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis can be ordered in left or right hand drive. Confirm this at order stage as it cannot be changed after production begins.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. We can adjust the broom width, nozzle positions, and suction power based on your road surface and debris type. Send us your site conditions and we will recommend the best setup.
Send us your destination port and we will quote price, lead time and freight.
